Gaodetec GSZ3000E 5m3/h Wet Mix Concrete Shotcrete Spraying Gunite Machine
GSZ3000E
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GSZ3000E
CE
2.05× 0.95× 1.18m
1200kg
7.5kw
220V, 380V, 440V, 660V, 50Hz/60Hz
GSZ3000E
Gaodetec
China
10~ 12m3 /min
51/ 64mm
15mm
35m(wet) 200m(dry)
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):2.05× 0.95× 1.18m
- Weight:1200kg
- Power(W):7.5kw
- Voltage:220V, 380V, 440V, 660V, 50Hz/60Hz
- Model Number:GSZ3000E
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:10~ 12m3 /min
- Hose Inner Diameter:51/ 64mm
- Max Aggregate Size:15mm
- Max. Conveying Distance:35m(wet) 200m(dry)
Specifications
- Weight:1200.000kg
- Condition:New
- Moving Type:Wheel
- output:5m3/h
- Concrete Slump:8 -15cm
- Operating air Pressure:0.3-0.6MPa
- Air Consumption:10~ 12m3 /min
- Main Motor Power:7.5kW
- Dosing Pump:BRJ15
- Dosing Pump Rated Pressure:0.6MPa
- Dosing Pump Output:17.5 -88L /h
- Material Charging Height:1.17m
- Rotor Speed:11r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description

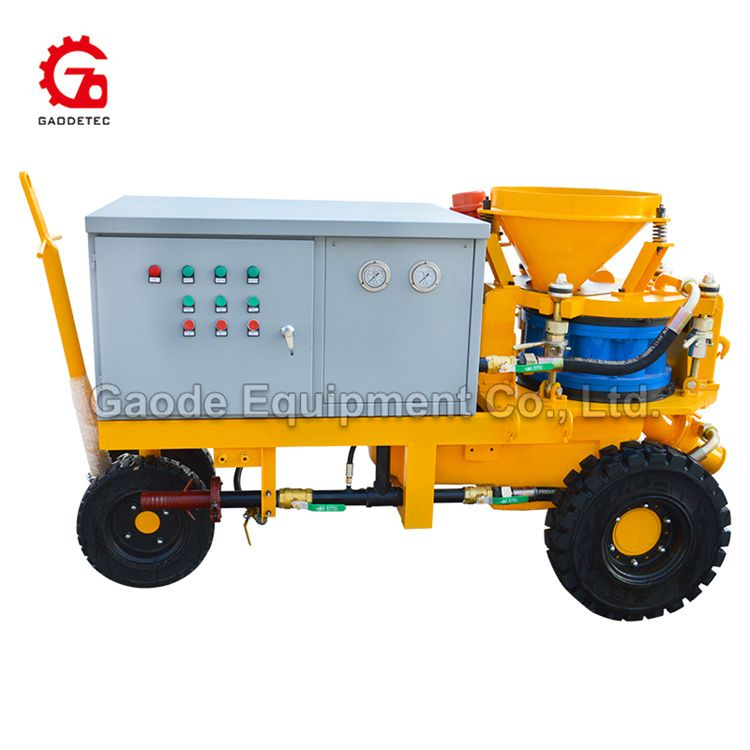

GSZ3000E Dry and Wet Concrete Shotcrete Spraying Gunite Machine
GSZ3000E Concrete Shotcrete Spraying Gunite Machine is a 5m3/h electric universal concrete spraying machine for the processing of wet or dry mix.
1. The machine is suitable either for manual spraying or by means of a robotic arm.
2. GSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
3. Basic: Electric drive can be combined with tyre chassis.
4. Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel.
5. Compared with dry mix shotcrete machine, high strength, low rebound.
_1753431575787.jpg.webp)
Main Features
1. With very low equipment cost to get wet-mix concrete shotcrete.
_1753431576242.jpg.webp)
_1753431575325.jpg.webp)
_1753431576690.jpg.webp)
2. Within the 30 meters conveying distance, it is a perfect wet-mix concrete shotcrete machine.
3. Shotcrete material flow is even and continuous.
4. Both dry-mix and wet-mix concrete spraying.
Technical Parameter
Image Display
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
