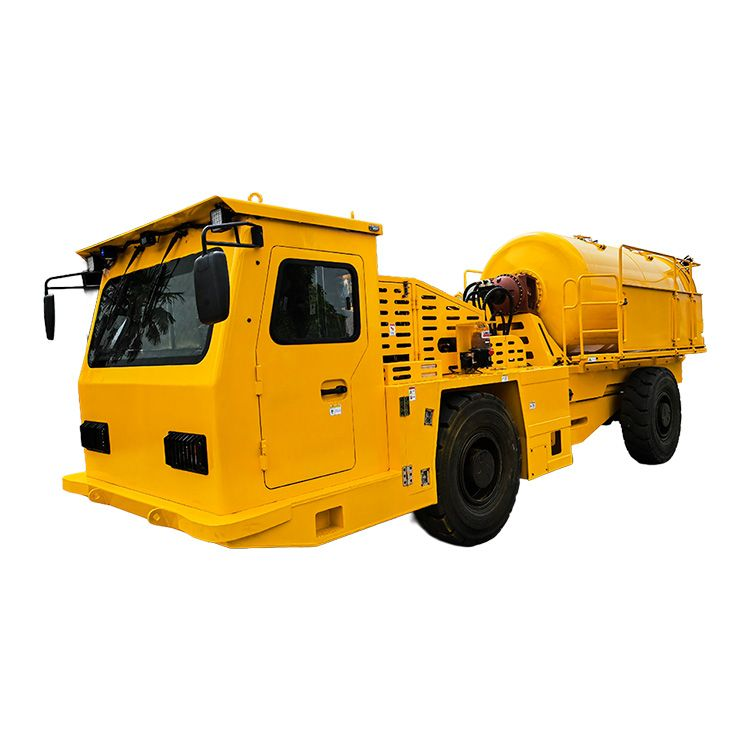

EMSUNTOUR 5 Cbm Underground Metal Mine Concrete Mixer Truck SM5

View All >

Model： SM5

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

EMSUNTOUR 5 Cbm Underground Metal Mine Concrete Mixer Truck SM5

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

I agree to the 《Privacy Policy》

SM5

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Model Number

Brand Name

Place of Origin

Engineering & Construction Machinery

SM5

8,900*2,000*2,710mm

11,500kg

120,000

SM5

EMSUNTOUR

China

+ Add a Product

Summary

Certification:KA
Dimension(L*W*H):8,900*2,000*2,710mm
Weight:11,500kg
Power(W):120,000
Model Number:SM5
Brand Name:EMSUNTOUR
Place of Origin:China

Specifications

Weight:11500.000kg
Condition:New
Moving Type:Other
Mixing Capacity:5m³
Feeding Speed:≥2.7m³/min
Inner turning radius:3,940mm
Outer turning radius:6,550mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Product Description

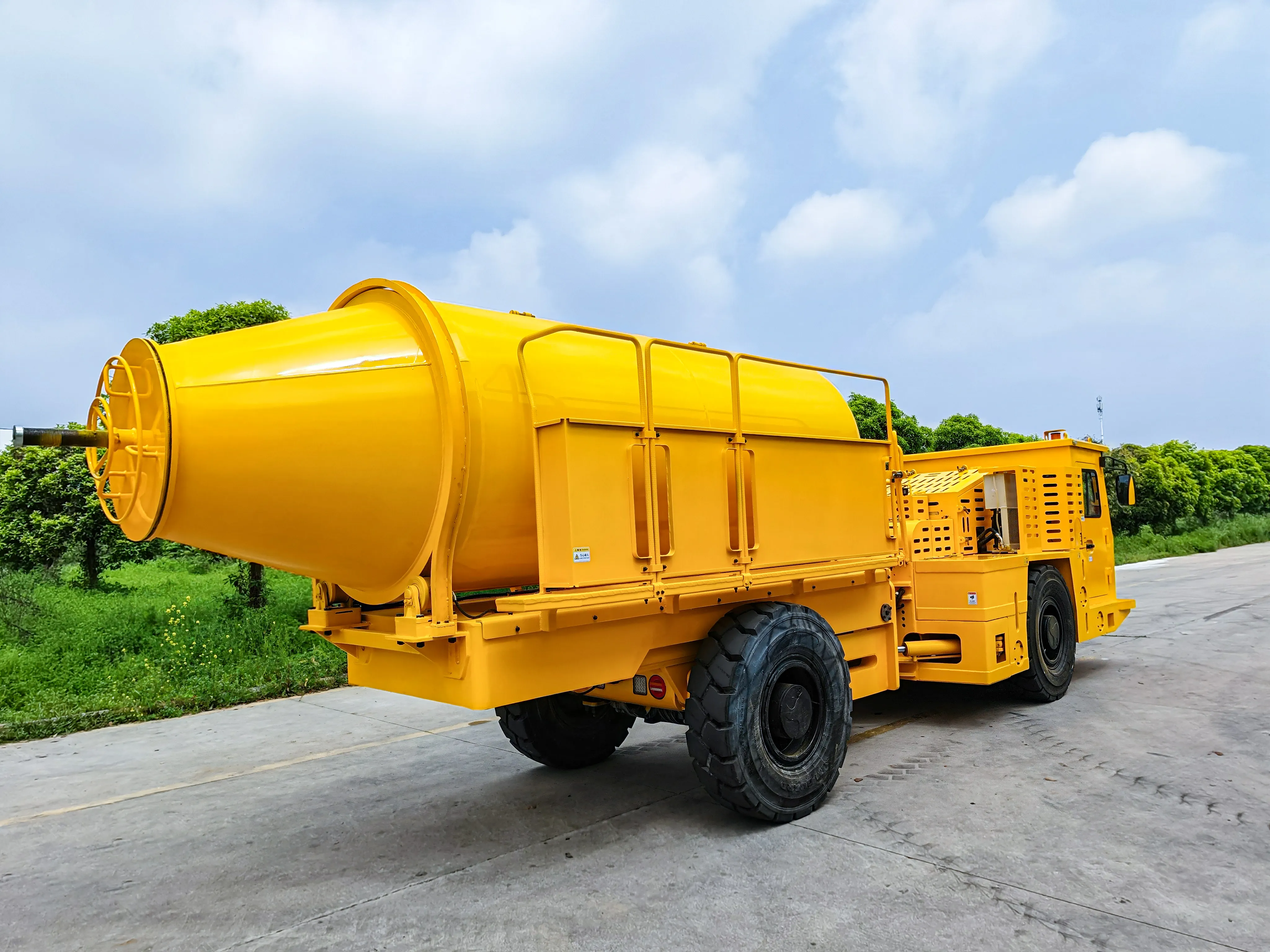

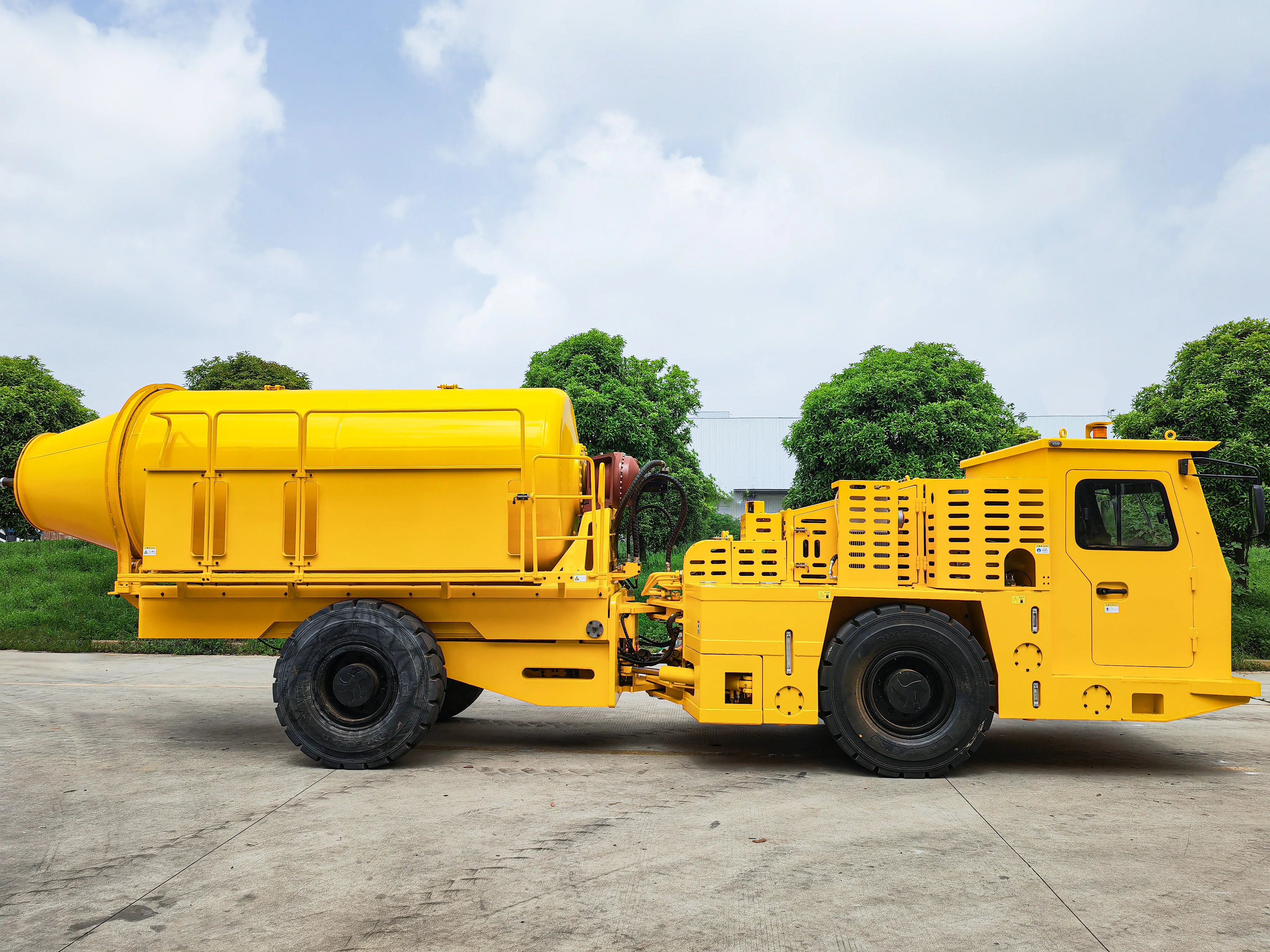

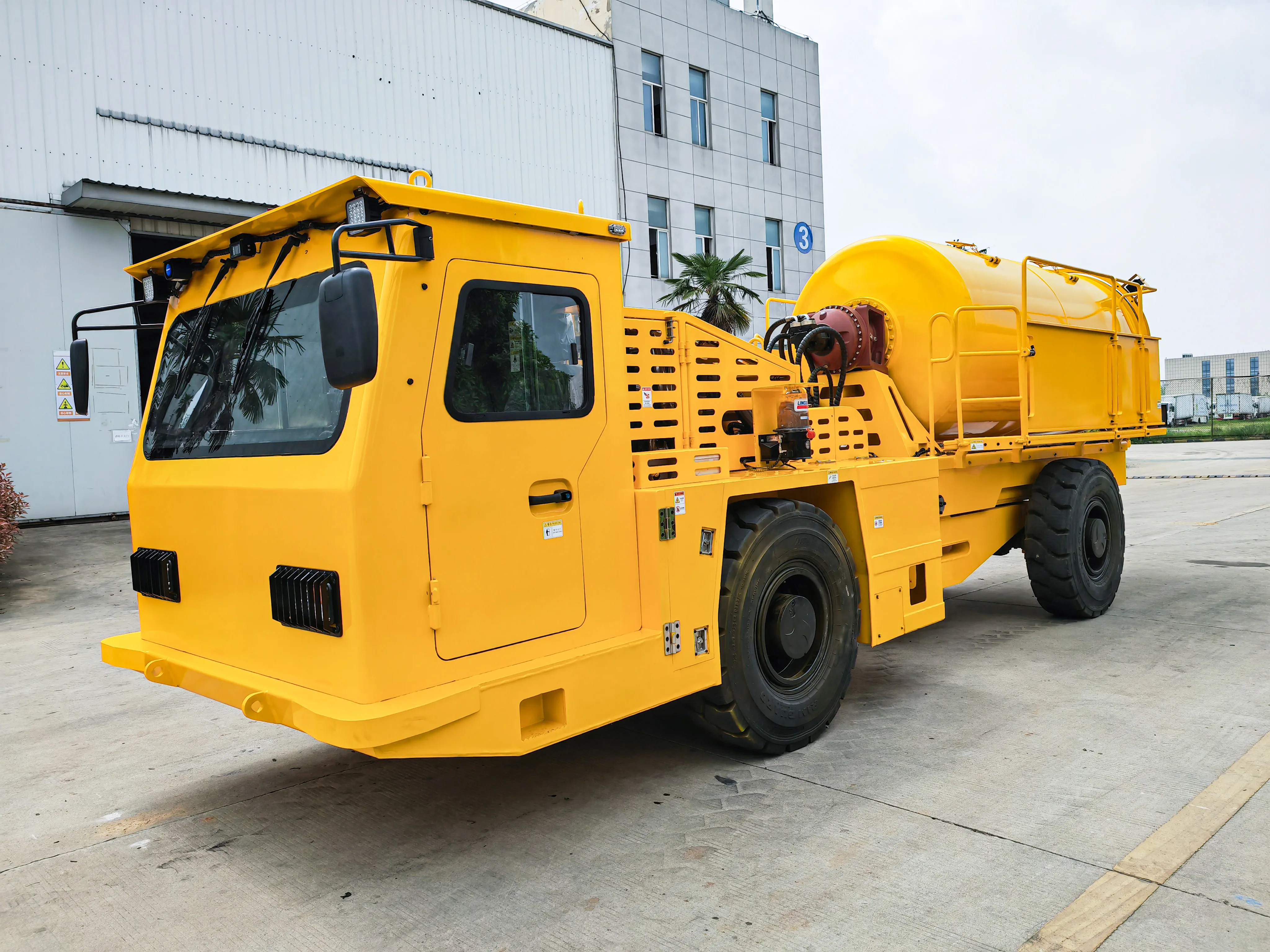

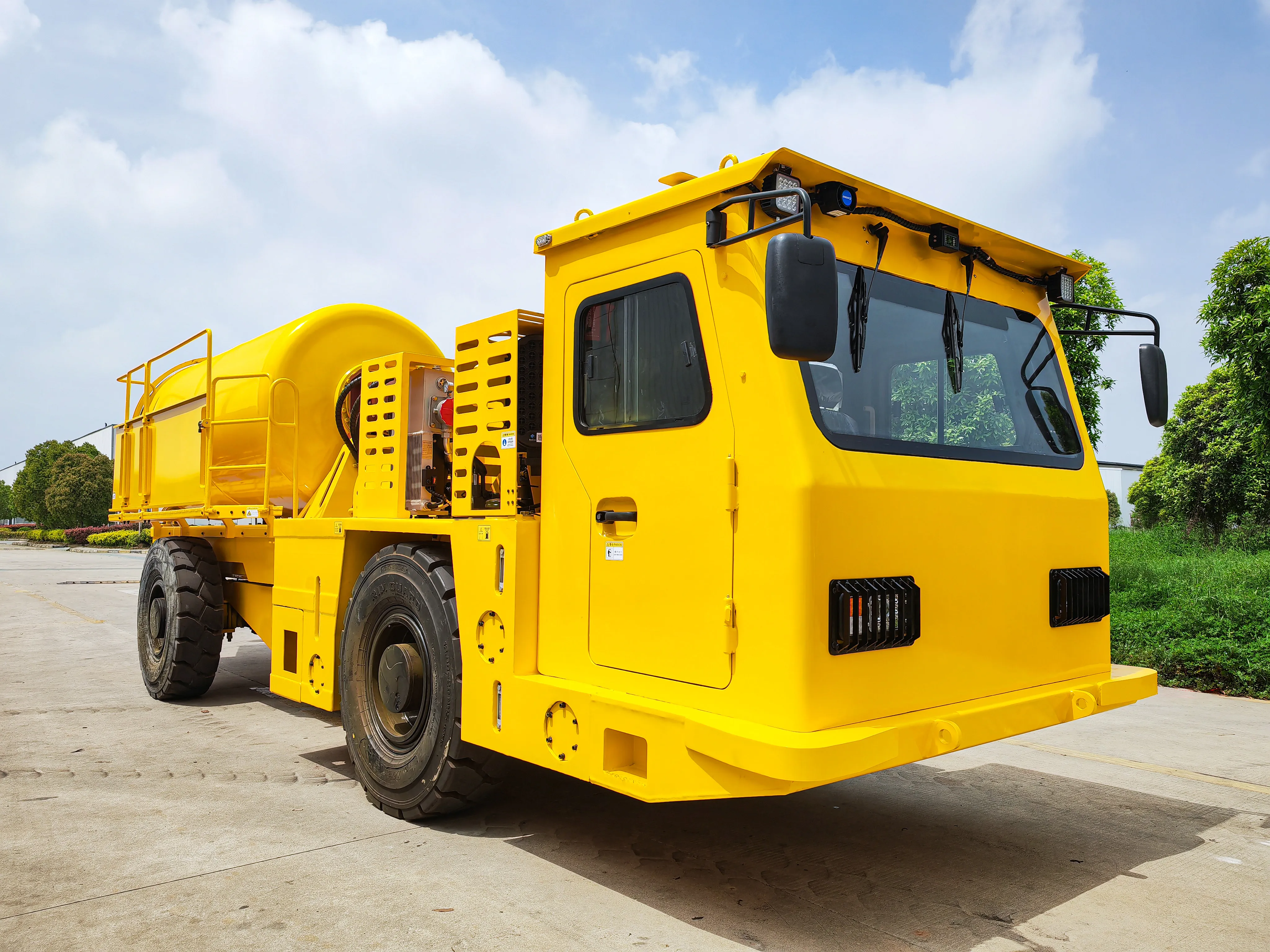

EMSUNTOUR underground diesel concrete mixer truck SM5 is specifically designed for the concrete transportation needs of underground metal mines. It can be directly loaded at ground-level or underground concrete stations and transported directly to the point of use underground, eliminating the need for secondary transfer.

Main Benefits

- The vehicle's core components are sourced from internationally renowned brands, ensuring high-end performance configurations that deliver greater stability and reliability in actual operations.

- The vehicle exhibits excellent passability, adeptly accommodating the narrow and low-ceilinged environments typical of underground mines.

- The chassis is designed to be compatible with various attachments for swift interchangeability, including personnel carriers and tankers, thereby enhancing the overall vehicle utilization rate.

- An optional automatic centralized lubrication system is available, offering enhanced intelligence and efficiency in maintenance.

- The vehicle supports customization, with 4-cubic-meter and 6-cubic-meter models to cater to the diverse transportation requirements of small, medium, and large underground mines, as well as to accommodate varying transport distances.

- The continuous rotation of the mixing drum during transportation significantly improves the efficiency and quality of concrete delivery, aiding customers in operating more effectively.

Product	Underground Metal Mine Concrete Mixer Truck SM5
Capacity	5m³
Dimension	8,9002,0002,710mm
Ground Clearence	335mm
Turning Radius	3,940/6,550mm

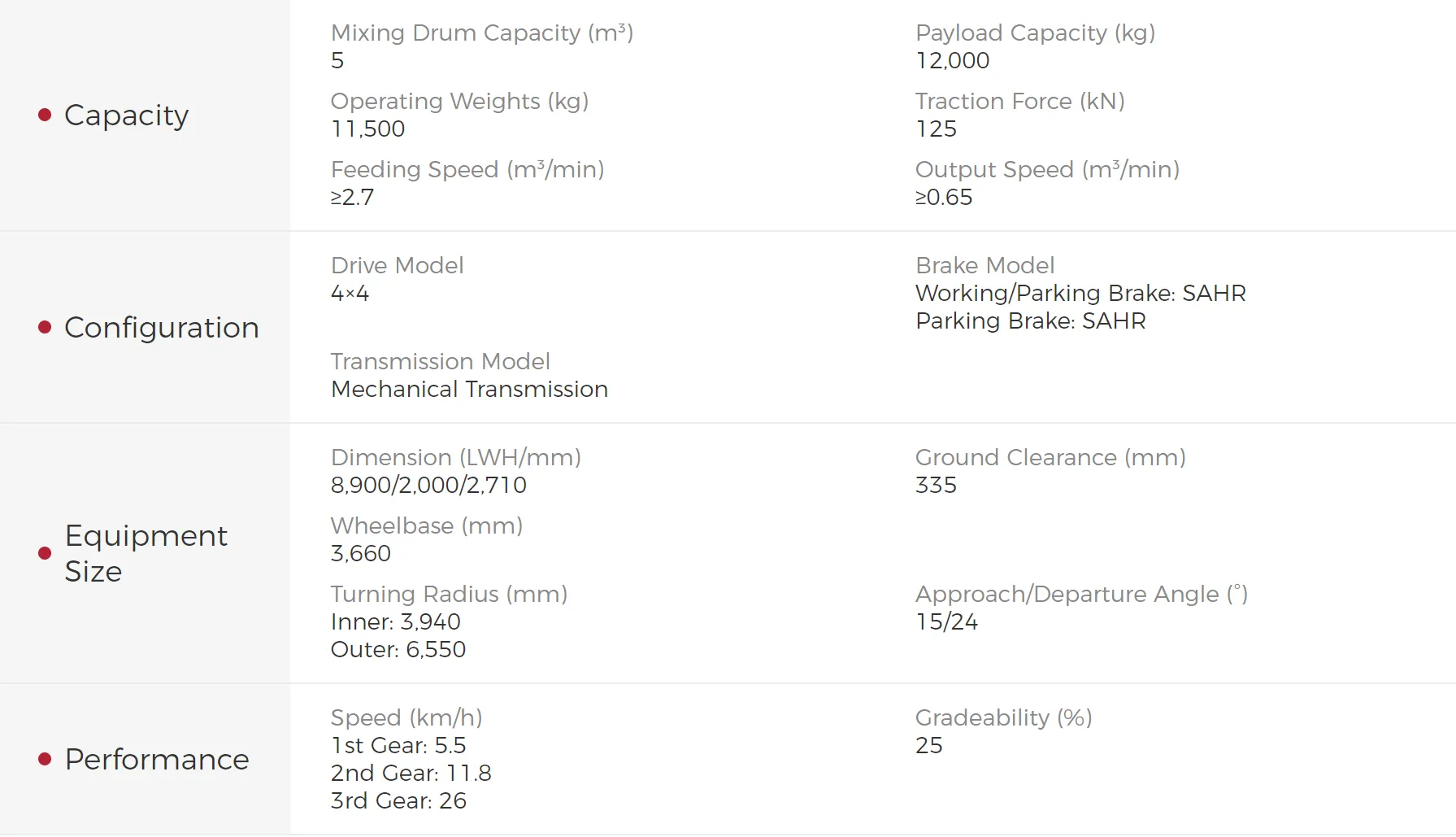

Main Parameters

Company Profile

Hubei Shentuo Intelligence Equipment Co., Ltd. (referred to as“EMSUNTOUR”) is a wholly-owned subsidiary of Xiamen Yimu Intelligence Technology Co., Ltd. It has an R&D center in Wuhan and two production bases in Suizhou and Wuhai. It is a technology-oriented company, focusing on the research and development, production, sales, after-sales and export of underground equipment for metal mining and coal mining, its products are aimed at the global market.

Based on scientific and technological innovation, EMSUNTOUR has a new generation of underground dump trucks, underground loaders, underground concrete mixer trucks and other series of battery electric and diesel models to meet customers' mining needs in various situations, in order to upgrade production efficiency and economic benefits of mining, and strive to improve the security and happiness of underground workers.

EMSUNTOUR adopts an advanced quality management system to provide top-quality underground equipment. At the same time, we adhere to intelligent manufacturing and builds up industry-leading manufacturing capabilities for underground equipment through advanced ERP and information systems to ensure product delivery cycles. In future, EMSUNTOUR will continue to be committed to all-round innovation, providing more intelligent and efficient technologies and products for the domestic and international mining industries, and working hard to promote productivity improvement, industry development, and ESG construction!
