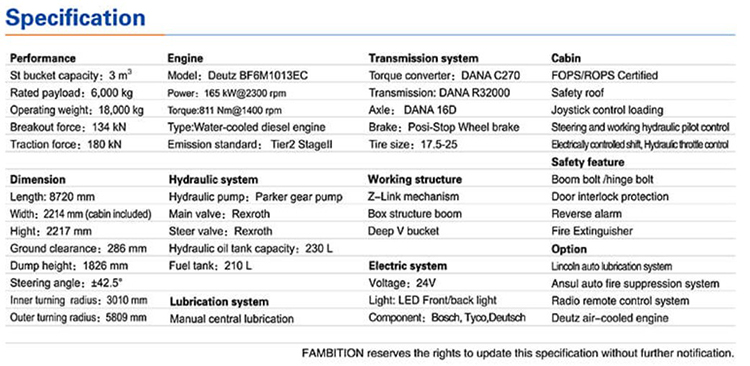

- Capacity :3 m³
- Rated payload:6000 kg
- Dump height :1826 mm
- Steering angle:±42.5°
- Dimension(L*W*H):8720*2214*2217 mm
- Hydraulic oil tank capacity:230L

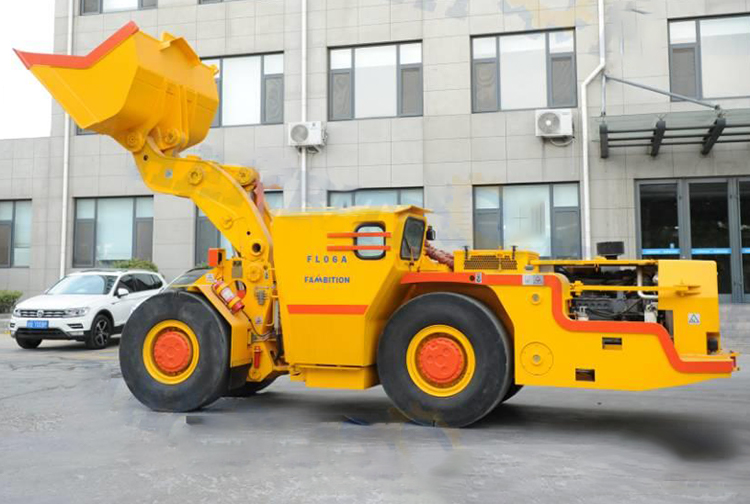

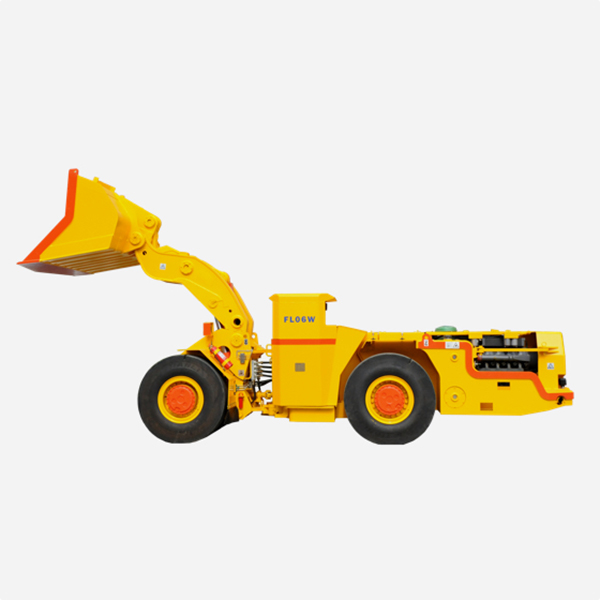

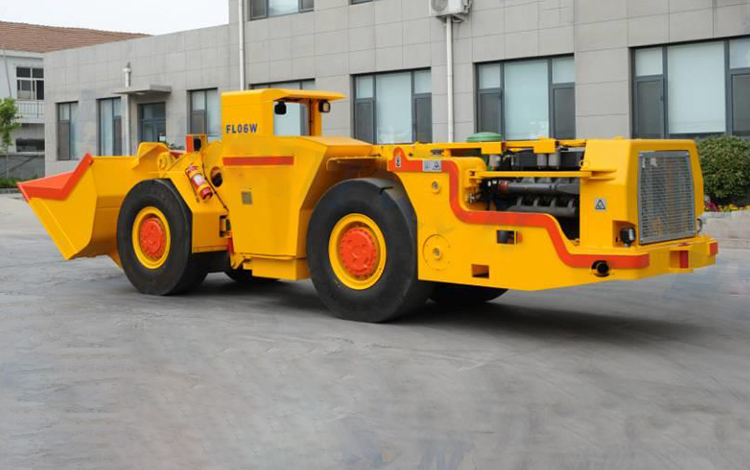

Underground scooptram loader Fambition FL06 for mining.
Underground scooptram loader Fambition FL06 for mining is a 6-ton diesel underground LHD load haul dumper designed for medium and small underground metal mines.
The main parts of FL06 underground LHD load haul dumper adopt the high configuration of international famous brand and hydraulic pilot control.
The boom adopts the box structure of high strength and light weight, accompanied by Z-link mechanism that enables fast loading.
The frame adopts advanced integral processing technology, which makes the service life of the equipment longer, and FL06 can be matched with central lubrication system and Ansul auto fire suppression system.
