XCMG 180hp GR180 2013 Used Asphalt Soil Motor Graders For Sale
Summary
- Certification:CE/IOS9001
- Dimension(L*W*H):8900*2625*3470mm
- Weight:15400kg
- Model Number:GR180
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
- Reverse Speed(km/h):23
- Forward Speed(km/h):38
Specifications
- weight:15400.000kg
- Condition:Used
- Moving Type:Wheel
- Rated Power:140/2300kw/rpm
- Maximum Traction Force:79kN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

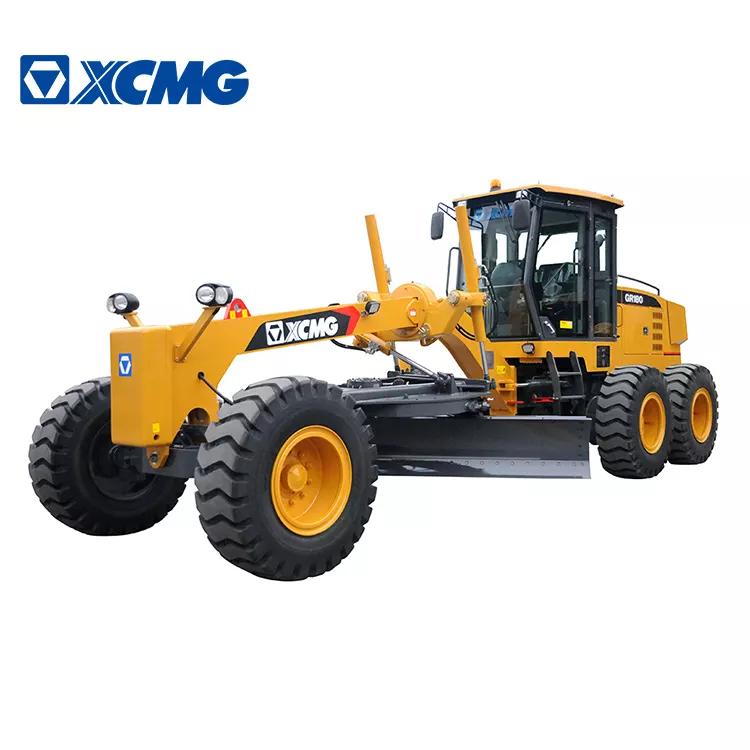

XCMG 180hp GR180 2013 Used Asphalt Soil Motor Graders For Sale
XCMG 180hp asphalt soil motor graders GR180 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.
GR180 motor graders is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Description | Unit | Parameter value | |
Engine model | 6CTA8.3-C190-Ⅱ | ||
Rated power/speed | kW/rpm | 142/2200 | |
Overall dimension (standard) | 8900x2625x3420 | ||
Total weight (standard) | kg | 15400 | |
Tire specification | 17.5-25 | ||
Ground clearance (front axle) | mm | 430 | |
Tread | mm | 2156 | |
Space of front and rear axles | mm | 6219 | |
Space of middle and rear wheels | mm | 1538 | |
Forward velocity | km/h | 5/8/11/19/23/38 | |
Reverse speed | km/h | 2005/11/23 | |
Tractive effort f=0.75 | kN | ≥79 | |
Maximum gradeability | % | ≥25 | |
Tire inflation pressure | kPa | 260 | |
Working system pressure | MPa | 18 | |
Transmission pressure | MPa | 1.3—1.8 | |
Maximum steering angle of front wheel | ±50° | ||
Maximum slant angle of front wheel | ±17° | ||
Maximum oscillating angle of front axle | ±15° | ||
Maximum oscillating angle of equilibrium box | Front15° Rear15° | ||
Maximum steering angle of frame | ±27° | ||
Minimum turning radius | m | 7.3 | |
Scrape knife | Maximum lift height | mm | 450 |
Maximum cutting depth | mm | 500 | |
Maximum tilt angle | 90° | ||
Cutting angle | 28°—90° | ||
Angle of revolution | 360° | ||
Length & chord height | mm | 3965x610 | |
Coolant | L | 50 | |
Fuel tank | L | 280 | |
Engine | L | 24 | |
Transmission | L | 38 | |
Drive axle | L | 28 | |
Balancing box | L | 46 |
If any other questions, please feel free to contact with us.
