GAODETEC GDPX Versatile Conveying Unit For Large Concrete Areas

FOB Price: $23000.00-$26500.00

View All >

Model： GDPX

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

GAODETEC GDPX Versatile Conveying Unit For Large Concrete Areas

Quantity:

- + /Set

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

GDPX

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Voltage

Model Number

Brand Name

Place of Origin

Air Consumption

Hose Inner Diameter

Max Aggregate Size

Max. Conveying Distance

Engineering & Construction Machinery

GDPX

1.55x1.55x1.25m

668~1740kg

11~30kw

380V,50Hz 3phase

GDPX

Gaodetec

China

16/32mm

Horizontal 100m, Vertical 40m

+ Add a Product

Summary

Certification:CE
Dimension(L*W*H):1.55x1.55x1.25m
Weight:668~1740kg
Power(W):11~30kw
Voltage:380V,50Hz 3phase
Model Number:GDPX
Brand Name:Gaodetec
Place of Origin:China
Max Aggregate Size:16/32mm
Max. Conveying Distance:Horizontal 100m, Vertical 40m

Specifications

Weight:1740.000kg
Useful volume of the hopper:4~10m³
Useful vessel volume:200L/500L/600L
Total vessel volume:250L/660L/800L

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Description

GDPx series refractory mixing and conveying unit is specially designed for conveying of solidand moistened mortar, concrete mixture and refractory castable. It is suitable for the using in themetallurgical industry produce permanent linings for ladles, tundish, blast furnace runners, onindustrial and melting furnaces for the glass and aluminium industry. The pneumatic refractorymixing and conveying unit can be used also in the building (construction) industry at the concreting of base of building, floors and larger concreted areas.

GAODETEC GDPX Versatile Conveying Unit For Large Concrete Areas

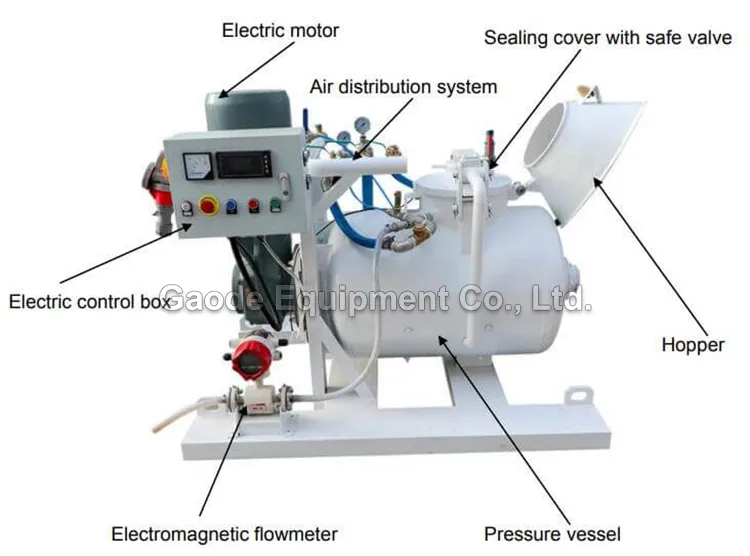

Working principle of refractory mixing and pressure conveying unit:Mixture closed in the pressure tank will be mixed by motion of mixing blades and by thecompressed air. Mixing blades slide simultaneously the mixture and push it into the dischargeport of the tank. Additional, lower position compressed air entering into the conveying hose andblow mixture uniform motion of in transport hoses. Transport of the mixture in the conveying hosepasses in agglomerates, and unique swirling air path design makes the materials will not producelarge fluctuations.

GAODETEC GDPX Versatile Conveying Unit For Large Concrete Areas

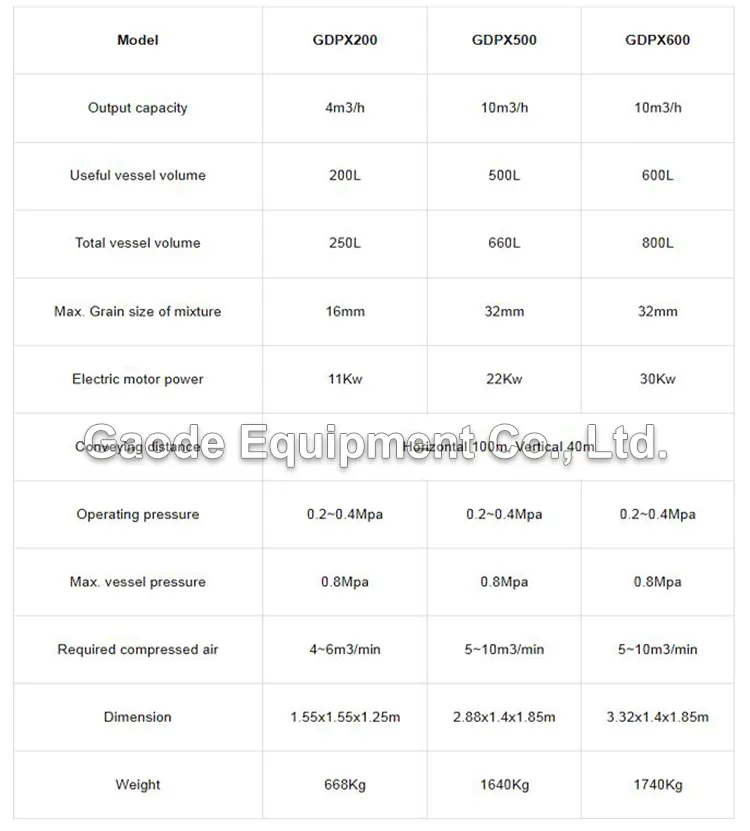

Parameters

Application

The GDPX refractory mixing and conveying unit is designed for the manufacture and transport ofsolid and damp concrete mixtures, as well as refractory materials. It is utilized in the metallurgyindustry for various applications, including pig iron production, spout and gutter concreting, andsteel production for steel ladle and lid concreting. Additionally, it is applied in civil engineeringprojects,such as foundation floor construction and the pumping of large concrete areas.

GAODETEC GDPX Versatile Conveying Unit For Large Concrete Areas

FAQ

1. Are you the manufacturer or a trade company?

We are the manufacturer for producing grout equipment.

And we have owned a trading company to do International Business,

So that:

1)-We can supply good service with professional international trade experience.

2)-The price is much more competitive.

2. Can you do the ODM or OEM? What is MOQ?

Yes, it is possible as discussed, MOQ: 1unit.

3. What about delivery time? How long can I get the machine after the order?

The production time is as fast as 30-60 working days if you customize the machine.

The standard machine in stock can be delivered as soon as possible after ordering.

4. How to pay for yourself?

50% down payment, then production starts, and the balance 50% paid before shipping.

If the machines are in stock, pay 100% then delivery.

Our Advantages

GAODETEC GDPX Versatile Conveying Unit For Large Concrete Areas

Packaging and Delivery

Contact Supplier

1. What's the project you will use the machine do?

2. Mixer only or mixer with agitator?

3. How about the grouting liquid? Just water and cement? Any sand in?

4. How about the water cement ratio? More than 0.45: 1, am I right?

5. How about the mixer and agitator volume you want?

6. And how about the power: electric or diesel engine?
