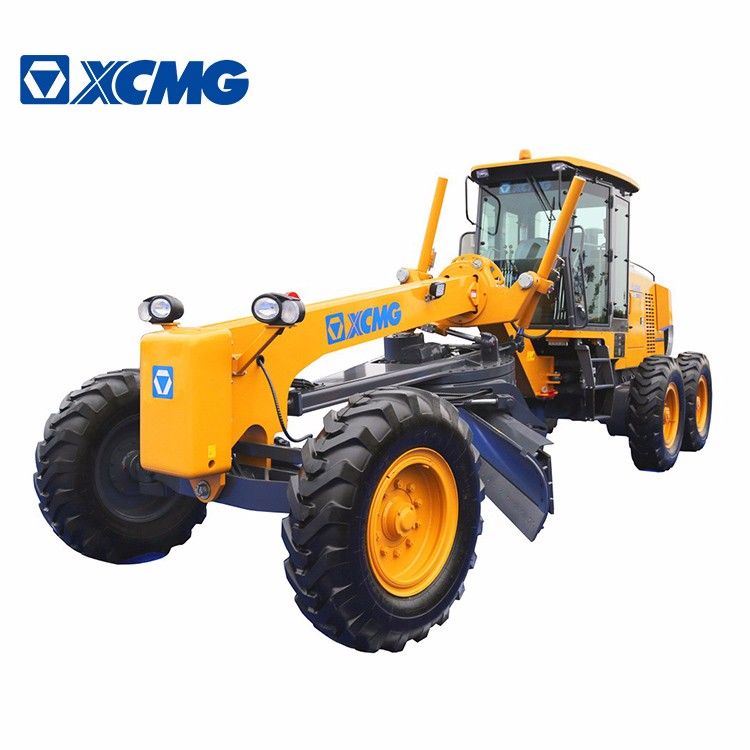

XCMG official manufacturer GR3003 motor grader for sale
Summary
- Dimension(L*W*H):10170 x 3250 x 3700mm
- Weight:28000kg
- Model Number:GR3003
- Brand Name:XCMG
- Place of Origin:China
- Reverse Speed(km/h):5、11、23m/h
- Forward Speed(km/h):5、8、11、19、23、40km/h
- Certification:Can provide relevant certification
Specifications
- Weight:28000.000kg
- Condition:New
- Moving Type:Wheel
- Engine model:QSL9
- Rated power/speed:224kW/2100rpm
- Tire specification:23.5R25
- Ground clearance (front axle):430mm
- Space of front and rear axles:7116mm
- Tractive effort f=0.75:≥140kN
- Working system pressure:22MPa
- Maximum steering angle of front wheel:±45°
- Minimum turning radius:9m
- Maximum lift height:450mm
- Maximum shoveling depth:500mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
|
Item |
Unit |
GR3003 |
||
|
Basic parameters |
Engine model |
QSL9 |
||
|
Rated power/speed |
kW/rpm |
224/2100 |
||
|
Overall dimension(standard) |
mm |
10170 x 3250 x 3700 |
||
|
Total weight(standard) |
kg |
28000 |
||
|
Tire specification |
23.5R25 |
|||
|
Ground clearance |
mm |
430 |
||
|
Tread |
mm |
2580 |
||
|
Space of front and rear axles |
mm |
7116 |
||
|
Space of middle and rear wheels |
mm |
1886/1960 |
||
|
Performance parameters |
Forward velocity |
km/h |
5、8、11、19、23、40 |
|
|
Reverse speed |
km/h |
5、11、23 |
||
|
Tractive effort f=0.75 |
kN |
≥140 |
||
|
Maximum gradeadbility |
% |
≥25 |
||
|
Inflation pressure of tires |
kPa |
350-500 |
||
|
Working system pressure |
MPa |
22 |
||
|
Transmission pressure |
MPa |
/ |
||
|
Working parameters |
Maximum steering angle of front wheels |
° |
±45 |
|
|
Maximum inclination angle of front wheels |
° |
±17 |
||
|
Maximum swing angle of front axle |
° |
±15 |
||
|
Maximum swing angle of balance box |
° |
front 15, rear 15 |
||
|
Maximum steering angle of frame |
° |
±27 |
||
|
Maximum turning radius |
m |
9 |
||
|
Blade |
Maximum lifting height |
mm |
450 |
|
|
Maximum shoveling depth |
mm |
500 |
||
|
Maximum lateral inclination angle |
° |
90 |
||
|
Cutting angle |
° |
28-70 |
||
|
Oil filling amount |
Slewing angle |
° |
360 |
|
|
Length x chord height |
mm |
4877 x 686 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
385 |
||
|
Engine |
L |
24 |
||
|
Transmission |
L |
38 |
||
|
Balance box |
L |
46 |
||
|
Drive axle |
L |
28 |
||
|
Hydraulic oil |
L |
135 |
||
