XCF50KT
Specs & Compare
Details
Select 3 models for comparison
Fork Width
Fork Length
Min Lifting Height
Max Lifting Height
Rated Loading Capacity
Power Source
Type
Model Number
Brand Name
Place of Origin
Storage & Logistics Equipment
XCF50KT
--
--
--
3000mm
5 T
Diesel
--
XCF50KT
XCMG
Jiangsu,China
+ Add a Product
+ Add a Product
Summary
- Max Lifting Height:3000mm
- Rated Loading Capacity:5 T
- Power Source:Diesel
- Model Number:XCF50KT
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:6800.000kg
- Condition:New
- Moving Type:Wheel
- Weight:6800kg
- Specification:4245*1500*2280mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

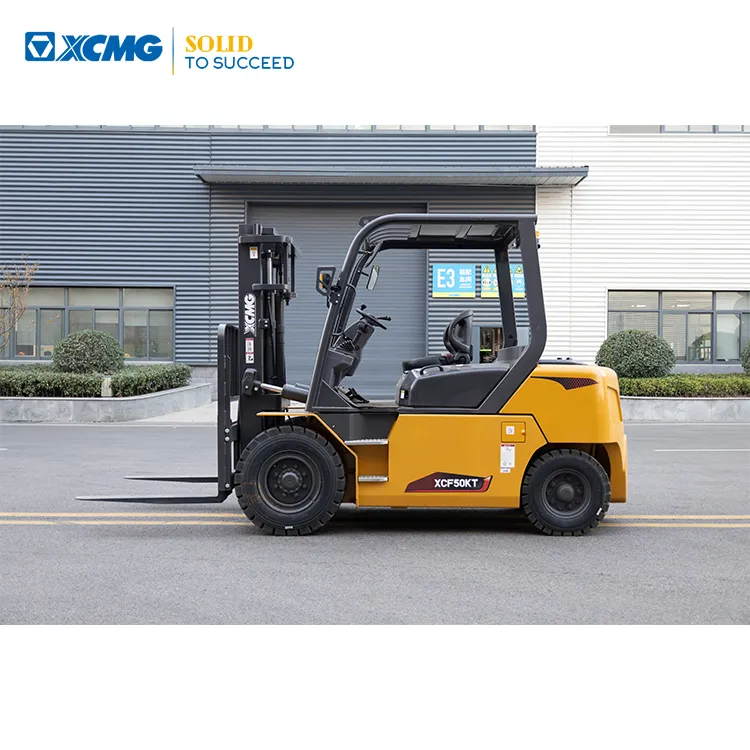

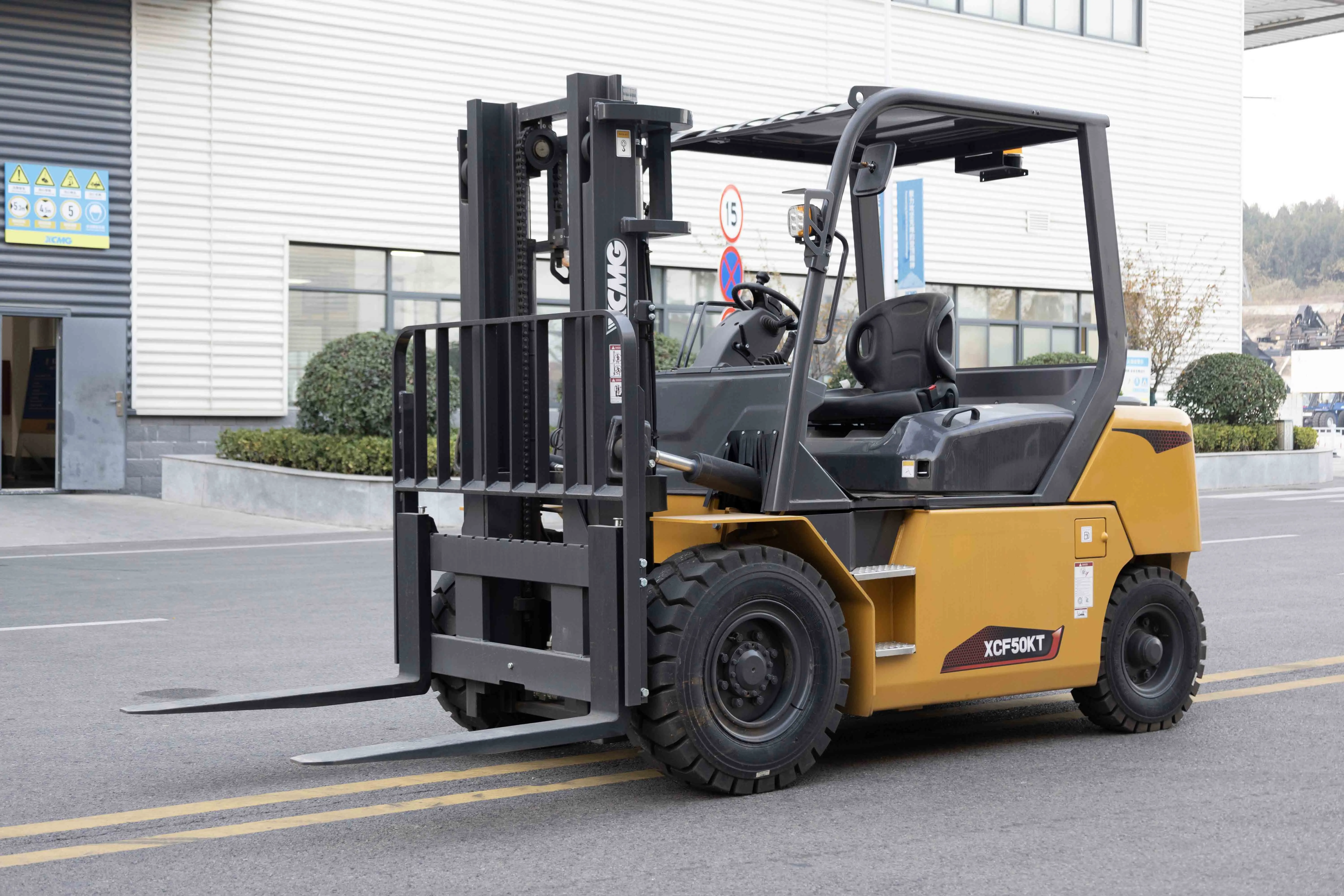

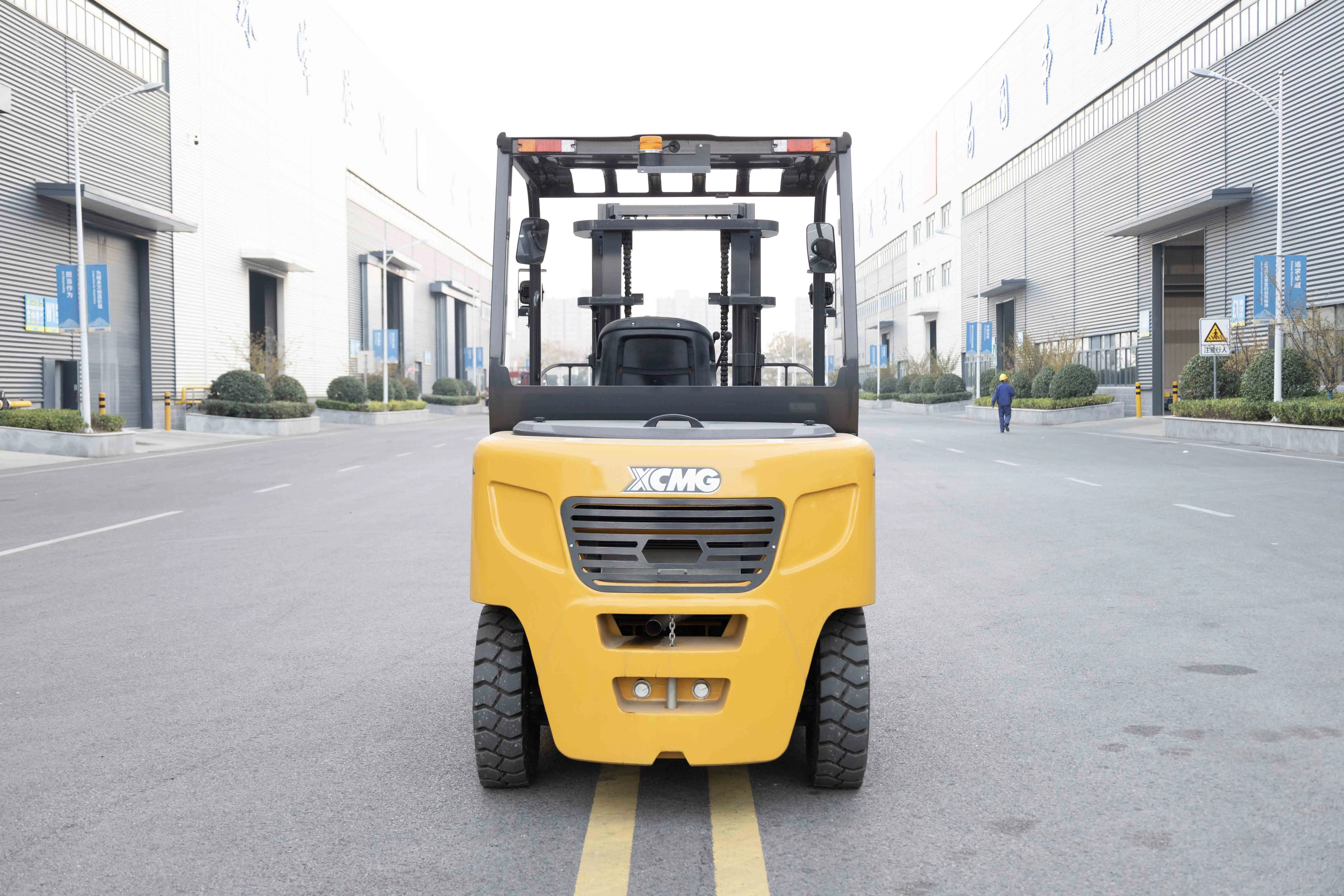

XCMG Official Xcf50kt Internal Combustion Forklifts 5 Ton Diesel Counterbalanced Forklift
XCMG's K series internal combustion counterbalanced forklifts are developed using XCMG's proprietary core technologies and components. Adopting a customer-centric research and development approach, we have created a series of high performance forklifts that are suitable for all regions, weather conditions, and working environments. These forklifts are widely used in logistics areas such as ports, docks, freight yards, steel mills, and warehouses.

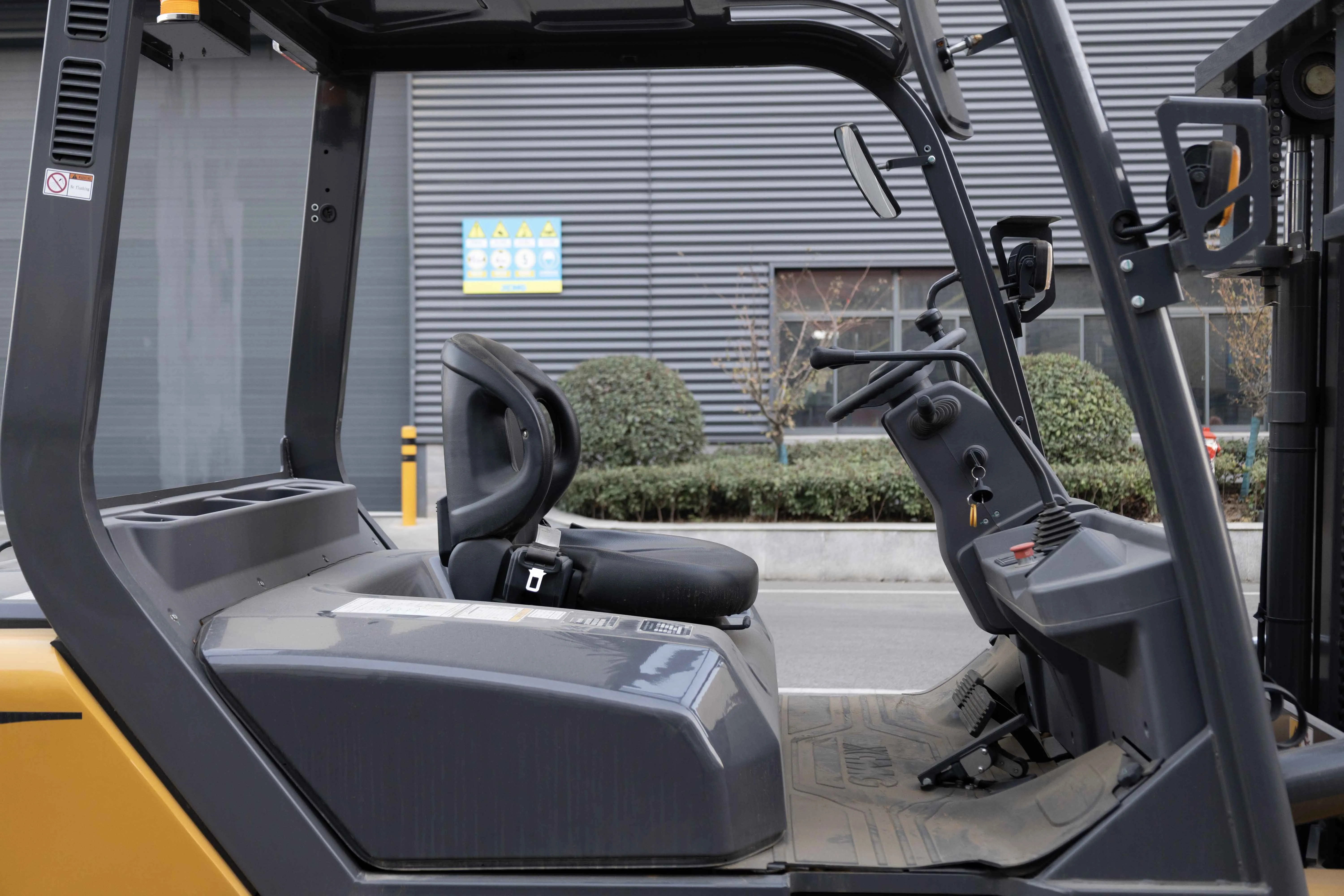

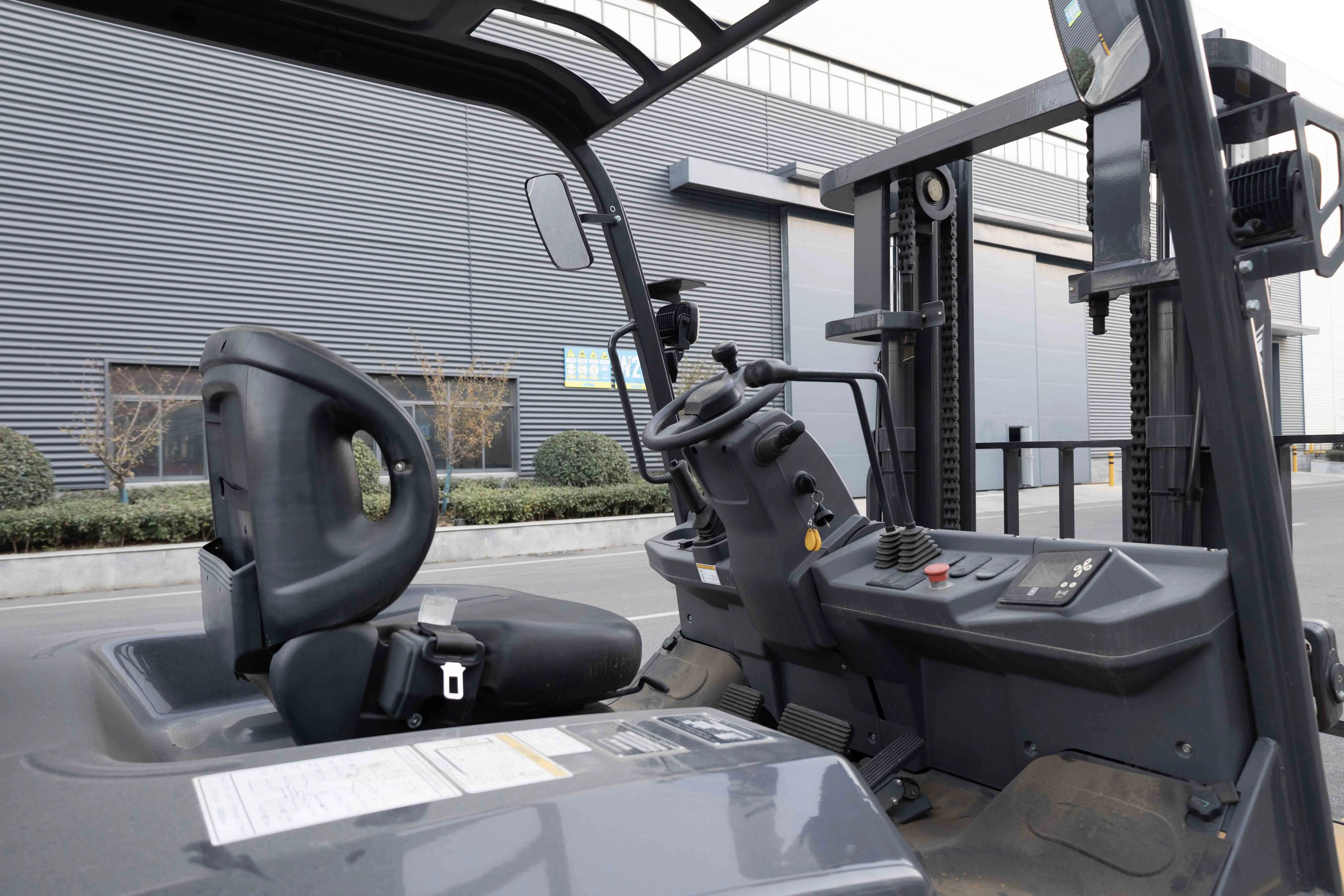

Based on ergonomic space design, the steering wheel is smaller in size, and the legroom and interior space are larger, enhancing operational comfort and reducing the number of operators the degree of fatigue of the staff. The integral metal hood is equipped with heat insulation and sound insulation materials to reduce noise. The connection between the steering axle and the frame is supported by shock-absorbing rubber to lowerThe whole vehicle vibrates to enhance the operator's comfort.
Specification
|
Item
|
Unit
|
Parameter
|
|
|
Specification
|
Drive
|
-
|
Diesel
|
|
Rated load
|
kg
|
5000
|
|
|
Load center distance
|
mm
|
500
|
|
|
Wheelbase
|
mm
|
2050
|
|
|
Weight
|
Service weight
|
kg
|
6800
|
|
Axle load, loaded front/rear
|
kg
|
10364/1436
|
|
|
Axle load, unloaded front/rear
|
kg
|
2840/3960
|
|
|
Wheels
|
Tyres type
|
-
|
Pneumatic
|
|
Tread, front
|
mm
|
1196
|
|
|
Tread, rear
|
mm
|
1190
|
|
|
Dimension
|
Free lifting height
|
mm
|
150
|
|
Height, mast lowered
|
mm
|
2280
|
|
|
Max lift height (standard)
|
mm
|
3000
|
|
|
Overall length
|
mm
|
4245
|
|
|
Overall width
|
mm
|
1500
|
|
|
Fork size (Length/Width/Thickness)
|
mm
|
1070/150/50
|
|
|
Ground clearance
|
mm
|
180
|
|
|
Min turning radius
|
mm
|
2860
|
|
|
Perfomance
|
Travel speed, loaded/unloaded
|
km/h
|
25/27.5
|
|
Lift speed, loaded/unloaded
|
mm/s
|
530/580
|
|
|
Gradeability
|
%
|
25
|
|
|
Engine
|
Rating/RPM
|
kW/rpm
|
65/2200
|
|
Torque/RPM
|
N.m/rpm
|
350/1320-1650
|
|
