XCMG 1.5 ton mini electric walking pallet truck XCC-PW15 price
Specifications
- Weight:190.000kg
- Rated load capacity:1500kg
- Load center distance:600mm
- Lifting height:115mm
- Minimum ground clearance:37/32mm
- Fork size:48*160*1150/1220mm
- Weight:190/200kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

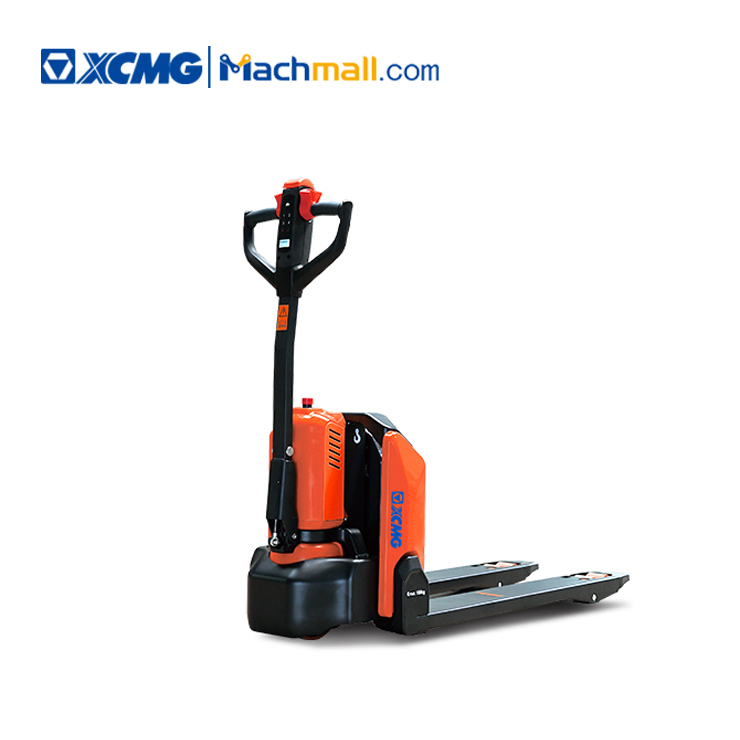

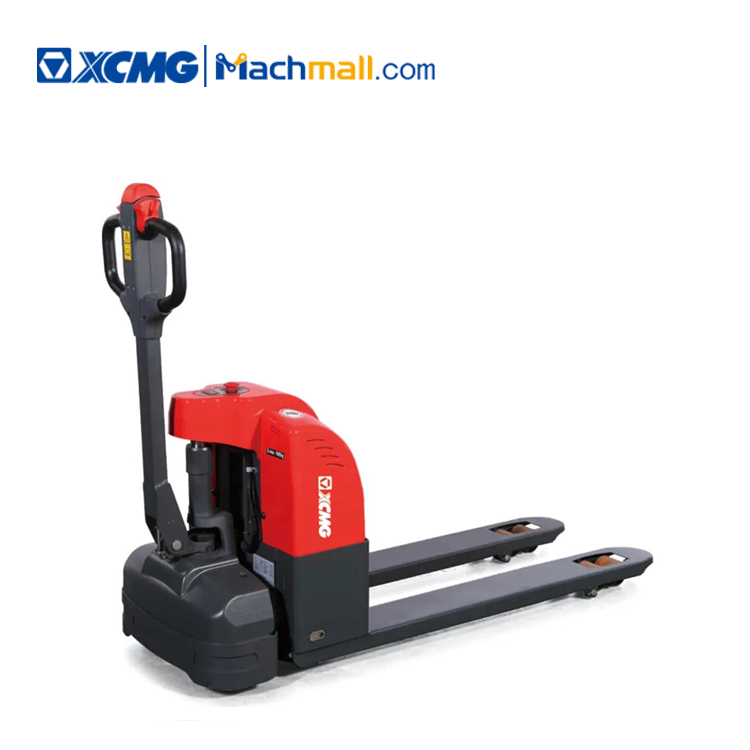

XCMG 1.5 ton mini electric walking pallet truck XCC-PW15.
XCMG electric pallet truck XCC-PW15 is an economical electric pallet truck with a rated load of 1500kg;
Compact and lightweight body design, XCMG electric pallet truck XCC-PW15 is suitable for a variety of low-intensity load applications in warehouses or for transport applications on pallet trucks with lifting tail plates.
Product highlight:
1. Ideal solution for low intensity load applications;

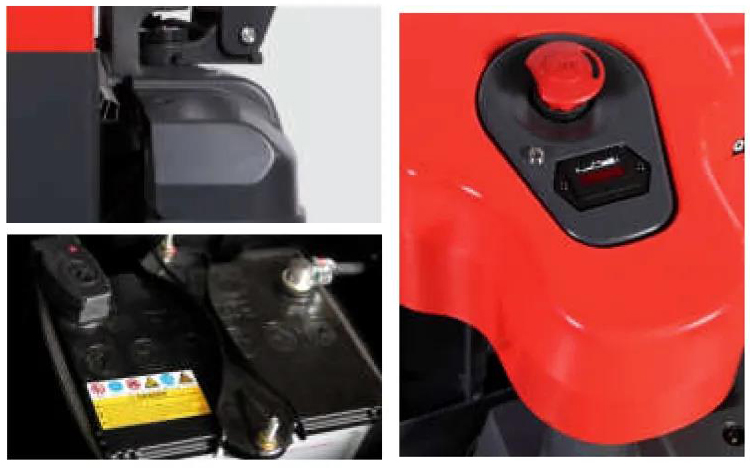

2. Built-in charger with high autonomy;
3. The battery meter has the function of automatically cutting off the lifting action at low voltage, which prolongs the life of the battery;

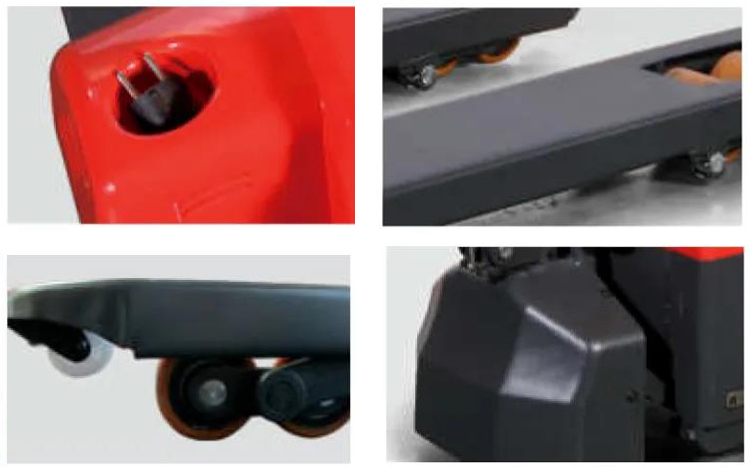

4. Additional stabilization wheels ensure stable operation of the vehicle.
|
Item |
Unit |
XCC-PW15 |
|
power |
|
electric |
|
Operation method |
|
Walking |
|
Rated load capacity |
kg |
1500 |
|
Load center distance |
mm |
600 |
|
Front overhang |
mm |
946 |
|
Wheelbase |
mm |
1293 |
|
Weight |
kg |
190/200 |
|
wheel |
|
PU |
|
Stabilizing wheel (size) |
mm |
50(80)*30 |
|
Lifting height |
mm |
115 |
|
Fork size |
mm |
48*160*1220/1150 |
|
Minimum ground clearance |
mm |
37/32 |
|
Minimum turning radius |
mm |
1445/1460 |
|
Driving speed |
km/h |
4.2/4.4 |
|
Lifting speed |
km/h |
0.03/0.053 |
|
Lowering speed |
km/h |
0.049/0.036 |
|
Lowering speed |
km/h |
4/10 |
|
Drive motor power |
kW |
0.45 |
|
Increase motor power |
kW |
0.8 |
|
Battery voltage/capacity |
V/Ah |
2*12V/64 |
|
Battery weight |
kg |
48 |
|
Drive control mode |
|
DC brush-less control |
