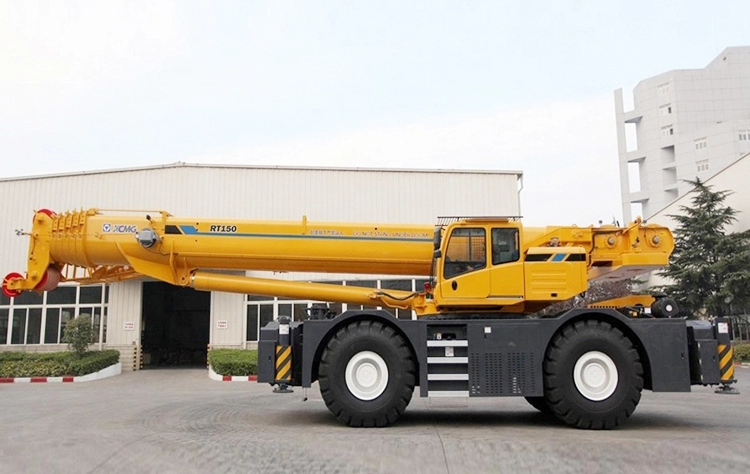

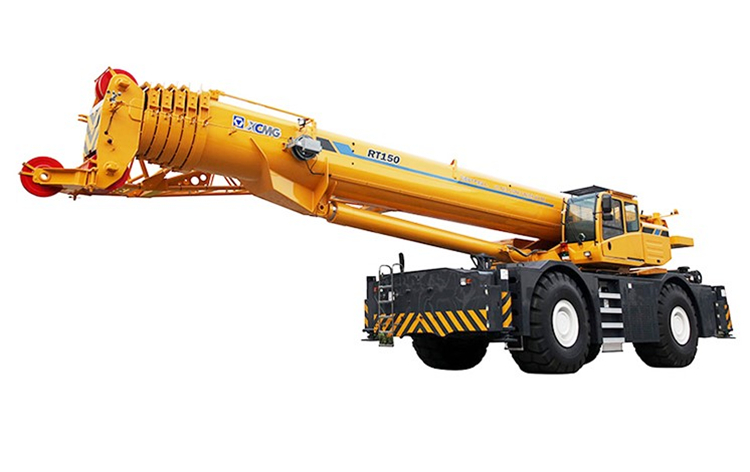

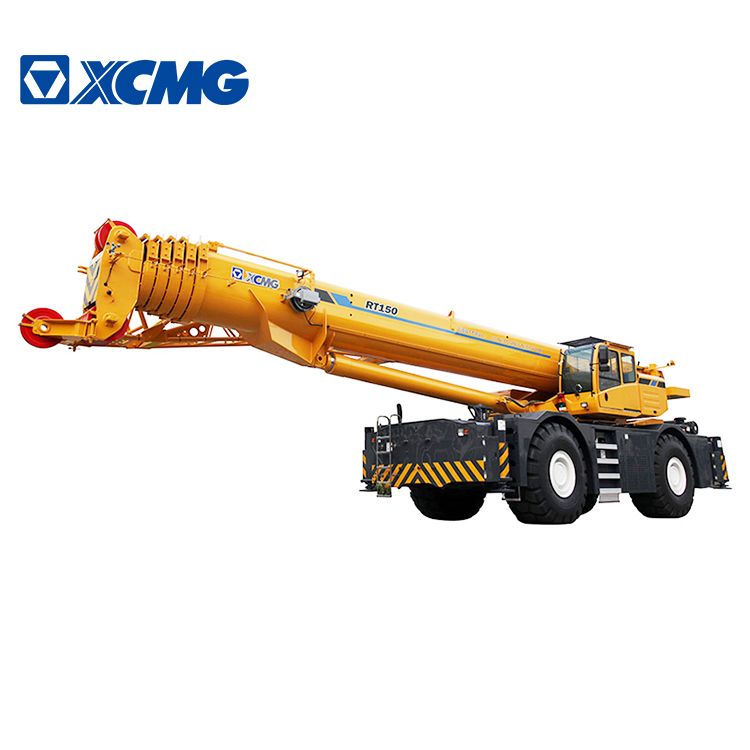

XCMG Official 150 Ton New Rough Terrain Crane RT150 China Tractor Mounted Crane for Sale
.jpg)
Summary
- Model Number:RT150
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Max. Lifting Height:80m
- Rated Lifting Moment:5145kN.m
- Rated Loading Capacity:150t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:150000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 150 Ton New
Rough Terrain Crane RT150 China Tractor Mounted Crane.

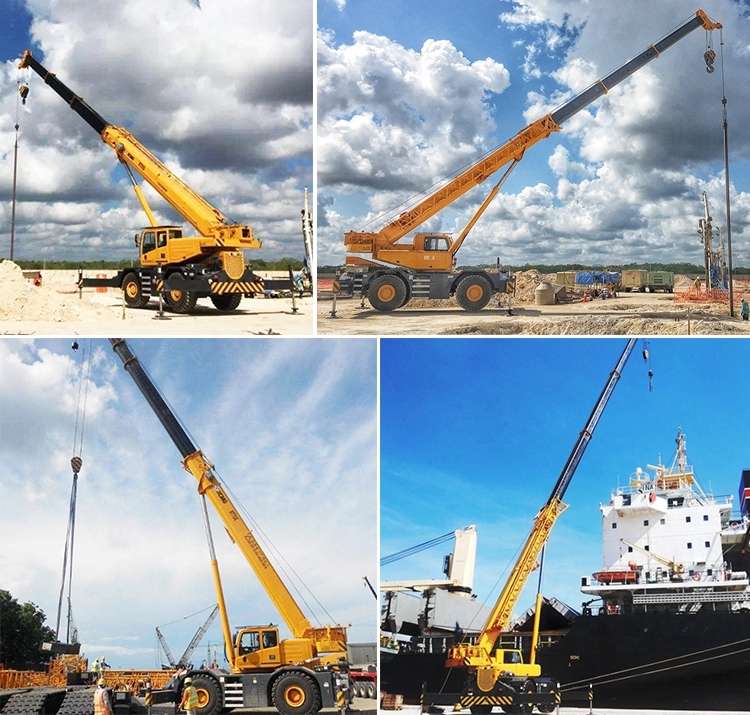

RT150 is a high-end model developed by XCMG
and an experienced R&D institute in Europe. It is widely used in oil field,
mine, road and bridge construction, warehousing base and other construction
sites.
1. Energy-saving and environment friendly
* Specialized energy-saving hydraulic system.
* The torque converter with lockout function
has features of large torque at low speeds and high efficiency at high speeds.
* Elevating control system for freefall,
without additional power needed.
2. High mobility and efficiency
* Two driving types of 4×2 and 4×4 are
adopted with forwards and backwards driving function.
3. Powerful lifting capacity
* Developed jointly by Chinese and German
engineers, with advanced design concept.
* Double-cylinder plus ropes telescoping
system, stable and reliable.
|
Project |
Unit |
Parameter |
|
Length of Entire Vehicle |
(mm) |
16350 |
|
Width of Entire Vehicle |
(mm) |
3570 |
|
Height of Entire Vehicle |
(mm) |
4100 |
|
Wheel Base |
(mm) |
4820 |
|
Wheel Track |
(mm) |
2640 |
|
Weight Parameters |
||
|
Gross Vehicle Weight When Driving |
(kg) |
90500 |
|
Axle Load |
(kg) |
(Front Axle)36690/(Rear Axle)53810 |
|
Kinetic Paremeter |
||
|
Engine Type |
- |
QSL |
|
Engine Rated Power(kw/ |
(kw/(r/min)) |
224 |
|
Engine Max Torque(N.m/ |
(N.m/(r/min)) |
1369 |
|
Driving Parameters |
||
|
Max Travel Speed |
(km/h) |
33 |
|
Min Travel Speed |
(km/h) |
2 |
|
Swerve |
||
|
Min Turning Radius |
(m) |
17 |
|
Head Min. Turning Diameter |
(m) |
- |
|
Max Gradeability |
(%) |
60 |
|
Min. Ground Clearance of Machine |
(mm) |
580 |
|
Approach Angle |
(°) |
21.3 |
|
Departure Angle |
(°) |
16.4 |
|
Braking Distance |
(m) |
9 |
|
Fuel Consumption per 100kms |
(L) |
- |
|
Major Performance Parameters |
||
|
Max. Rated Lifting Capacity |
(t) |
150 |
|
Min. Rated Range |
(m) |
3 |
|
Max. Load Moment of Basic Jib |
(kN·m) |
5145 |
|
Radius of Gyration of Turntable Tail |
(mm) |
4780 |
|
Outrigger |
||
|
Longitudinal |
(m) |
9.2 |
|
Horizontal |
(m) |
8.5/7.2 |
|
Max. Lifting Height |
||
|
Basic Boom |
(m) |
14.3 |
|
Longest Main Boom |
(m) |
62.3 |
|
Longest Main Boom + Auxiliary Boom |
(m) |
80 |
|
Boom Length of Crane |
||
|
Basic Boom |
(m) |
13.2 |
|
Longest Main Boom |
(m) |
62 |
|
Longest Main Boom + Auxiliary Boom |
- |
82 |
