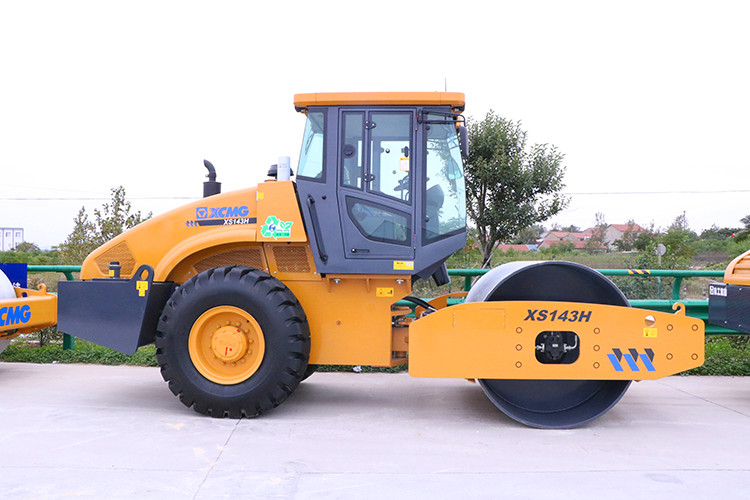

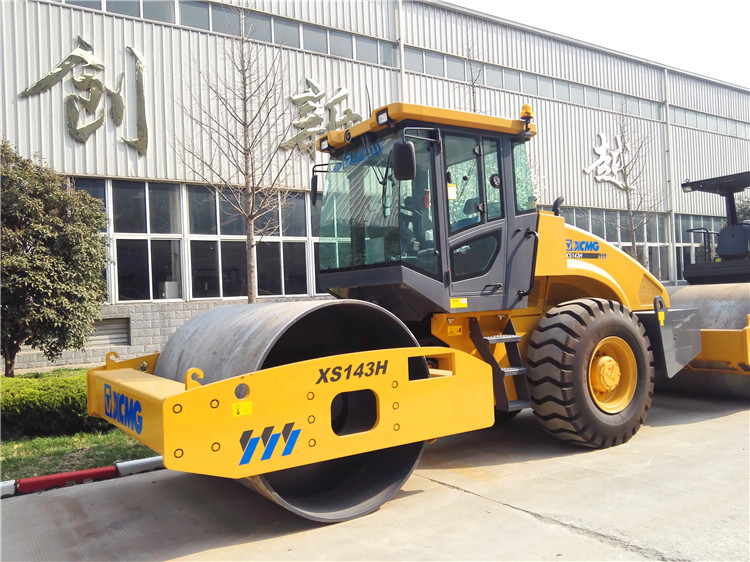

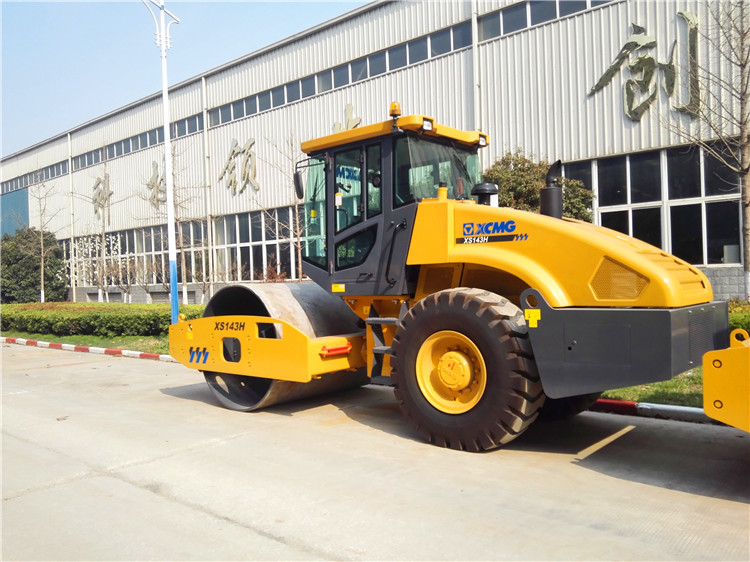

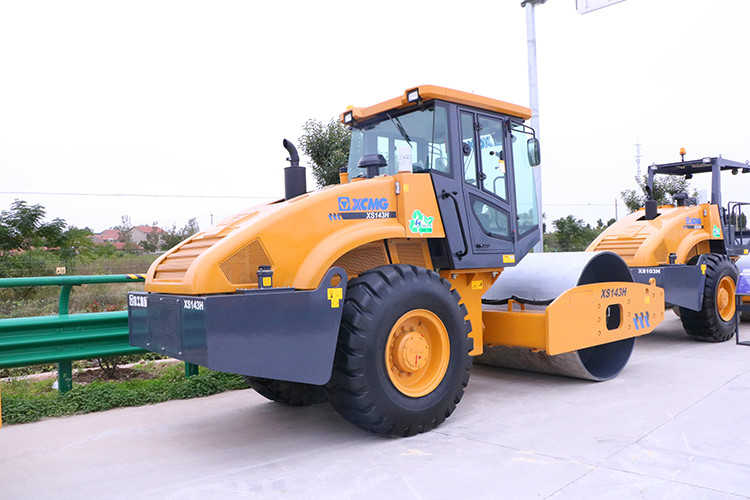

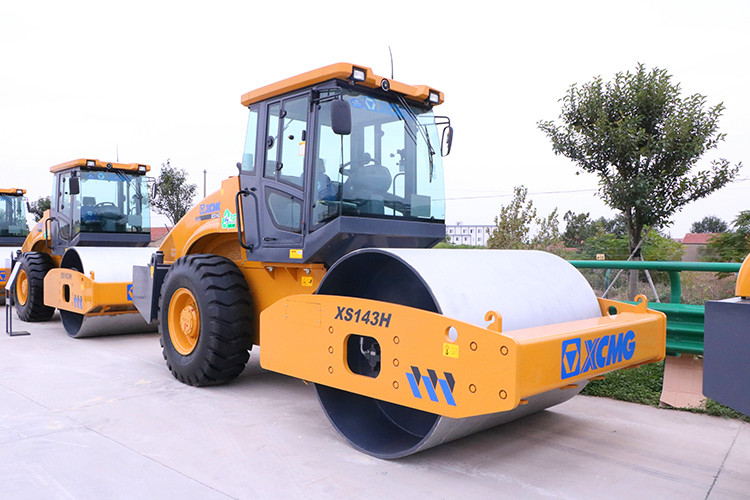

14 tons road roller XS143H XCMG single drum roller price
Summary
- Weight:14000kg
- Dimension(L*W*H):6150*2300*3200mm
- Power(W):100kW
- Model Number:XS143H
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0~14km/h
- Static Linear Pressure:315N/CM
- Type:Vibratory Sungle Drum Roller
- Certification:CE/ISO9001
Specifications
- Weight:14000.000kg
- Condition:New
- Moving Type:Other
- Exciting Force:274/190KN
- Vibrational frequency:28/33HZ
- Norminal amplitude:1.9/0.95mm
- Minimum turning radius:6800mm
- Rated speed:2200r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
14 tons road roller XS143H XCMG single drum roller.
XCMG single drum roller XS143H has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.
And XS143H single drum roller is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above.
Thus, XCMG single drum roller XS143H is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Performance Characteristics:
1.XCMG single drum roller Use the H-series low-speed diesel engine has a large power reserve and has the function of energy saving and noise reduction.
2.Rear drum hydraulic drive, adopt closed hydraulic drive system to ensure better drive performance and gradeability.
3.One gear infinitely variable speeds to ensure optimized working speed under diferent working conditions.
4.Dual frequency and dual amplitude, meeting the requirements of different working conditions.
5.XCMG single drum roller to guarantee smoother compaction surface and higher compaction efficiency.
|
Description |
Unit |
Parameter value |
|
|
Work weight |
kg |
14000 |
|
|
Drive wheel distribution weight |
kg |
7000 |
|
|
Vibratory drum distribution weight |
kg |
7000 |
|
|
Static line load |
N/cm |
315 |
|
|
Vibration frequency |
Hz |
28/33 |
|
|
Theoretical amplitude |
mm |
1.9/0.95 |
|
|
Exciting force |
kN |
274/190 |
|
|
Speed range |
km/h |
0-7.3 |
|
|
Wheelbase |
mm |
3040 |
|
|
Compaction width |
mm |
2130 |
|
|
Theoretical climbing ability |
% |
30 |
|
|
Minimum turning radius |
mm |
6800 |
|
|
Vibratory drum diameter |
mm |
1523 |
|
|
Minimum ground clearance |
mm |
431 |
|
|
Engine |
Rated speed |
r/min |
2200 |
|
Rated power |
kW |
100 |
|
|
Dimensions |
mm |
6150×2300×3200 |
|
