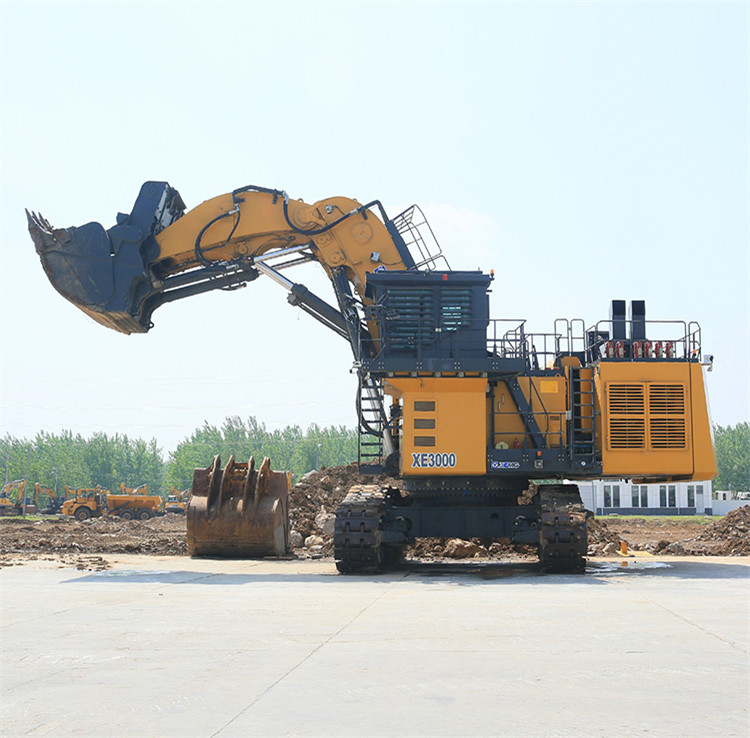

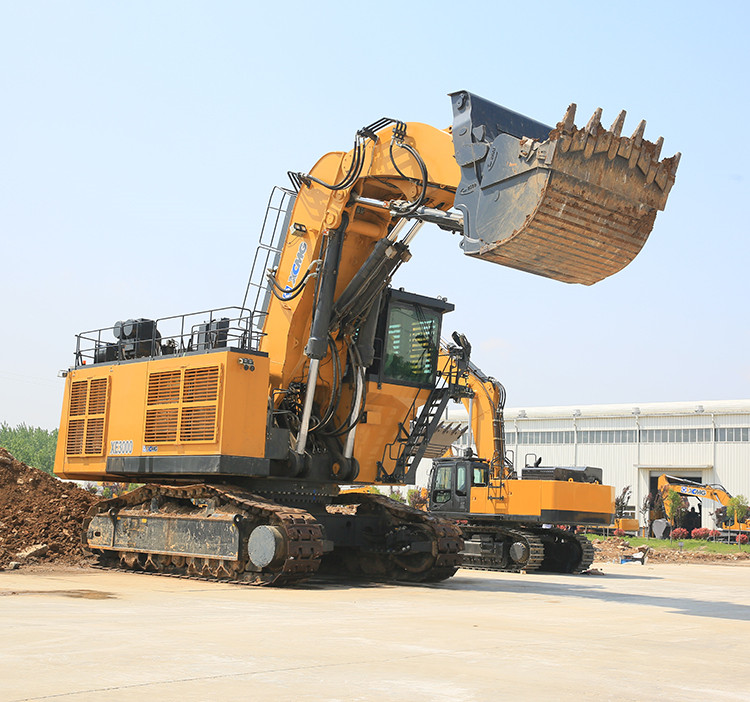

XCMG 300 Ton Heavy Excavator Mining Bigger 15 CBM Bucket Hydraulic Crawler Excavator XE3000 Price
Specifications
- Weight:285000.000kg
- Condition:New
- Moving Type:Other
- Bucket capacity:15 m3
- Maximum Digging Depth:8630mm
- Maximum Digging Height:15100mm
- Operating Weight:285000 kg
- Brand Name:XCMG
- Place of Origin:China
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 300 Ton Heavy Excavator Mining Bigger 15 CBM Bucket Hydraulic Crawler Excavator XE3000 Price.
* More energy-conservation and environmental protection
Cummins full electric-controlled engine, with turbocharged technology and advanced modular common rail fuel system (MCRS) equipped, provides ultra-high injection pressure and plenty of power to improve fuel economy and meet various kinds of working conditions of mine construction. Adopt LTA low temperature after cooling system to guarantee the air intake temperature and service life of engine cylinder body. Quantum system monitors each working state of engine, which can prolong the engine's service life and reduce the use cost.
* More reliable and durable

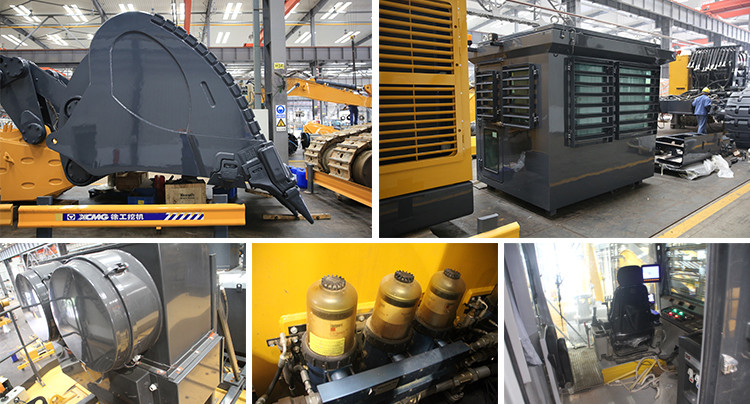

Adopt multi-stage fuel filter system, the filter efficiency can reach up to 99% and it can effectively filter the impurities and moisture in fuel to prolong the engine life. Multi-stage fuel filter is arranged in parallel, which can reduce fuel inlet resistance and meet oil inlet requirements of engine. Equip transparent water cup and water level alarm to remind the user to do water drainage in regular time.
* More efficient return
By adopting German-made hydraulic elements and reliable electronic control positive flow system, the service life of whole machine can be prolonged and working efficiency will be improved.
* More intelligent management and control
Adopt brand new itelligent control system developed independently to achieve accurate power match between power system and hydraulic system, the work is more efficient and energy efficient.
|
Description |
Parameter |
Unit |
|
Operation weight |
285000 |
kg |
|
Bucket capacity |
15 |
m³ |
|
Model |
Cummins QSK50 |
|
|
Output power |
1193/1800 |
kw/rpm |
|
Traveling speed |
2.0/1.5 |
km/h |
|
Rotary speed |
4 |
r/min |
|
Grade ability |
30 |
° |
|
Ground pressure |
198 |
kPa |
|
Bucket digging force |
790 |
Kn |
|
Arm digging force |
782 |
Kn |
|
Main pump |
4 plunger pumps |
|
|
Rated flow |
4x720 |
L/min |
|
Main safty valve pressure |
32 |
MPa |
|
Standard configuration |
||
|
Length of boom |
9000 |
mm |
|
Length of arm |
4000 |
mm |
|
Bucket capacity |
15 |
m³ |
|
Apperance size |
Parameter |
Unit |
|
Total lengtk |
18170 |
mm |
|
Length of crawler |
8108 |
mm |
|
Wheel base of crawler |
6420 |
mm |
|
Ground clearance of counter wehight |
2247 |
mm |
|
Total height |
8470 |
mm |
|
Total width |
8007 |
mm |
|
Track gauge |
4900 |
mm |
|
Width of crawler |
1000 |
mm |
|
Height of crawler |
2165 |
mm |
|
Working scope |
||
|
Max. digging height |
15100 |
mm |
|
Max. dumping height |
9900 |
mm |
|
Max. digging depth |
8630 |
mm |
|
Max. horizontal clearance distance |
8520 |
mm |
|
Max. vertical digging depth |
3000 |
mm |
|
Min. swing radius |
7980 |
mm |
