XCMG 50t Mining Excavator XE500HB Chinese Excavating Machinery With Hydraulic Hammer Breaker Price
Summary
- Max Digging Radius:10855mm
- Maximum Digging Depth:7000mm
- Maximum Digging Height:9855mm
- Bucket capacity:3.1m3
- Operating Weight:48500Kg
- Model Number:XE500HB
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:48500.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

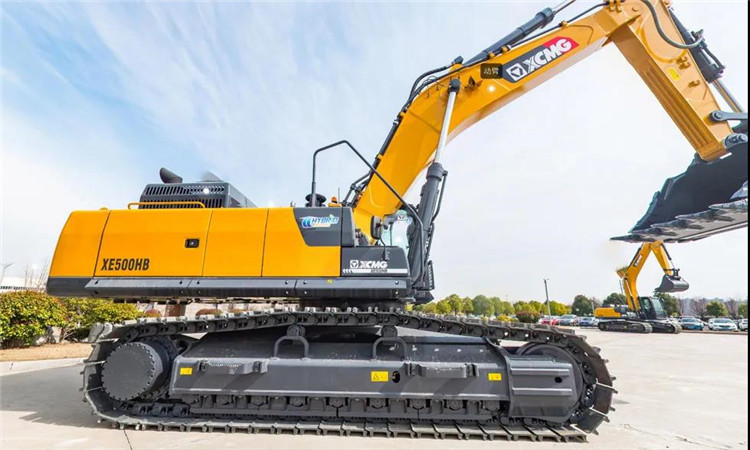

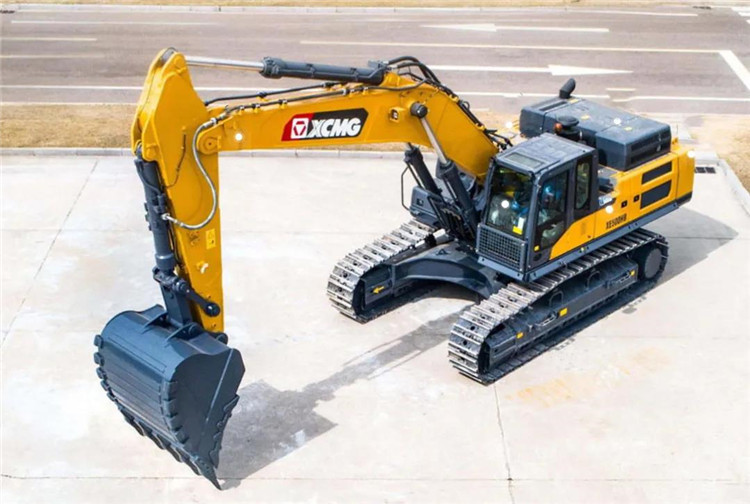

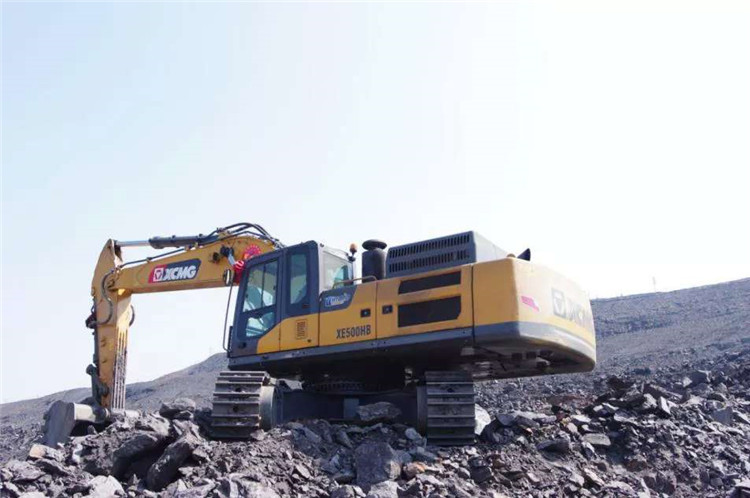

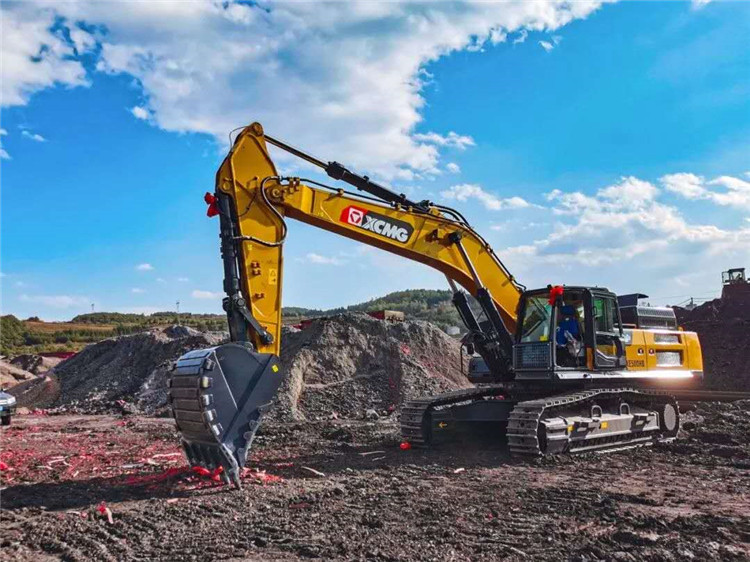

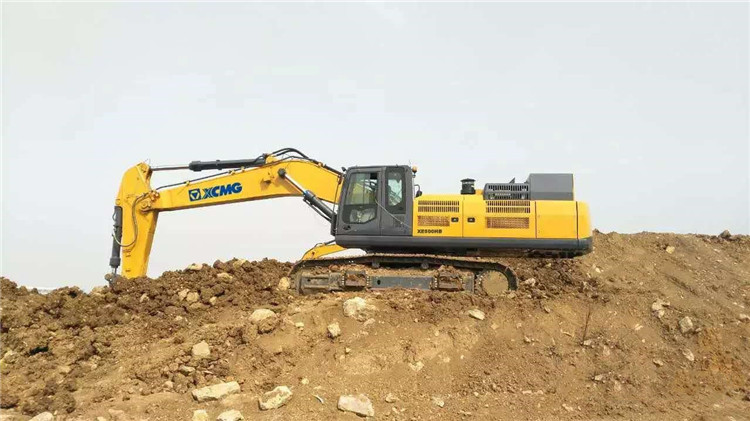

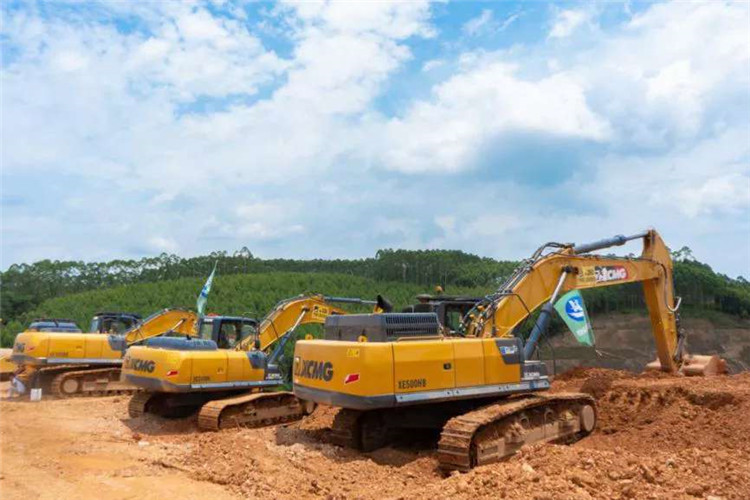

XCMG 50t Mining Excavator XE500HB Chinese Excavating Machinery With Hydraulic Hammer Breaker.
XCMG's new-generation “DK-series” mine-based hydraulic excavators are energy-saving, efficient, comfortable and durable.The new hydraulic system is characterized by high efficiency, slightloss of pressureand reasonable flow distribution;the lengthened & widened chassis and heavy-load double-rib track shoeensure high stability of the vehicle during mine operations; the strengthened working deviceoptimizes hinged points and makes the vehicle to be with the most powerfuldigging force, meeting digging, truck loading, crushingand other requirements in heavy-load working conditions.
|
Sales model |
Unit |
XE500HB |
|
|
Operating weight |
Kg |
48500 |
|
|
Bucket capacity |
m³ |
2.3-3.1 |
|
|
Engine |
Model |
/ |
QSM11 |
|
No. of cylinders |
/ |
6 |
|
|
Output power |
kw/rpm |
280/2000 |
|
|
Maximum torque/speed |
N.m/rpm |
1898/1300 |
|
|
Displacement |
L |
11 |
|
|
Main performance |
Travel speed |
km/h |
5.4/3.2 |
|
Swing speed |
r/min |
9.2 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
85 |
|
|
Bucket digging force |
kN |
301 |
|
|
Arm digging force |
kN |
248 |
|
|
Maximum traction |
kN |
338 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×360 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Rotary system pressure |
MPa |
31 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
725 |
|
Hydraulic tank capacity |
L |
430 |
|
|
Engine oil capacity |
L |
38 |
|
|
Appearance size |
A Overall length |
mm |
11805 |
|
B Overall width |
mm |
3572 |
|
|
C Overall height |
mm |
3890 |
|
|
D Width of platform |
mm |
3095 |
|
|
E Track length |
mm |
5470 |
|
|
F Overall width of chassis |
mm |
3572 |
|
|
G Track width |
mm |
600 |
|
|
H Length to center of rollers |
mm |
4407 |
|
|
I Track gauge |
mm |
2740 |
|
|
J Counterweight clearance |
mm |
1335 |
|
|
K Min. ground clearance |
mm |
518 |
|
|
L Min. tail swing radius |
mm |
3800 |
|
|
M Track height |
mm |
1225 |
|
|
Working scope |
A Max. digging height |
mm |
9855 |
|
B Max. dumping height |
mm |
6890 |
|
|
C Max. digging depth |
mm |
7000 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6900 |
|
|
E Max. vertical wall digging depth |
mm |
4500 |
|
|
F Max. digging radius |
mm |
10855 |
|
|
G Min. swing radius |
mm |
4580 |
|
|
Standard configuration |
Length of boom |
mm |
6670 |
|
Length of arm |
mm |
2900 |
|
|
Bucket capacity |
m³ |
2.6 |
|
|
Optional configuration |
Length of boom |
m³ |
7060 |
|
Length of arm |
m³ |
3380/2600/2400 |
|
|
Bucket capacity |
m³ |
2.3、2.5、3.1 |
|
