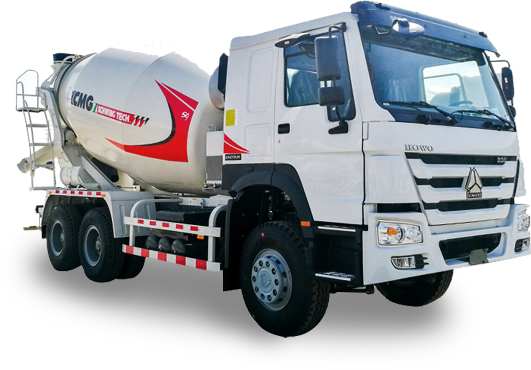

PARAMETERS
Geometric volume：16.8m³
Chassis Brand: Sinotruk
Dimension:9510*2500*3970mm
Power:247/273 kW
HIGHLIGHTS
By adopting Schwing patented rear seat technology, the whole
fatigue life is increased by 2 times;Flexibly connecting sub-frame
technology increases the overall stability by one time.
Original mixing blades of double log spiral continuous trace with
changeable lift angle and changeable screw pitch and
optimized auxiliary blades and pressure-reducing hole design
ensure concrete adaptability and uniformity.
Drum and blades are made of high-strength wear-resistant
steel, with service life increased by 30%;Hoppers and chutes
adopt multilayer high-strength wear-resistant steel plate, and
the inner liner plates adopt multilayer high-strength wear-resistant
steel plate, which make the service life longer and performance more reliable.

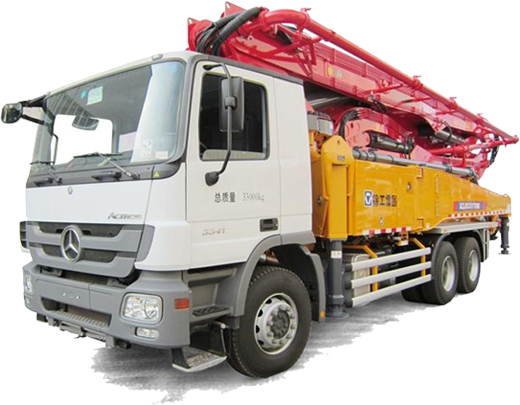

PARAMETERS
Max. Reach Height:48m
Chassis: Mercedes-Benz / Howo / Sinotruk
HIGHLIGHTS
More advanced boom structure technology ,More efficient rock
valve pumping technology, Steadier stabilizer structure
technology, Steadier reversing buffering technology, more
reliable fully-hydraulic reversing technology, Ultra-low pressure
loss hydraulic system technology, safer and smarter electrical control system.
Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
Material absorption can reach more than 85%.
The pumping system adopts electric control reversing, reversing
faster and the system impact smaller. The actual pumping
efficiency is more than 5% higher than the conventional hydraulic
control reversing system.
PARAMETERS
Power:82kw
Max. Horizontal Conveying Distance:400M
Max. Vertical Conveying Distance:100M
HIGHLIGHTS

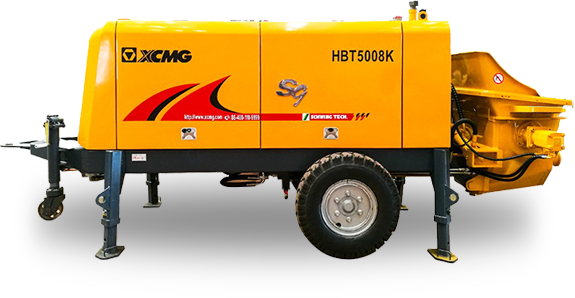

XCMG HBT5008K Concrete pump is a construction equipment which conveys concrete by pressure through pipeline.
It is equipped with special pipeline.
It can continuously complete horizontal and vertical conveyance of concrete along pipeline.
It is an ideal kind of existing concrete conveyance equipment.
It combines the production of ready-mixed concrete with pumping construction and uses coagulation.
The soil mixing truck carries out intermediate operation, which
can realize continuous pumping and pouring of concrete.
It is used for conveying concrete in large concrete projects.
PARAMETERS
Geometric Volume：60m³
Mixing Power:2*18.5kw
Mixing Capacity:1000 L
HIGHLIGHTS

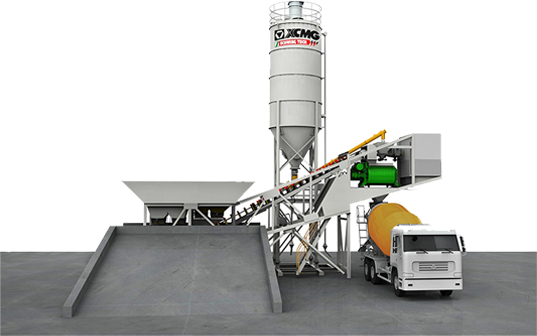

HZS60KY cement concrete mixing plant has the features of
little area occupied, simple base, deliver fast easy to relocate
and low energy consumption.
The components of HZS60KY concrete mixing plant are:
Storage, weighing and conveying system of aggregate;
Storage, weighing and conveying system of powder;
Water supply, weighing and discharging system;
Additive storage, supply and weighing system;
Mixing and dust-collecting system;
The main tower structure;
The pneumatic system;
The electric control system.
Storage, weighing and conveying system of aggregate;
Storage, weighing and conveying system of powder;
Water supply, weighing and discharging system;
Additive storage, supply and weighing system;
Mixing and dust-collecting system;
The main tower structure;
The pneumatic system;
The electric control system.
XCMG Brand Advantage
Local service :Implementation of"service throughout full life cycle" brings about trouble-free lifetime experience! Marketing
service network spread around the world covers extensive areas.
Application of German Schwing advanced manufacturing technology.
Manufacturer and first hand price.
Meet the needs of customization, leading global R&D and production capacity of Concrete Machinery.
