Summary
- Certification:CE
- Dimension(L*W*H):14053 x 2960 x 3295mm
- Weight:53ton
- Power(W):150kw
- Usage:Euro Ⅲ
- Model Number:XR160E
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- weight:53000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

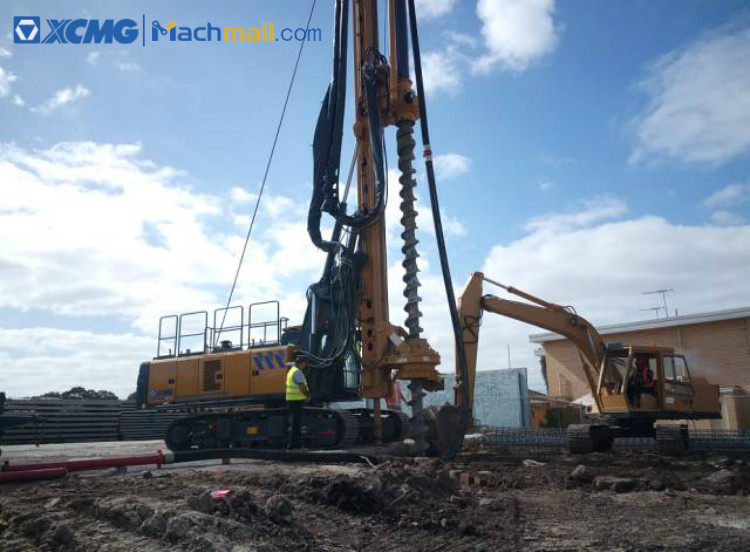

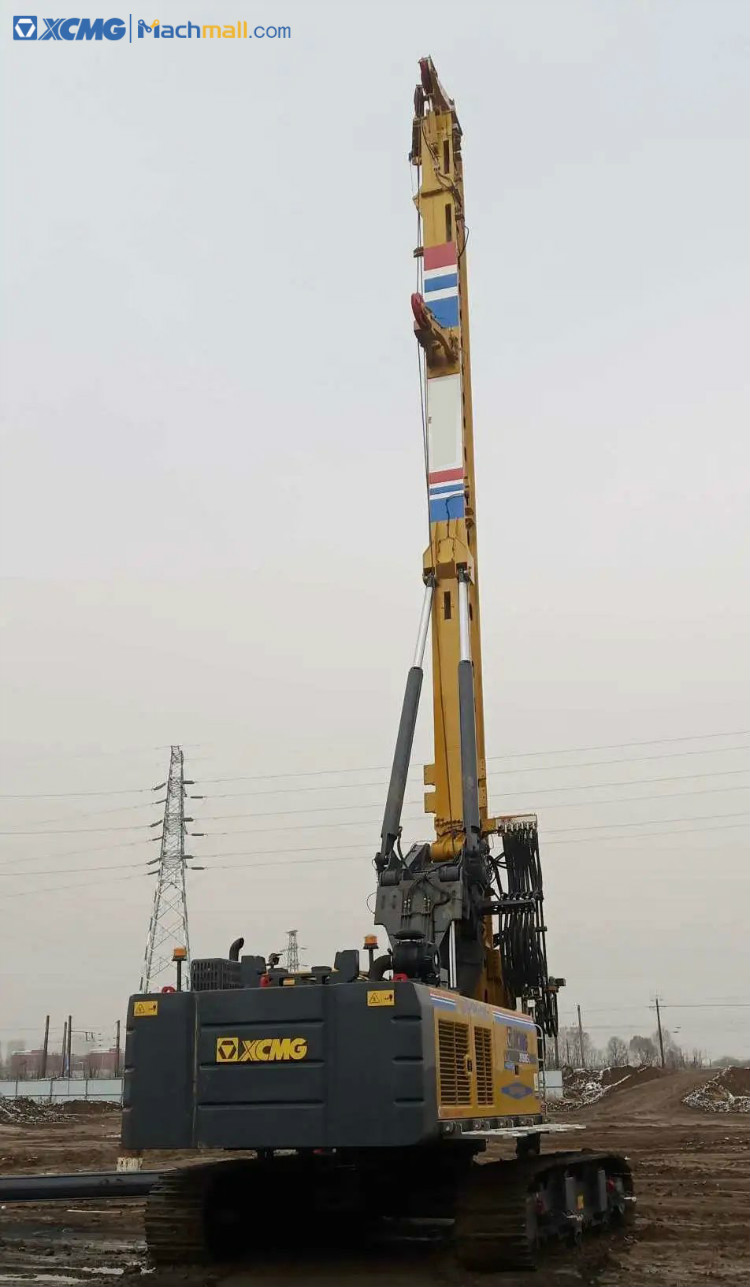

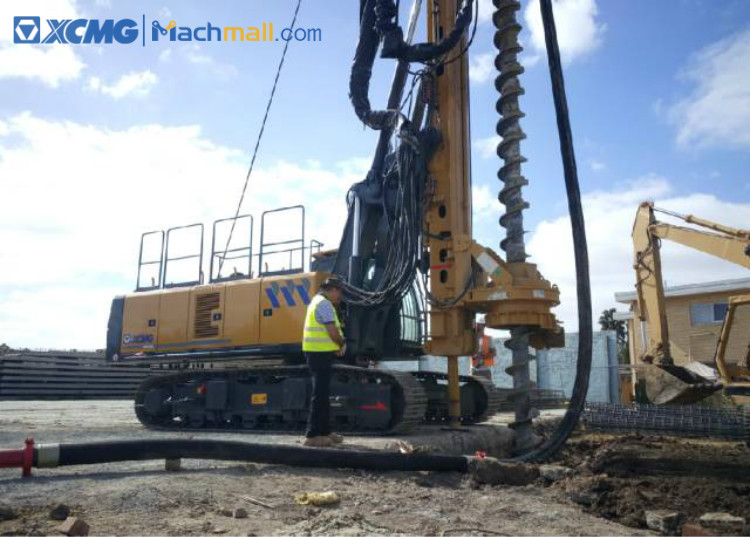

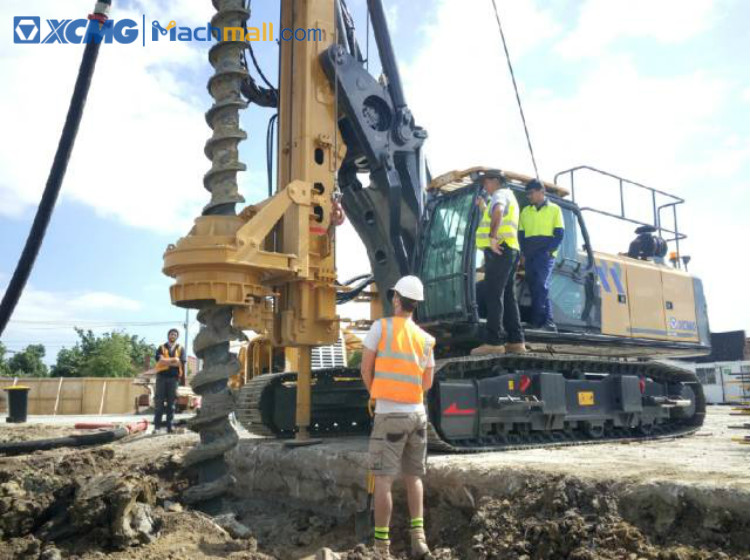

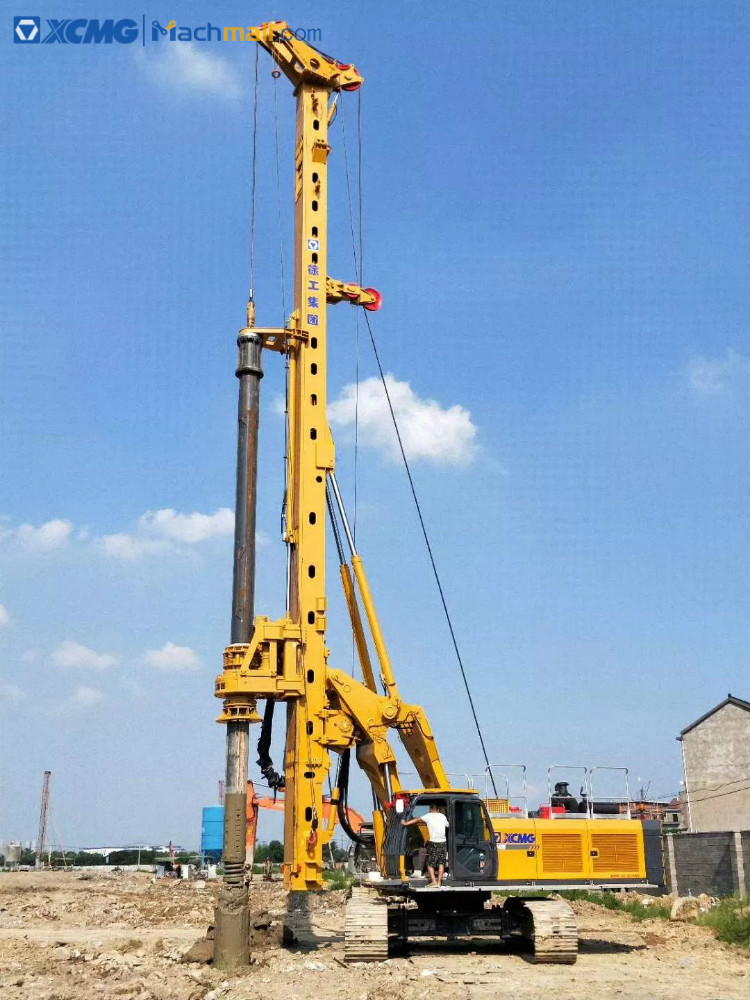

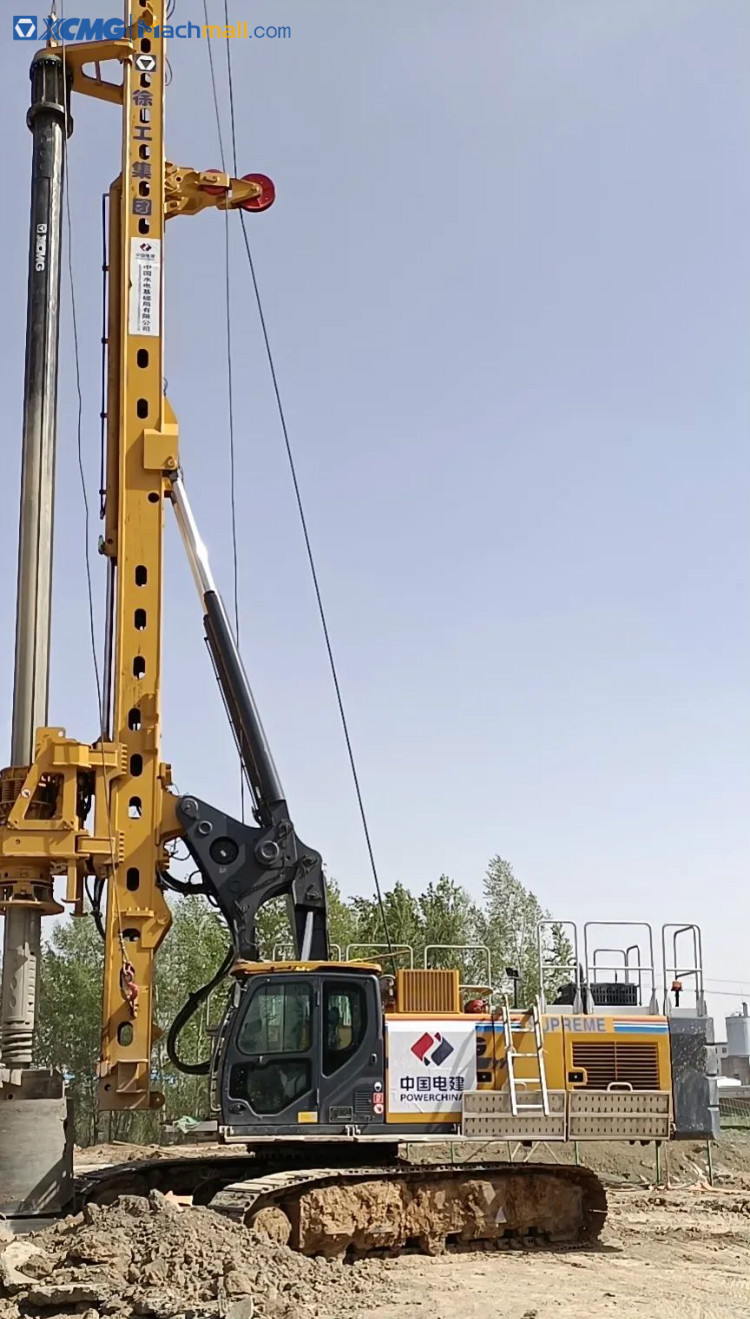

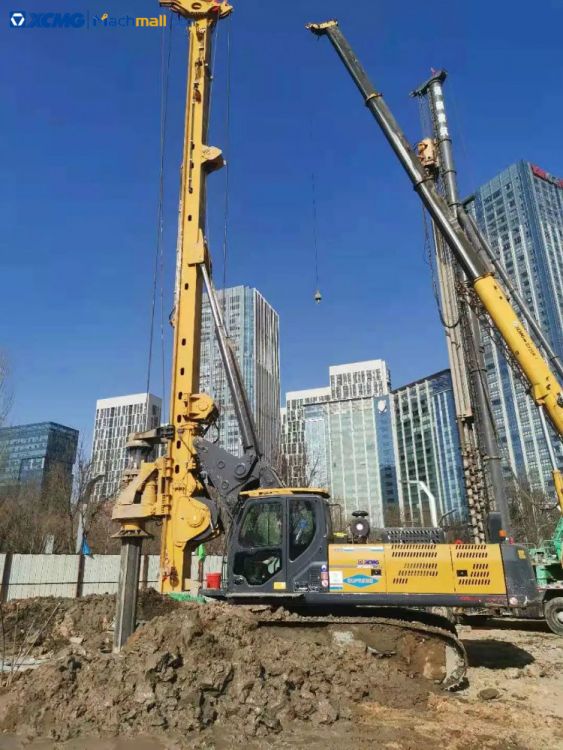

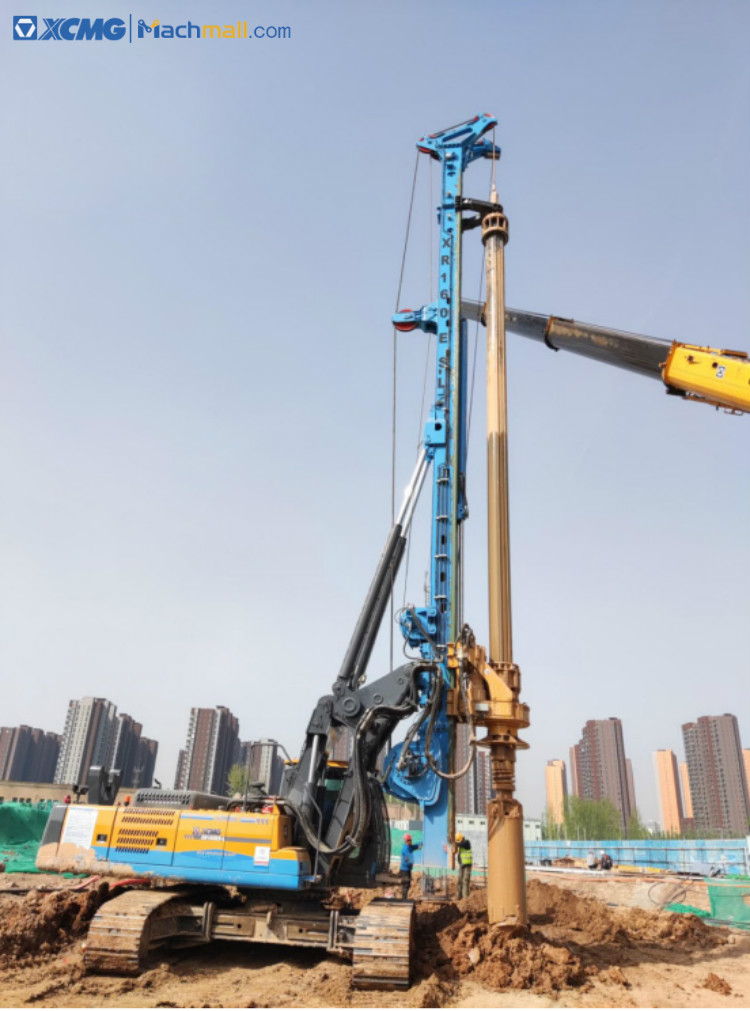

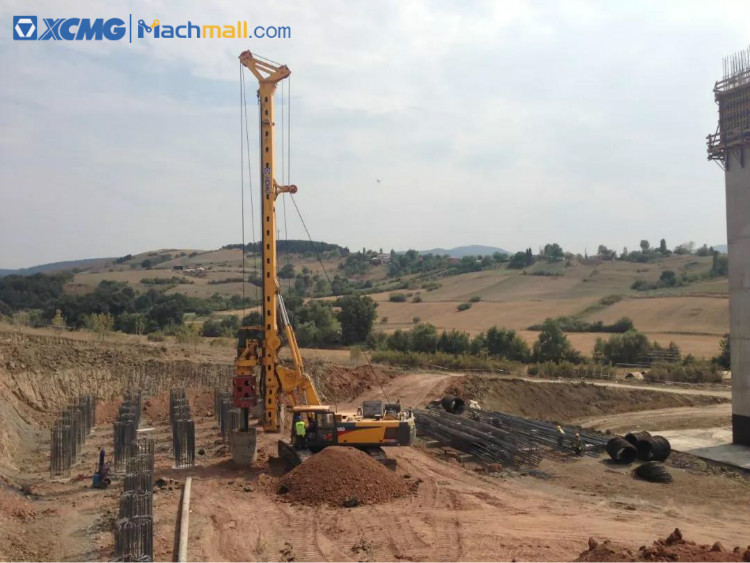

XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E.
1, XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E: One machine multi-energy, can achieve cylinder pressure, rolling pressure, long spiral, double power head and other functions to quickly switch, To meet the needs of more different projects;
2, The configuration of Cummins electric turbo engine, strong power, convenient and fast service;
3, The maximum output torque of the powerhead can reach 160kN.m, speed up to 35r/min, higher operating efficiency;
4, Powerhead optional with high-speed soil-throwing function;
5, The main and sub-rolled are using single-row rope technology, wire rope life than multi-layer rope 2 to 4 times longer, lower cost of use;
6, The use of the two-boom large parallelly deformed mechanism, large support angle, support range increased by 24%, more stable operation;
7, A hydraulic main system using negative flow control technology, fast response, good handling performance;
8, High-power dual hydraulic oil cooler, to meet the high-temperature area construction;
9, Intelligent control system to achieve the verticality of the drill mast automatic adjustment and display, automatic swing, automatic soil and other functions;
10, The use of TDP series rotary drilling rig dedicated hydraulic track chassis, large-diameter swing support, better work stability.
|
Project. |
Unit. |
Parameters. |
|
The working parameters. |
|
|
|
Maximum drilling diameter. |
Mm. |
1500 / 1300 |
|
Maximum drilling depth. |
M. |
56。 |
|
Engine parameters. |
|
|
|
Model. |
- |
QSB7. |
|
Rated power. |
kW. |
150。 |
|
Power head parameters. |
|
|
|
Maximum output torque. |
kN.m. |
160。 |
|
Speed. |
r/min. |
5-35。 |
|
Pressurized cylinder parameters. |
|
|
|
Maximum pressure. |
Kn. |
160。 |
|
Maximum lift force. |
Kn. |
160。 |
|
Maximum travel. |
M. |
4.2。 |
|
Pressurized roll-up parameters. |
|
|
|
Maximum pressure. |
Kn. |
160* |
|
Maximum lift force. |
Kn. |
180* |
|
Maximum travel. |
M. |
13* |
|
The main roll-up parameter. |
|
|
|
Maximum lift force. |
Kn. |
160。 |
|
Maximum roll-up speed. |
m/min. |
80。 |
|
Sub-roll-up parameters. |
|
|
|
Maximum lift force. |
Kn. |
60。 |
|
Maximum roll-up speed. |
m/min. |
80。 |
|
Drill mast tilt side/forward/back tilt. |
° |
4/5/15. |
|
Chassis parameters. |
|
|
|
Maximum walking speed. |
km/h. |
2.5 |
|
Maximum climb. |
% |
40 |
|
Track plate width. |
Mm. |
700 |
|
The maximum total width of the track. |
Mm. |
2960-4200 |
|
System parameters. |
|
|
|
Work pressure. |
MPa. |
35 |
|
The quality of the whole machine. |
T. |
53 |
|
Dimensions. |
|
|
|
The working state. |
Mm. |
7862 x 4200 x 19028. |
|
The shipping status. |
Mm. |
14053 x 2960 x 3295. |
