- Summary
- Specifications
- weight:4500.000kg
- Drilling depth:3500mm
- Drilling diameter(auger drill):0-300mm

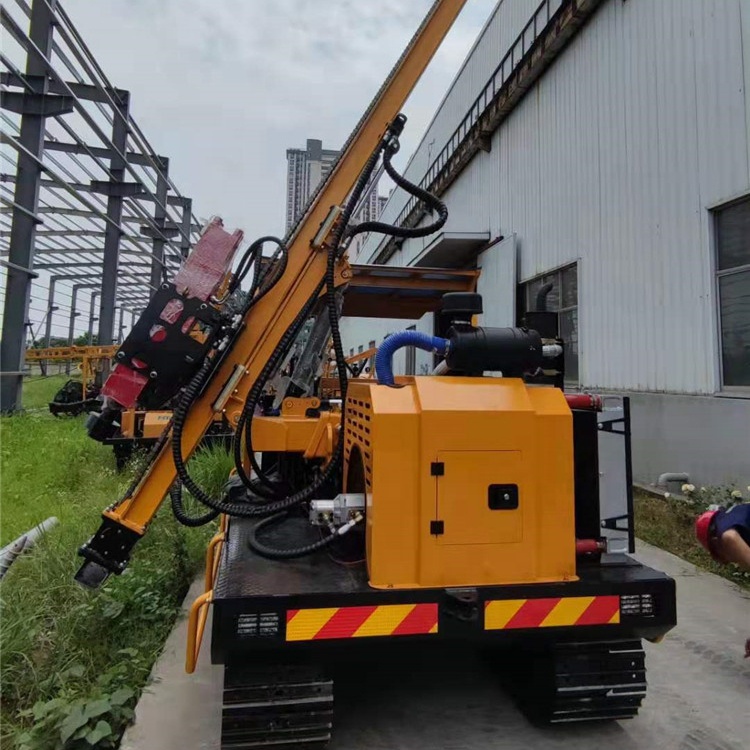

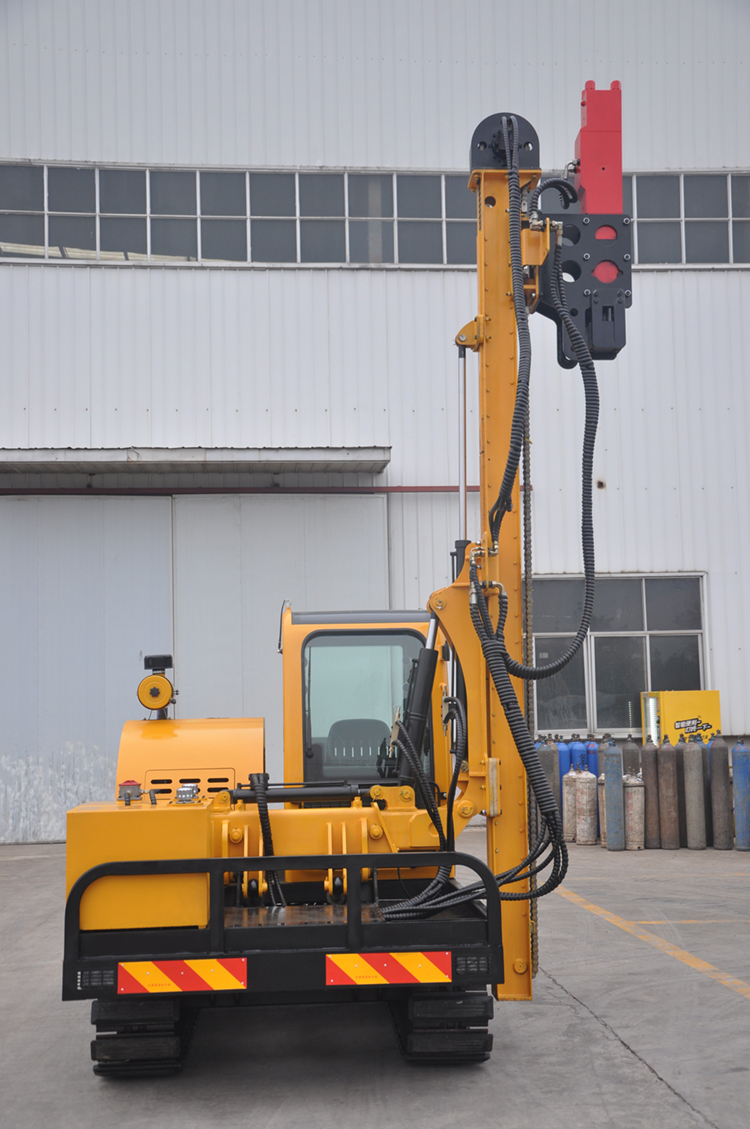

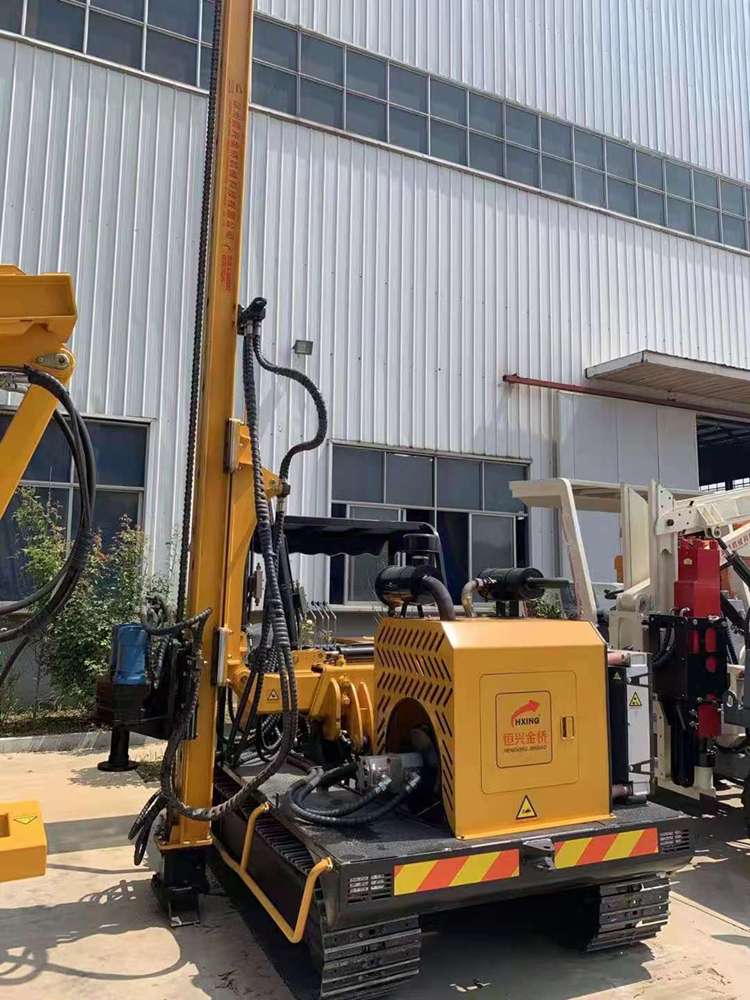

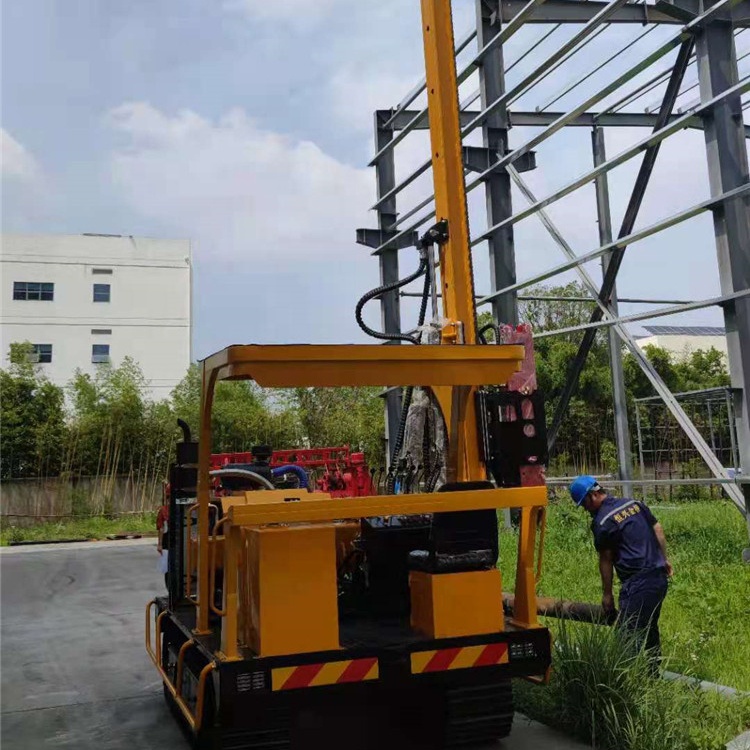

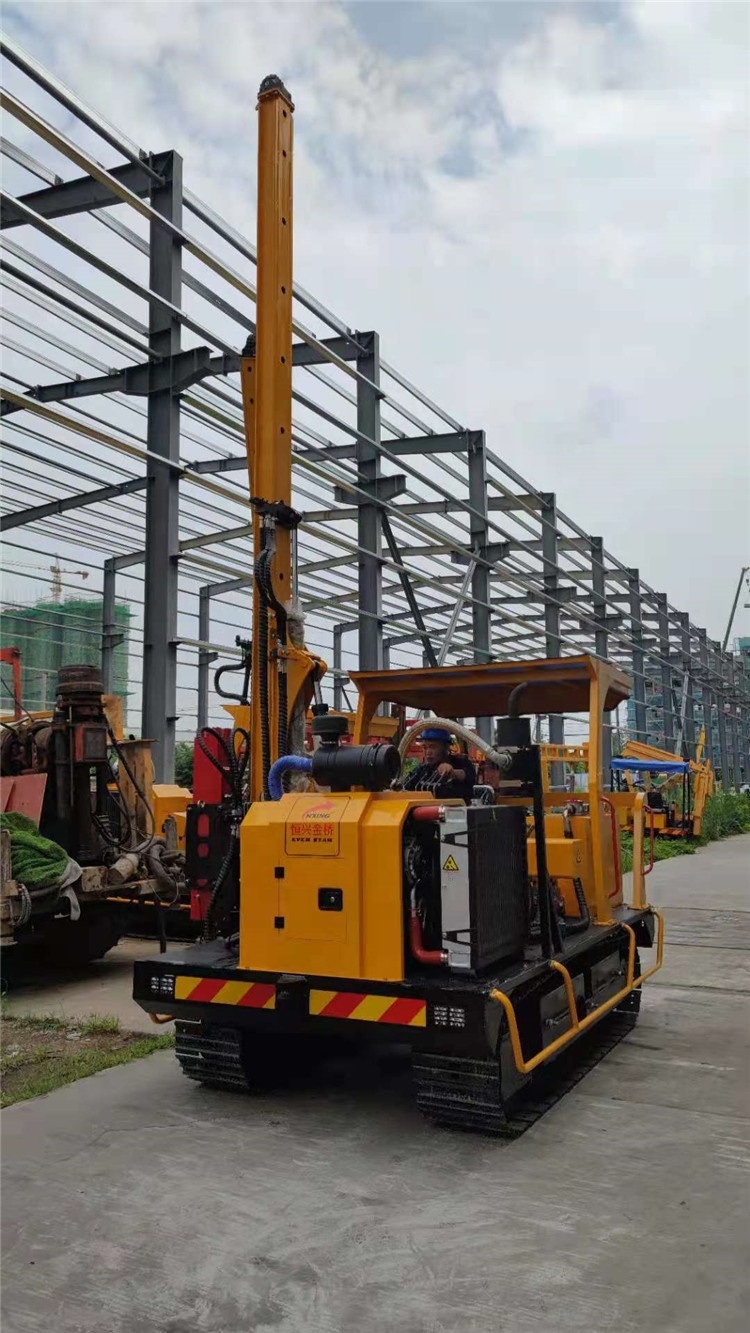

Hengxing HXR526D highway guardrail pile driver with 300mm drilling diameter.

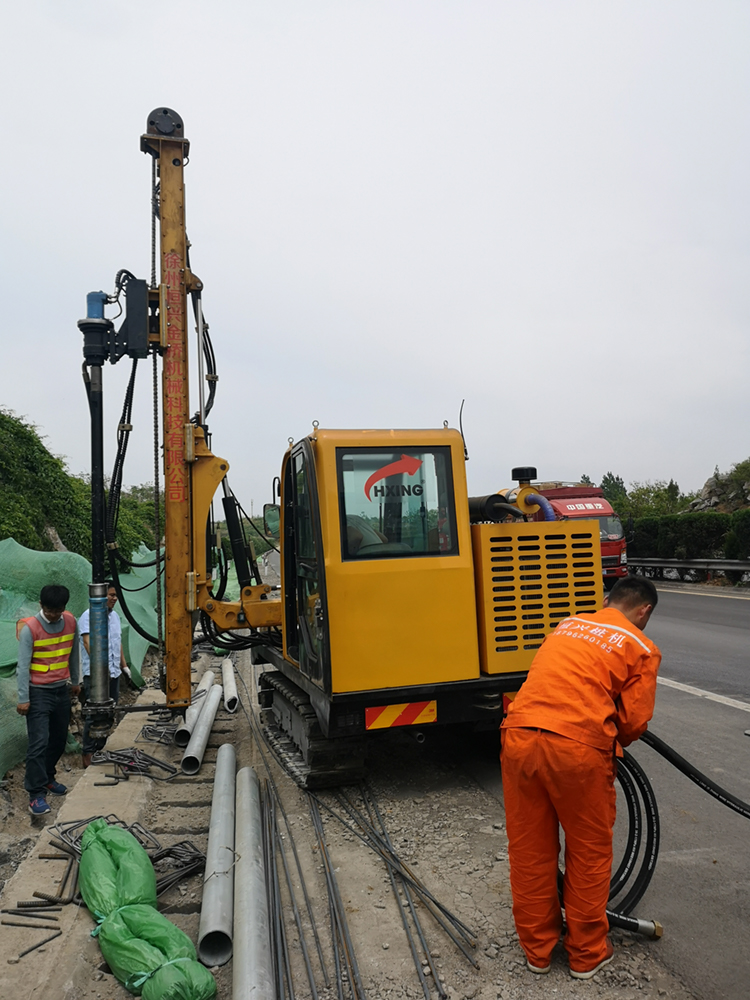

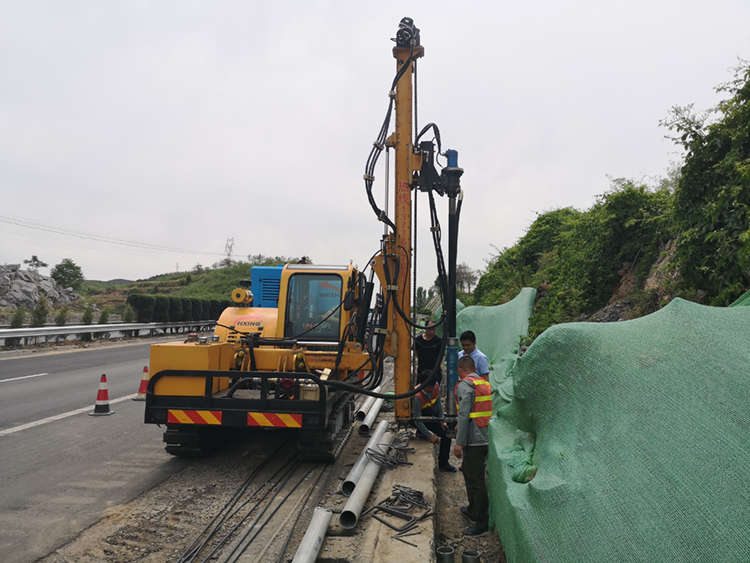

Hengxing HXR526D highway guardrail pile driver with 300mm drilling diameter is a kind of highway guardrail steel pipe pile pressing equipment. China Hengxing highway guardrail pile driver HX36D-1 adopts diesel power and full hydraulic mechanical transmission. It has the characteristics of light driving, high piling precision, durability, energy saving and environmental protection. It is especially suitable for road guardrail installation, maintenance and repair. Field engineering construction for emergency repairs.

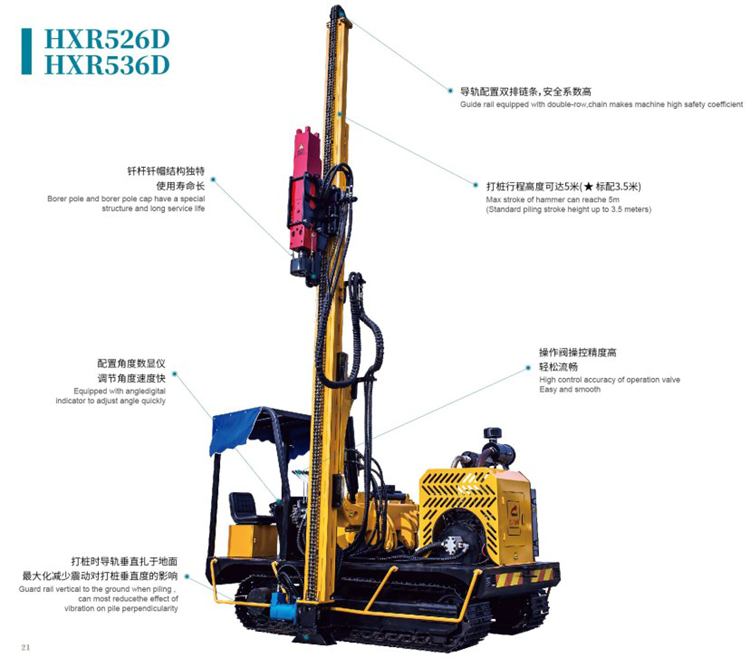

Selling points:
1.Guard rall vertical to the ground when piling, can most reducethe effect of vibration on pile perpendicularity
2.Max stroke of hammer can reache 5m(Standard piling stroke height up to 3.5 meters). High control accuracy of operation valve easy and smooth.
3.Borer pole and borer pole cap have a special structure and long service life.
4.Equipped with angledigital indicator to adjust angle quickly.
|
Item |
Value |
Unit |
|
Work size(L*W*H) |
3250*2350*5000 |
mm |
|
Transport size(L*W*H) |
5000*2350*2300 |
mm |
|
Net weight |
4500 |
kg |
|
Diesel engine power |
53 |
kw |
|
Walking motor torque(max) |
5700 |
Nm |
|
Rotary motor max torque(rotary tool) |
4000 |
Nm |
|
Rotary motor max torque(auger tool) |
4000 |
Nm |
|
Post length(max) |
5000 |
mm |
|
Ground screw length(max) |
5000 |
mm |
|
Drilling depth |
3500 |
mm |
|
Ground screw pillling depth |
3500 |
|
|
Drilling diameter(auger drill) |
0-300 |
mm |
|
Drilling angle(left/right) |
30/10 |
° |
|
Drilling angle(forwards/backwards) |
75/15 |
° |
|
Hydraulic system pressure |
16-20 |
Mpa |
|
Total Hydraulic system flow |
100 |
l/min |
|
Rotary motor flow |
60-100 |
l/min |
|
Traveling speed |
0-1600 |
m/h |
|
Chassis spec(L*W*H) |
2002*1800*520 |
mm |
|
Width of stell chassis track |
400 |
mm |
|
Track height above the ground |
230 |
mm |
|
Grade ability |
＜30 |
° |
|
Track turn rate |
01:21.4 |
|
|
Track working pressure defference |
13 |
mpa |
|
Model |
HXR526D-1,2,3,4,5 HXR536D-1,2,3,4,5 HXR5DZ-1/DZ-2/-DX |
|
