China Hengxing highway guardrail pile driver HX36D-1 for sale

$1000.00-$100000.00 1 / EA (Min. Order)
Model: HX36D-1
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
China Hengxing highway guardrail pile driver HX36D-1 for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

Specifications

  • Weight:4335.000kg
  • Piling height:3000mm
  • Drill Pipe Diameter:85mm

China Hengxing highway guardrail pile driver HX36D-1 for sale

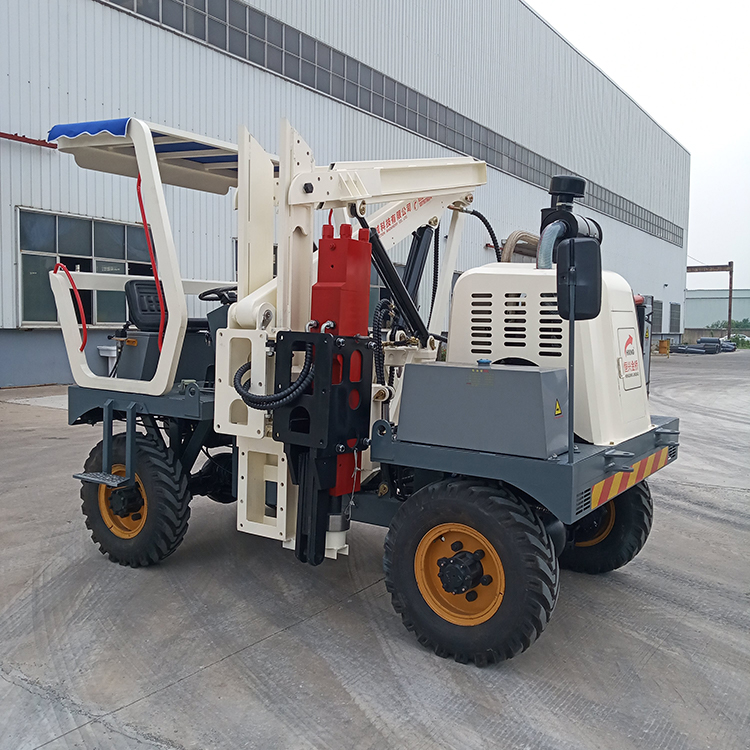

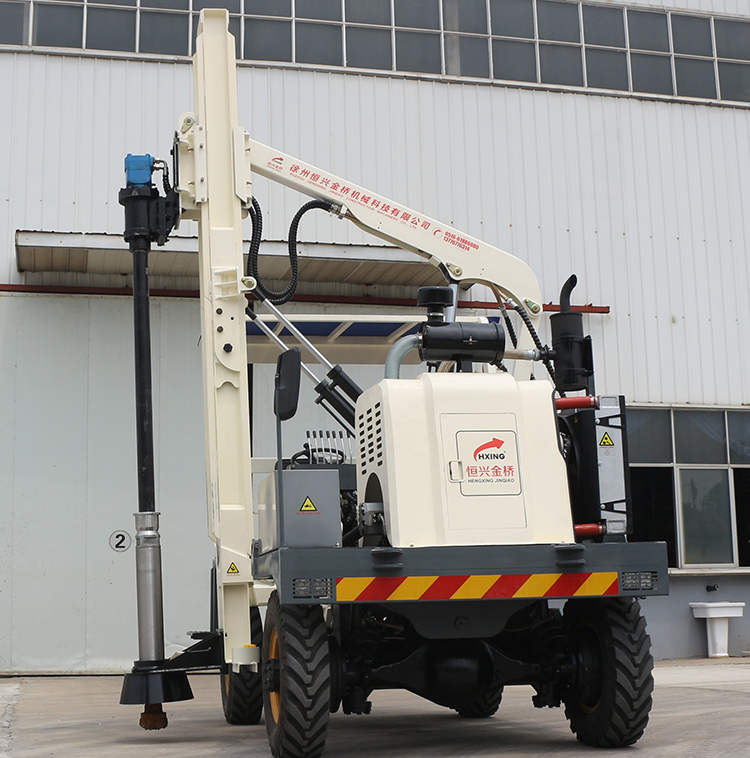

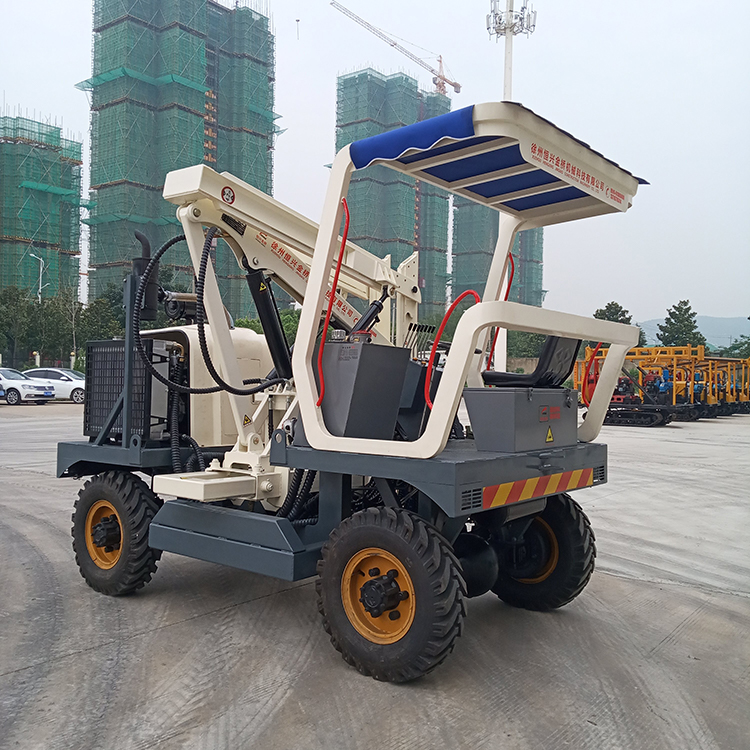

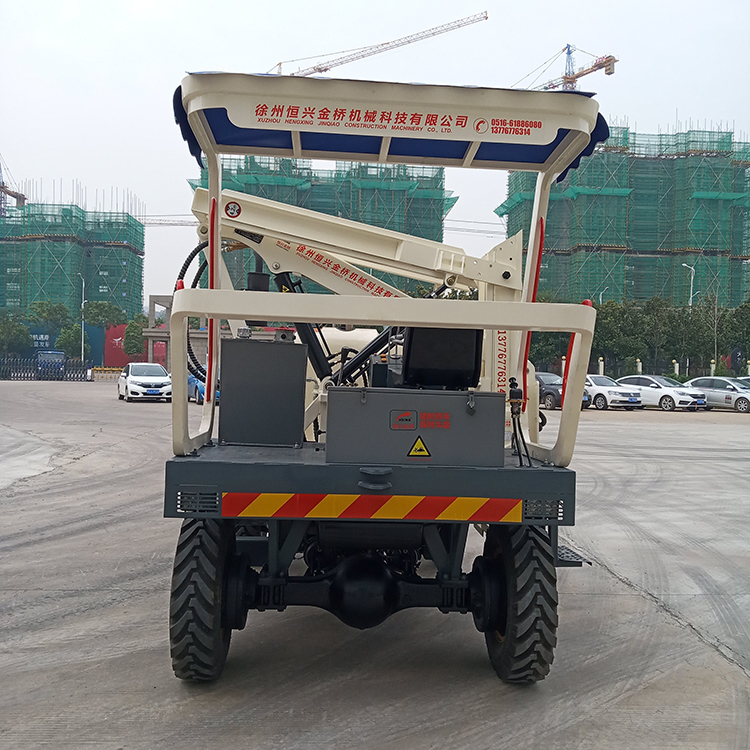

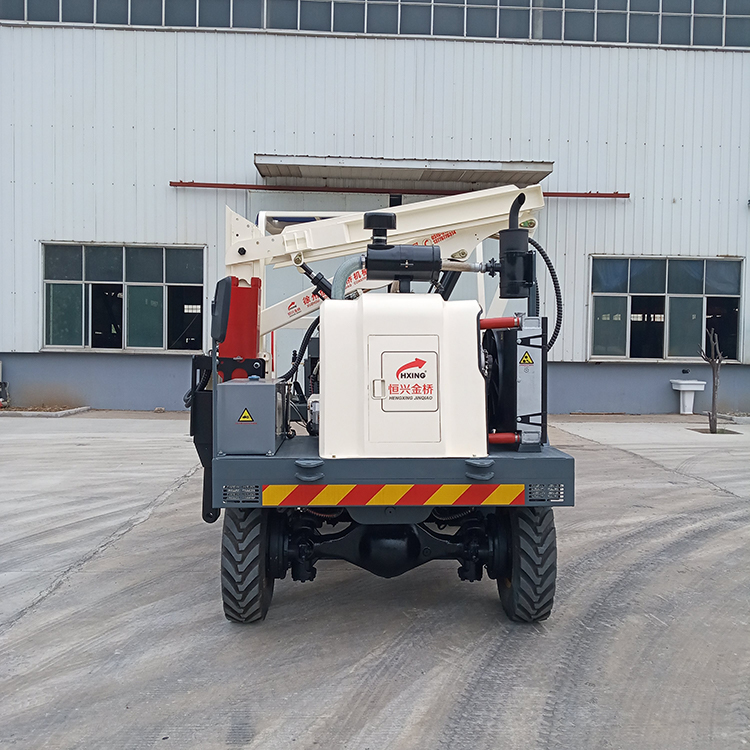

China Hengxing highway guardrail pile driver HX36D-1.



China Hengxing highway guardrail pile driver HX36D-1 is a kind of highway guardrail steel pipe pile pressing equipment. China Hengxing highway guardrail pile driver HX36D-1 adopts diesel power and full hydraulic mechanical transmission. It has the characteristics of light driving, high piling precision, durability, energy saving and environmental protection. It is especially suitable for road guardrail installation, maintenance and repair. Field engineering construction for emergency repairs.

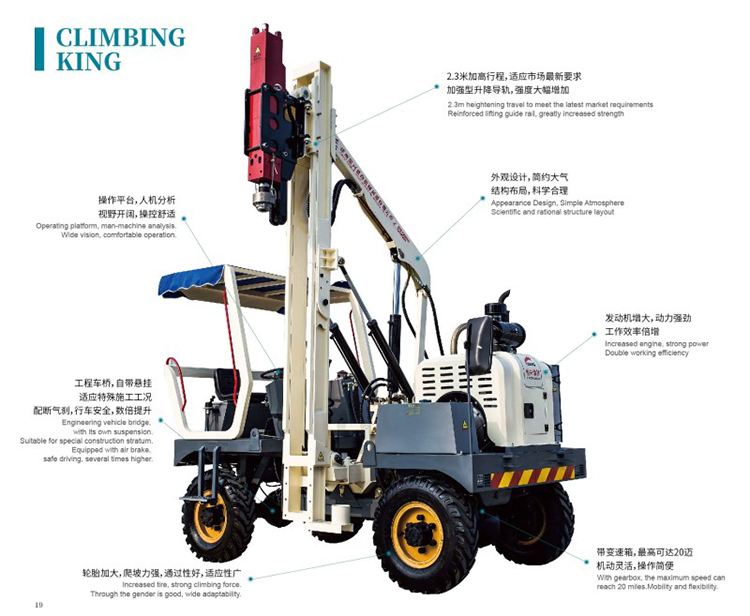

Selling points:



1.Operating platform, man-machine analysis.Wide vision, comfortable operation.



2.2.3m heightening travel to meet the latest market requirements Reinforced lifting guide rail, greatly increased strength.



3.Appearance Design, Simple Atmosphere Scientific and rational structure layout.



4.Increased tire, strong climbing force.Through the gender is good, wide adaptability.

China Hengxing highway guardrail pile driver HX36D-1 for sale

Item

Valve

Unit

Work size(L*W*H)

3400*2600*4250

mm

Transport dimensions(L*W*H)

3400*2250*2550

mm

Chassis body width

1800

mm

Vehicle weight

4335

kg

Hydraulic hammer type

YC360



Workflow of Hydraulic hammer

50-90

l/min

Working Pressure of Hydraulic hammer

10-14


Mpa

Impact frequency

400-800

BPM

Working stroke of hydraulic hammer

700-3000

mm

Piling height

3000

mm

Drill Pipe Diameter

85

mm

Hydraulic hammer striking force

7-14

T

Piling efficiency

2500

mm/min

Engine power

33/53

KW

Diesel engine rated speed

2300

r/min

Diesel engine weight

205

 kg

Maximum torque of walking motor

1950


Nm

Torque of rotary motor for percussive drilling tool

800-1800


Nm

Mast stroke

2300


mm

Drilling depth

2000


mm

Borehole diameter

300

mm

Inclination angle of sliding guide frame

Left 30/right 10

°

Front and rear adjusting angle of frame

±10

°

Hydraulic system pressure

16-20

 Mpa

Flow rate Hydraulic system

60-100

L/min

Walking speed

20

km/h

Left and right sliding stroke

0-350

mm

Pile driving brazing cap center extending the maximum travel of frame

880

mm

Maximum travel of frame extending ot of the center of pile pulling drill bit

800

mm

Maximum travel of frame extending from the center of pile pulling drill cap

880

mm

Climbing ability

30

°

Hydraulic oil tank(L*W*H)

600*360*400


mm

All models

HX36D-1,-2,-3,-4,-5
