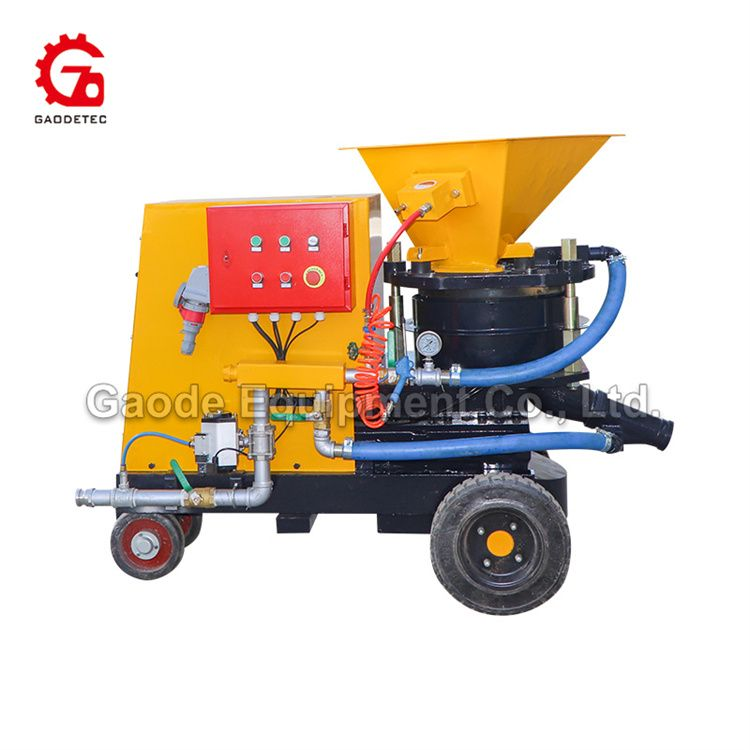

Gaodetec GSZ-10S/E 10m3/h Concrete Shotcrete Machine for Wet and Dry Spraying and Conveying
.jpg.webp)
GSZ-10S/E
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GSZ-10S/E
CE

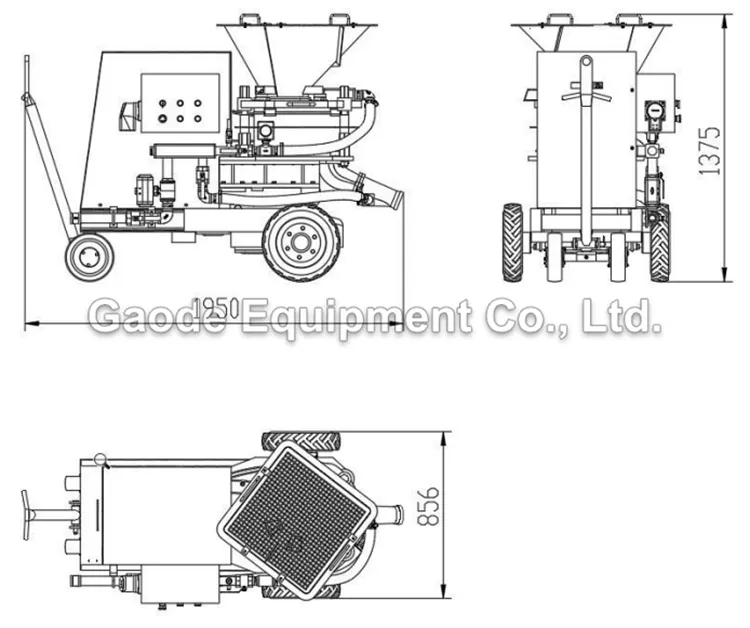

1950*856*1375mm
1000kg
7.5kw
electric
GSZ-10S/E
Gaodetec
China
10 m3/min
64mm
20mm
Dry: 200m / 100m, Wet: 40m / 15m
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1950*856*1375mm
- Weight:1000kg
- Power(W):7.5kw
- Voltage:electric
- Model Number:GSZ-10S/E
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:10 m3/min
- Hose Inner Diameter:64mm
- Max Aggregate Size:20mm
- Max. Conveying Distance:Dry: 200m / 100m, Wet: 40m / 15m
Specifications
- Weight:1000.000kg
- Condition:New
- Moving Type:Wheel
- output:10m3/h
- Working pressure:0.2Mpa
- Rotor speed:12.3rpm
- Rotor size:14.5L
- Max. aggregate size:20mm
- Air consumption:10m3/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description
GSZ-10S/E Electric Concrete Shotcrete Machine for Wet and Dry Spraying and Conveying
GSZ-10S/E electric Concrete Shotcrete Machine is an electric driven multifunctional rotor type machine for wet and dry spraying and conveying. Theoretical output is 10m3/h, Max. aggregate size is 20mm.
1. The materials which can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
2. Compared with traditional shotcrete machines, GSZ-10S/E has the advantage of being lighter and more compact.
2. Compared with traditional shotcrete machines, GSZ-10S/E has the advantage of being lighter and more compact.

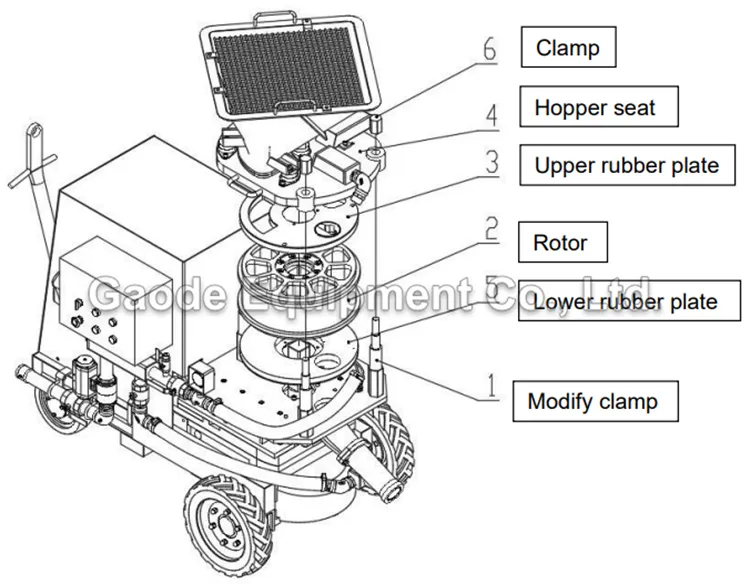

3. It is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plates, longer service life, and better sealing effect.
Advantages and Benefits
1. Theoretical displacement can be adjusted.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Equipped with an automatic lubrication system, the rubber plate has a longer service life.
5. For concrete repair, slope stabilization, excavation support, or mining.
6. Light and compact machine design.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Equipped with an automatic lubrication system, the rubber plate has a longer service life.
5. For concrete repair, slope stabilization, excavation support, or mining.
6. Light and compact machine design.

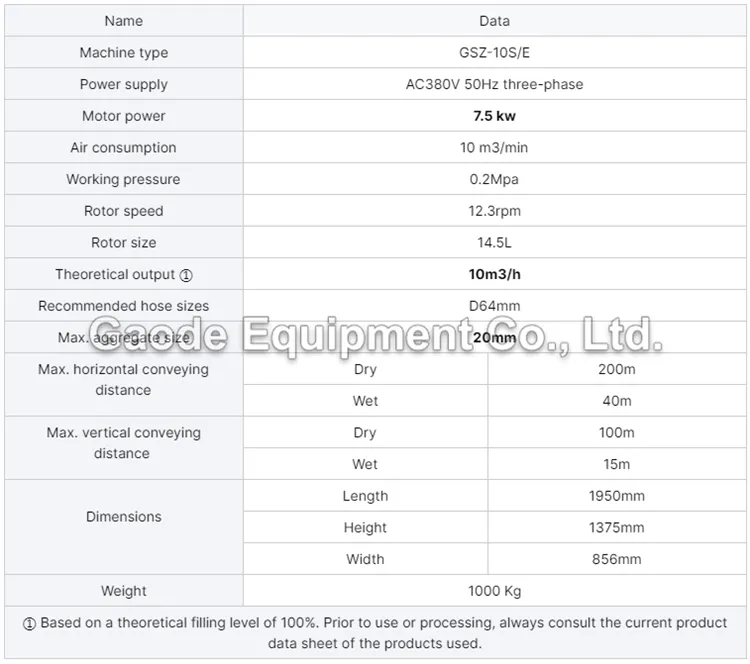

Technical Parameter

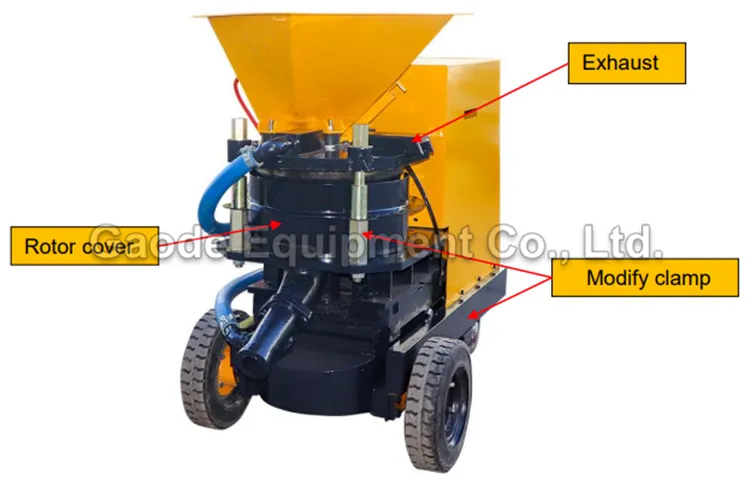

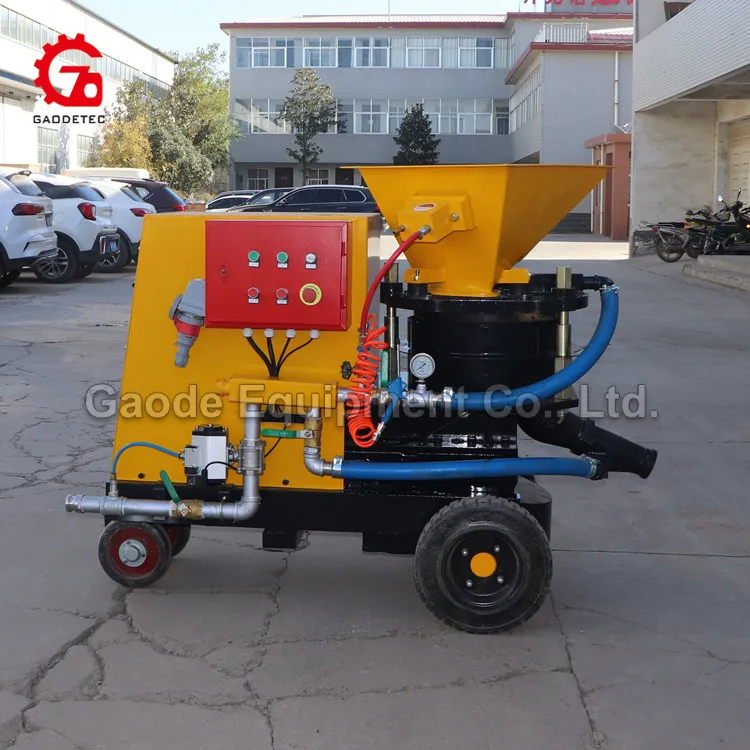

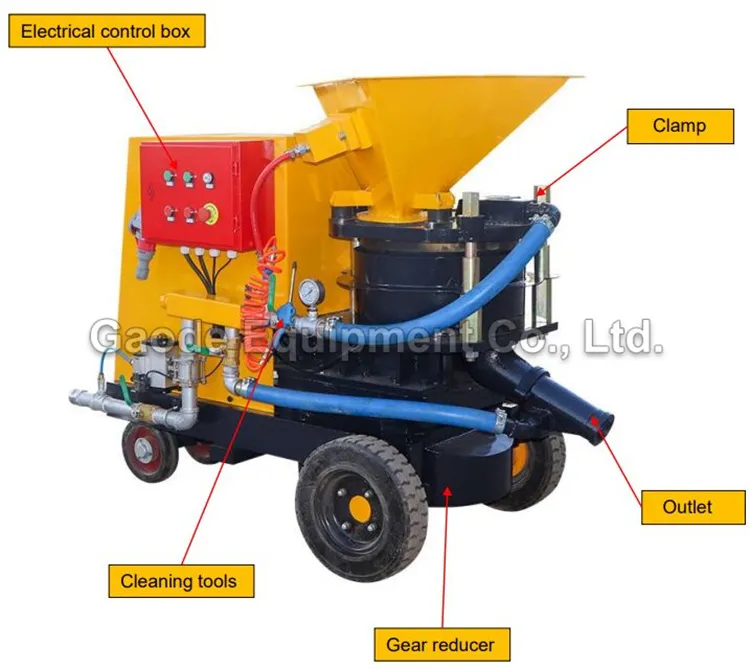

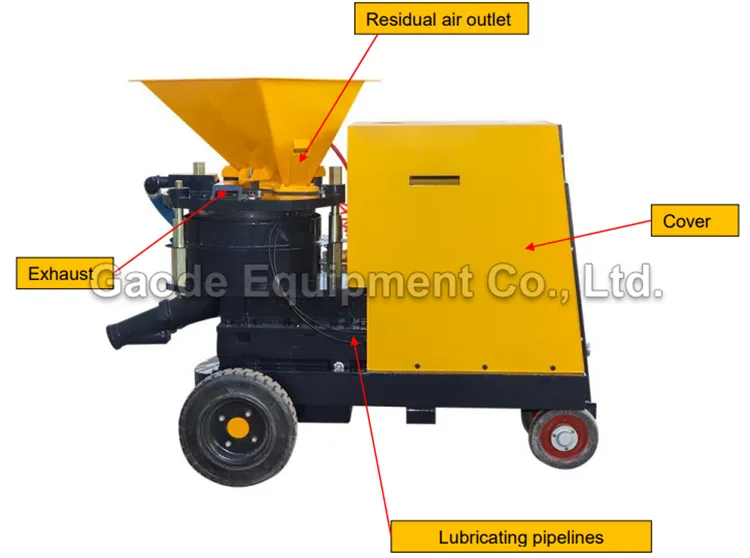

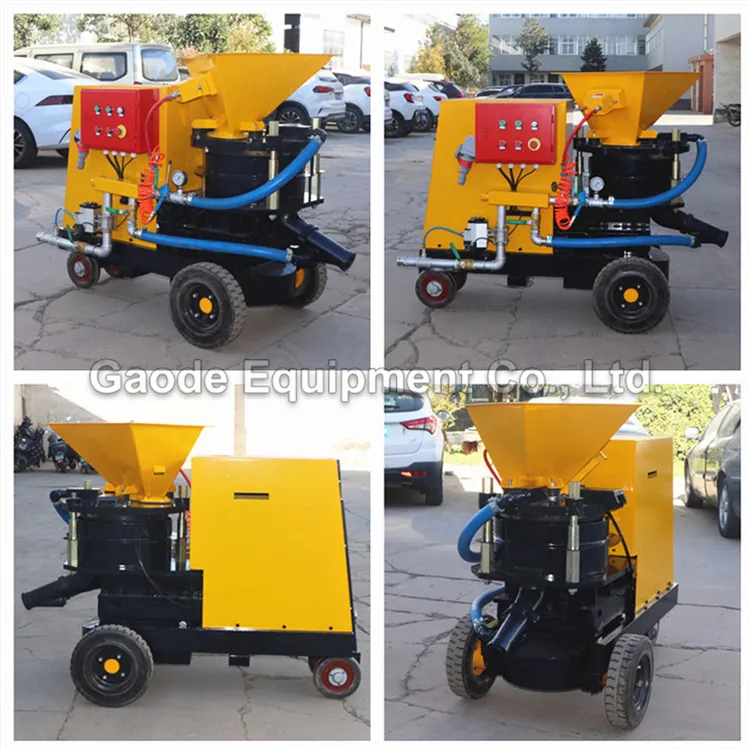

Image Display
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
