Price: $18000.00-$20000.00
View All >
Model: GGP250/700/75PI-E
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

GGP250/700/75PI-E
Specs & Compare
Details

Specifications

  • Weight:1060.000kg
  • Grout Station model:GGP250/700/75PI-E
  • Pump Output/Pressure:Low Pressure:0-75L/min, 0-50bar High Pressure:0-40L/min, 0-100bar
  • Mixer Capacity:250L
  • Agitator Capacity:700L
  • Dimensions:2710*1100*1820mm
  • Weight:1060kg

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China
Description

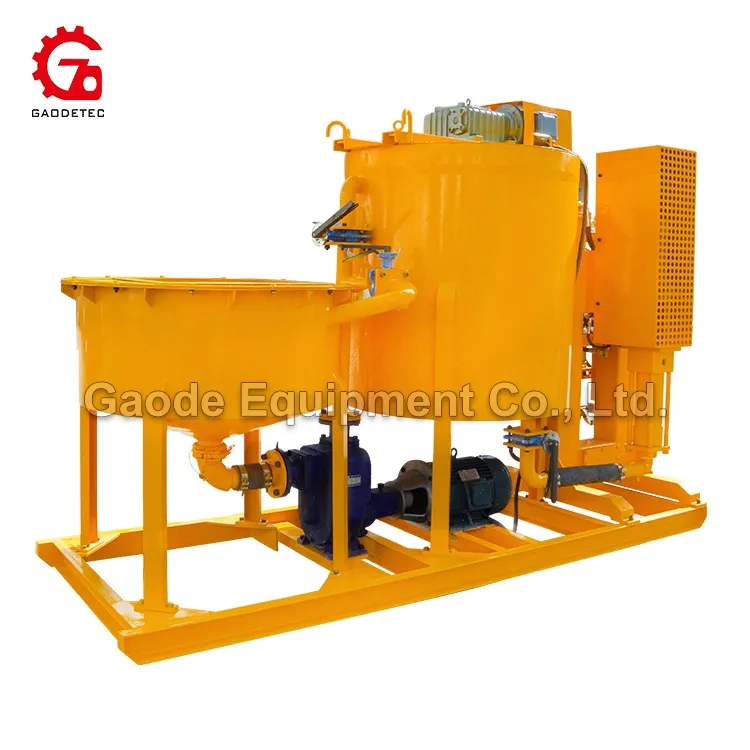

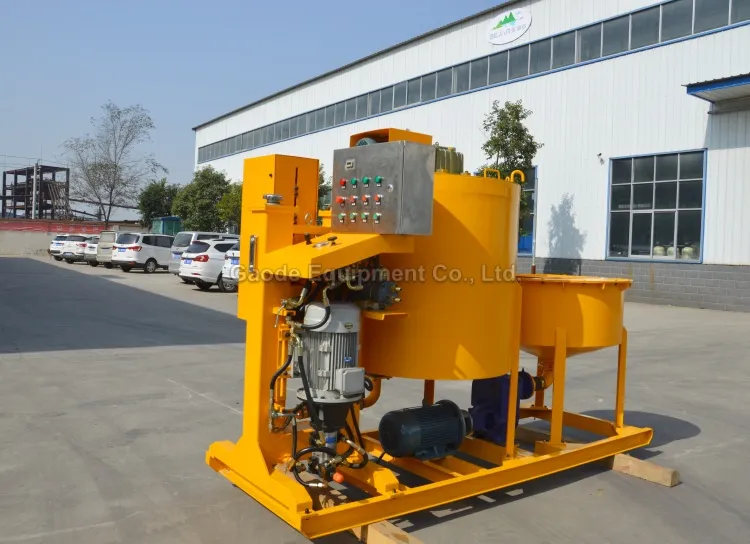

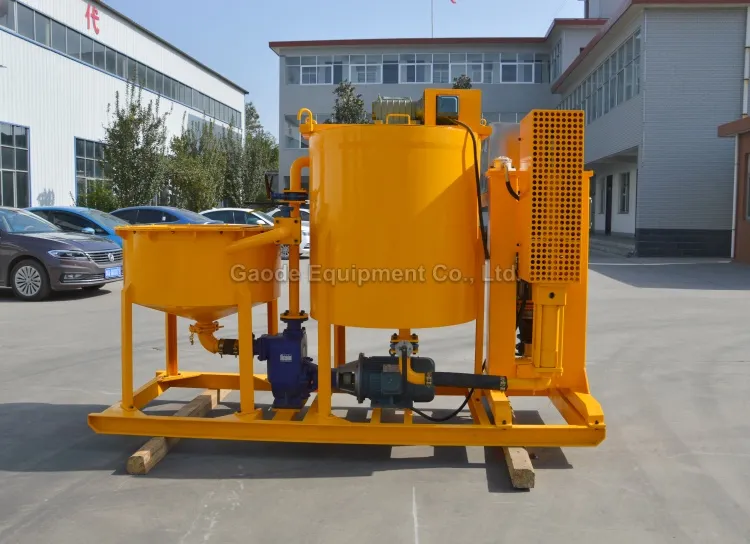

Gaodetec GGP250/700/75PI-E Cement Grout Injection Station is a combination of a mixer, an agitator and a grout pump in one base frame. It is mainly used to make bentonite slurry, cement slurry, etc, in applications highway, railway, hydropower, construction, mining and other ground and underground construction.
High-speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. The grout pump injects from the mixing drum (storage tank). This ensures continuous mixing and grouting operations. The grouting plant is a hydraulic drive with an electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground


Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground

The features and advantages of this machine are as follows:
One and Two-oil gear pump to get a large output and high pressure in one pump
Single Piston and two-acting;
Vertical type pump with compact size
Hydraulic drive
Safely releasing pressure when pumping the block
Ball valve
Up to 5mm particle size
Low-flow pressure surge system
Lower charging material height for the mixer
High-speed colloidal grout mixer

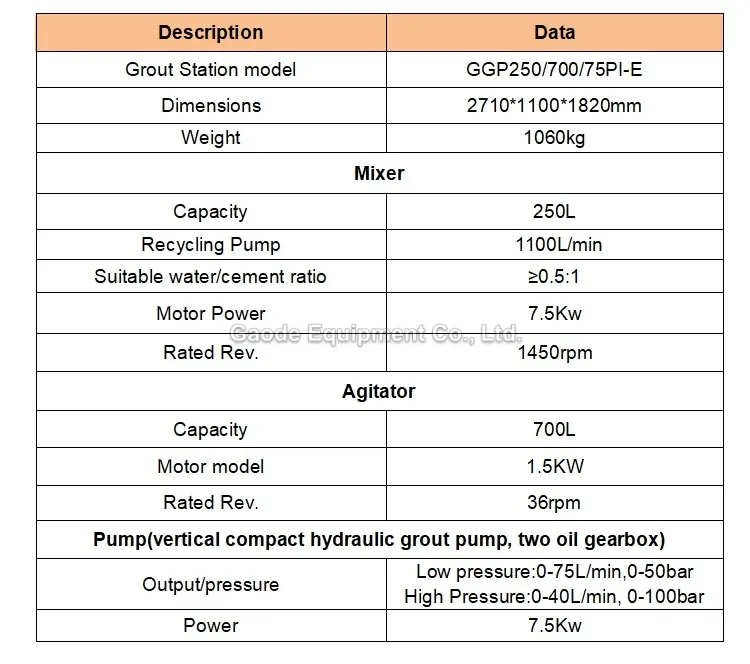

Parameters
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground

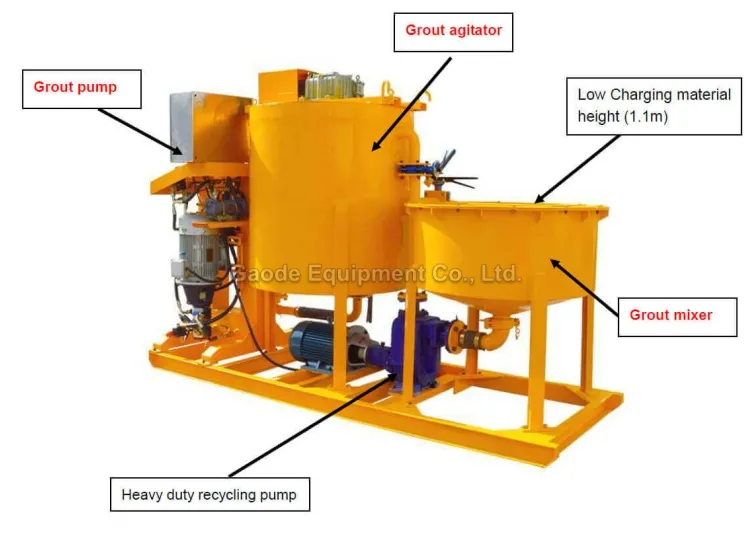

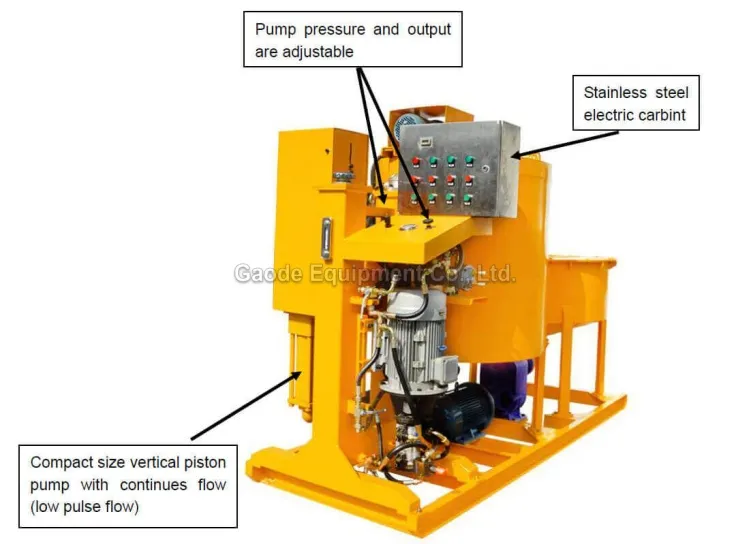

Details Images
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground
Application

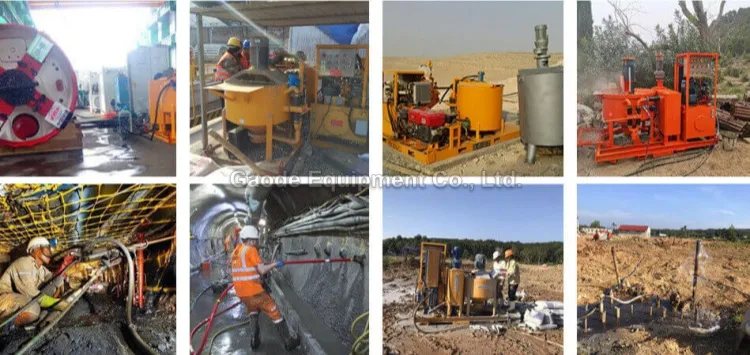

GGP250/700/75PI-E Cement Grout Injection Station is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground

FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.


Our Advantages

Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground

Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground

Packaging and Delivery
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground
Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground

Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?


Gaodetec GGP250/700/75PI-E Cement Grout Injection Station for Foundation Repair Ground
