XCMG 25ton 48 meter 5 jib mobile crane QY25K5-I price
Summary
Specifications
- weight:31750.000kg
- Condition:New
- Moving Type:Other
- Span:5.6M
- Engine rated power:206/2200 213/2200kW/(r/min)
- Max. travel speed:80km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

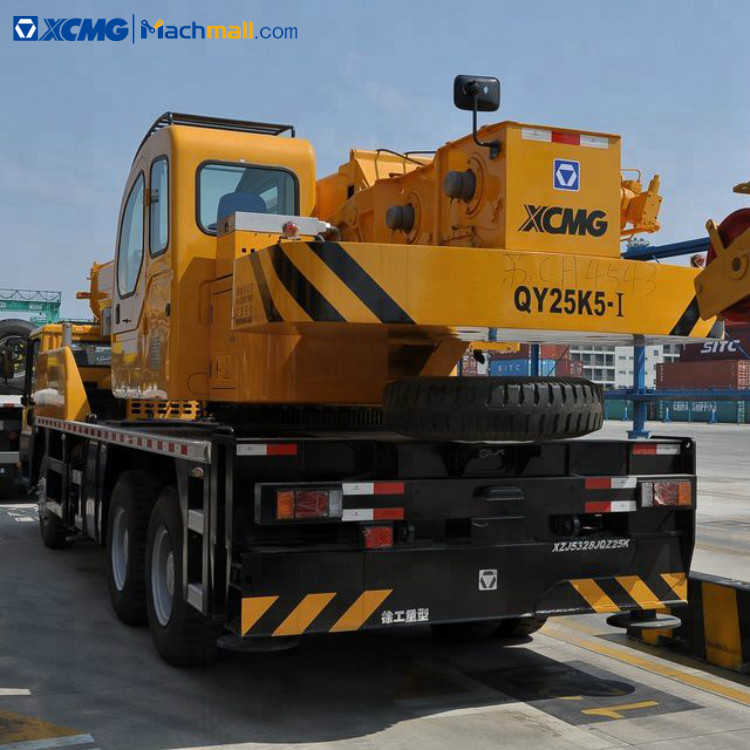

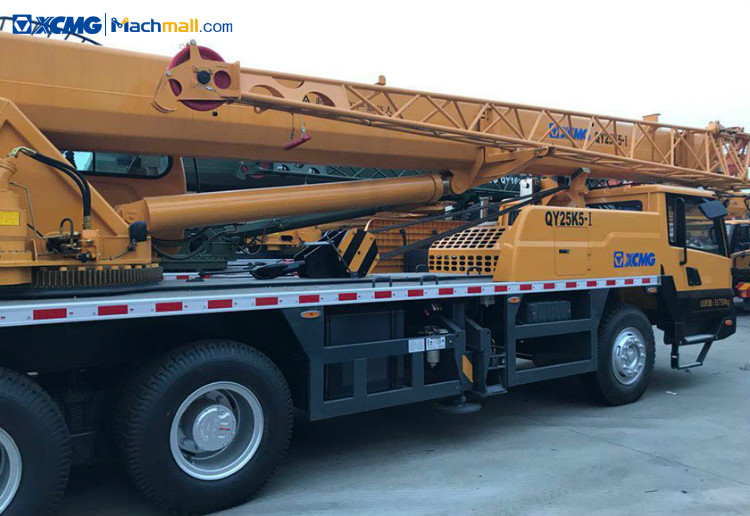

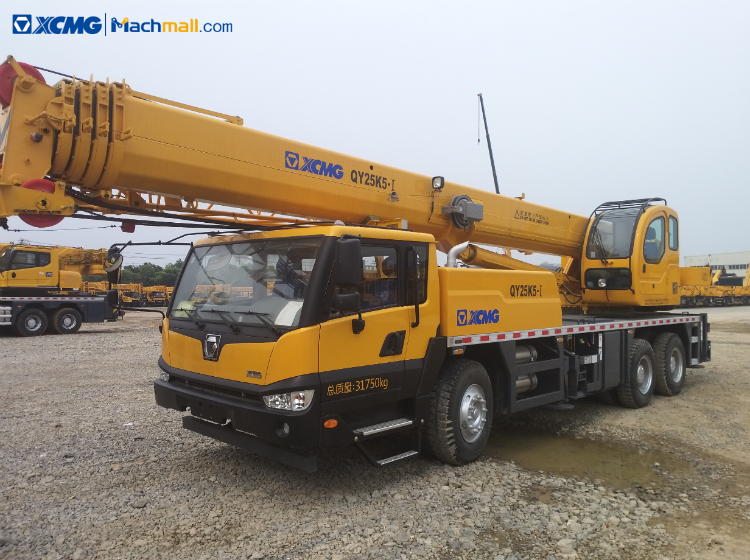

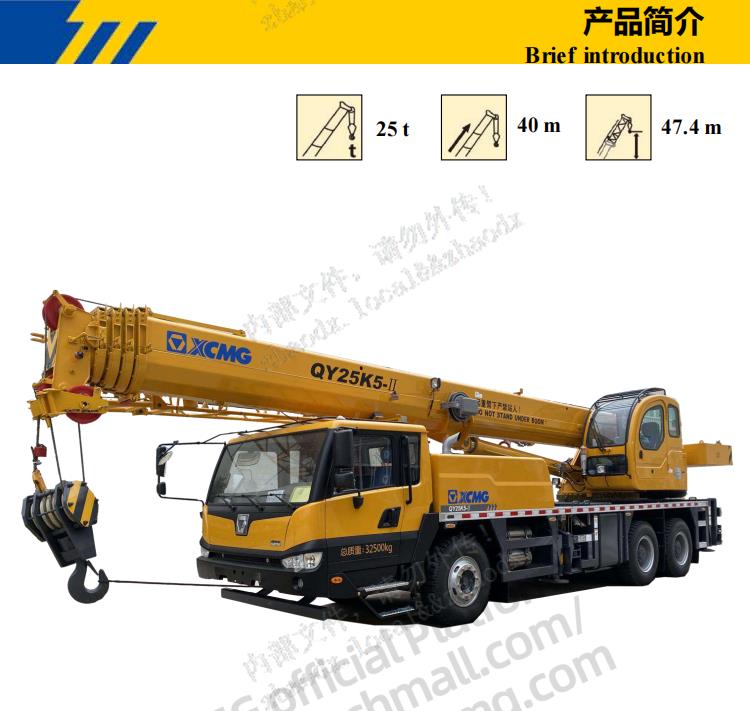

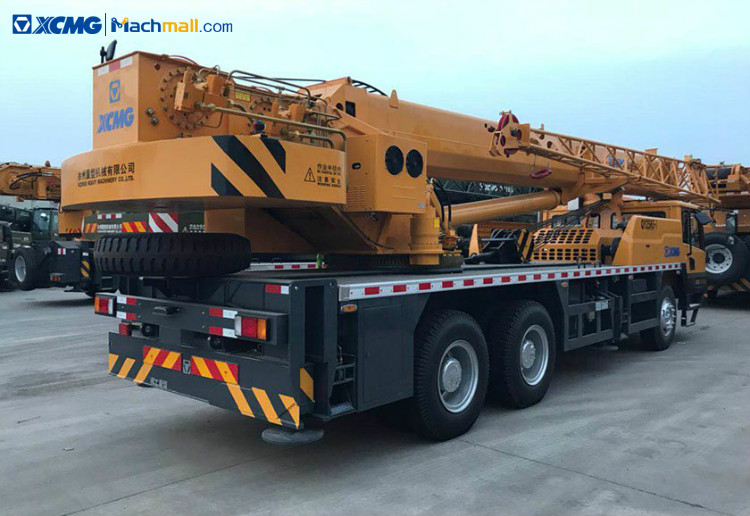

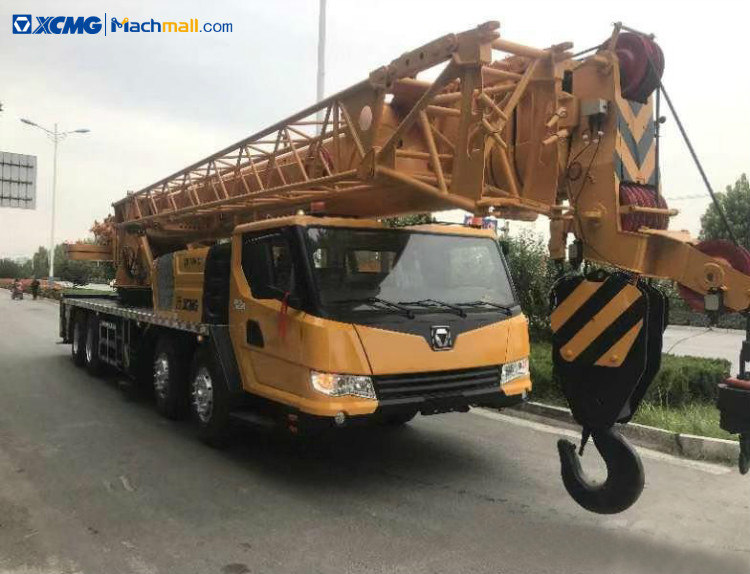

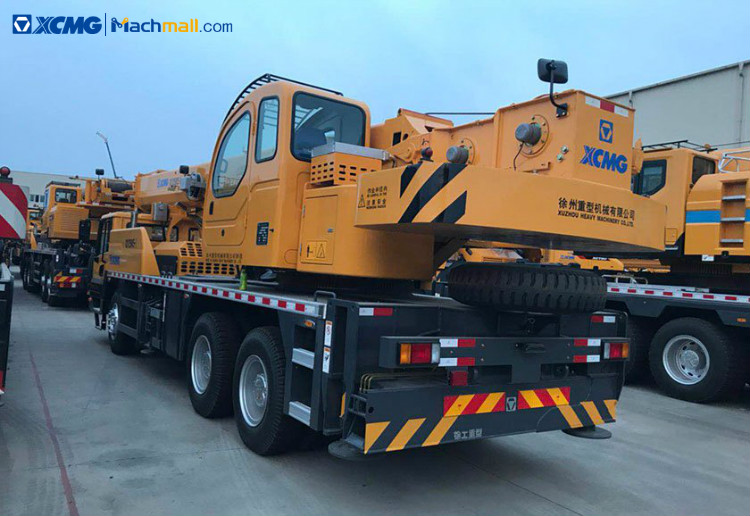

XCMG 25 ton 48 meter 5 jib mobile crane QY25K5-I .
The operations of XCMG 25 ton mobile crane QY25K5-I are very simple, convenient and flexible. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
QY25K5-I Moblie Crane Advantages and highlights:
* Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
* The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
* The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.

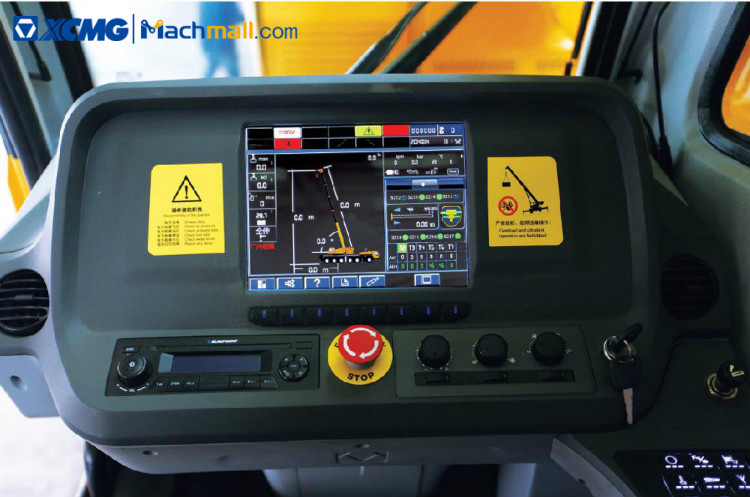

* The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
* Six unique technologies supply the quality assurance, and make the products keep a high value.
* The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
* The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
* Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
Description |
| Unit | Parameter value |
Overall length |
| mm | 12300 |
Overall width |
| mm | 2500 |
Overall Height |
| mm | 3350 |
Wheel Base |
| mm | 4425+1350 |
Track |
| mm | 2074/1834/1834 |
Total vehicle mass in travel configuration |
| kg | 31750 |
Axle load | Front axle | kg | 6550 |
| Rear axle |
| 25200 |
Engine Model |
|
| SC8DK280Q3 |
Engine rated power |
| kw/(r/min) | 206/2200 |
Engine rated torque |
| N.m/(r/min) | 1112/1400 |
Max. travel speed |
| km/h | 80 |
Min. turning diameter |
| m | 22 |
Min. ground clearance |
| mm | 275 |
Max. grade ability |
| % | 40 |
Approach angle |
| ° | 16 |
Departure angle |
| ° | 13 |
Braking distance (at 30 km/h, full load ) |
| m | ≤10 |
Oil consumption per 100km |
| L | ≤37 |
Exterior noise level during acceleration traveling |
| dB (A) | 88 |
Noise level at seated position |
| dB (A) | 90 |
