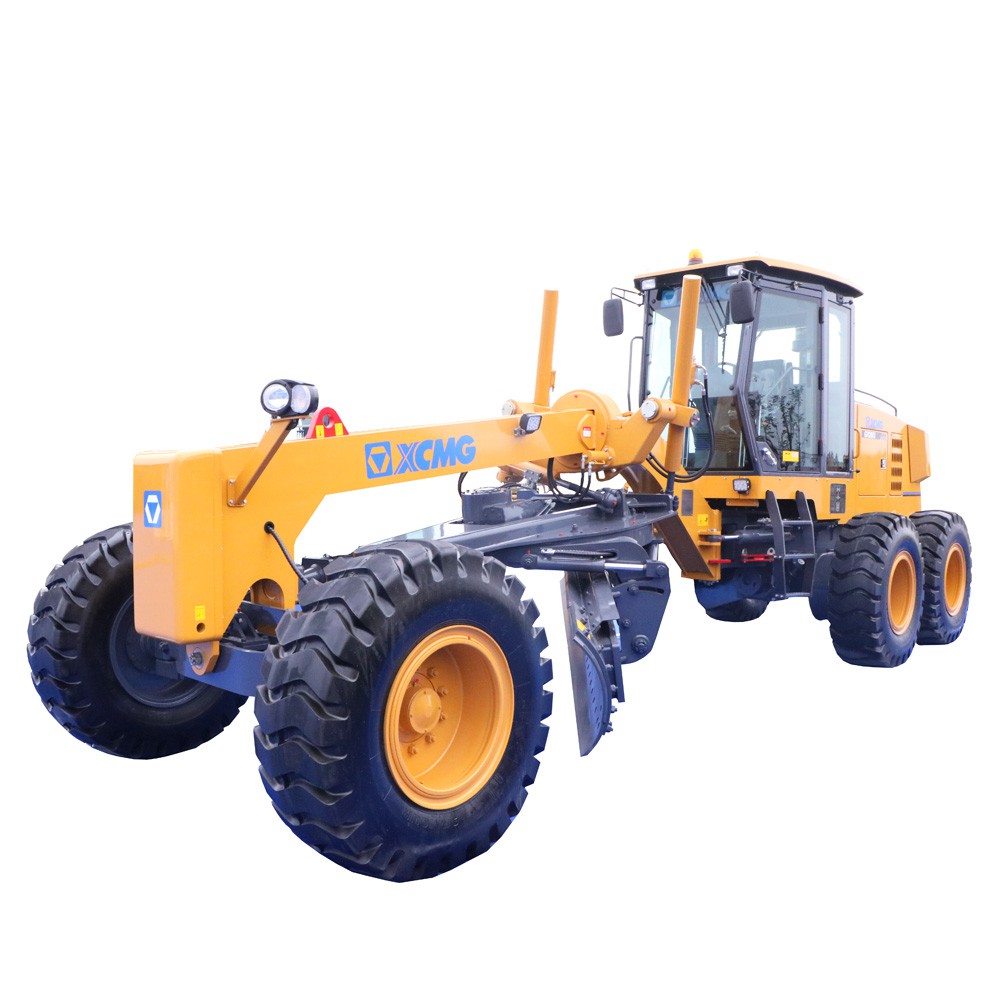

XCMG Official GR2003 Motor Grader for sale
Summary
- Dimension(L*W*H):8900x2625x3420mm
- Weight:16000kg
- Model Number:GR2003
- Brand Name:XCMG
- Place of Origin:China
- Reverse Speed(km/h):5/11/23km/h
- Forward Speed(km/h):5/8/11/19/23/38km/h
- Certification:Can provide relevant certification
Specifications
- weight:16000.000kg
- Condition:New
- Moving Type:Wheel
- Engine model:SC9DK200.1G3
- Rated power/speed:147kW/2000rpm
- Tire specification:17.5-25
- Ground clearance (front axle):430mm
- Space of front and rear axles:6219 mm
- Tractive effort f=0.75:82 kN
- Working system pressure:20MPa
- Maximum steering angle of front wheel:±48°
- Minimum turning radius:7.3m
- Maximum lift height:400mm
- Maximum cutting depth:500mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
GR2003 Motor Grader
1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%
2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine
3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.
4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased.
|
Description |
Unit |
Parameter value |
||
|
Engine model |
SC9DK200.1G3 |
|||
|
Rated power/speed |
kW/rpm |
147/2200 |
||
|
Overall dimension (standard) |
8900x2625x3420 |
|||
|
Total weight (standard) |
kg |
16000 |
||
|
Tire specification |
17.5-25 |
|||
|
Ground clearance (front axle) |
mm |
430 |
||
|
Tread |
mm |
2156 |
||
|
Space of front and rear axles |
mm |
6219 |
||
|
Space of middle and rear wheels |
mm |
1538 |
||
|
Forward velocity |
km/h |
5/8/11/19/23/38 |
||
|
Reverse speed |
km/h |
5/11/23 |
||
|
Tractive effort f=0.75 |
kN |
82 |
||
|
Maximum gradeability |
% |
25 |
||
|
Tire inflation pressure |
kPa |
260 |
||
|
Working system pressure |
MPa |
20 |
||
|
Transmission pressure |
MPa |
1.3—1.8 |
||
|
Maximum steering angle of front wheel |
±48° |
|||
|
Maximum slant angle of front wheel |
±17° |
|||
|
Maximum oscillating angle of front axle |
±15° |
|||
|
Maximum oscillating angle of equilibrium
box |
Front15°、Rear15° |
|||
|
Maximum steering angle of frame |
±27° |
|||
|
Minimum turning radius |
m |
7.3 |
||
|
Scrape knife |
Maximum lift height |
mm |
400 |
|
|
Maximum cutting depth |
mm |
500 |
||
|
Maximum tilt angle |
90° |
|||
|
Cutting angle |
28°—70° |
|||
|
Angle of revolution |
360° |
|||
|
Length & chord height |
mm |
4270x610 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
280 |
||
|
Engine |
L |
24 |
||
|
Transmission |
L |
38 |
||
|
Hydraulic oil |
L |
110 |
||
|
Drive axle |
L |
28 |
||
|
Balancing box |
L |
46 |
||
