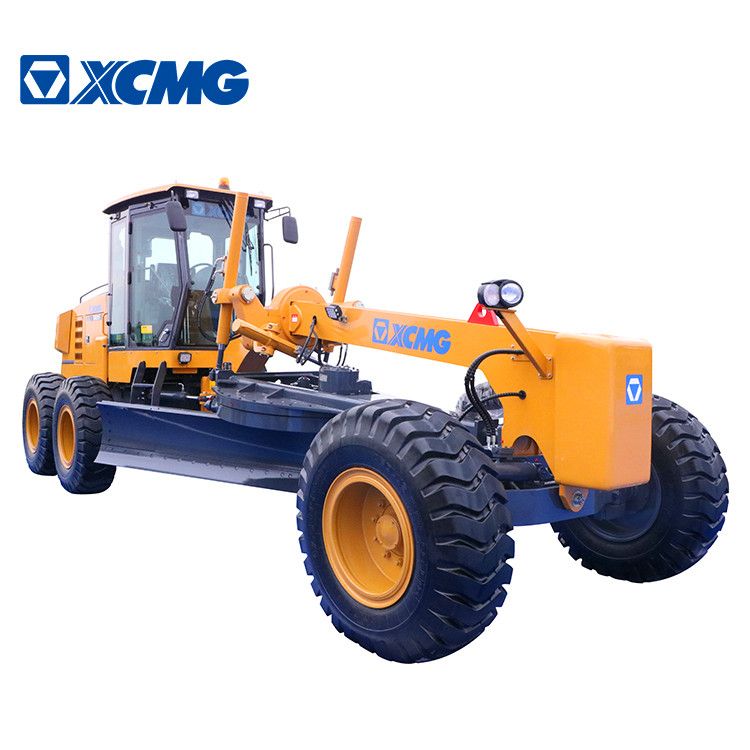

China XCMG 16 ton 215HP motor grader GR215A for sale

  • China XCMG 16 ton 215HP motor grader GR215A for sale
  • China XCMG 16 ton 215HP motor grader GR215A for sale
  • China XCMG 16 ton 215HP motor grader GR215A for sale
  • China XCMG 16 ton 215HP motor grader GR215A for sale
  • China XCMG 16 ton 215HP motor grader GR215A for sale
  • China XCMG 16 ton 215HP motor grader GR215A for sale

Share:
China XCMG 16 ton 215HP motor grader GR215A for sale
FOB for Road Mach Reference Price:Get Latest Price
$75000.00-$90000.00 1 / EA (Min. Order)
Model: GR215A
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
China XCMG 16 ton 215HP motor grader GR215A for sale
China XCMG 16 ton 215HP motor grader GR215A for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF
Summary
Specifications
  • Weight:16100.000kg
  • Condition:New
  • Moving Type:Other
  • Weight:16100kg
  • Dimension(L*W*H):9180*2625*3470mm
  • Engine Brand:Cummins
  • Forward Speed:38km/h
  • Reverse Speed:23km/h
  • Rated power/speed:160kW/2200rpm

China XCMG 16 ton 215HP motor grader GR215A for sale

XCMG 16 ton 215HP motor grader GR215A.



1.Energy-saving and noise-reducing

Adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%.



2.Strong Power

Adopting Sichai High-efficiency State III Variable Power Engine.



3.With load rotation

Improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.



4.Efficient operation

The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.

China XCMG 16 ton 215HP motor grader GR215A for sale

Basic specification

Engine model

QSB6.7/6CTA8.3

Rated power/speed

164kW/2200rpm 160kW/2200rpm

Dimension(LxWxH)

9180×2625×3470mm

Operating weight(Standard)

16100kg

Performance specification

Travelling speed ,forward

5,8,11,19,23,38 km/h

Travelling speed ,reverse

5,11,23 km/h

Tractive force(f=0.75)

115.3KN

Max. gradeability

36%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3~1.8MPa

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°-70°

Circle reversing rotation

360°

Moldboard width ×height

4270×610mm
