Summary

  • Weight:20600kg
  • Overall Dimension:14060*2490*3000 mm
  • Table Size:2400*900 mm
  • Max Lifting Height:39.9m
  • Min Lifting Height:260mm
  • Rated Loading Capacity:230kg
  • Power:55.5kW/2400r/min
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Telescoping Lift
  • Model Number:GTBZ38S
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE/ISO

Specifications

  • Weight:20600.000kg
  • Condition:New
  • Moving Type:Other

XCMG 38m Telescopic Boom Lift GTBZ38S Hydraulic aerial work platform for sale

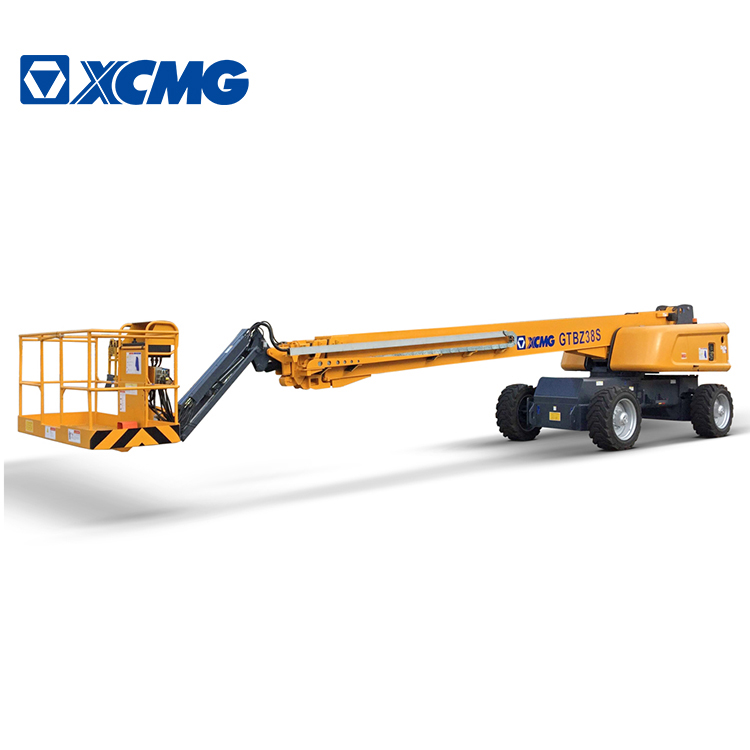

Telescopic Lift aerial work platform GTBZ38S.



Main configuration:



Four-wheel drive, four-wheel steering, axle balance, foam filled tires

Max. travel speed: 5km/h;

Max. grade ability: 40%;

Axle extending and retracting system: Max. span is 3.8m, providing better vehicle stability

Axle balance system: greatly improving the capability to pass through rugged road surface



XCMG CTBZ38S built-in traveling reducer integrating motor and reducer is selected, with fast and slow travel speed, which can meet the requirements for traveling in different environment. The traveling mechanism has self-braking function when traveling on a slope, meanwhile clutch device is equipped for dragging in event of failure.



Performance Highlights:



1. Double closed pump respectively controls left and right motors for chassis traveling, variable pump controls the hydraulic system of whole vehicle except traveling, which is directly driven by the engine to provide power for hydraulic system.

2. The speeds of inside and outside tires can be harmonized and controlled so as to improve smoothness in traveling and reduce tire wear.

3. The engine can be rotated out by removal of locking bolts, which is easy access to the engine and accessories for maintenance and service.

XCMG 38m Telescopic Boom Lift GTBZ38S Hydraulic aerial work platform for sale

Item

Unit

Parameter

Overall length

mm

14060

Overall width (axle retracting/axle extending)

mm

2490/3800

Overall height

mm

3000

Wheel base

mm

3800

Max. working height

m

39.9

Max. platform height

m

38.2

Max. working radius

m

23.3

Max. load capacity

kg

230 (no limit)/340 (with limit)

Boom elevation range

°

-7~+75

Turntable slewing angle

°

360°

Max. tail swing (axle retracting/axle extending)

mm

2085/1430

Platform dimension

mm

2400×900

Slewing angle of platform

°

180

Overall weight

kg

20600

Max. travel speed

km/h

5

Min. turning radius (axle retracting/axle extending)

m

8.2/10.8(turning for twice)

5.8/6.8(turning for four times)

Min. ground clearance

mm

260

Max. grade ability

%

40

Tire specification

-

445/50D710

Engine mode

-

Perkins 1104D-44T

Cummins B3.3-85HP

Engine rated power

kW/(r/min)

55.5/2400

63/2600
