XCMG Schwing concrete pump truck HB62V 62m concrete truck with scania chassis price
Summary
- Dimension(L*W*H):15370×2530×4000mm
- Weight:43870kg
- Power(W):331kW
- Model Number:HB62V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- weight:43870.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- Wheelbase:1990+4360+1350mm
- Theoretical:180m³/h
- Reach height:61.1m
- Reach depth:43.6m
- Transfer:Rock valve/S valve
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

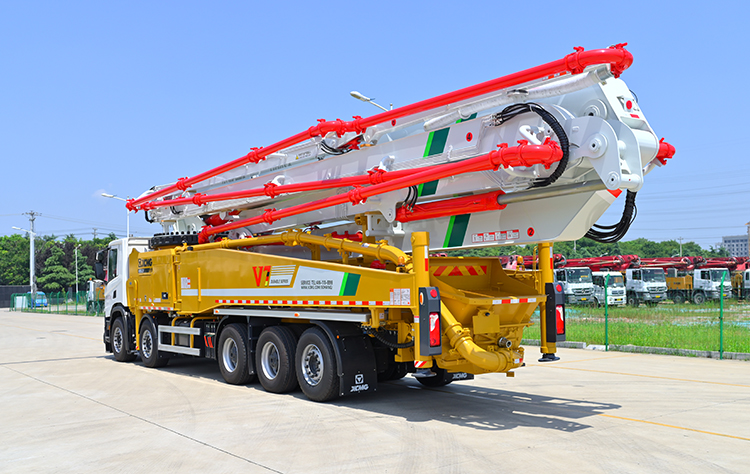

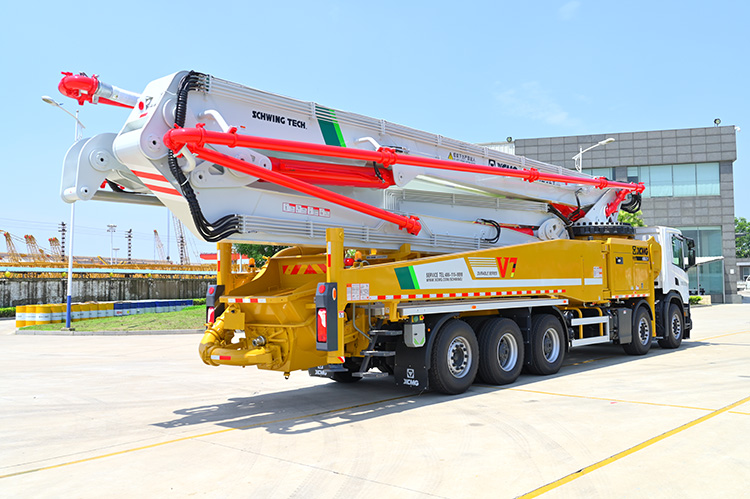

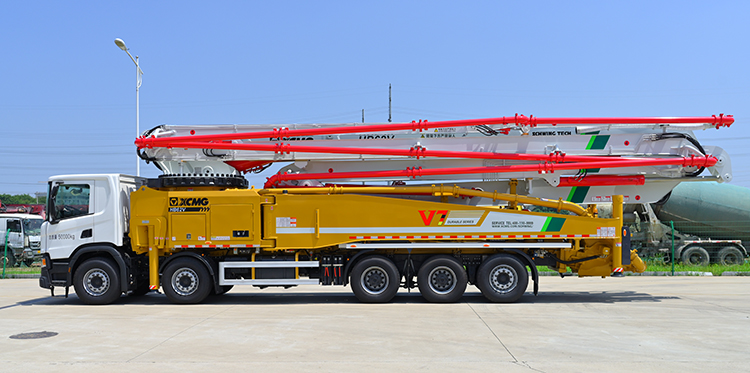

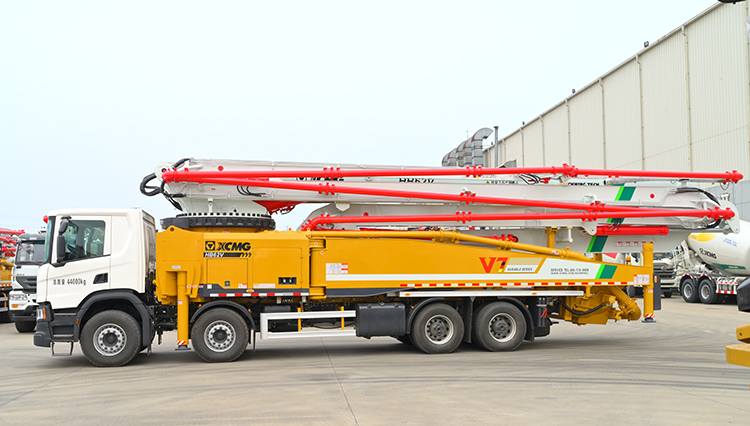

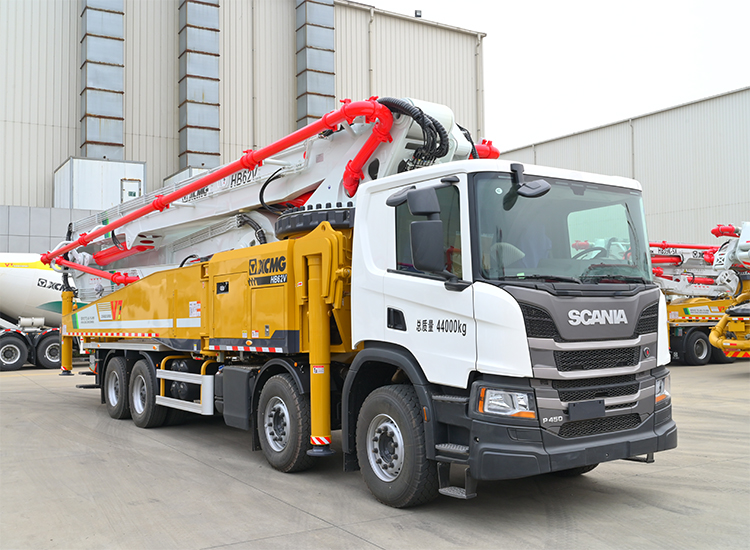

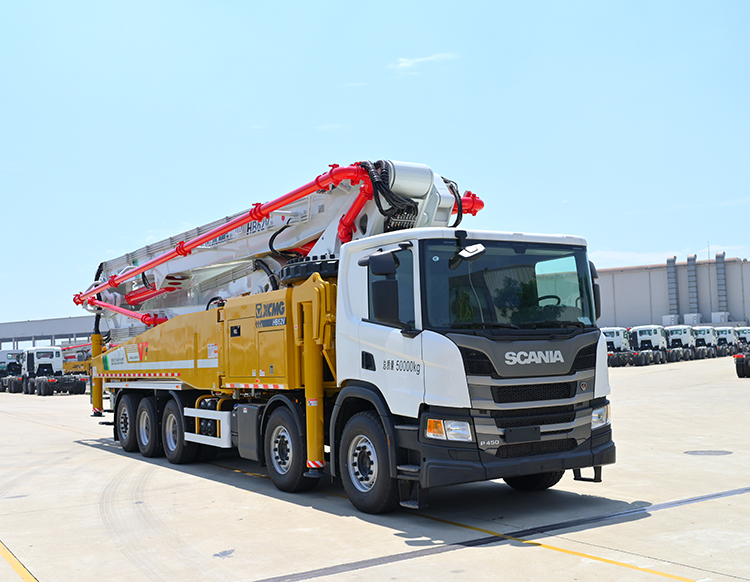

XCMG Schwing concrete pump truck HB62V 62m concrete truck with scania chassis.
XCMG HB62V V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
In the design, the scania chassis is adopted, following the principle of "high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
|
Category |
Item |
Unit |
HB62V |
|
Overall |
Outline dimension |
mm |
15370×2530×4000 |
|
Overall weight |
kg |
43870 |
|
|
Chassis |
Brand |
/ |
SCANIA |
|
Model |
/ |
P 450 8×4 |
|
|
Wheelbase |
mm |
1990+4360+1350 |
|
|
Max.power |
kW |
331 |
|
|
Emission standard |
/ |
China VI |
|
|
Pumping system |
Theoretical |
m³/h |
180 |
|
Concrete pumping pressure |
MPa |
10.2 |
|
|
Theoretical pumping times |
Times/min |
22～24 |
|
|
Delivery cylinder diameter × stroke |
mm |
φ260×2200 |
|
|
Placing boom |
Reach height |
m |
61.1 |
|
Reach depth |
m |
43.6 |
|
|
Slewing radius |
m |
55.9 |
|
|
Slewing angle |
° |
±270 |
|
|
Others |
Transfer |
/ |
Rock valve/S valve |
