XCMG Official 28 Ton XH285 Road Roller for High Efficiency
Summary
- Weight:28500kg
- Dimension(L*W*H):8300×3830×3845mm
- Power(W):242KW
- Model Number:XH285
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:100%
- Travel Speed:0~12Km/h
- Static Linear Pressure:/
- Type:Vibratory Sungle Drum Roller
- Certification:CE/ISO9001
Specifications
- Weight:28500.000kg
- Condition:Used
- Moving Type:Other
- Model:XH285
- Engine Type:Diesel Engine
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 28 Ton XH285 Road Roller for High Efficiency

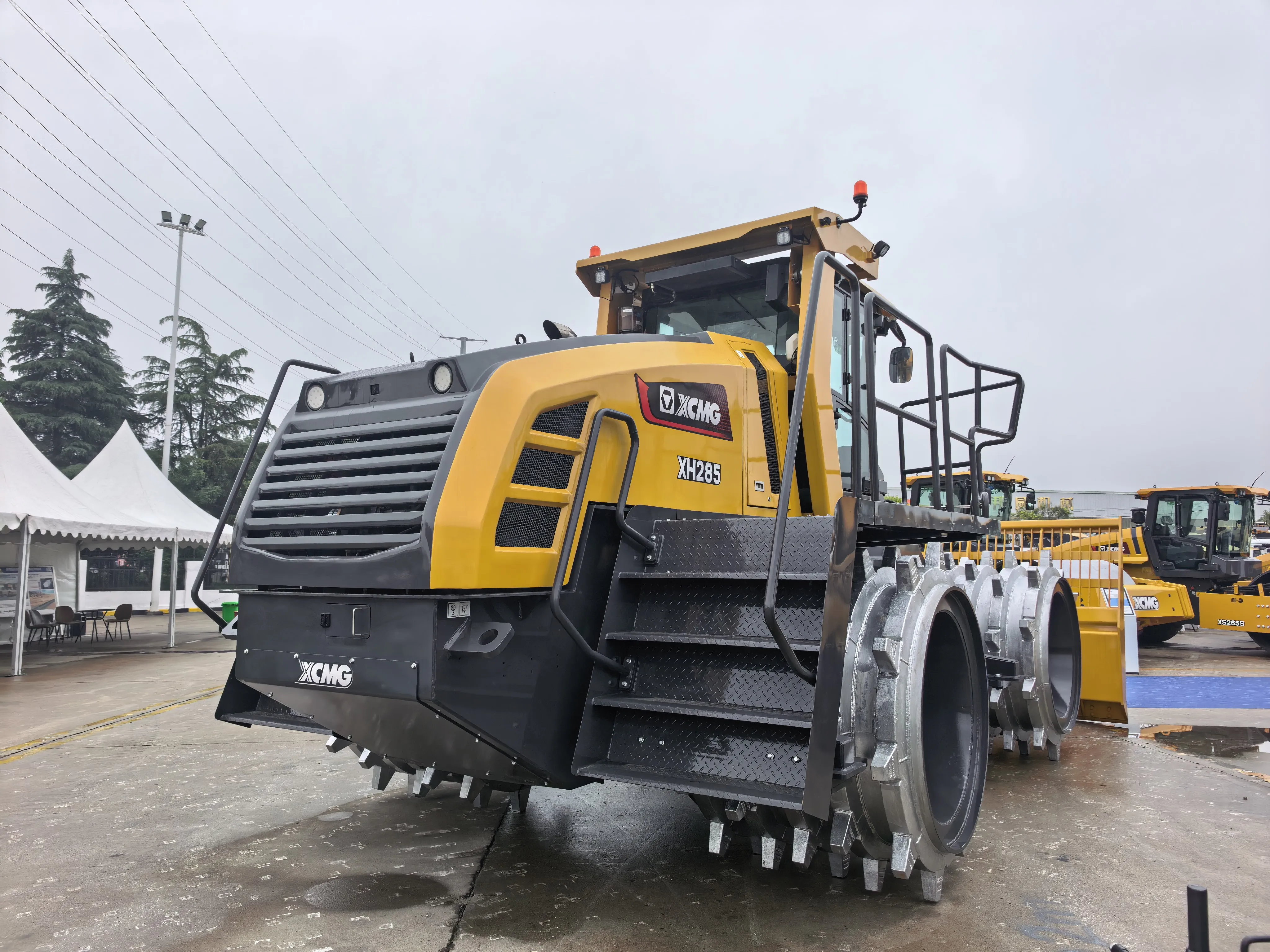

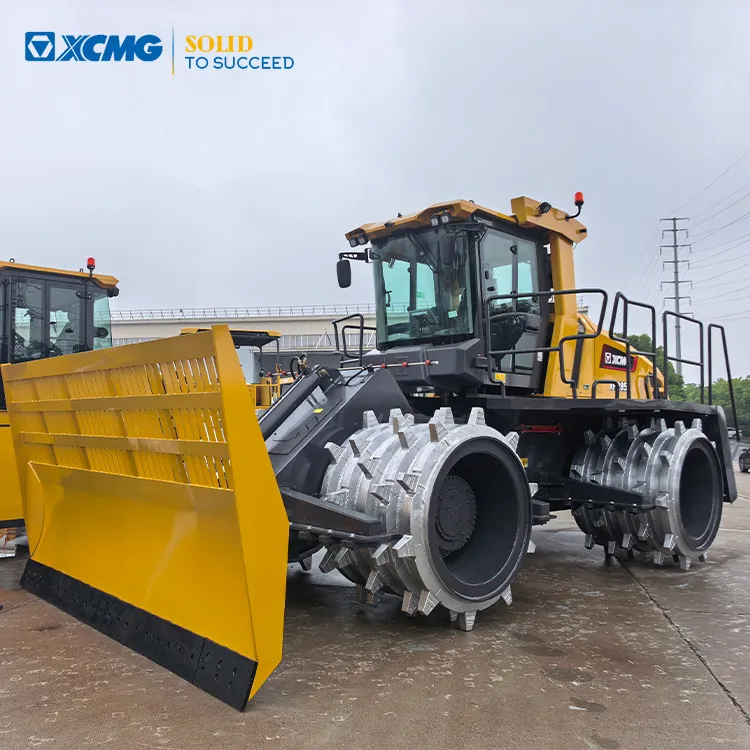

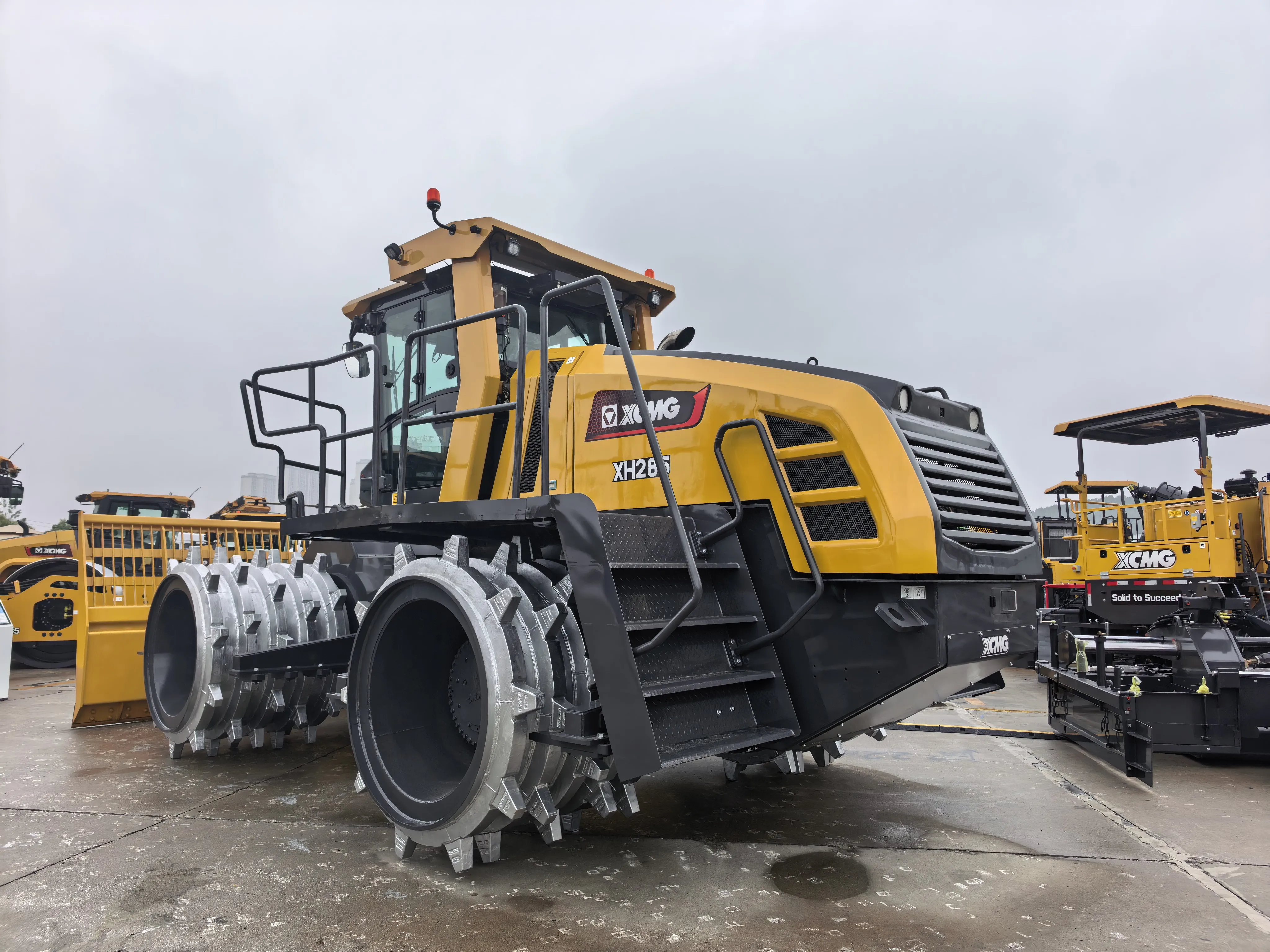

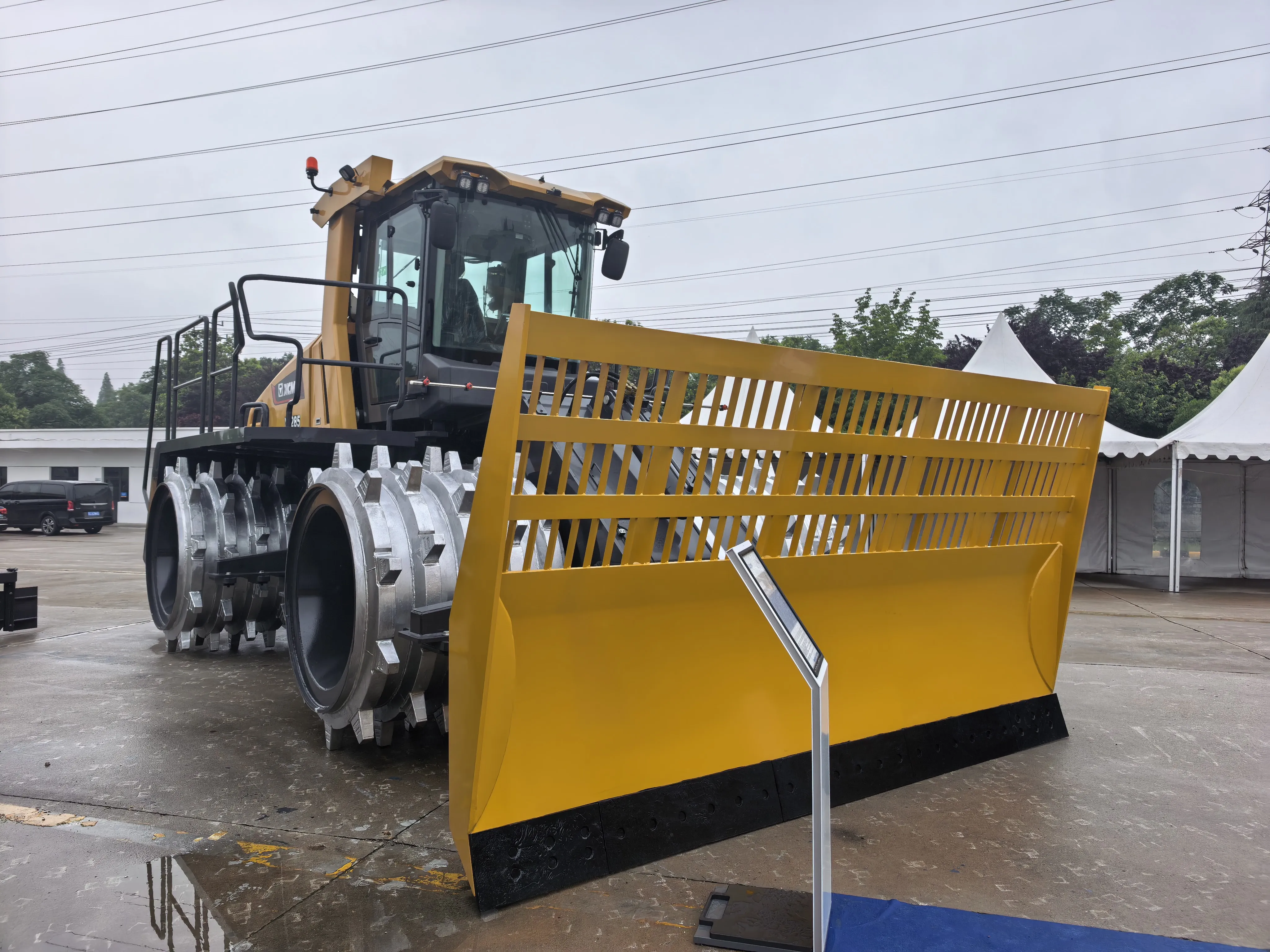

XH285 Landfill Compactor is mainly used for bull dozing and compaction of solid fill in landfill to reduce the land occupation of landfill and prolong the service life of landfill.
Equipped with Cummins QSL8.9 high-power electronically controlled engine of low-vibration 6-cylinder inline, wa ter-cooled, turbocharged, high-pressure common-rail, with strong power and large power reserve, rated power of 242kW, maximum output torque of 1385N.m. Using a variety of the latest engine technologies to provide abundant power under various working conditions.
This type of engine is mature in application and market proven;ECO mode, intelligent adjustment of engine speed according to the load, environmental protection and energy saving;Low fuel consumption and low noise emission.
Double pumps, double motors, double axles, All-Wheel Drive, theoretical climbing capacity up to 100%; Electric proportional drive pump and drive motor run smoothly; Two-speed stepless speed change, maximum speed up to 12km/h;Heavy-duty drive axle, equipped with anti-slip differ ential, suitable for various landfill conditions;Reliable front and rear frame articulation mechanism, ±40 ° large steering angle to change direction flexibly, ±15 ° oscillation angle adapts to various compaction sites.
Cross tips arrangement of front and rear padfoot drum, dense compaction points, high drum grounding pressure, excludes the compaction soft points;Unique paddle arrangement is suitable for various working conditions, making the compaction operation more even and efficient.
|
Item
|
Content
|
Unit
|
XH285
|
|
Weights
|
Operating Weight
|
kg
|
28500
|
|
Front Axle Weight
|
kg
|
13800
|
|
|
Rear Axle Weight
|
kg
|
14700
|
|
|
Compaction
Wheel Parameters
|
Front Wheel (Diameter x Width)
|
mm
|
1660×1200
|
|
Rear Wheel (Diameter x Width)
|
mm
|
1580×1245
|
|
|
Blade Parameters
|
Width
|
mm
|
3800
|
|
Height
|
mm
|
2000
|
|
|
Maximum Lift above Ground
|
mm
|
1000
|
|
|
Maximum Digging Depth
|
mm
|
120
|
|
|
Mobility
|
Gear I Speed
|
km/h
|
0-5
|
|
Gear II Speed
|
km/h
|
0-12
|
|
|
Theoretical Gradeability
|
%
|
100
|
|
|
Minimum Turning Radius
|
mm
|
7300
|
|
|
Engine
|
Model
|
-
|
QSL8.9
|
|
Type
|
-
|
Inline Six- cylinder Water-cooled,Turbocharged,High-pressure Common Rail
|
|
|
Rated Power
|
kW
|
242@2200
|
|
|
Capacities
|
Diesel Tank
|
L
|
480
|
| Hydraulic Oil Tank |
L
|
280
|
|
|
Water Tank
|
L
|
52
|
|
|
Overall Dimensions
|
(LxWxH)
|
mm |
8300×3830×3845
|
