Summary
- Max Lifting Height:3m
- Rated Loading Capacity:2.5t
- Power Source:diesel engine
- Type:Diesel Forklift
- Model Number:XCF25KT
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
Specifications
- Weight:3725.000kg
- Condition:New
- Moving Type:Wheel
- Load center distance:500mm
- Power:Diesel Engine
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

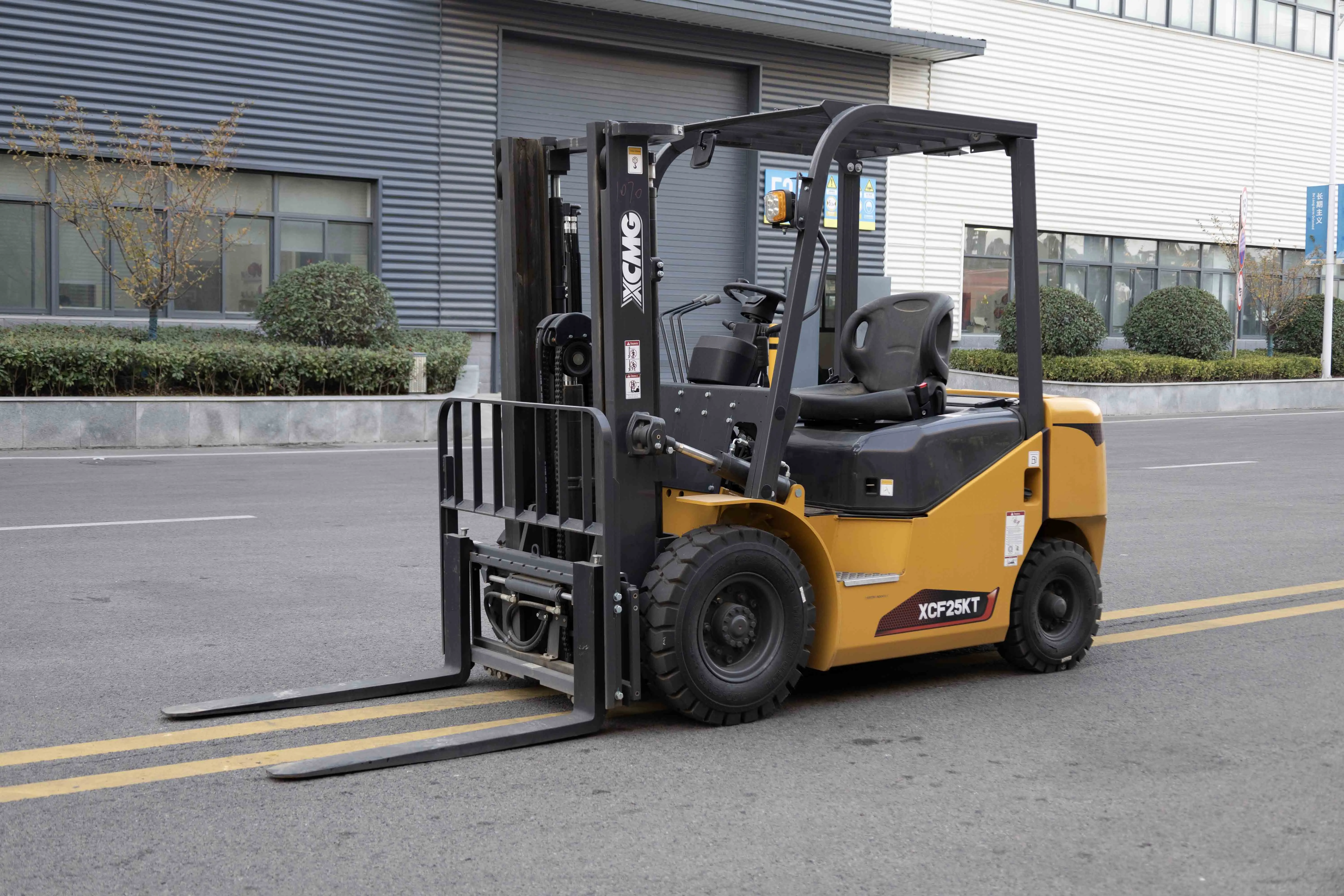

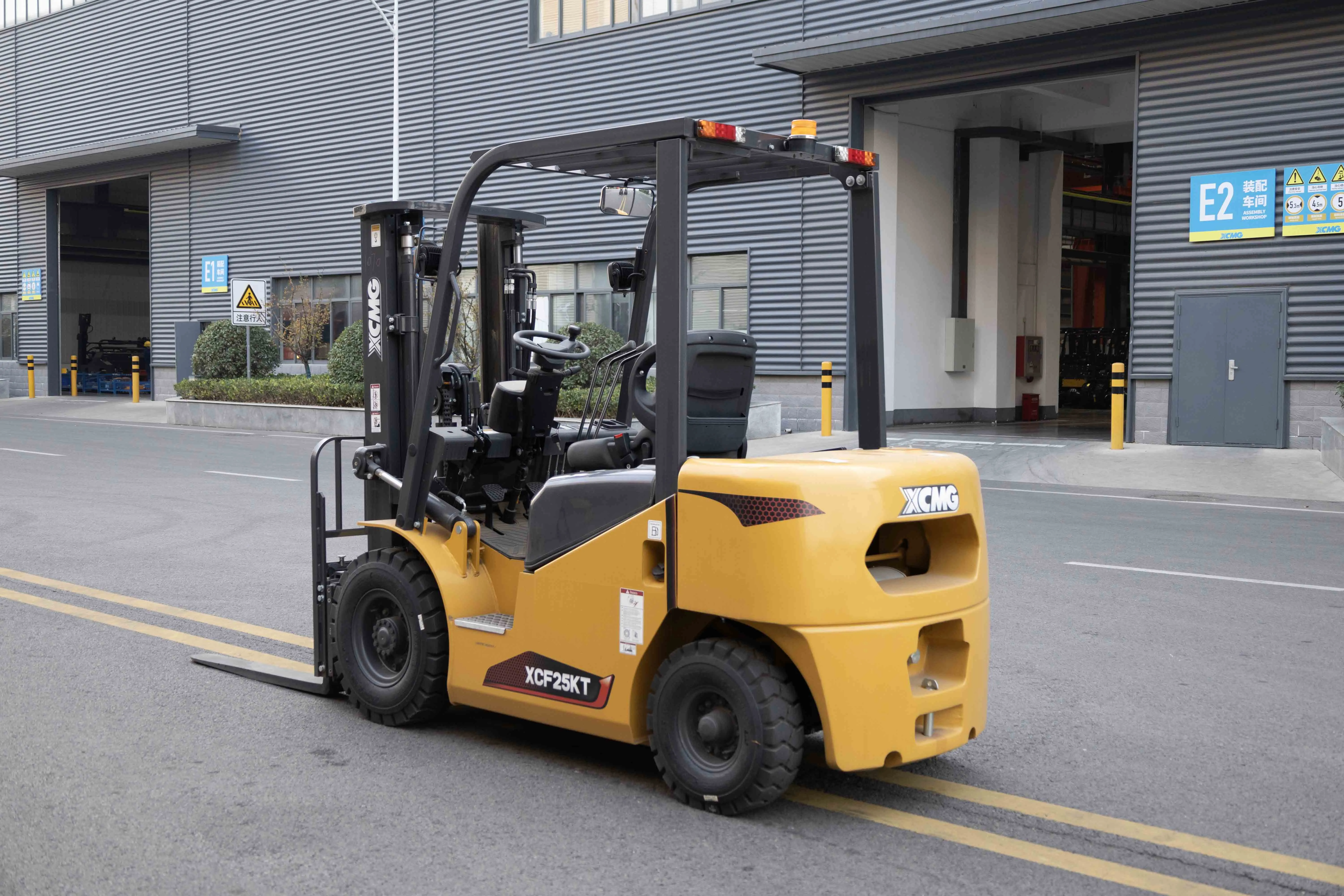

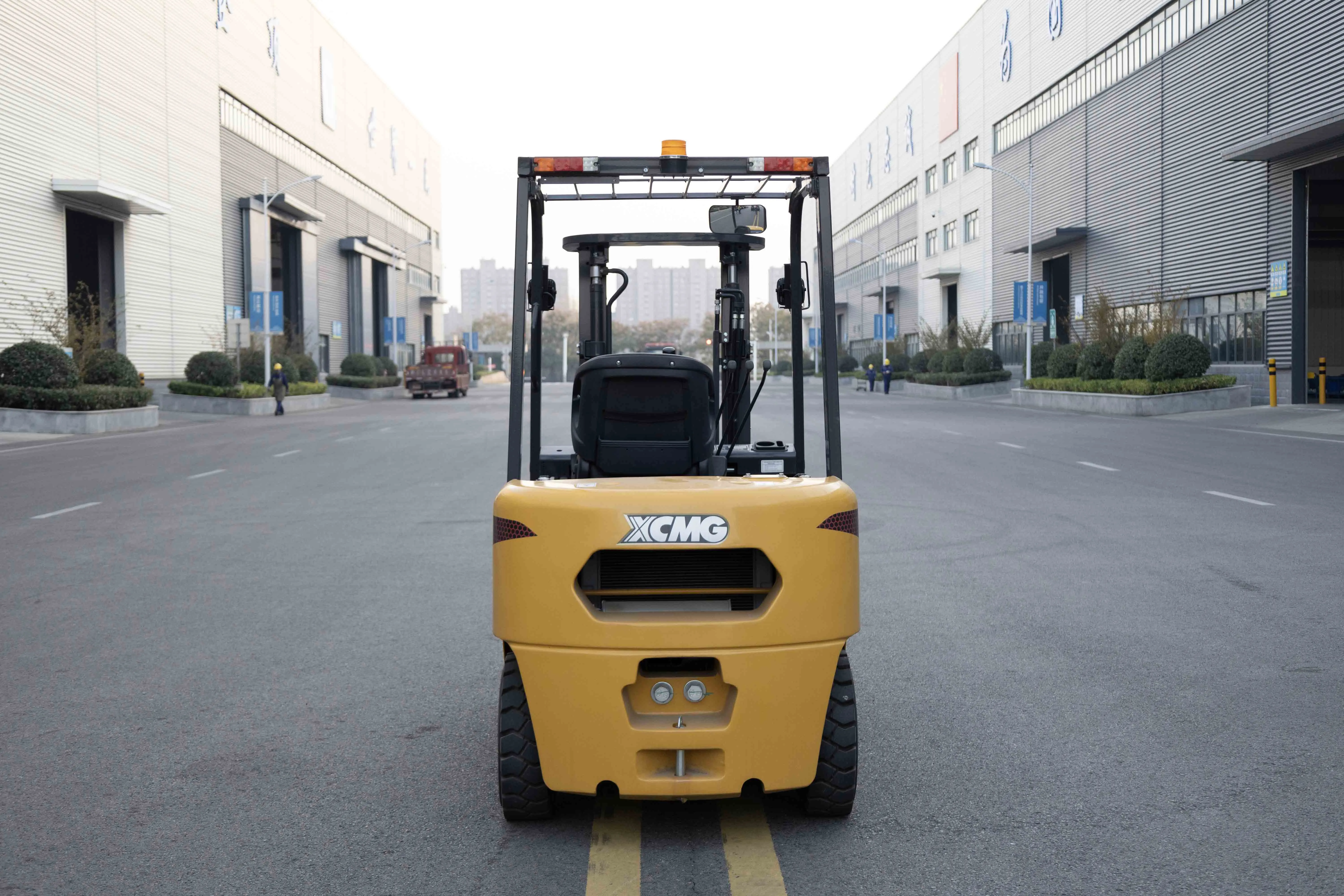

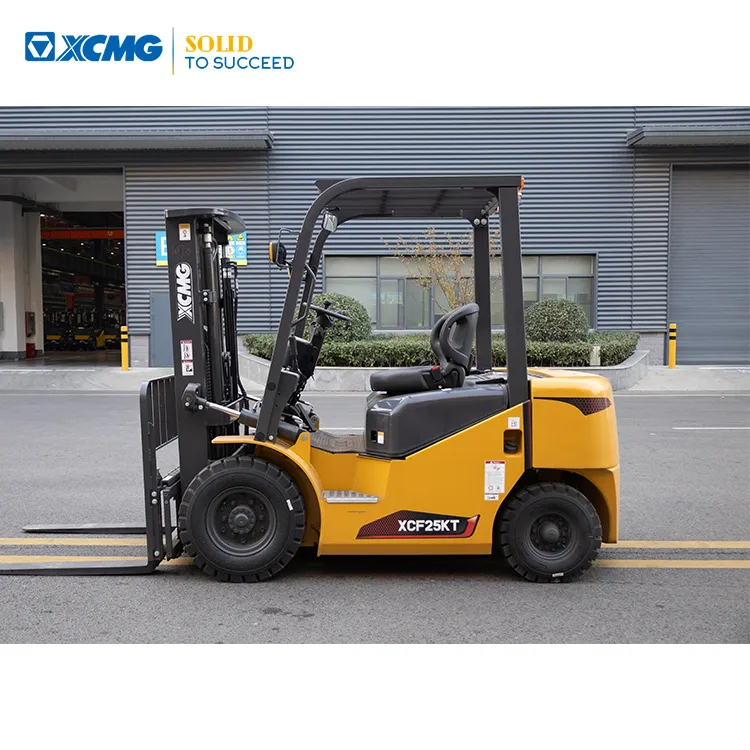

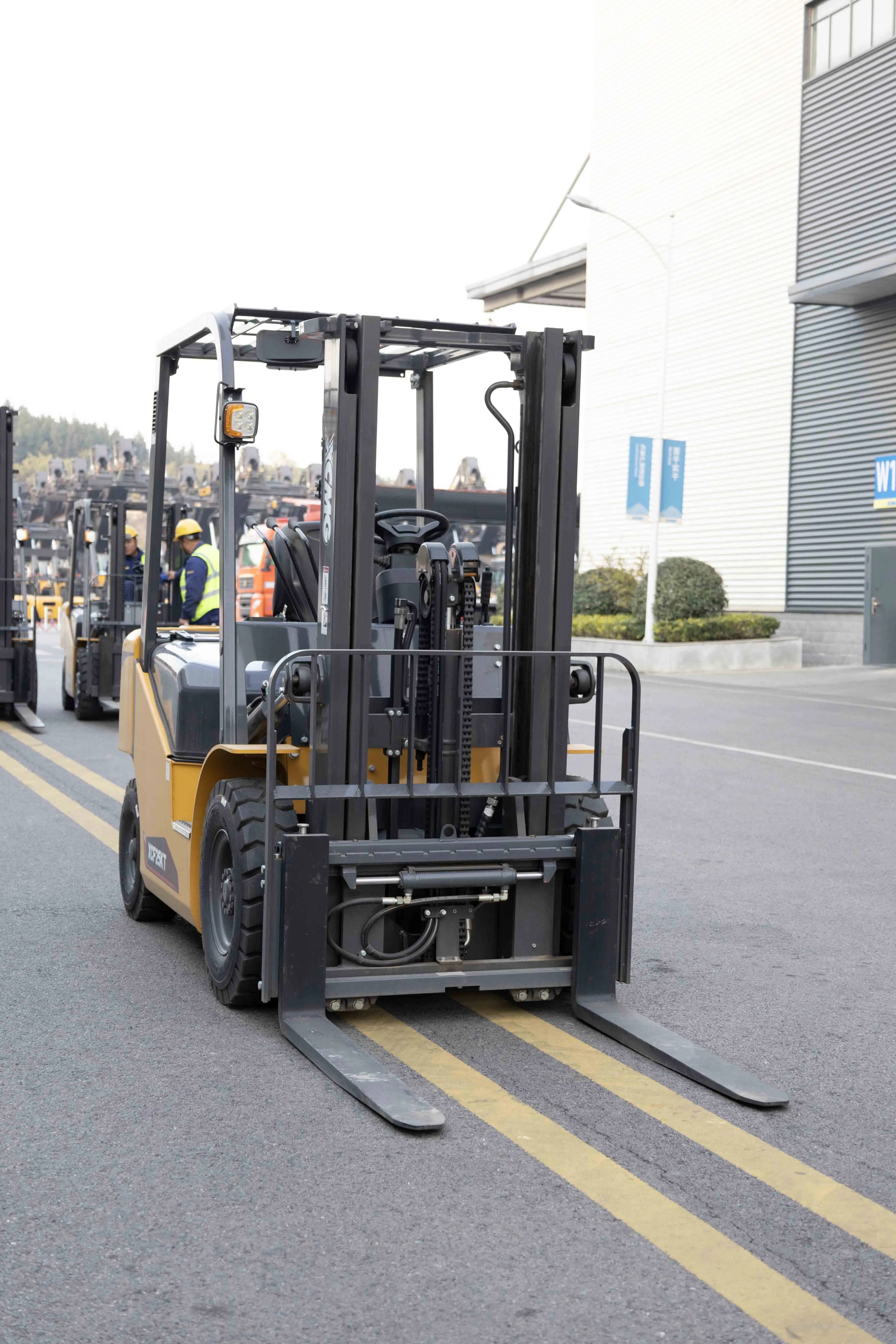

XCMG Official Diesel Forklift Truck Xcf25kt Mini 2.5 Ton Diesel Forklift Price for Sale
Comfortable operation
Based on ergonomic space design, the steering wheel is smaller in size, and the legroom and interior space are larger, enhancing operational comfort and reducing the number of operatorsThe degree of fatigue of the staff. The integral metal hood is equipped with heat insulation and sound insulation materials to reduce noise. The connection between the steering axle and the frame is supported by shock-absorbing rubber to lowerThe whole vehicle vibrates to enhance the operator's comfort.
Safety
The whole machine has good stability. With the same lifting weight, it has a greater lift compared to a shorter wheelbase, while reducing the load on the steering axle and extending the service life of the steering tires.The integral hood is adopted, and the internal frame rib plate structure has high strength and reliable quality. A more reliable frame structure increases rigidity.The frame is made of manganese steel, making the frame structure more reliable.
Convenient maintenance and repair
Integrated electrical control box, convenient and fast for maintenance and upkeep.Greater maintenance and repair space. The hood with a larger opening angle improves the convenience of maintenance and operation, The electrical system is equipped with standard fault code display, making engine and various electrical maintenance more convenient and efficient.
Solid Structural Design
Finite element analysis and Zeroth-Order design optimization method are used to improve the core structure in the design process to ensure the strength and stiffness of the structural parts.
| Specification | Model | XCF25KT | ||
| Drive | Diesel | |||
| Rated load | Q | kg | 2500 | |
| Load center distance | c | mm | 500 | |
| Wheelbase | y | mm | 1650 | |
| Weight | Service weight | - | kg | 3725 |
| Axle load,laden front/rear | - | kg | 5450/775 | |
| Axle load,unladen front/rear | - | kg | 1496/2229 | |
| Wheels | Tyres type | Pneumatic | ||
| Tyre size,front | - | 7.00-12-12PR | ||
| Tyre size,rear | - | 6.00-9-10PR | ||
| Tread,front | b10 | mm | 970 | |
| Tread,rear | b11 | mm | 953 | |
| Dimension | Mast Tilting Angle,front/rear | a/β | ° | 6/12 |
| Height,mast lowered | h1 | mm | 2000 | |
| Free lifting height | h2 | mm | 155 | |
| Max lift height (standard) | h3 | mm | 3000 | |
| Height,mast extended(include backrest) | h4 | mm | 4100 | |
| Height of overhead guard (cabin) | h6 | mm | 2112 | |
| Overall length | I1 | mm | 3665 | |
| Length to face of forks | I2 | mm | 2595 | |
| Overall width | b1 | mm | 1160 | |
| Fork Size (Length/Width/Thickness) | I/e/s | mm | 1070/120/40 | |
| Fork carriage | ISO2A | |||
| Fork-carriage width | b3 | mm | 1088 | |
| Ground clearance,loaded,below mast | m1 | mm | 110 | |
| Aisle width for pallets 1000*1200 crossways | Ast | mm | 3935 | |
| Aisle width for pallets 800*1200 lengthways | Ast | mm | 4135 | |
| Min turning radius | Wa | mm | 2270 | |
| Fork adjustment range (outside),max/min | mm | 1030/244 | ||
| Perfomance | Travel speed,laden/unladen | km/h | 17/18.5 | |
| Lift speed,laden/unladen | mm/s | 500/550 | ||
| Lowering speed,unladen/laden | mm/s | 450/500 | ||
| Drawbar pull,laden | kN | 16 | ||
| Gradeability,laden/unladen | - | % | 23/20 | |
| Service brake/Parking brake | - | - | Hydraulic/Mechanical | |
| Engine | Engine model | - | - | 4D29G31 |
| Engine manufacturer | Xinchai | |||
| Rating/RPM | kW/rpm | 36.8/2500 | ||
| Torque/RPM | N*m/rpm | 155/1700-1900 | ||
| Number of cylinders | - | 4 | ||
| Bore size ×stroke | mm | 93×105 | ||
| Emission | - | - | StageI | |
| Transmission | Transmission type | - | - | Hydraulic |
| Transmission manufacturer | Zhongchai | |||
| Number of gears front/rear) | 1/1 |
