- Summary
- Details
Summary

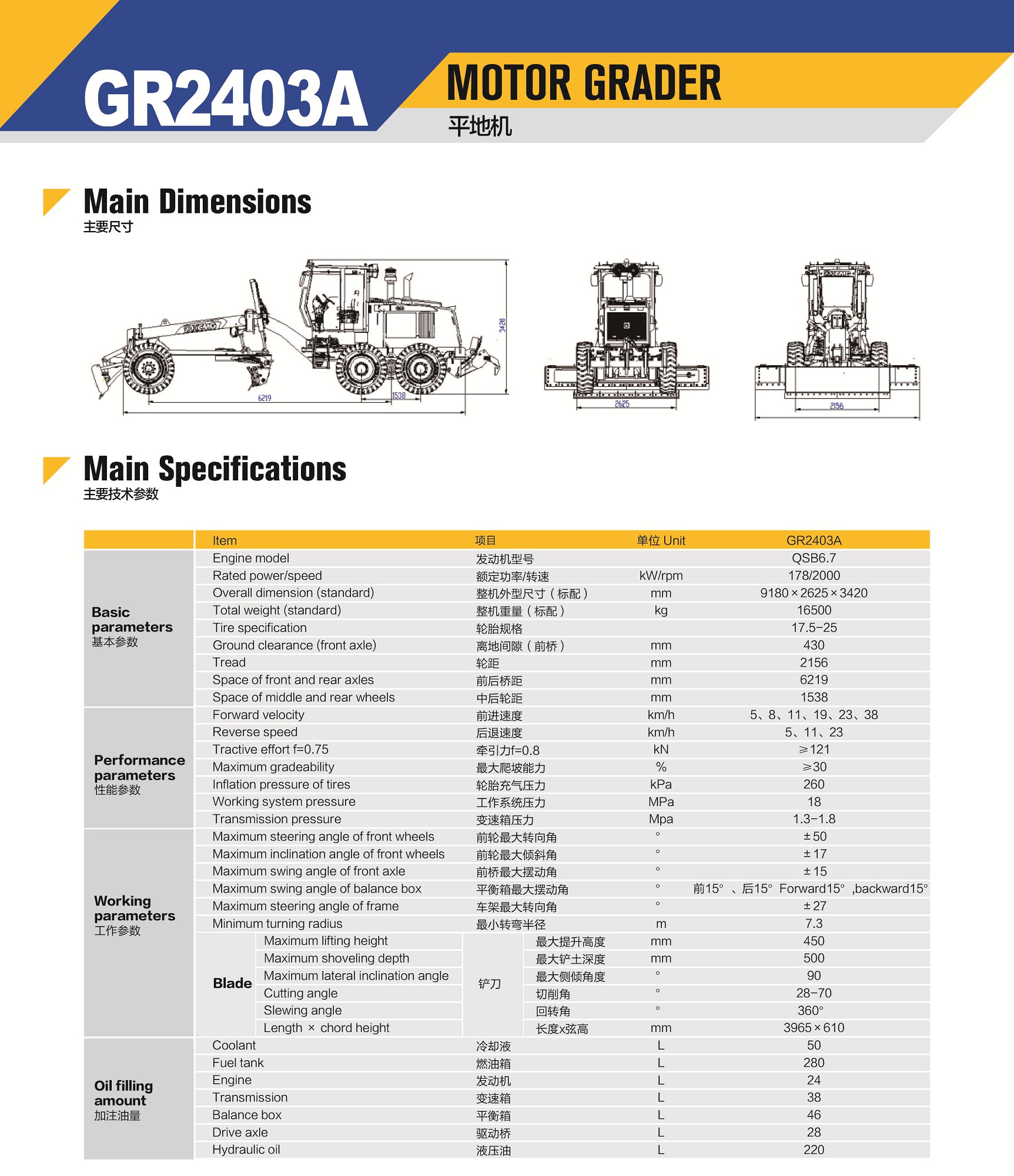

- Dimension(L*W*H):9180 x 2625 x 3420mm
- Weight:16500kg
- Model Number:GR2403A
- Brand Name:XCMG
- Place of Origin:China
- Reverse Speed(km/h):5-23km/h
- Forward Speed(km/h):5-38km/h
- Certification:Can provide relevant certification
Details
- Product Name:G5EB252E0DFD8D
- Display online time:2020-05-06
- weight:16500.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Engine model:QSB6.7
- Rated power/speed:178kW/2000rpm
- Tire specification:17.5-25
- Ground clearance (front axle):430mm
- Space of front and rear axles :6219 mm
- Tractive effort f=0.75:≥121kN
- Working system pressure:18MPa
- Maximum steering angle of front wheel:±50°
- Minimum turning radius:7.3m
- Maximum lift height:450mm
- Maximum shoveling depth:500mm
Response Time : Within 24 hours
Xuzhou Construction Machinery Group Co., Ltd. XCMG was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes
