5 ton XCMG wheel loader ZL50GN for sale

$45000.00-$55000.00 1 / EA (Min. Order)
Model: ZL50GN
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
5 ton XCMG wheel loader ZL50GN for sale
5 ton XCMG wheel loader ZL50GN for sale
Quantity:
- + /EA

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos

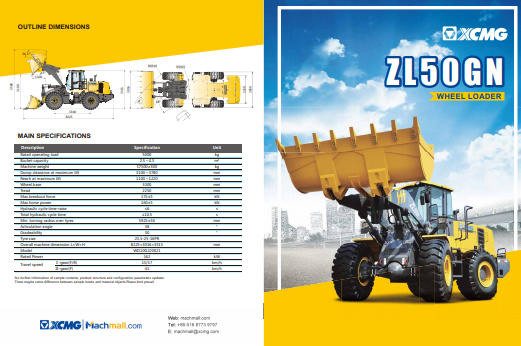

  • Product PDF

Summary

  • Rated Load:5000kg
  • Dimension(Long* Breadth * High):8225*3016*3515mm
  • Type:wheel loader
  • Place of Origin:China
  • Model Number:ZL50GN
  • Brand Name:XCMG
  • Certification:CE, ISO, SGS, BV,TUV, ETC

Specifications

  • Weight:17500.000kg
  • Engine Brand:CUMMINS
  • Rated Load:6-10 ton
  • Bucket Capacity:2.5 - 3.5m³
  • Bucket capacity:2.5~4.5m3
  • Rated Power:162kw
  • Max.horse power:160kN
  • Wheel base:3300mm
  • Max.breakout force:175kN
  • Machine weight:17500±300kg

5 ton XCMG wheel loader ZL50GN for sale

5 ton XCMG wheel loader ZL50GN.



XCMG wheel loader ZL50GN is the most popular model of China 5 ton wheel loaders, is the latest cross-generation product developed, the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.



Performance Highlights:



1.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.



2.The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of tooth holder and sleeve.



3.XCMG wheel loader ZL50GN the thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm.



4.160kN breakout force handle all kinds of materials with ease, ≥3.5m high dumping capacity handle the severe conditions with ease.



XCMG wheel loader ZL50GN optional parts:



Side-dump bucket/ Clipping plier I (paired teeth)/ Clipping teeth II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Snowplow/Pallet fork.

5 ton XCMG wheel loader ZL50GN for sale

Description
Unit
Parameter value
Rated operating load
kg
5000
Bucket capacity
2.5~4.5
Machine weight
kg
17500±300
Dump clearance at maximum lift
mm
3100~3780
Reach at maximum lift
mm
1100~1220
Wheel base
mm
3300
Tread
mm
2250
Max.breakout force
kN
175±5
Max.horse power
kN
160±5
Hydraulic cycle time-raise
s
≤6
Total hydraulic cycle time
s
≤10.5
Min. turning radius over tyres
mm
5925±50
Articulation angle
°
38
Gradeability
°
30
Tyre size

23.5-25-16PR
Overall machine dimension L×W×H
mm
8225*3016*3515
Model

WD10G220E21
Rated Power
kW
162
Travel Speed
Ⅰ-gear(F/R)
km/h
13/17
Ⅱ-gear(F)
km/h
41
