XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

  • XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
  • XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
  • XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
  • XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
  • XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
  • XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

Share:
XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
FOB for OEM Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XCC-LW15
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • 360-Degree VR Videos
Summary
  • Max Lifting Height:115mm
  • Rated Loading Capacity:1500kg
  • Model Number:XCC-LW15
  • Brand Name:XCMG
  • Place of Origin:Jiangsu,China
Details
  • weight:130.000kg

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

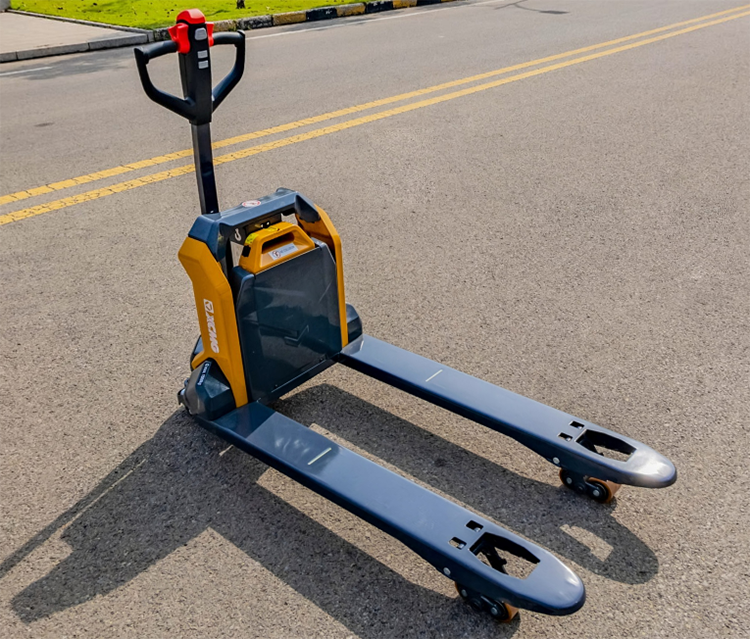

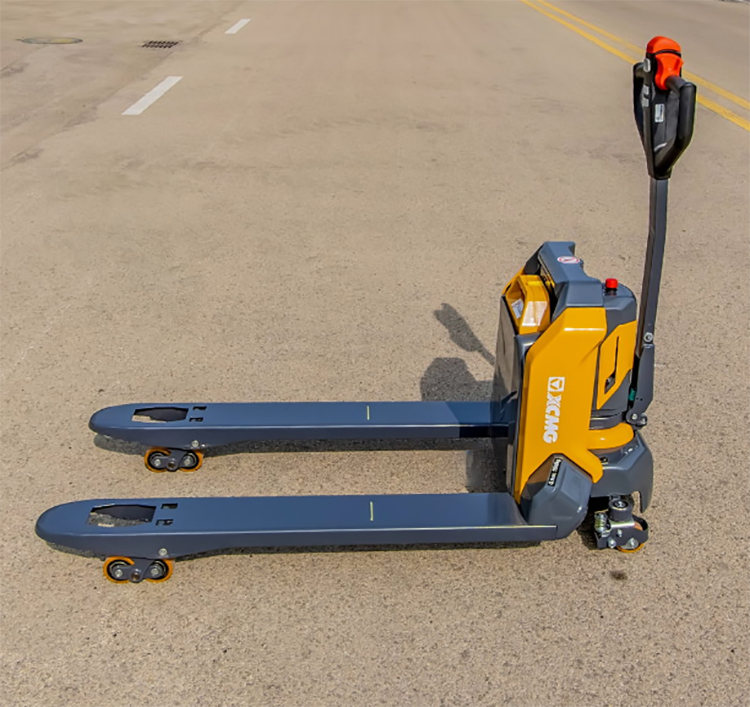

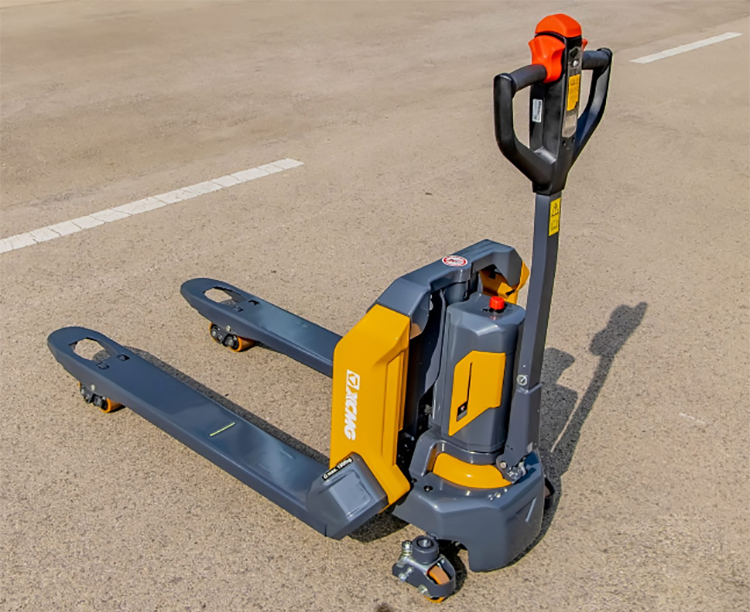

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15.



The XCC-LW15 pallet truck perfectly combines the advantages of a manual and an electric truck, making it a high-quality truck for multiple USES. And it adopts the most cutting-edge concept design, and infuses the modular design concept, giving the truck a novel angular appearance, so its English name is EDGE. The Handle and training wheel can be removed quickly for easy use and maintenance.



Product Highlights:

1.     Rugged full-protection drive cover design, which can fully protect the operator's feet.



2.     Modular design, high degree of universalization of all-electric and semi-electric configuration parts.



3.     Assembled front cover, convenient for maintenance and replacement of TV components.



4.     Optional large-size floating steering wheels to improve vehicle stability.



5.     The carrying wheel can be equipped with single wheel or double wheel.



6.There are various specifications of forks to choose from.

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

Character

Model





             XCC-LW15

Rated capacity

    Q

kg

                1500

load center distance

    C

mm

      600

Power mode





  电动

battery standard





                       /

Tyre type





聚胺酯轮(PU)

Size

Max.lifting height

h3

mm

      115

Handel height

h14

mm

700/1160

Min.under clearance

h13

mm

      80

Length

l1

mm

               1530

Length to face of forks

l2

mm

                380

Width

b1

mm

      540

Fork dimensions

s/e/l

mm

47/160/1150

Distance between fork-arms

b5

mm

   540/685

Wheel base

    y

mm

                 1185

Additional wheels dimensions

xw

mm

     80x30

Tread rear

b11

mm

       380

Min.Turning radius

Wa

mm

                 1330

Performance

Travelling speed loaded/unloaded



km/h

               4.6/4.8

Lift speed,loaded/unloaded



m/s

           0.020/0.025

Lowering speed,loaded/unloaded



m/s

             0.05/0.04

Gradeability,loaded/unloaded



%

             4.0/16.0

Braking method





 电磁制动

Motor&Battery

Lift motor power



kw

                  0.5

Drive motor power



kw

                 0.65

Voltage



V

                   24

Amphere



Ah

              20/30/36


XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale



XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot SaleXCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale



uMore Electric Pallet Truck



XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

XCMG Official 1.5 Ton Mini Electric Pallet Truck XCC-LW15 Hot Sale

Send your message to this supplier
Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
back to top
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
