XCMG road compactor XMR603 China new 6 ton light vibratory road roller double drum compactor price
Summary
- Weight:6000kg
- Power(W):55.4kW
- Model Number:XMR603
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:37%
- Travel Speed:11km/h
- Type:Double Drum Roller
- Certification:CE/ISO9001
Specifications
- Weight:6000.000kg
- Condition:New
- Moving Type:Other
- Vibrational frequency:55/48Hz
- Wheel base:2600mm
- Minimum ground clearance:355mm
- Minimum turning radius:2480mm
- Exciting Force:70KN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
road compactor XMR603 China new 6 ton light vibratory road roller double drum compactor.

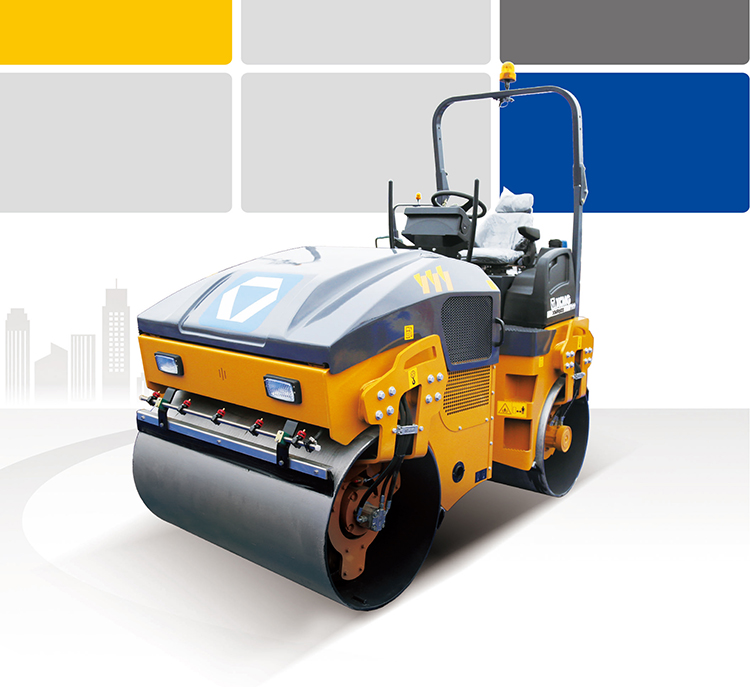

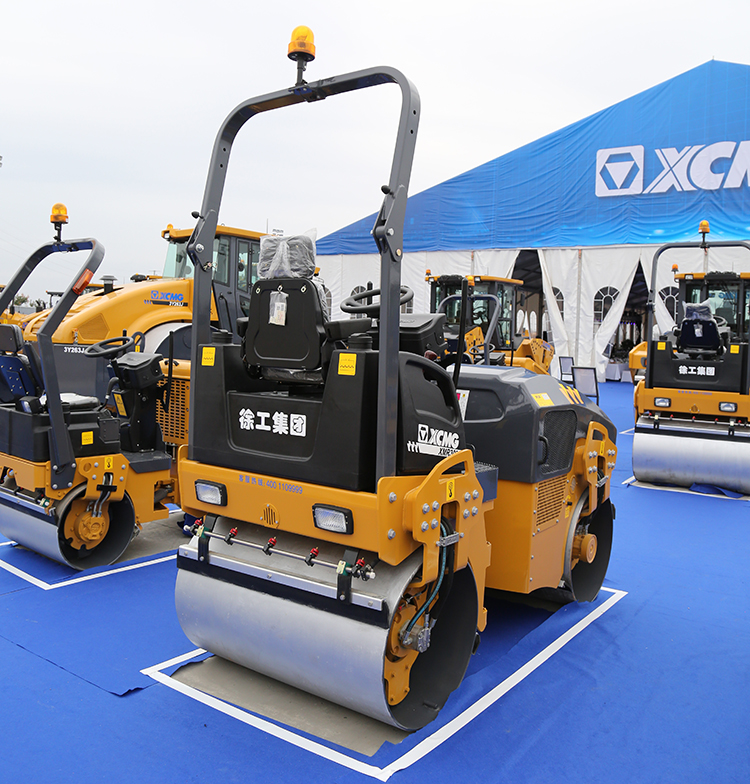

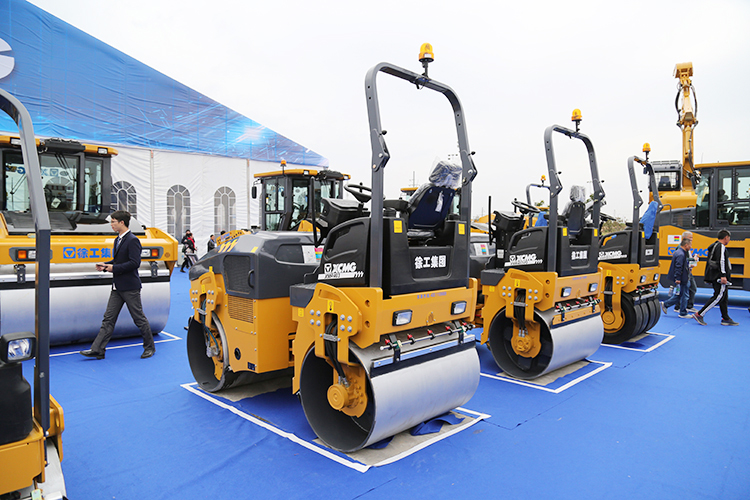

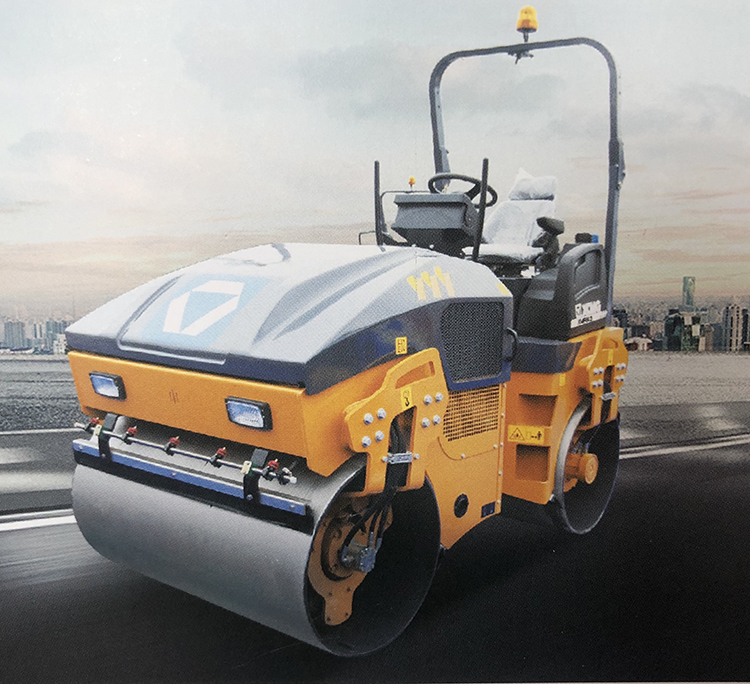

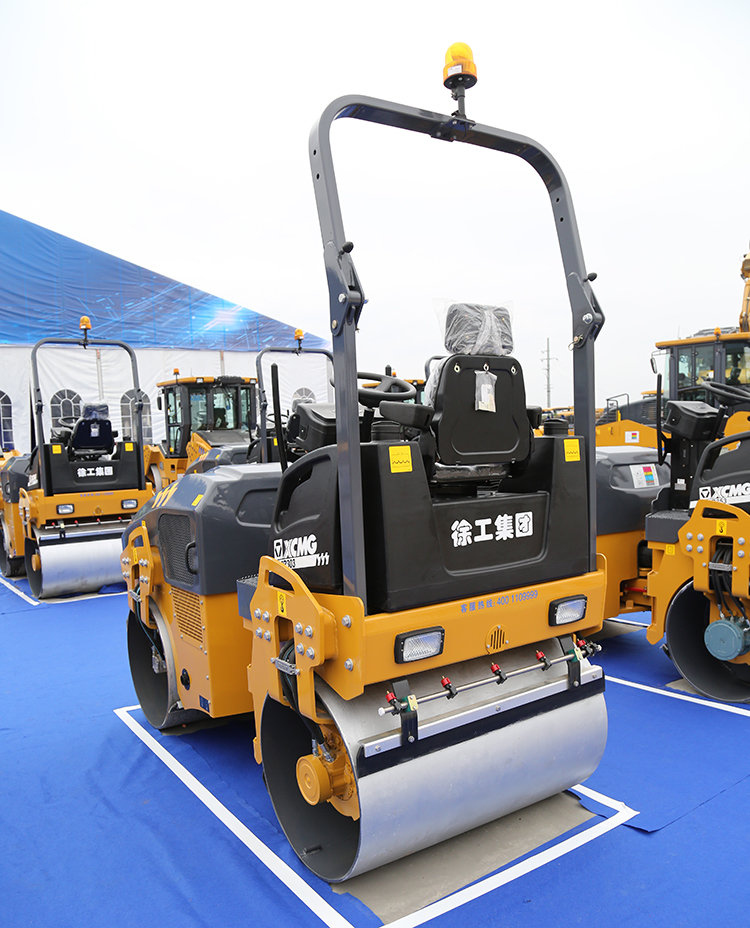

XCMG XMR603 is a light vibratory road roller compactor with operating weight of 6 tons. This machine is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work.
Performance Characteristics:
* Closed hydraulic drive system is adopted to realize stepless speed change.
* Brake system uses the neutral position braking, ensuring the safety of the product.
* The vibration system can realize the simultaneous vibration and independent vibration of the rear and front drum, and meets the different working conditions.
* High frequency vibration and excitation force design, high working efficiency, good compaction effect.
|
Item |
Unit |
XMR603 |
|
Operating mass |
kg |
6000 |
|
Static linear load (front drum/rear drum) |
N/cm |
196/196 |
|
Range of speed |
km/h |
0～11 |
|
Theoretical gradeability |
% |
37 |
|
Minimum turning radius |
mm |
2480 |
|
Minimum ground clearance |
mm |
355 |
|
Wheel base |
mm |
2600 |
|
Steering angle |
° |
±35 |
|
Swing angle |
° |
±10 |
|
Vibrational frequency |
Hz |
55/48 |
|
Exciting force |
kN |
70/45 |
|
Engine rated power |
kW |
55.4 |
|
Engine rated speed |
r/min |
2300 |
