XCMG microsurfacing slurry sealer truck XZJ5312TFC China asphalt road repair machines
Specifications
- Weight:31000.000kg
- Moving Type:Other
- Model:XZJ5312TFC
- Total mass:31000kg
- Fuel tank:400L
- Engine power:228/1900kW/(r/min)
- Work speed:1.5-3km/h
- Paving width:2.4-4.2m
- Paving thickness:3-15mm
- Silo volume:10(max 12)m3
- Chassis type:HOWO
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

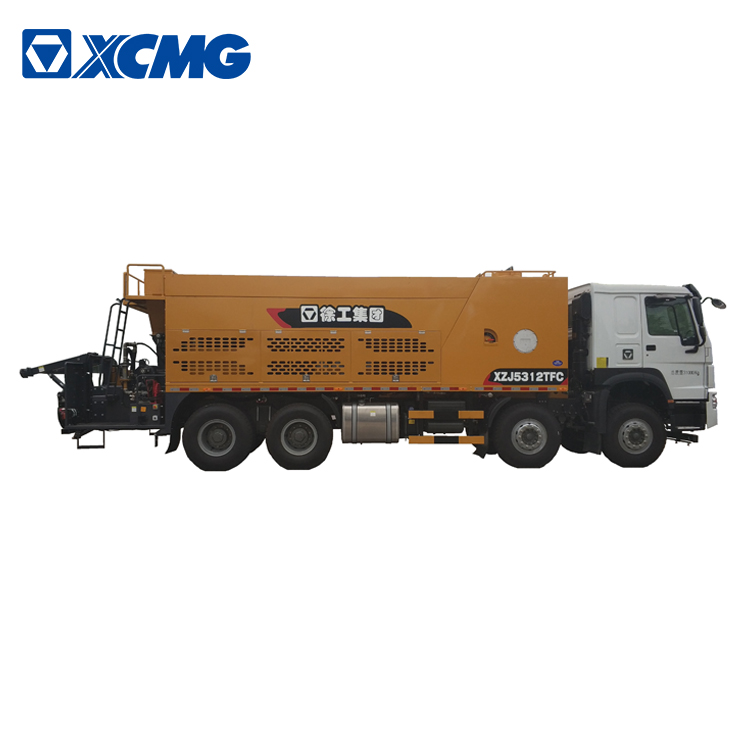

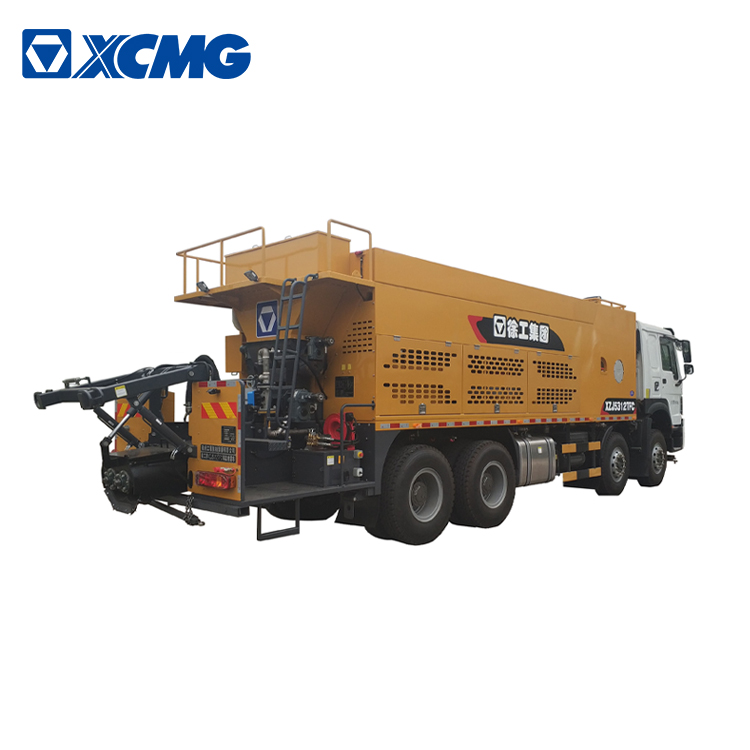

XCMG microsurfacing slurry sealer truck XZJ5312TFC China asphalt road repair machines.
XZJ5312TFC micro-surfacing/slurry sealer asphalt road repair machines is mainly used for functional layer construction of new asphalt pavement (top seal layer, sub-seal layer), maintenance construction of each grade asphalt pavement (slurry seal, the micro-surfacing) and rut repair; It has the characteristics of high construction efficiency good construction quality, convenient operation and high reliability.
Main performance and characteristics:
* Equipped three kinds of working modes, intelligent control, one click material discharging.
* Large storage capacity, high construction efficiency.
* Environmental engineering plastic additives tank, accurate measurement, high precision.
* Chinese asphalt pump, smooth and stable transportation, prevent the asphalt solidification inside the pump.
* High slurry productivity, long service life.
|
Product model |
Unit |
XZJ5312TFC |
|
|
Working performance parameter |
Silo volume |
m3 |
10(max 12) |
|
Asphalt tank capacity |
L |
4000 |
|
|
Water tank capacity |
L |
4000 |
|
|
Volume of the stuffing box |
L |
2*400 |
|
|
Paving width |
m |
2.4-4.2 |
|
|
Paving thickness |
mm |
3-15 |
|
|
Work speed |
km/h |
1.5-3 |
|
|
Chassis performance parameter |
Type |
- |
HOWO |
|
Engine power |
kW/(r/min) |
228/1900 |
|
|
Driving type |
- |
8*4 |
|
|
Emission standard |
- |
China V |
|
|
Max.travelling speed |
km/h |
102 |
|
|
Up-mounted engine parameter |
Type |
- |
Cummins |
|
Power |
kW/(r/min) |
93/2200 |
|
|
Overall dimension parameter |
Min.ground clearance |
mm |
380 |
|
Approach angle/ departure angle |
。 |
14/10 |
|
|
Overall dimension（L*W*H） |
mm |
11850*2496*3490 |
|
|
Mass parameter of whole machine |
Fuel tank |
L |
400 |
|
Curb weight |
kg |
20500 |
|
|
Total mass |
kg |
31000 |
|
