- Product PDF

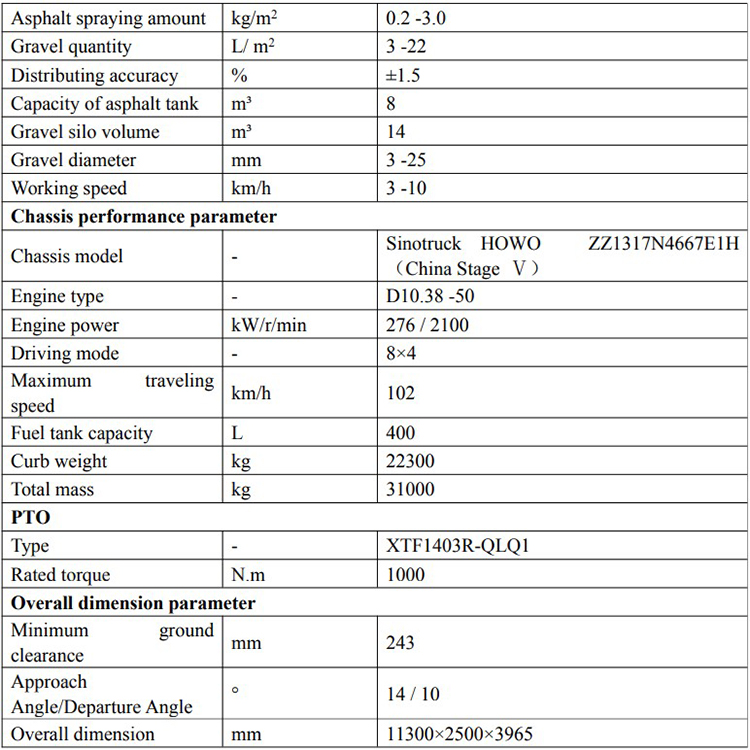

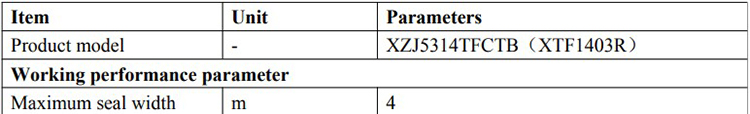

- Maximum seal width:4m
- Asphalt spraying amount:0.2 -3.0 kg/m2
- Gravel quantity:3 -22 m2
- Capacity of asphalt tank:8 m³

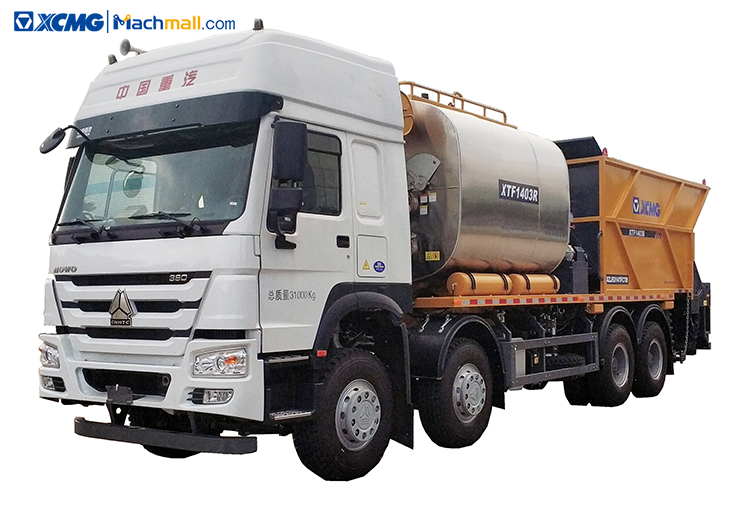

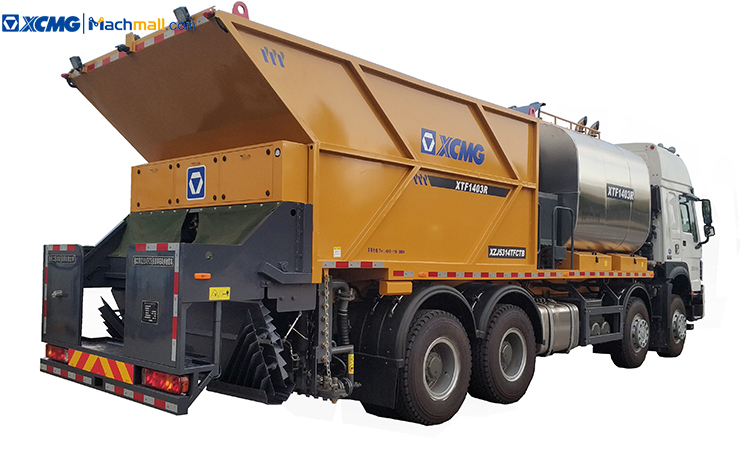

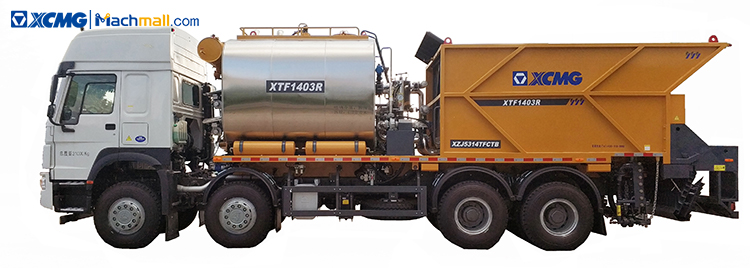

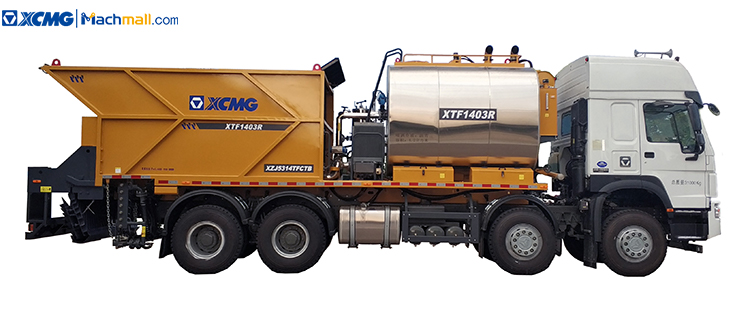

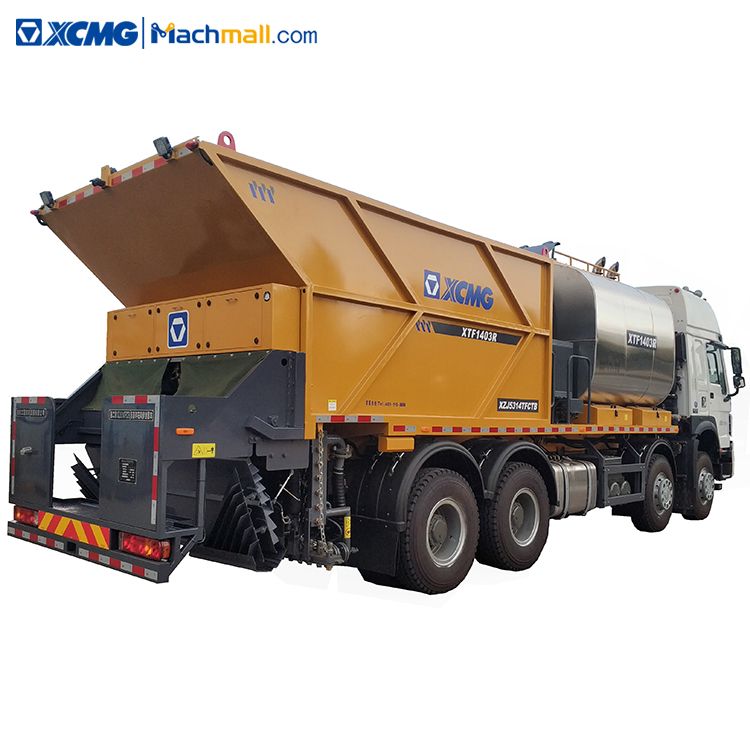

XCMG asphalt machine XTF1403R 4m spray width for road surface.

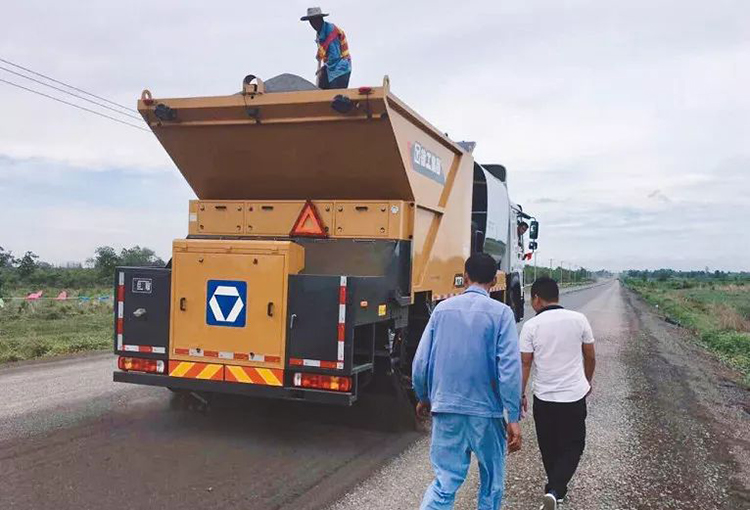

XZJ5314TFCTB (XTF1403R) asphalt synchronous chip sealer can realize the synchronous spreading of asphalt and gravel, improve the quality of pavement seal coat; It can be used to spread rubber asphalt, matrix asphalt, modified asphalt and emulsified asphalt;
XCMG asphalt machine XTF1403R 4m spray width for road surface is applicable to the construction of lower and upper seal coat, wearing course construction for new and old road surface, layer spread method of asphalt pavement, the separate spreading of asphalt and gravel in special case, etc.; It can not only be used for the interlayer treatment and medium maintenance construction of high-grade highway, but also can be used for the construction of rural roads with less traffic.
1.Internal lifting silo, low height, strong adaptability for culvert and under bridge construction.
2.Dual diesel burner asphalt tank, fast heating speed, good insulation performance; Paddle mixer, mix well.
3.Chassis engine full power PTO is adopted to achieve high reliability and good maintenance accessibility.
4.Intelligent control system, just set distributing amount of asphalt spraying per square meter, automatic spraying can be achieved.
5.The asphalt pipeline is pneumatically-controlled gate valve, automatic cleaning function, easy to operate.
