- Operating Weight:31000kg
- Model Number:XF1003
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
- Moving Type:Crawler
- Silo volume:10(maximum 12) m3
- Asphalt tank capacity:4000L
- Paving width:2.4 -4.2 m
- Engine type:D10.31 -50

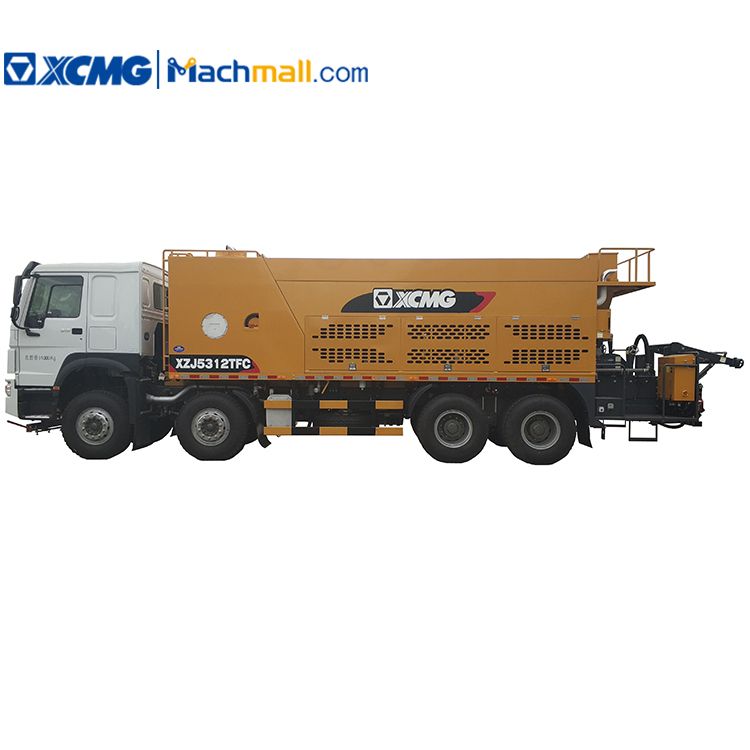

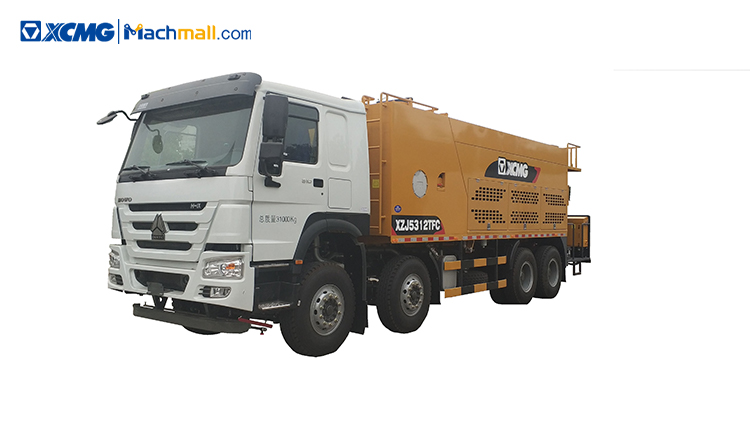

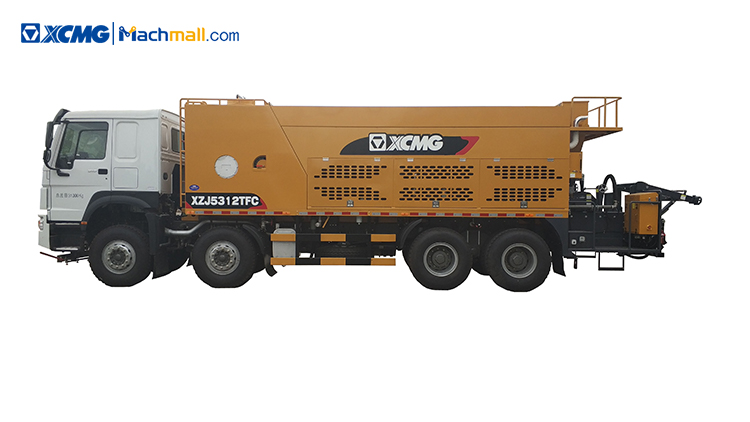

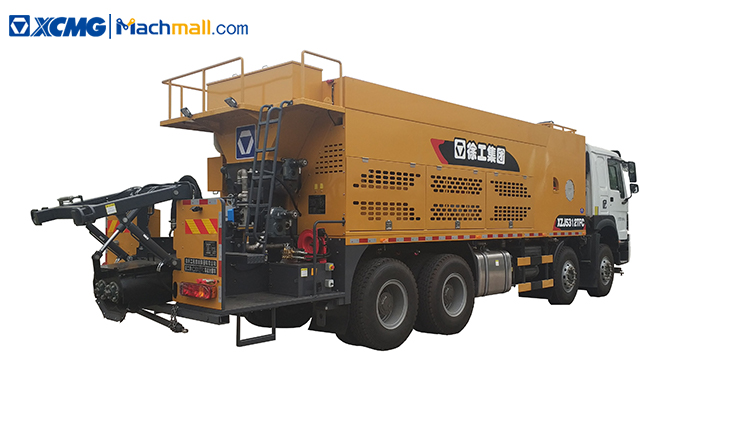

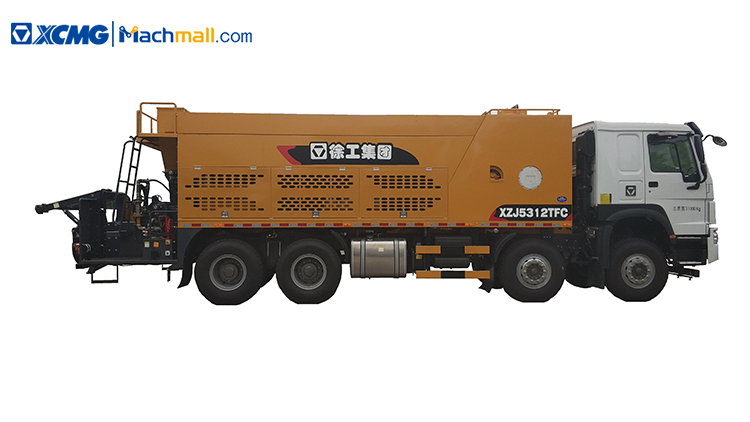

XCMG official synchronous chip sealer XF1003 with HOWO chassis.
XCMG official synchronous chip sealer XF1003 with HOWO chassis is mainly used for functional layer construction of new asphalt pavement (top seal layer, sub-seal layer), maintenance construction of each grade asphalt pavement (slurry seal, the micro-surfacing) and rut repair; It has the characteristics of high construction efficiency, good construction quality, convenient operation and high reliability.
1.Equipped with manual, semi-automatic and automatic three kinds of working modes, intelligent control, one click material discharging, real time parameter display, shortage alarm function, and storage of multiple construction calibration data.
2.Large storage capacity, full capacity of aggregate silo is 12m³, asphalt tank and water tank are 4000l each. High construction efficiency.
3.3001 environmental engineering plastic additives tank, constant gear pump, stable conveying, accurate measurement, high precision.
4.Chinese asphalt pump, smooth and stable transportation, heated by chassis engine cooling water, effectively prevent the asphalt solidification inside the pump.
5.Large capacity double shaft horizontal mixer, high slurry productivity, mix evenly without dead angle, replaceable wear-resistant blade, long service life.
