XCMG Official Small Fire Trucks 32m China aerial ladder fire truck YT32M1 for sale
FOB for OEM Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: YT32M1
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official Small Fire Trucks 32m China aerial ladder fire truck YT32M1 for sale
XCMG Official Small Fire Trucks 32m China aerial ladder fire truck YT32M1 for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:YT32M1
  • Brand Name:XCMG
  • Place of Origin:China
  • Size:11380*2500*3880 (mm)
  • Max Work Height:32m
  • Fuel Type:Diesel
  • Emission Standard:EURO 5
  • Tank Capacity:3001 - 5000L
  • Horsepower:351 - 450hp
  • Transmission Type:Manual
  • Type:RESCUe
  • Drive Wheel:6x4
  • Certification:CE/ISO
Specifications
  • weight:28150.000kg
  • Condition:New
  • Moving Type:Other

XCMG Official Small Fire Trucks 32m China aerial ladder fire truck YT32M1 for sale

XCMG Official Small Fire Trucks YT32M1 32m aerial ladder fire truck.





YT32M1 aerial ladder fire truck: 3482 electric-controlled fire monitors + PSP1500 water pump + 4-section telescopic aerial ladder + (National V Standard) 3344 6×4 second-class universal chassis.





YT32M1 aerial ladder fire truck is based on the existing mature technology of our company. It focuses on the design, development and manufacturing technology of upper structure ladders, leveling control technology of turntables, double helix twin-rotation winding and telescoping technology, multi-state operating curve control technologies, and independent work platform leveling control technologies, etc. , is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting.

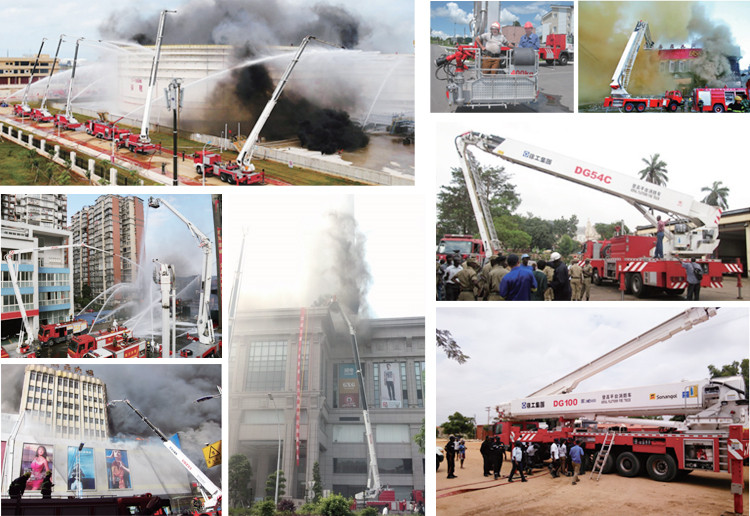

With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, it is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.

XCMG Official Small Fire Trucks 32m China aerial ladder fire truck YT32M1 for sale

Main performance parameters

Outline dimension (L×W×H)

11380×2500×3880

Max. total mass

28150kg

Max. travel speed

≥95km/h

Min. turning diameter

≤22m

Approach angle

≥16°

Departure angle

≥11°

Max. grade ability

≥25%

Outrigger span

Longitudinal span

5400mm

Lateral span

5200mm

Load capacity of working platform

300kg

Max. working height

32m

Maximum working range

22m

Boom elevating range

Telescopic boom-12°~﹢75°

Slewing range

360° full-rotation

Outrigger unfolding time

≤25s

Time for boom raising to rated height and rotating 90°

≤55s

Max. slewing speed of turntable

0.5~1.5r/min

Fire pump

Rated flow

50 L/s

Rated pressure

1.5MPa

Fire monitor

Model

3482+5177+737
(water spray)

3482+5177+737
(foam spray)

Rated flow

48 L/s

48 L/s

Rated pressure

≤0.7MPa

≤0.7MPa

Reach

≥60m

≥55m
