- Summary
- Specifications
Summary
- Model Number:YT32M2
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:11450*3810*2500mm
- Max Work Height:32m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:Water 2750kg + foam 2400kg
- Horsepower:351 - 450hp
- Transmission Type:Manual
- Type:Aerial Ladder
- Drive Wheel:6x4
- Certification:CE/ISO9001
Specifications
- Weight:28000.000kg
- Condition:New
- Moving Type:Other
- Engine rated/max power:327kW /324kW/ 1900rpm

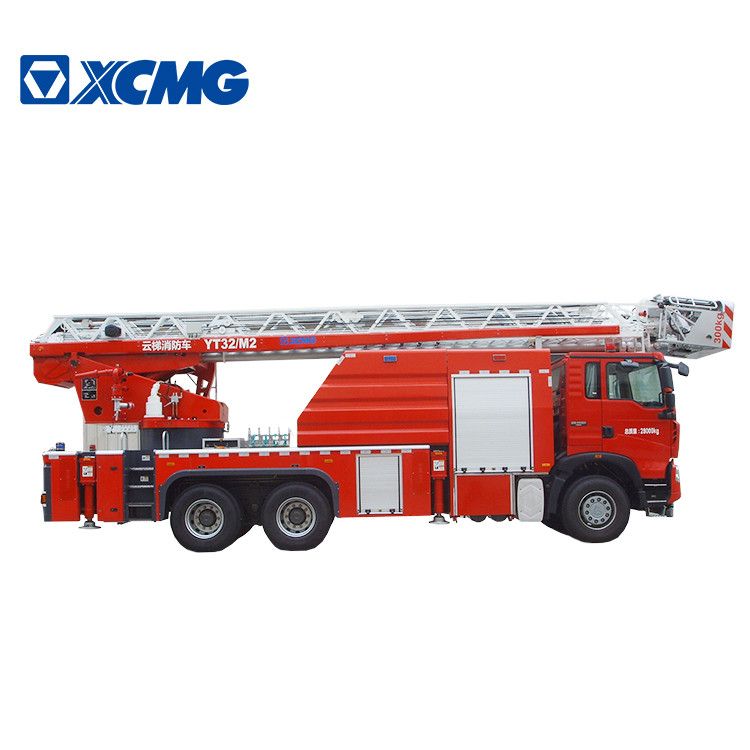

XCMG 32m 6x4 fire truck YT32M2 turntable ladder ladder with howo chassis.

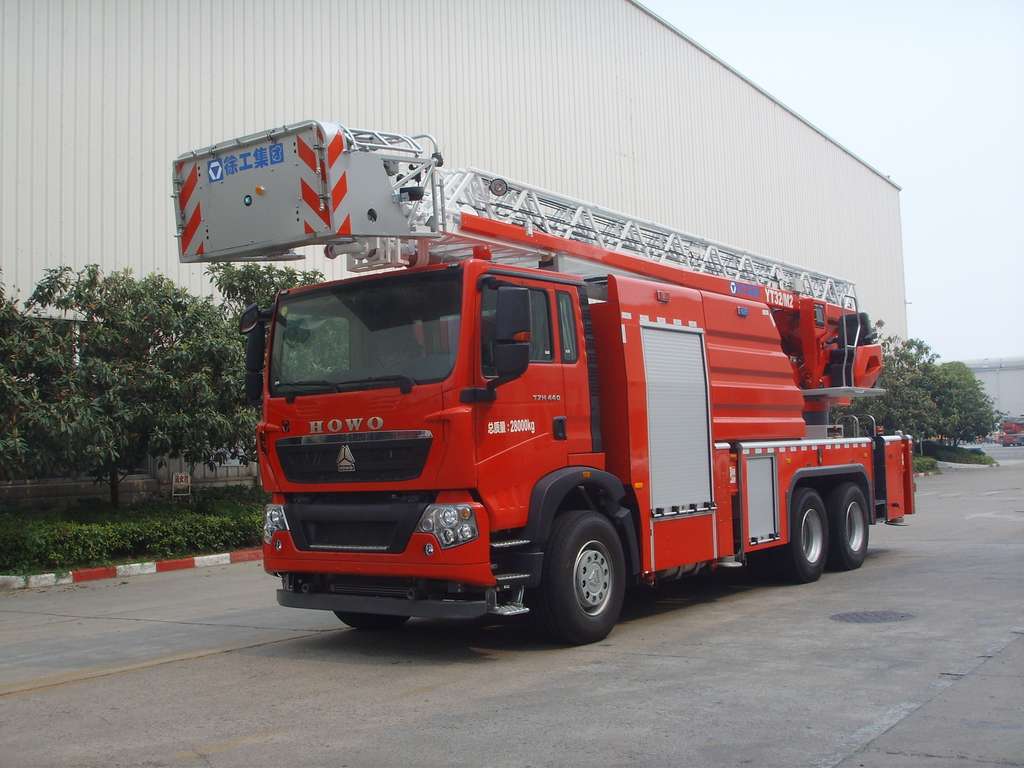

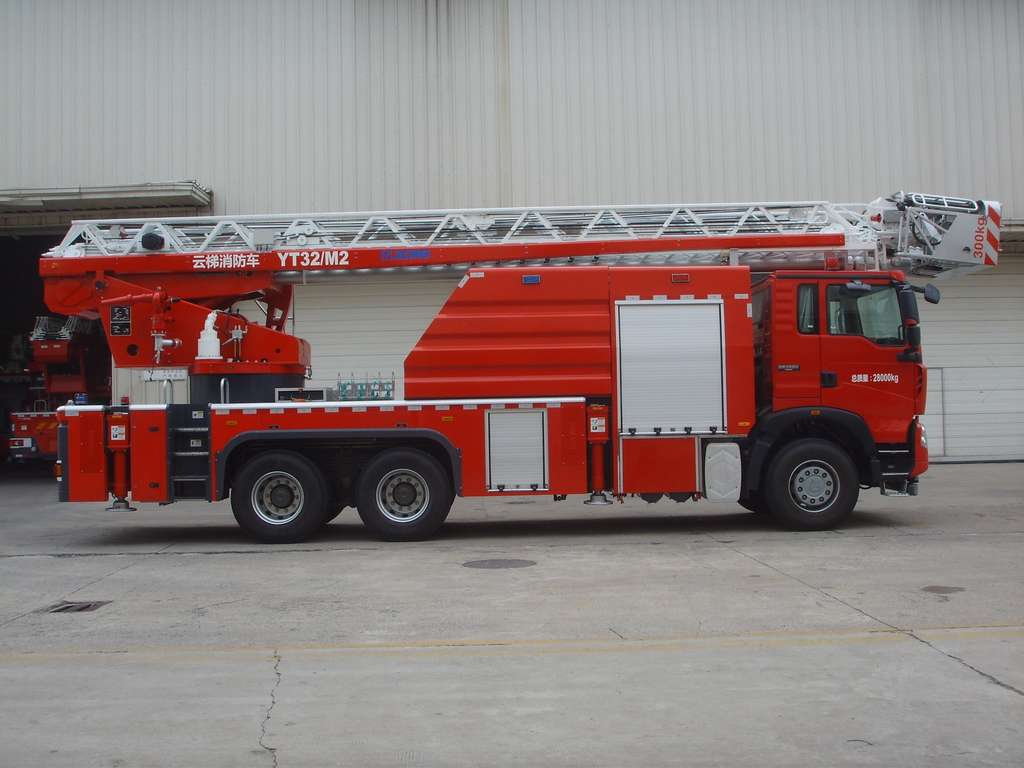

XCMG YT32M2 aerial ladder fire truck is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting, which is equipped with Heavy truck HOWO T-type ZZ5357TXFV464ME1 national- V chassis.
Advantages and highlights:
1.With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, it is widely used for fire-fighting and rescue operation of mid-rise buildings.
2.Perfect fire-fighting system, outstanding pump performance, full power takeoff drive, adequate power reserve.
3.The vehicle adopts leading technology, which is based on PLC and CAN bus distributed control technology.
4.Advanced winching telescopic technology, the first double direction of turning, double helical winch mechanisms.
5.Two limit location systems for hydraulic and electrical systems can effectively guarantee the safety and reliability of vehicle operation.
|
Outline dimension (L×W×H) |
11450×2500×3810mm |
|
|
Max. total mass |
29000kg |
|
|
Max. travel speed |
≥90km/h |
|
|
Min. turning diameter |
≤23m |
|
|
Approach angle |
≥16° |
|
|
Departure angle |
≥12° |
|
|
Max. grade ability |
≥25% |
|
|
Outrigger span |
Longitudinal span |
5400mm |
|
Lateral span |
5200mm |
|
|
Load capacity of working platform |
300kg |
|
|
Max. working height |
32m |
|
|
Maximum working range |
22m |
|
|
Boom elevating range |
Telescopic boom -12°~+75° |
|
|
Slewing range |
360° full-rotation |
|
|
Outrigger unfolding time |
≤25s |
|
|
Time for boom raising to rated height and rotating 90° |
≤55s |
|
|
Max. slewing speed of turntable |
0.5~1.5r/min |
|
|
Fire pump |
Rated flow |
50 L/s |
|
Rated pressure |
1.5 MPa |
|
|
Fire monitor |
Model |
Zhangqiu PLKD48 |
|
Rated flow |
48 L/s |
|
|
Rated pressure |
≤1.0MPa |
|
|
Reach |
≥60m(water) |
|
|
≥55m(foam) |
||
