  • Model Number:YT32M2
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Size:11450*2500*3810mm
  • Max Work Height:32m
  • Fuel Type:Diesel
  • Emission Standard:EURO 5
  • Tank Capacity:3001 - 5000L
  • Horsepower:351 - 450hp
  • Transmission Type:Manual
  • Type: RESCUe
  • Drive Wheel: 6x4
  • Certification:CE/ISO
Details
  • weight:29000.000kg
  • Condition:New
  • Moving Type:Other

XCMG Official Small Fire Truck 32m new 6x4 aerial ladder fire truck YT32M2  price for sale

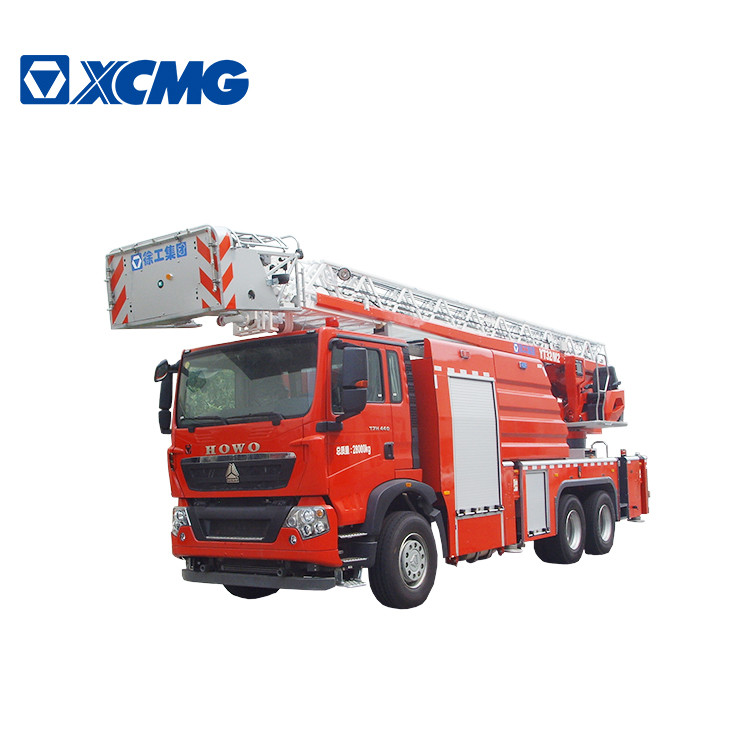

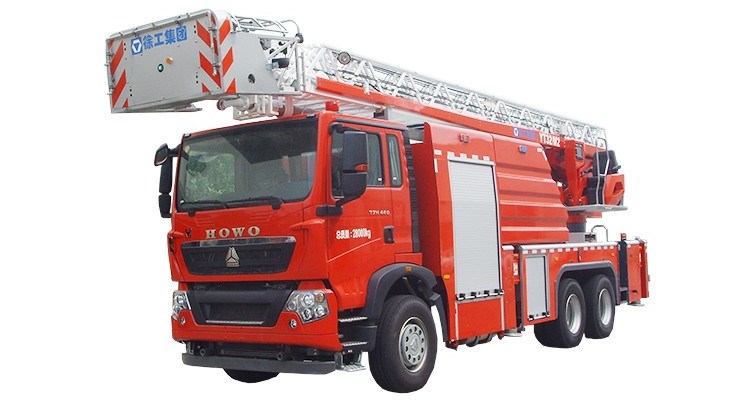

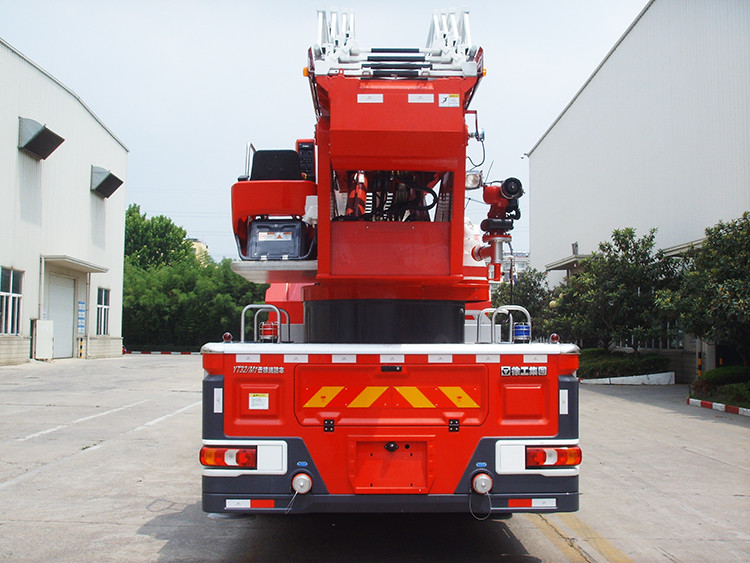

XCMG Official Small Fire Trucks 32m new 6x4 aerial ladder fire truck YT32M2.


YT32M2 aerial ladder fire truck focuses on the design, development and manufacturing technology of upper structure ladders, leveling control technology of turntables, double helix twin-rotation winding and telescoping technology, multi-state operating curve control technologies, and independent work platform leveling control technologies, etc.

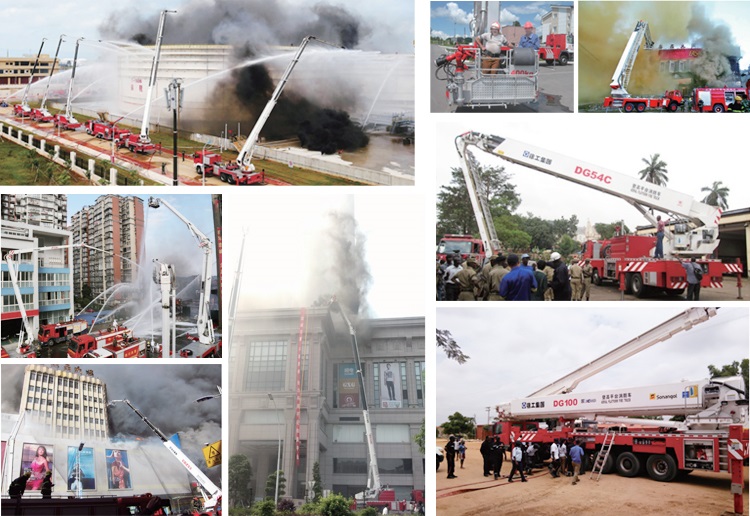

With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, it is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.

Performance Characteristics:

1. YT32M2 chassis adopts Heavy truck HOWO T-series ZZ5357TXFV464ME1 class II chassis with advanced performance and large loading capacity, China National V emission, specific power is 11.2(324kw/29t), with sufficient margin of power.

2. The firefighting system is equipped with full functions and the pump gun has excellent performance. A Xi’an Huayu CB12/60 water pump equipped with a vacuum pump is used, uses full-power take-off force for driving, and the power reserve is sufficient. Zhangqiu PLKD48 electric-controlled fire monitor from is used as a water monitor. The inlet and outlet and control valves are well equipped and easy to operate. The whole vehicle is equipped with a 5.1t fire fluid tank-2.7t water, 2.4t foam, using aluminum alloy telescopic pipe, the weight of the upper structure is lighter.

3. Based on the based on PLC and CAN bus distributed control technology, the vehicle can achieve automatic leveling, platform load weighing, platform ultrasonic collision detection, posture dynamic monitoring, single-key operation vehicle collection function, and leading technology.

XCMG Official Small Fire Truck 32m new 6x4 aerial ladder fire truck YT32M2  price for sale

Main performance parameters

Outline dimension (L×W×H)

11450×2500×3810mm

Max. total mass

29000kg

Max. travel speed

≥90km/h

Min. turning diameter

≤23m

Approach angle

≥16°

Departure angle

≥12°

Max. grade ability

≥25%

Outrigger span

Longitudinal span

5400mm

Lateral span

5200mm

Load capacity of working platform

300kg

Max. working height

32m

Maximum working range

22m

Boom elevating range

Telescopic boom -12°~+75°

Slewing range

360° full-rotation

Outrigger unfolding time

≤25s

Time for boom raising to rated height and rotating 90°

≤55s

Max. slewing speed of turntable

0.5~1.5r/min

Fire pump

Rated flow

50 L/s

Rated pressure

1.5 MPa

Fire monitor

Model

Zhangqiu PLKD48

Rated flow

48 L/s

Rated pressure

≤1.0MPa

Reach

≥60m(water)

≥55m(foam)
