Summary
- Model Number:YT53M1
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Size:12200*4000*2500mm
- Max Work Height:53m
- Fuel Type:Diesel
- Emission Standard:EURO 5
- Tank Capacity:< 3000L
- Horsepower:351 - 450hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:6x4
- Certification:CE/ISO
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Other

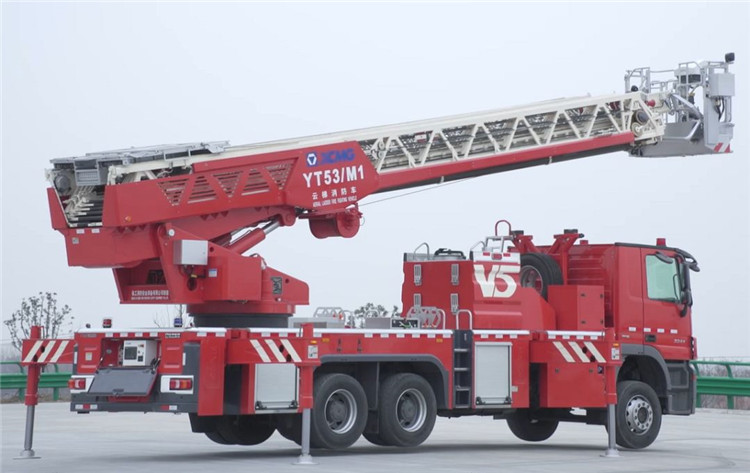

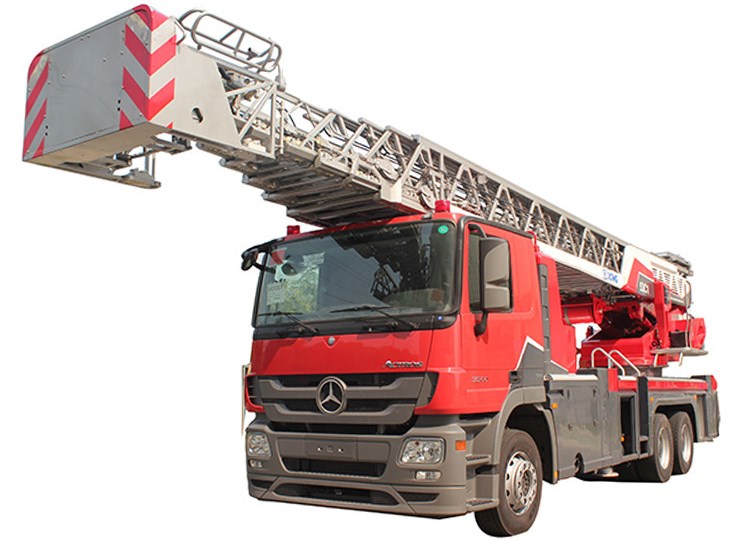

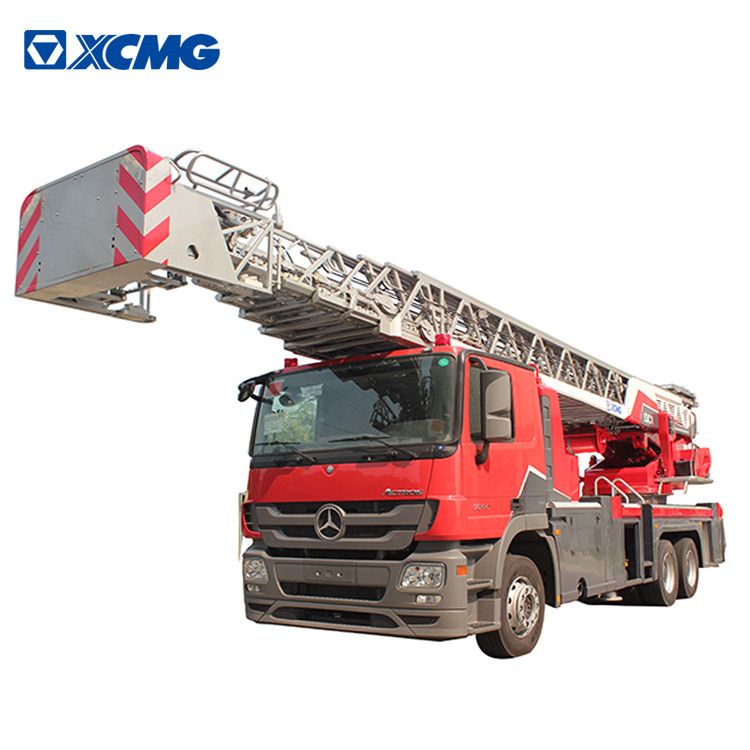

XCMG Official Fire Truck China 53m new aerial ladder fire truck YT53M1.
YT53M1 Ladder Fire Truck is a 53m fire truck based on current mature technology of water tower fire truck of our company and independent working platform technology, various core technologies such as intelligent damping control technology, technological breakthrough of quick elevating system, super long ladder pre-deformation manufacturing process technology and large radius multiple curves operation control technology are breakthrough so that flexible operation, efficient rescue and intelligent control are achieved, it is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting. With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, it is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
Advantages and highlights:
1. YT53M1 chassis adopts 3344 category II chassis with advanced performance and large loading capacity, specific power is 10.1（320kw/31.5t）, with sufficient margin of power.
2. Based on distributed control technology of PLC and CAN bus, automatic leveling of chassis, weighing of load on platform, ultrasonic wave anti-collision detection of platform, dynamic monitoring of postures and one-key operation function are achieved, which has leading technology.
|
XCMG provides cost-effective
customized services, the solutions and quotations upon receiving your
personalized demand. |
||
|
Outline dimension (L×W×H) |
12200×2500×4000mm |
|
|
Max. total mass |
31000kg(±5%) |
|
|
Max. travel speed |
≥100km/h |
|
|
Min. turning diameter |
≤20m |
|
|
Approach angle |
≥15° |
|
|
Departure angle |
≥9° |
|
|
Max. grade ability |
≥25% |
|
|

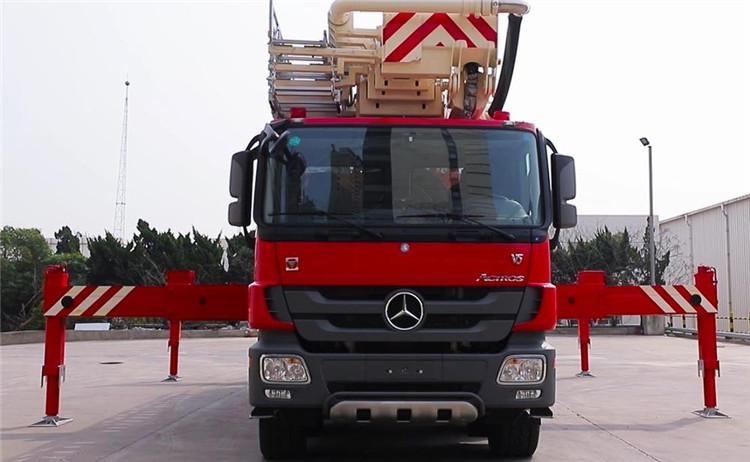

Outrigger span |
Longitudinal span |
5750mm |
|
Lateral span |
5200mm |
|
|
Load capacity of working platform |
270kg |
|
|
Rated load of lifting bucket |
180kg |
|
|

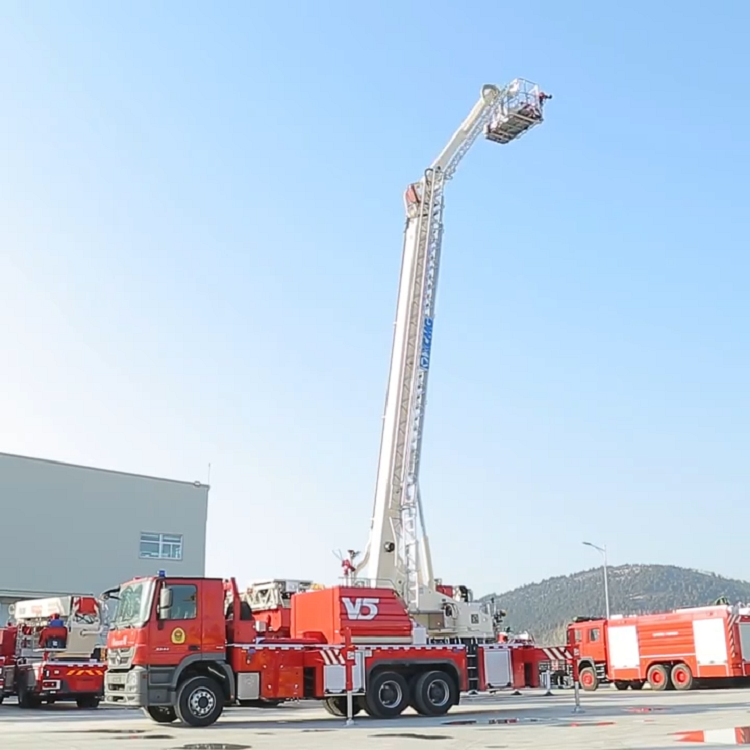

Max. working height |
53m |
|
|
Rated working radius |
18m |
|
|
Boom elevating range |
-12°~+75° |
|
|
Slewing range |
360° full-rotation |
|
|
Outrigger unfolding time |
≤30s |
|
|
Time for boom raising to rated height
and rotating 90° |
≤120s |
|
|
Max. slewing speed of turntable |
0.5~1.5r/min |
|
|
Tank volume |
1500kg |
|
|
Fire pump |
Rated flow |
Hill RSD100 |
|
Rated pressure |
100 L/s |
|
|
Model |
1.0 MPa |
|
|
Fire monitor |
Rated flow |
Elkhart PSKD80-7200EXM |
|
Rated pressure |
80L/s |
|
|
Reach |
1.0Mpa |
|
|
Rated flow |
70m |
|
