XCMG official XGS28 hydraulic manlift telescopic boom platform price
Summary
- Weight:16600kg
- Overall Dimension:12100*2490*3050mm
- Table Size:2400*900mm
- Max Lifting Height:28.2m
- Rated Loading Capacity:230/340kg
- Power:53kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XCMG
- Brand Name:XGS28
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:16600.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

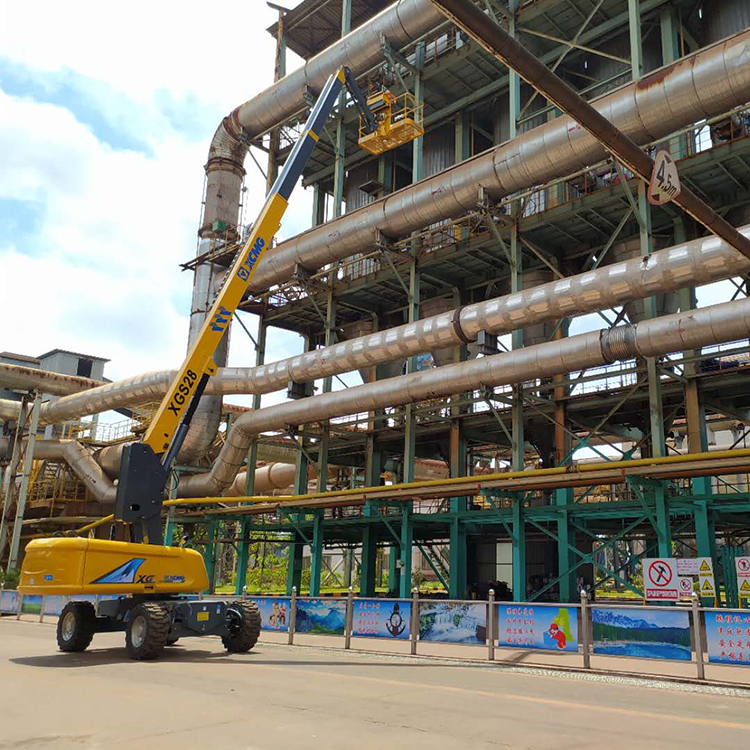

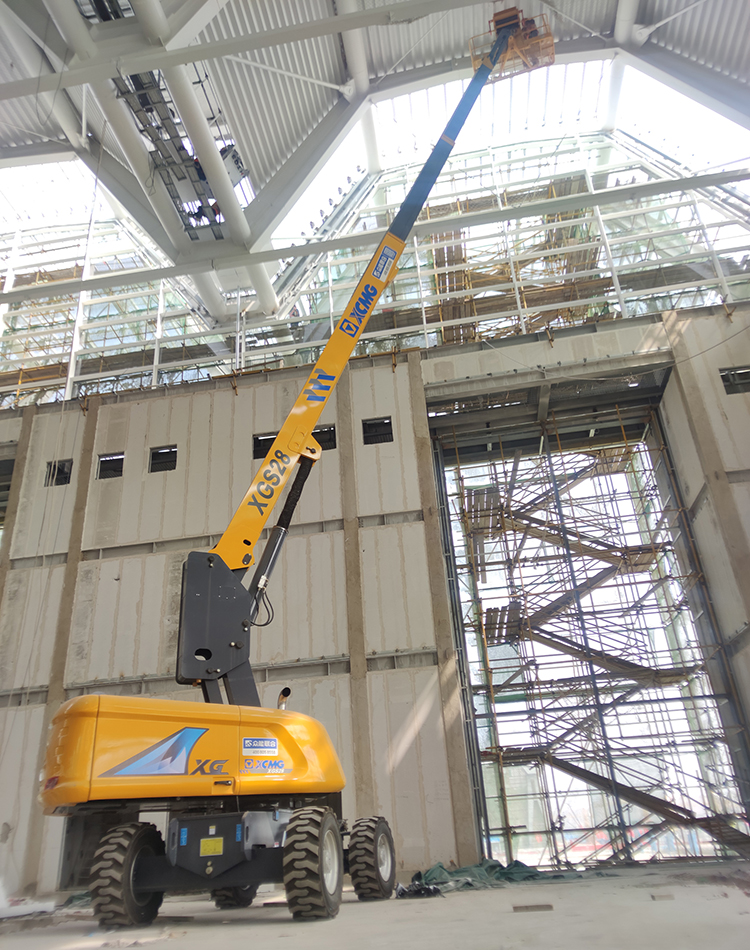

XCMG official XGS28 hydraulic manlift telescopic boom platform.
XCMG manlift platform XGS28 developed with Max. working height at 28.2m, max. payload at 340kg, max. gradeability at 45%.

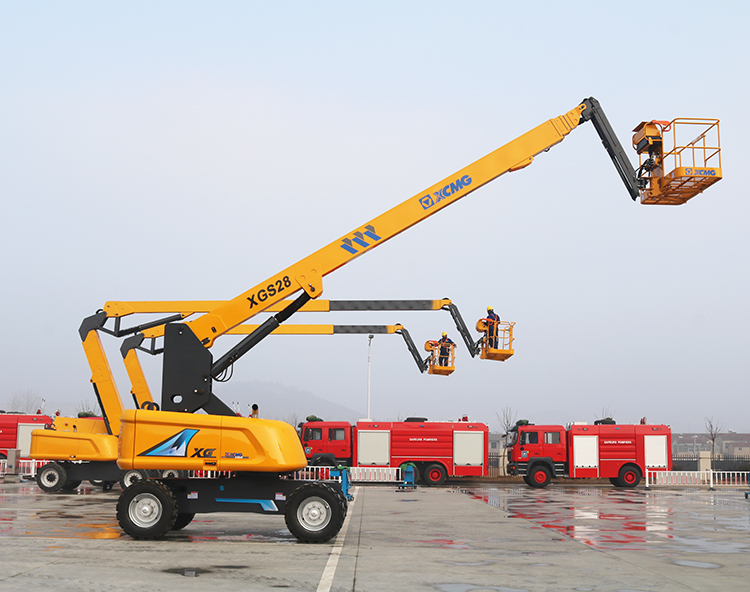

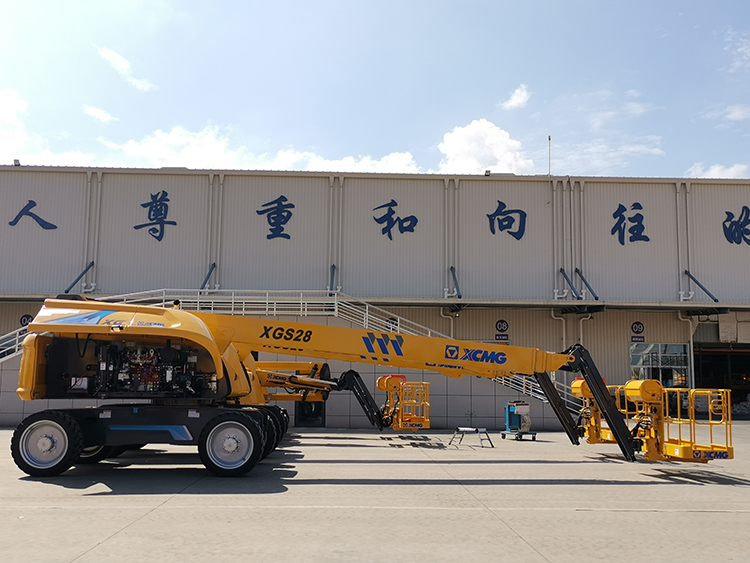

This vehicle is structured as three sections of telescopic arms and tower arm mechanism, with a small fly jib, featuring wide work range. Dual payload control system is adopted to adjust the work range depending on the payload, meeting the different loading requirements and thus becoming an ideal selection in the construction of building, bridges, steel structures and stadiums.
Product Highlights:
1.Adjust the work range by itself according to the payload, meeting the different loading requirements.
2.Making the construction more effective, suitable for the relatively low and narrow site.
3.Greatly dropping the fault ratio and extend the service life of complete vehicle.
4.Making the fault diagnosis and maintenance easier.
|
Item |
Unit |
XGS28 |
|
a. Overall length of complete machine |
mm |
12100 |
|
b. Overall width of complete machine |
mm |
2490 |
|
c. Overall height |
mm |
3050 |
|
d. Wheelbase |
mm |
3000 |
|
Maximum working height |
m |
28.2 |
|
Maximum platform height |
m |
26.2 |
|
Maximum working range |
m |
23.2 |
|
Maximum carrying weight |
kg |
230/340 |
|
Luffing range of boom |
° |
-5~+75 |
|
Slewing angle of turntable |
° |
360 |
|
Maximum tail swing |
mm |
1500 |
|
Platform size |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
16600 |
|
Maximum traveling speed |
km/h |
6.1 |
|
Minimum turning radius |
m |
6.7 |
|
Minimum ground clearance |
mm |
310 |
|
Maximum gradeability |
% |
45 |
|
Tire specification |
- |
Foam tire 385/65-22.5 |
|
Engine model |
- |
QSF2.8t3TC71 |
|
Engine rated power |
kW/(r/min) |
53/(2200) |
