XCMG new 40m telescopic boom lift XGS40 China self-propelled mobile aerial work platform for sale, MACHMALL

Engineering & Construction Machinery > Aerial Working Equipment > Telescopic Boom Lift

XCMG new 40m telescopic boom lift XGS40 China self-propelled mobile aerial work platform for sale

FOB Price: $50000.00-$100000.00

View All >

Model： XGS40

Engine： Foton Cummins

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG new 40m telescopic boom lift XGS40 China self-propelled mobile aerial work platform for sale

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

I agree to the 《Privacy Policy》

XGS40

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Weight

Overall Dimension

Table Size

Max Lifting Height

Min Lifting Height

Rated Loading Capacity

Power

Lift Drive / Actuation

Lift Mechanism

Model Number

Brand Name

Place of Origin

Certification

Engineering & Construction Machinery

XGS40

20600kg

14060x2490x3000mm

2400×900mm

230kg

55.5kw

Hydraulic

Telescoping Lift

XGS40

XCMG

Jiangsu, China

SGS CIQ CE

+ Add a Product

Summary

Weight:20600kg
Overall Dimension:14060x2490x3000mm
Table Size:2400×900mm
Rated Loading Capacity:230kg
Power:55.5kw
Lift Drive / Actuation:Hydraulic
Lift Mechanism:Telescoping Lift
Model Number:XGS40
Brand Name:XCMG
Place of Origin:Jiangsu, China
Certification:SGS CIQ CE

Specifications

Weight:20600.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG new 40m telescopic boom lift XGS40 China self-propelled mobile aerial work platform for sale

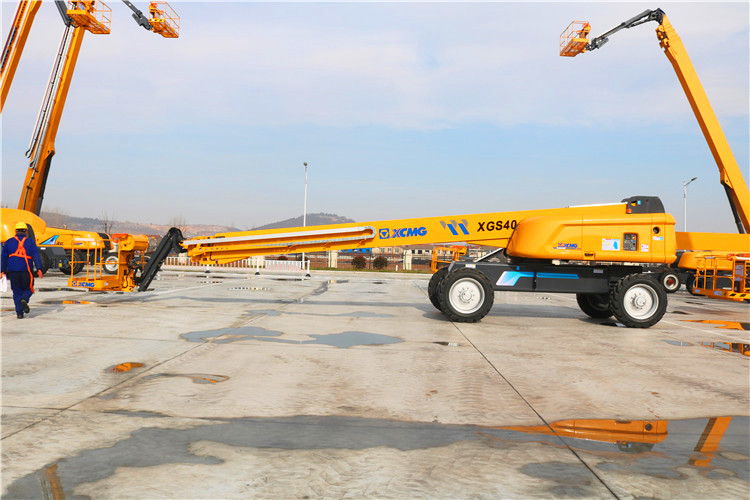

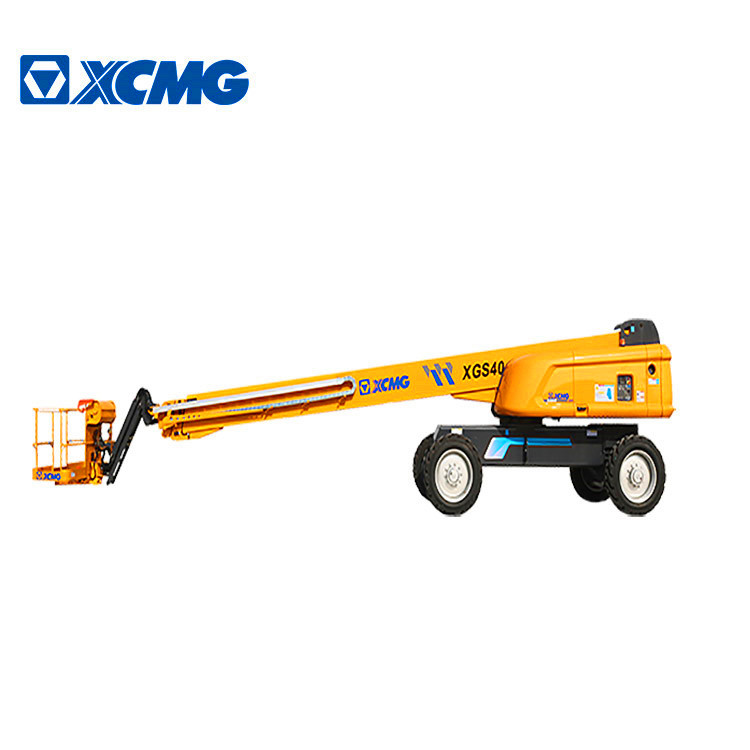

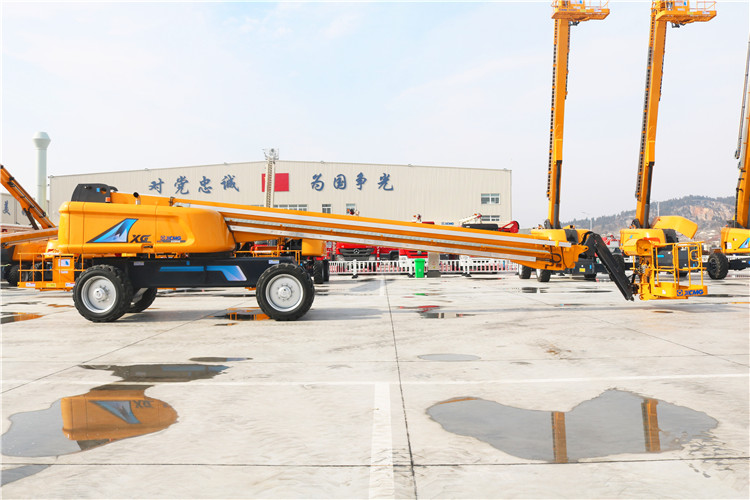

XCMG factory 40m height telescopic boom lift XGS40 Chinese self-propelled mobile aerial work platform.

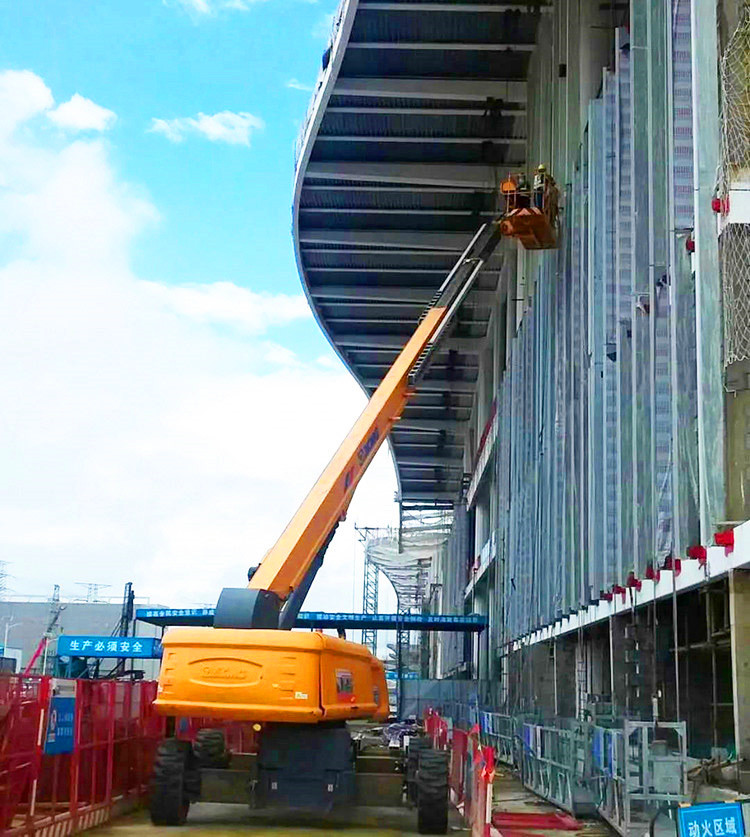

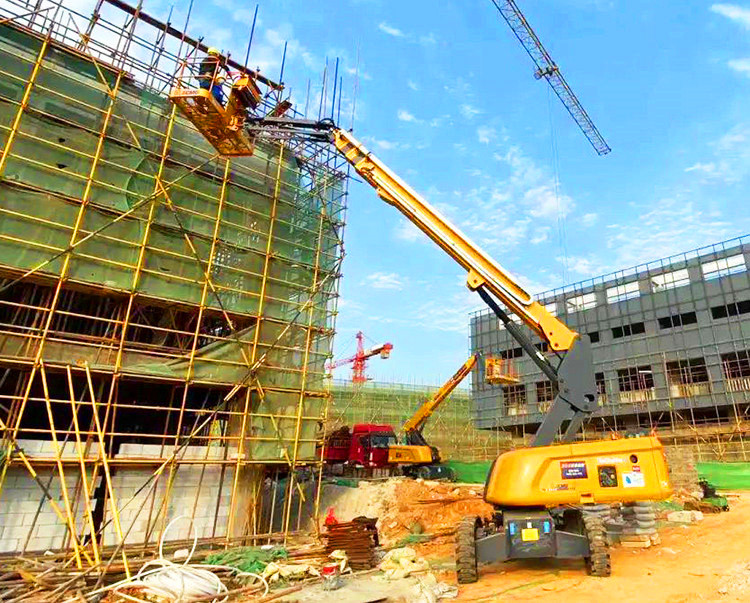

XGS40 self-propelled telescopic mobile aerial work platform with compact driving size; maximum operation height 40.2m, maximum carrying capacity 340kg, maximum climbing degree 40%, advanced in the industry, and four-wheel driving; dual operation amplitude curves; industry-leading operation height, amplitude and carrying capacity; no more than 3m overall height for easier transferring; the machine is simple, efficient, safe and reliable, meeting demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.

XCMG new 40m telescopic boom lift XGS40 China self-propelled mobile aerial work platform for sale

Item	Unit	Parameter
a. Overall length of complete machine	mm	14060
b. Overall width (With axle retracted/extended)	mm	2490/3800
c. Overall height	mm	3000
d. Wheelbase	mm	3800
Max. working height	m	40.2
Max. platform height	m	38.2
Max. working range	m	23.9
Max. carrying weight	kg	230 (unrestricted)/340 (restricted)
Luffing range of boom	°	-7 ~ +75
Slewing angle of turntable	°	360°
Max. rearward slewing (With shaft retracted/extended)	mm	2085/1430
Platform size	mm	2400×900
Slewing angle of platform	°	160
Overall weight	kg	20600
Max. traveling speed	km/h	5
Min. turning radius (With axle retracted/extended)	m	8.2/10.8 (Two-wheel steering)
Min. turning radius (With axle retracted/extended)	m	5.8/6.8 (Four-wheel steering)
Min. ground clearance	mm	320
Max. gradeability	%	40
Tire specification	-	445/50D710
Engine model	-	Perkins 1104D-44T
Engine rated power	kW/(r/min)	55.5/2400

XCMG new 40m telescopic boom lift XGS40 China self-propelled mobile aerial work platform for sale

uMore Telescopic boom lift

XCMG new 40m telescopic boom lift XGS40 China self-propelled mobile aerial work platform for sale

Send your message to this supplier：

Email:

to:

XCMG E-commerce Inc.

Content：

0/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity：

/ Set

XCMG E-commerce Inc.

Certified for 3 years

Rating

Response Time

Within 24 hours

Year of establishment

Established in 1943, XCMG ranks NO.1 in China and NO.3 in the world's construction machinery industry. Our earth-moving machinery, road machinery, engineering & construction crane and concrete machinery are leading the world.

Company Address

C1c5, Software Park, Xuzhou, Jiangsu, China

Add a Product

1 selected

Confirm

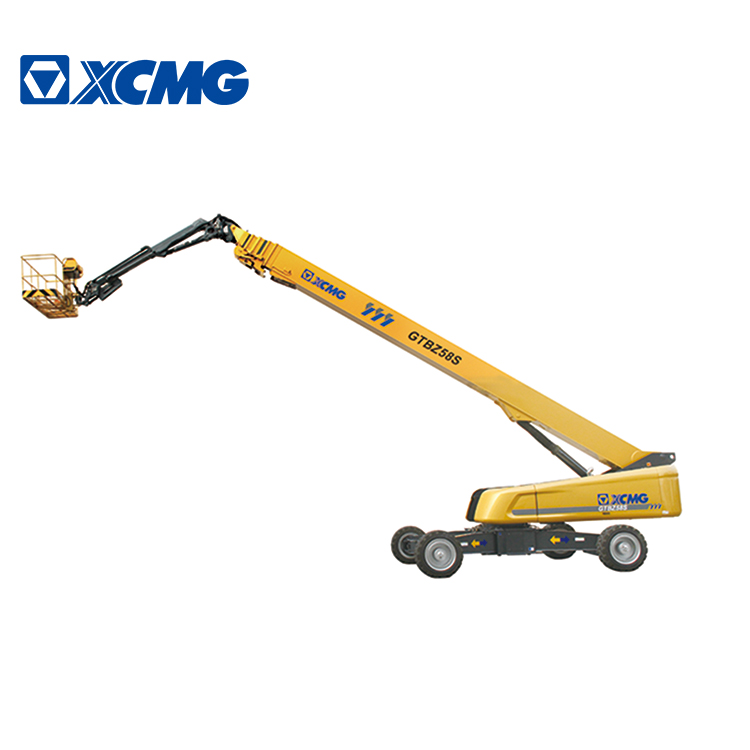

XCMG Brand GTBZ58S 60m Self Propelled Telescopic Lift Aerial Working Platform Price
