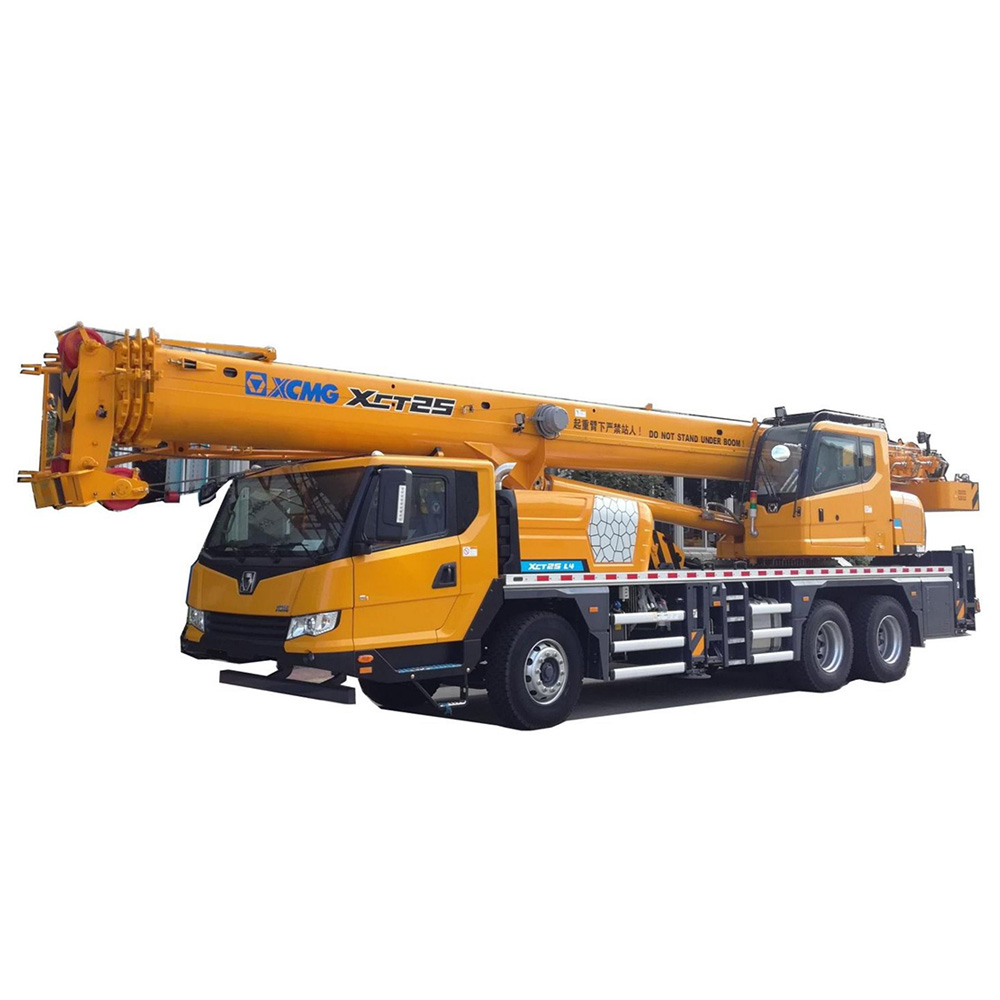

XCMG official manufacturer XCT25L4 truck cranes for sale

  • XCMG official manufacturer XCT25L4 truck cranes for sale

Share:
XCMG official manufacturer XCT25L4 truck cranes for sale
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official manufacturer XCT25L4 truck cranes for sale
XCMG official manufacturer XCT25L4 truck cranes for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:XCT25L4
  • Brand Name:XCMG
  • Place of Origin:China
  • Span:7.9m
  • Max. Lifting Load:25t
  • Application:Construction Industry
  • Certification:ISO9001
Specifications
  • weight:29000.000kg
  • Condition:New
  • Moving Type:Wheel

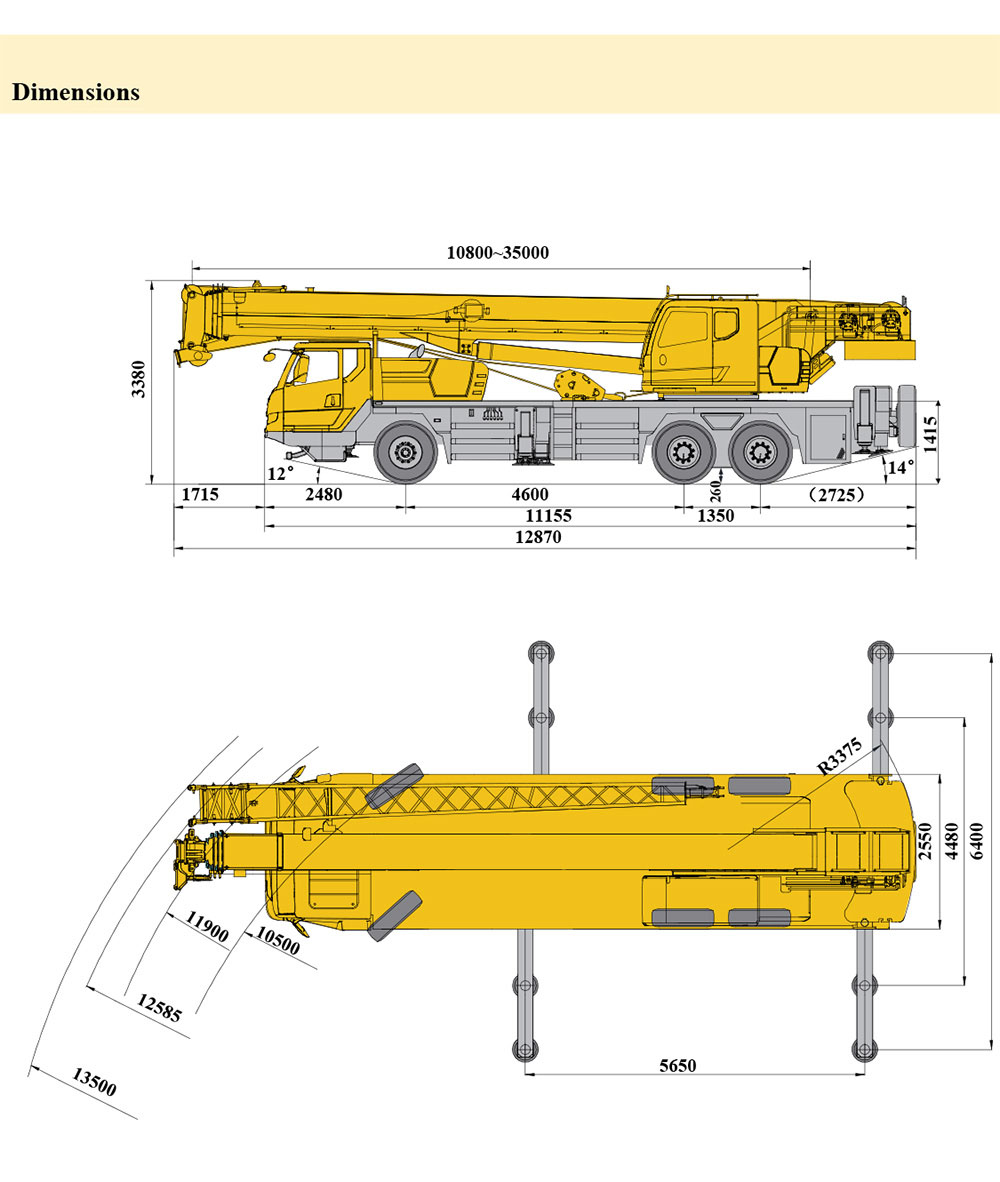

  • Overall length:12870mm
  • Overall width:2550mm
  • Overall height:3380mm
  • Total weight in travel:29000kg
  • Engine Model:SC7H260Q5
  • Engine rated power:192kW/2300rpm
  • Engine rated torque:1000Nm/1400rpm
  • Driving speed(km/h):2.5~90
  • Gradability:0.43
  • Tires:315/80R22.5
  • Base boom:10.8m
  • Max. main boom:35m


XCMG official manufacturer XCT25L4 truck cranes for sale

Super lifting performance
 4-section boom of 35 m with U-type profile is the longest of the same class in the industry; the max. parts of line is 8 for the main hook block. The performance is 15% higher than that of the competitors.
Innovative single-plate boom head and compact boom tail structure, best overlapping ratioin in its class and stronger boom load-bearing capacity.
New energy-saving hydraulic system
The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.
Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.
The thermal balance temperature of the hydraulic system below 80℃. It can work normally in the high temperature environment and thus the hoisting operation is safe and reliable.
Hoisting mechanism
The open winch hydraulic system consisting of constant displacement pumps and variable displacement motors
Planetary gear reducer, normally closed brake
Max. single line pull 30.625KN/29.4KN
Max. hoisting 135m/min


XCMG official manufacturer XCT25L4 truck cranes for sale


XCMG official manufacturer XCT25L4 truck cranes for sale

Chassis

Superstructure

Frame

Designed and manufactured by XCMG, with all

covered walking surface, anti-torsion box structure

and optimal load-bearing structure design, made of

Importedhigh strength steel.

Frame

Designed and manufactured by XCMG; made of

high-strength steel

Outrigger

4 outriggers, H-shaped arrangement, lateral and

vertical outrigger controlled by the hydraulic

control. Control levers are located on both sides of

the chassis, with a luminous level gauge equipped,

with the fth jack, and the vertical outrigger has

two-way hydraulic lock.

Outrigger float dimension: q400mm

Max. outrigger reaction force: 326KN

Hydraulic system

With

double-pump

confluence of hoisting, elevating and telescoping,

the working speed of main and auxiliary winch can

reach 135m/min, which improves the working

efficiency greatly. The distribution of flow in

actuators is more optimized when conducting

compound movements and the working efficiency

is more outstanding.

Engine

SC7H260Q5, in-line six-cylinder water-cooled EFI

diesel engine, manufactured by Shanghai Diesel

Engine Co., Ltd., rated power 192kW /2300rpm,

max. torque 1000Nm/1400rpm, the national V

Emissionstandards.

Fuel tank capacity : 220L

Operating mode

Mechanical control

Gearbox

FAST

manually mechanical

control

9-speed

available, synchronizer is equipped.

Main winch system

Hydraulic controlled speed regulation, groove drum

is equipped, driven by hydraulic motor through

planetary gear reducer, and built-in normally closed

brake and counterbalance valve are available.

Alxes

High strength axle with reliable performance from

Meritor. 2nd axle and 3rd axle for driving

Auxiliary winch system

Hydraulic controlled speed regulation, groove drum

is equipped, driven by hydraulic motor through

planetary gear reducer, and built-in normally closed

brake and counterbalance valve are available.

Suspension

Front

suspension:

longitudinal

leaf

spring

suspension with barrel shock absorber;

Rear suspension: V-type thrust rod structure, and

rubber spring suspension.

Slewing system

Four-point ball contact slewing ring. Slewing

system is driven by hydraulic motor, with planetary

gear reducer, for 360° continuous rotation, stepless

slewing speed regulation is available. Horm button

is equipped on the control lever.

Tires

10 tires and 1 spare tire, front axle is equipped with

single tire, middle axle and rear axle are equipped

with double tire.

Tire specifications:31 5/80R22.5

Elevating System

Single-supported double

acting

front-mounted

hydraulic elevating cylinder, with balance valve

equipped.,

Brakes

Service brake: double-circuit air pressure brake,

acting on all wheels.

Parking brake: spring energy brake, acting on

wheels of2-3 axles.

Auxiliary brake: engine exhaust brake and engine

in-cylinder brake.

Operators cab

Ergonomic cab design, with swing-out doors, safety

glass, sun visor, adjustable seatsand protective rails

equipped. Fan is standard and air-conditioner is

optional.

Steering

Mechanically steering mechanism with hydraulic

power assisted.

Safety devices

Hydraulic balance valve; Hydraulic relief valve;

Double-way hydraulic valve; LMI; spring aligning

device for joystick; Lowering limiter for preventing

wire rope from over-releasing; Anti-two block at

boom head for preventing wire rope from over-

winding; tri-color waring lamp.

Drivers cab

Full-dimension driver's cab, three passengers are

allowable. Equipped with radio, adjustable seats,

simple sleeper,steering wheel, safety glasses,

electrically controlled windshield washer,

electrically operated rearview mirror,electrically

operated door window and glove box. Heater and

air conditioner are available.

Boom System

Electrical system

24V DC, two sets of battery.

Generator: 28.5土0.3V-70 A

Boom

4-section, U-shape CrOSS section, welding str-

ucture.

Boom length: 10.6m ~ 35m.

Single top

Single pulley, fitted on boom head, used for

single line operation.Its lifting performance is

the same as that for boom, but could not

exceed 3t.

JIB

1-section, Lattice jib, welded structure. Three

offset angles of0°,15°and 30° . Fixed jiblength: 9m

Additional Equipment

Engine

WP7.270E51, in-line six-cylinder water-cooled

EFI diesel engine, manufactured by Weichai Power

Co., LTD.., rated power 199kW /2100rpm, max.

torque 1160Nm/1 200-1 600rpm, the national V

emission standards.



Weight

Axle

1

2

3

Total weight

t

7

   11

 11

    29



Hook

No. of lines

Weight kg

Dimension mm

Remarks

25t

8

260

366x430x1252

Single hook ,Standard Standard

3t

1

60

236x236x503

Single hook ,Standard Standard





km/h



315/80 R 22.5

2.5-90

43%

Working speeds

Drive

Working speed

Max. single line pull

Rope diameter/ length



0-135 m/min, single line,4th layer

30kN

16mm/150 m



0-135 m/minsingle line,4th layer

30kN

16mm/100 m



0-2.5 r/min



Approx. 37s for boom elevation from -2° to 79°



Approx. 55s for boom extension from 10.8m to 35m

XCMG—XCT25L4






Lifting capacities                                                                                       T 10.8~35.0m

10.8m

15.64 m

20.48m

25.32m

30.16 m


35m

3

25000

3

3.5

25000

19000

3.5

4

24500

19000

18200

4

4.5

23200

19000

18200

4.5

5

22000

19000

18200

12500

5

5.5

21500

19000

18000

12000

5.5

6

19500

18400

17000

12000

9000

6

6.5

16200

16800

16000

11500

8800

6.5

7

14600

15200

15000

11000

8600

7300

7

8

11500

13000

13600

10200

8300

7200

8

9

10800

11200

9500

8000

6700

9

10

9000

9400

8500

7000

6100

10

12

6500

6800

6900

6300

5200

12

14

5100

5300

5300

4400

14

16

4000

4100

4200

3800

16

18

3300

3400

3000

18

20

2600

2700

2800

20

22

2100

2200

2300

22

24

1800

1900

24

26

1500

1600

26

28

1300

28

30

1000

30
