Summary
- Weight:25000
- Dimension(L*W*H):10330×2500×3220 mm
- Model Number:XLS1203
- Brand Name:XCMG
- Place of Origin:Jiangsu,China

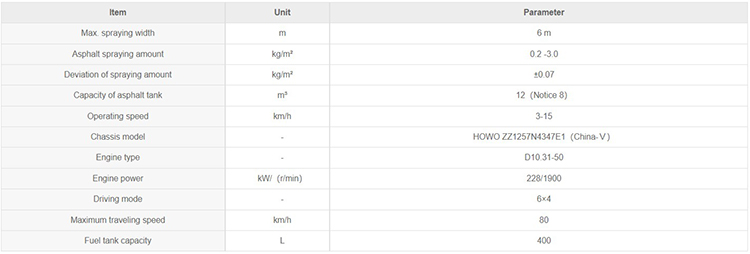

Specifications
- Weight:25000.000kg
- Condition:New
- Moving Type:Wheel
- Max. spraying width:6m
- Asphalt spraying amount:0.2-3.0kg/㎡
- Overall dimension:10330×2500×3220 mm
- Asphalt tank capacity:12m³

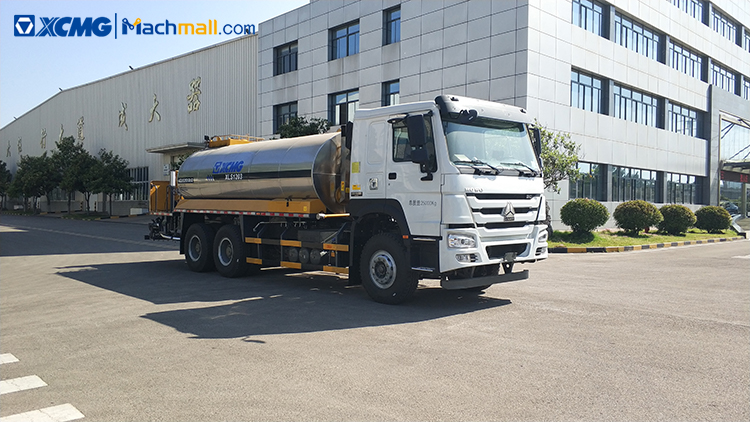

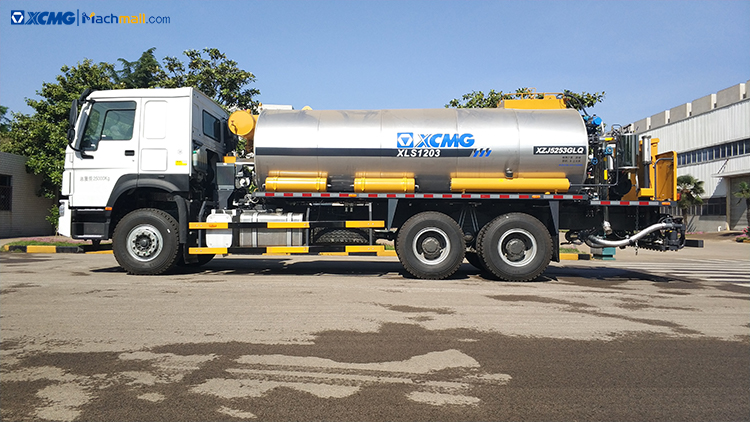

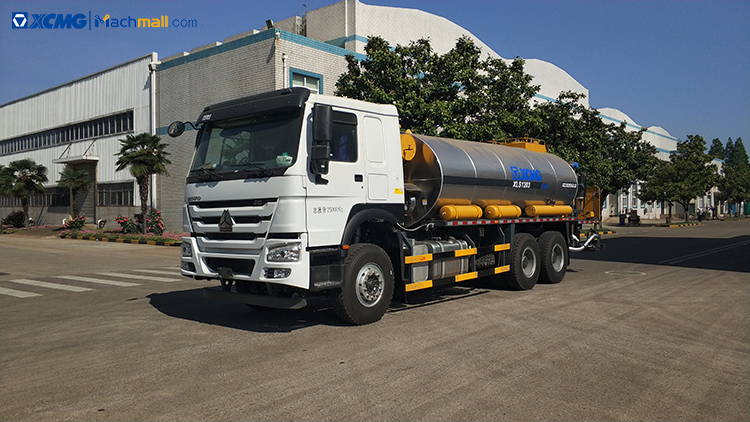

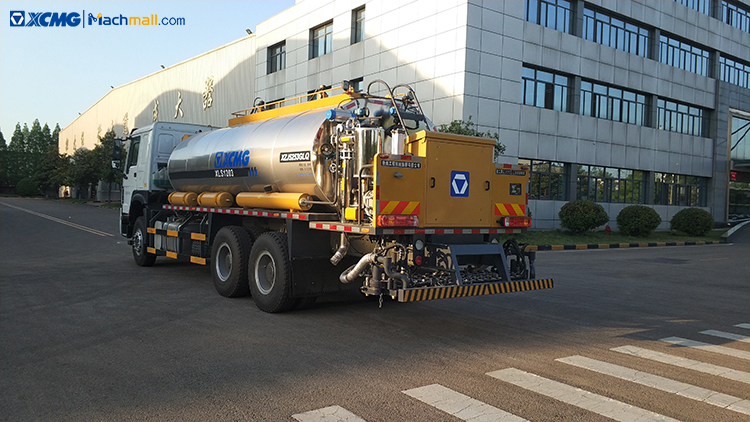

XCMG asphalt sprayer XLS1203 6m width road maintenance 12cbm capacity.
XCMG asphalt sprayer XLS1203 6m width road maintenance 12cbm capacity is a high-tech product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, and modified asphalt. The product controls the whole process of asphalt spraying through the controller.
Thus, the asphalt spraying amount is not affected by the change of speed and the high-precision spraying is achieved. It is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.
Features:
1.Realizes zero-distance starting spraying and uniform and reliable spraying of asphalt.
2.One-to-one control mode for the nozzle is adopted, the spraying width can be adjusted.
3.Automatic and manual operation systems, convenient and reliable.
4.Intelligent control system, automatic spraying can be achieved.
5.Meet construction requirements for different kinds of asphalt.
6.Manual spraying gun is optional for local asphalt spraying to corners and special Positions.
