Summary
- Weight:8600 (Lead-acid batterie) / 8350 (Lithium batteries)
- Overall Dimension:9800*2490*2640mm
- Table Size:1830×760×1150mm
- Max Lifting Height:20m
- Rated Loading Capacity:300kg
- Model Number:XGS20AC
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:8600.000kg
- Condition:New
- Moving Type:Wheel
- Wheel base:20500mm
- Maximum working radius:13200mm
- Total mass:8600 (Lead-acid batterie) / 8350 (Lithium batteries)

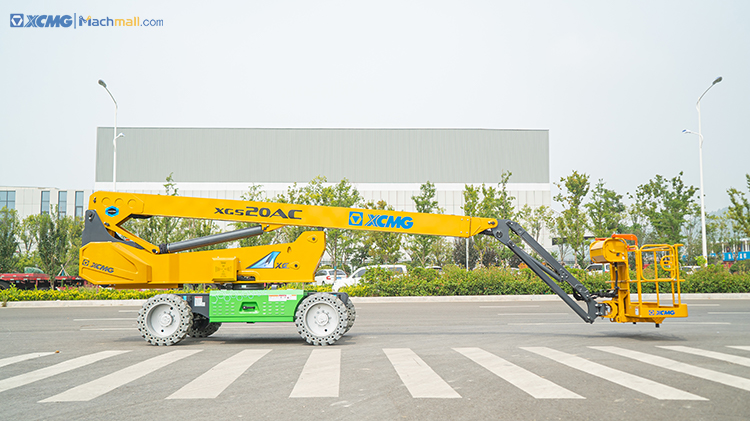

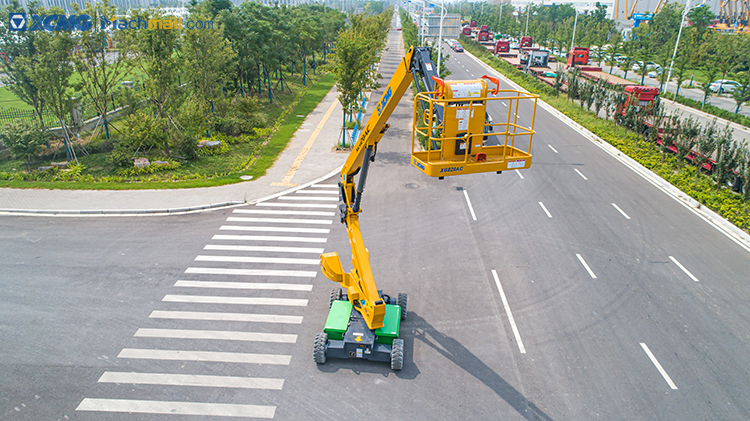

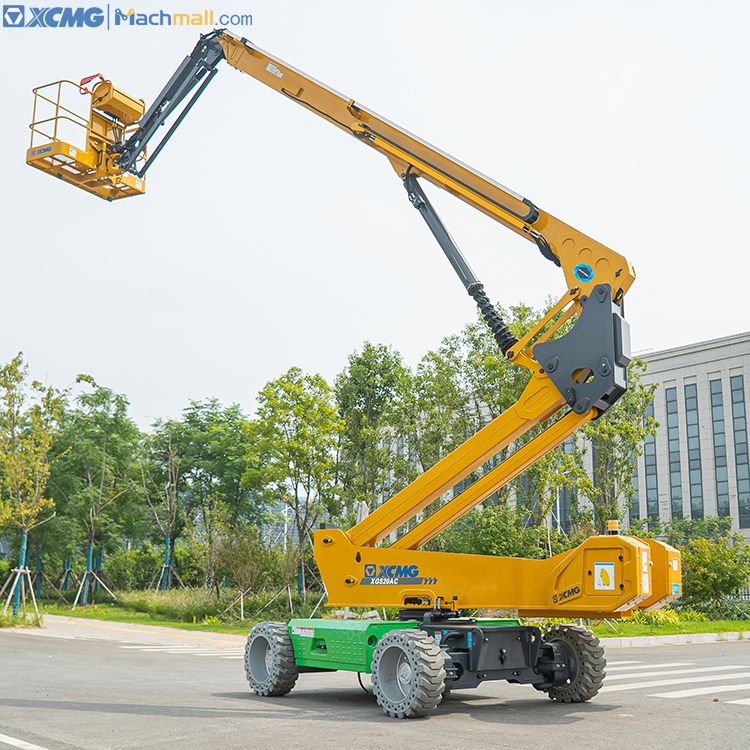

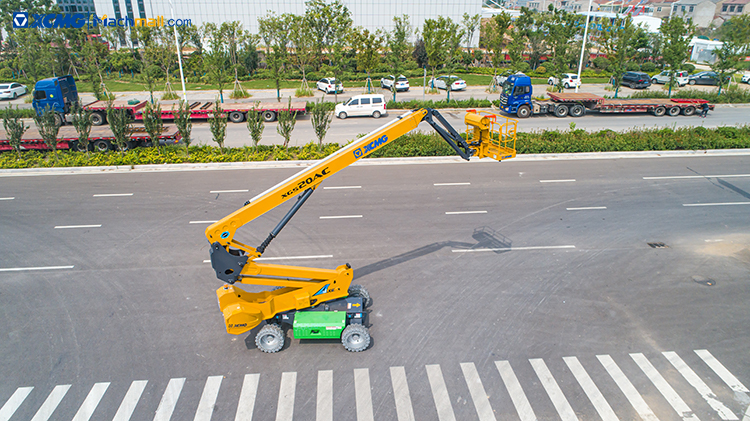

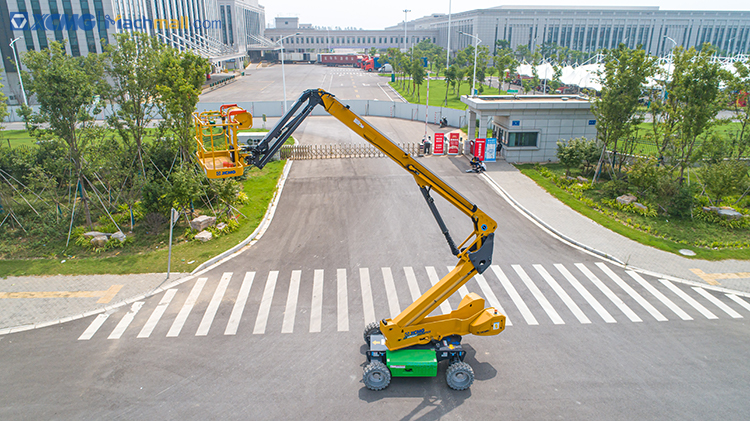

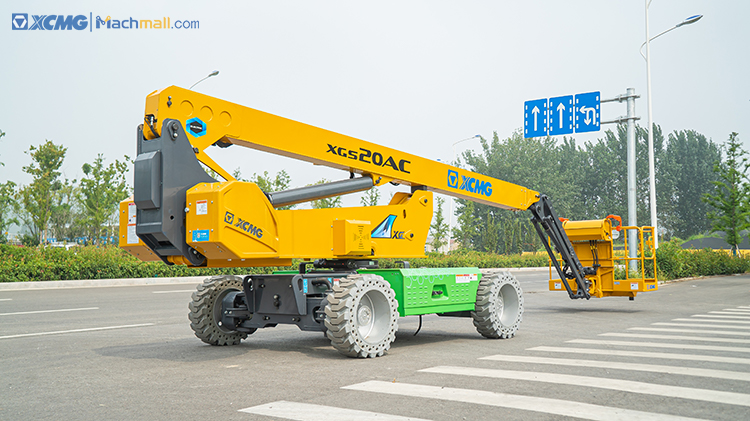

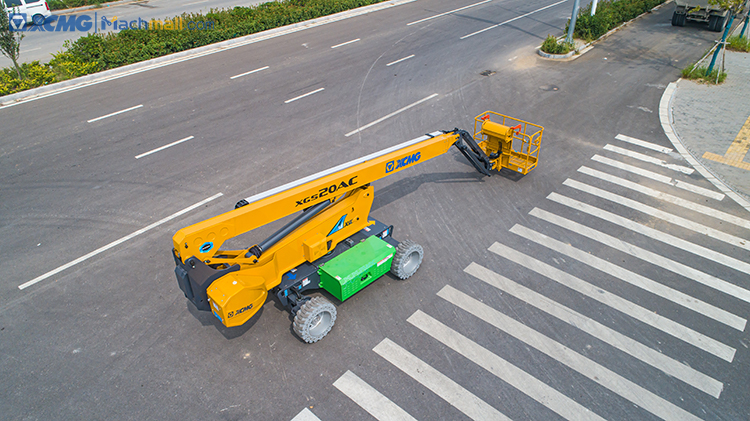

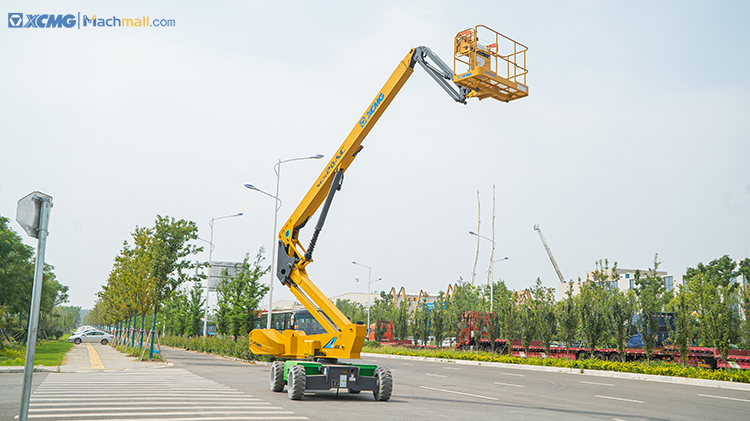

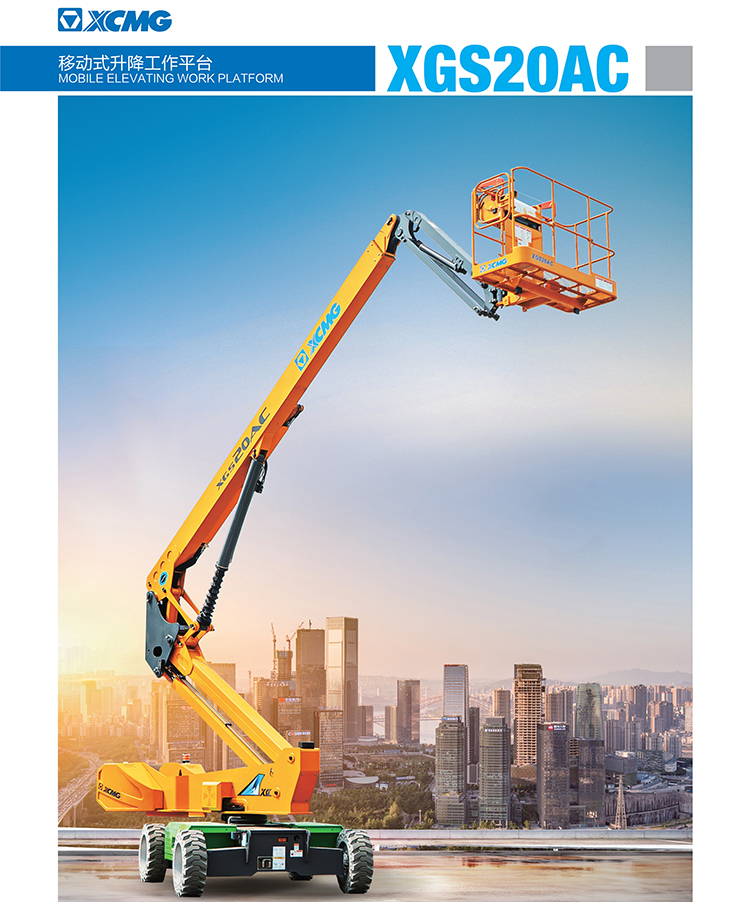

XCMG XGS20AC electric telescopic lift 20m aerial lift platform.
XCMG XGS20AC electric telescopic lift 20m aerial lift platform has a working height of 20.5m and an outreach of 13.2m, with unrestricted load capacity of 300kg, Its four-wheel drive and steer enables a turning radius of 5 m, driven by the 420 Ah 48 V DC lithium power source, which is maintenance-free and comes with a five-year warranty.
According to XCMG, the use of lithium batteries for the new XGS20AC(K) model will provide three to five times more power capacity than lead acid battery alternatives. In addition, the lithium battery can be up to 1.5 times smaller in size. Moreover, it provides longer service life as well as less pollution.
|
Item |
Unit |
XGA18K |
|
Overall length (stowed size) |
mm |
9800 |
|
Overall length (Transportation size) |
mm |
9800 |
|
Overall width |
mm |
2490 |
|
Overall height |
mm |
2640 |
|
Platform dimension |
mm |
1830×760×1150 |
|
Wheel base |
mm |
2500 |
|
Maximum working height |
mm |
20500 |
|
Platform maximum height |
mm |
18500 |
|
Maximum working radius |
mm |
13200 |
|
Maximum carrying mass |
kg |
300 |
|
Travel speed (stowed) |
km/h |
4.8 |
|
Travel speed (elevated/extended) |
km/h |
0.6 |
|
boom luffing range |
° |
-5~76 |
|
Turntable rotation angle |
° |
360 continuous |
|
Tailswing |
mm |
1630 |
|
Platform rotation angle |
° |
160 |
|
Minimum turning radius (outside) |
mm |
5 |
|
Minimum turning radius (inside) |
mm |
/ |
|
Total mass |
kg |
8600 (Lead-acid batterie) / 8350 (Lithium batteries) |
|
Maximum slope rating (counterweight uphill) |
％ |
45 |
|
Maximum slope rating (counterweight downhill) |
％ |
30 |
|
Maximum side slope rating |
％ |
25 |
|
Battery |
AH/v |
420 / 48DC (Standard) 420 / 48 (Lithium batteries) |
|
Power unit |
kw/v |
12 / 32AC |
|
Auxiliary power unit |
kw/v |
2.3 / 12DC |
|
Travel motor |
kw/v |
3.3 / 32AC |
