Summary
- Overall Dimensions:4620*2355*2415mm
- Fork Length:1000mm
- Max Lifting Height:6200mm
- Rated Loading Capacity:3tons
- Type:4wd telehandler
- Model Number:XC6-3006K
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
Specifications
- Weight:7250.000kg
- Condition:New
- Moving Type:Wheel
- wheelbase:2850mm
- power:90kw

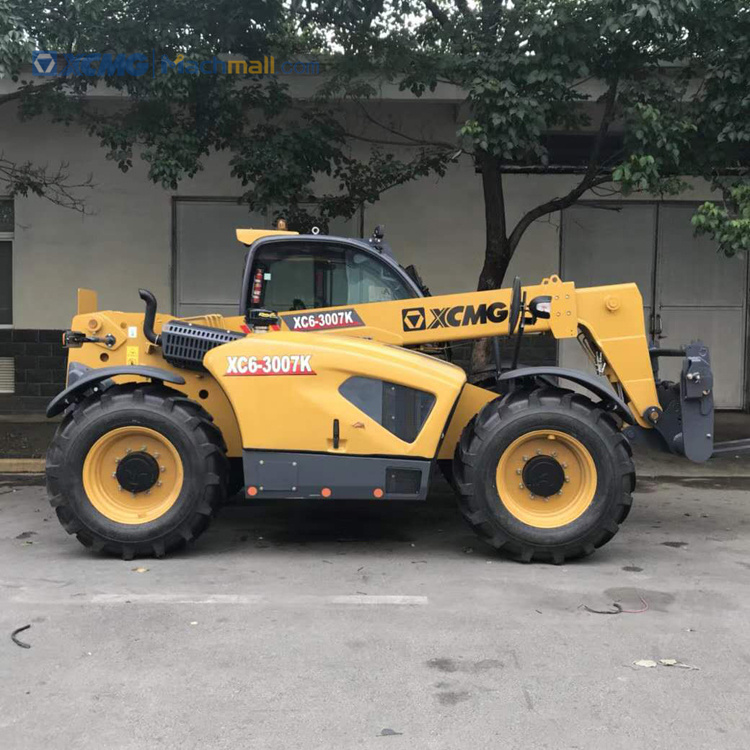

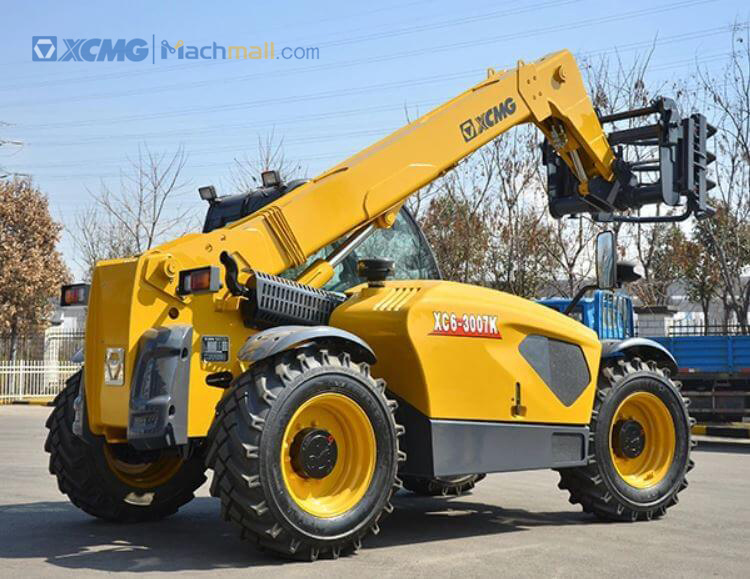

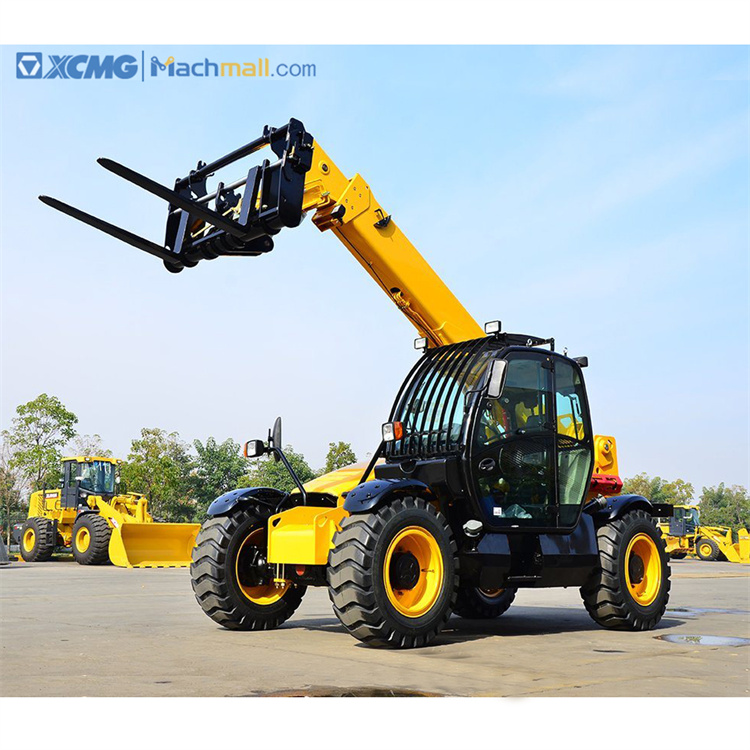

XCMG mini 4wd telehandler XC6-3006K.
XC6-3006K is the latest version telehandler which features the highest operation simplicity, safety and efficiency.
The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* The 4wd mini telehandler with multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.

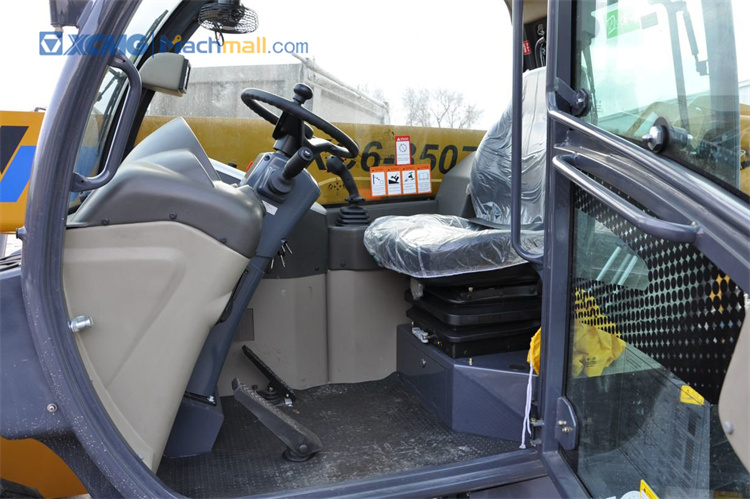

* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.

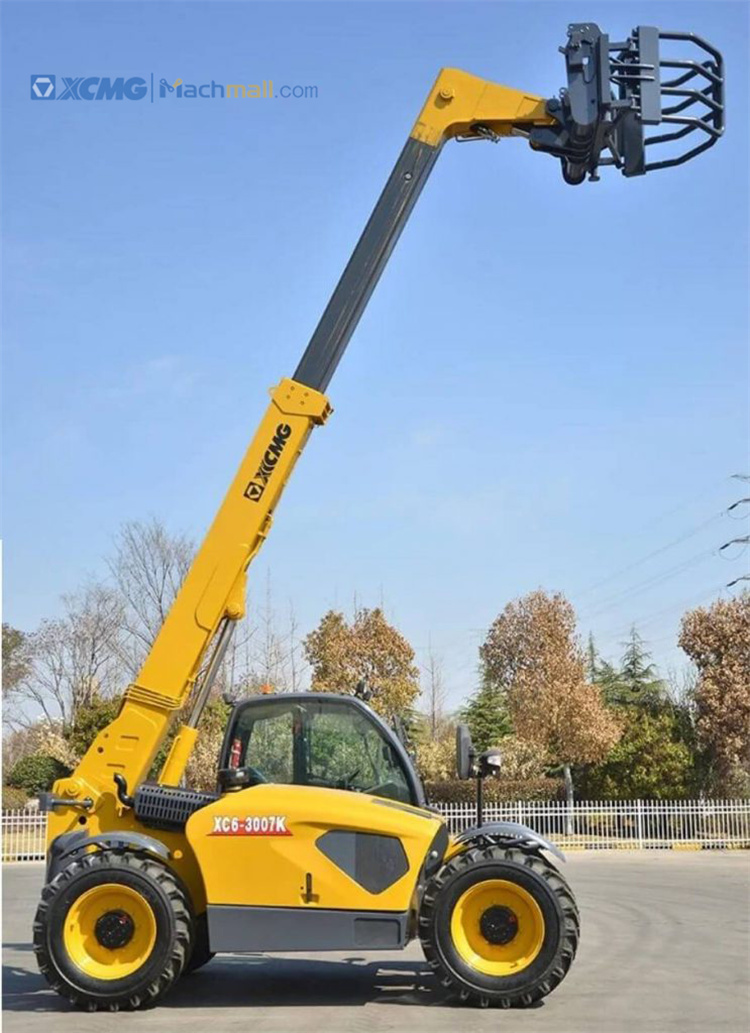

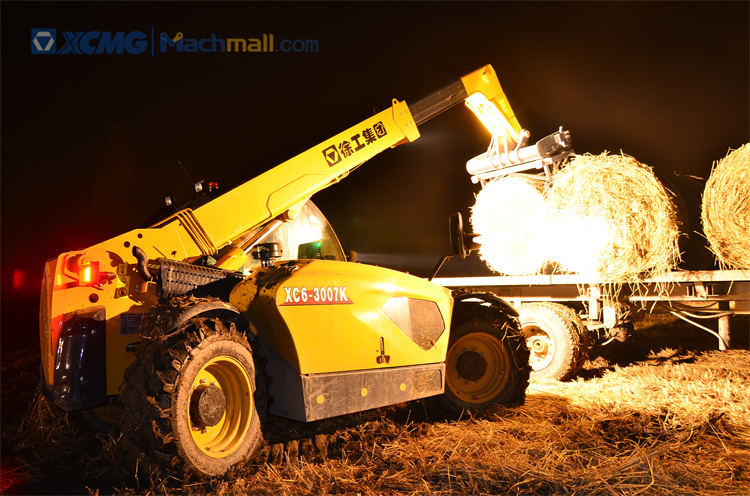

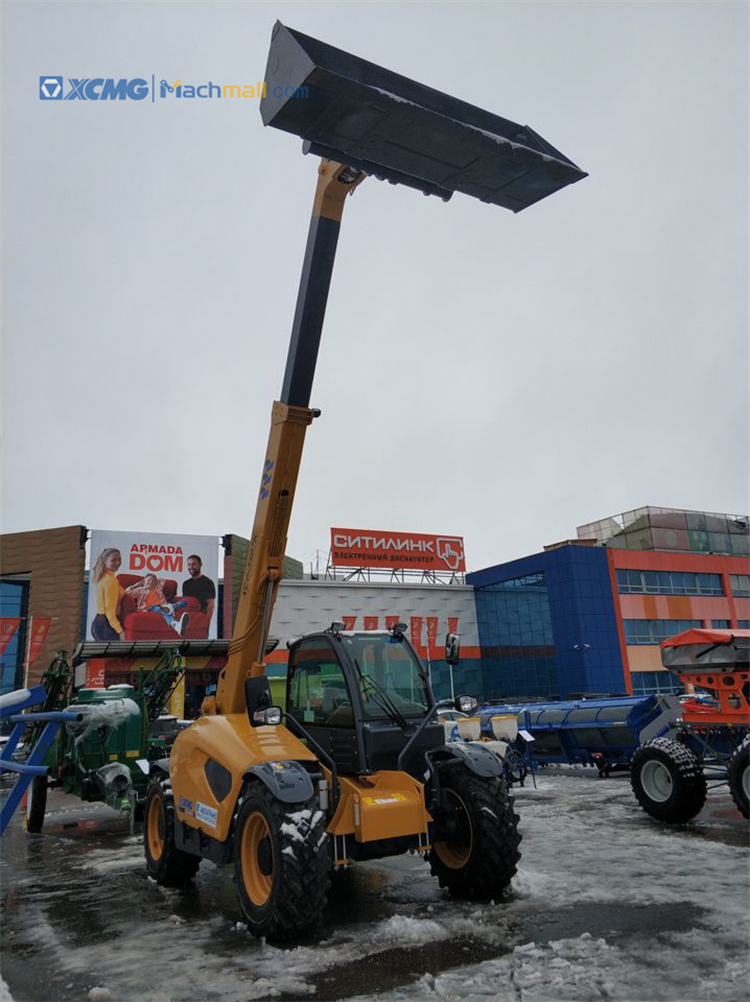

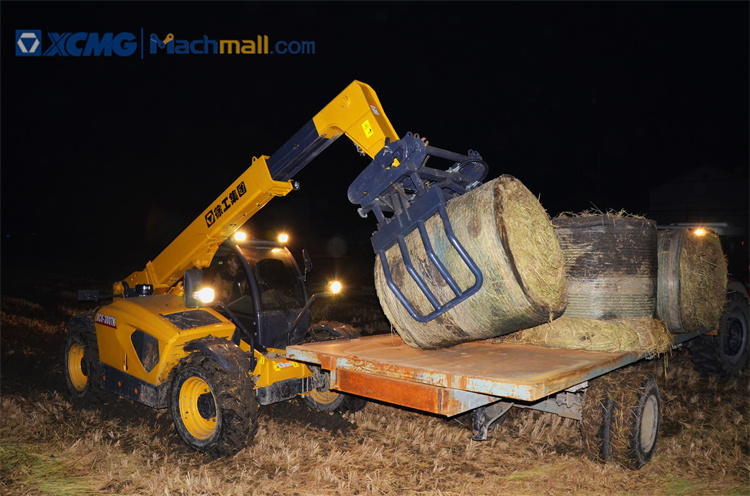

* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
|
Description |
Unit |
Parameter value |
|
Gross weight |
kg |
6990 |
|
Engine power |
kW |
90 |
|
Rated load |
kg |
3000 |
|
Effective load at maximum forward reach |
kg |
1250 |
|
Maximum lifting height |
mm |
6200 |
|
Maximum forward reach |
mm |
2990 |
|
Center distance of load |
mm |
500 |
|
Luffing angle |
° |
-3~65 |
|
Fork angle |
° |
-90~18 |
|
Maximum traction force |
kN |
≥55 |
|
Gradeability |
° |
≥25 |
|
Maximum traveling speed |
km/h |
40* |
|
Turning radius |
mm |
≤4020 |
|
Braking distance |
m |
≤8 |
|
Overall length |
mm |
4620 |
|
Overall width |
mm |
2355 |
|
Overall height |
mm |
2415 |
|
Wheelbase |
mm |
2850 |
|
Wheel tread |
mm |
1920 |
|
Fork length |
mm |
1000 |
|
Bale clamp diameter |
mm |
800-1800 |
