Shuoli 22KW 380V hydraulic wet concrete spraying machine HSP-900 price

$10000.00-$20000.00 1 / EA (Min. Order)
Model: HSP-900
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Shuoli 22KW 380V hydraulic wet concrete spraying machine HSP-900 price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Dimension(L*W*H):3110×1610×1710mm
  • Weight:2110kg
  • Power(W):22KW
  • Model Number:HSP-900
  • Brand Name:Shuo Li
  • Place of Origin:Jiangsu,China

Specifications

  • Weight:2110.000kg
  • Condition:New
  • Moving Type:Wheel
  • Production capacity:3-7m3h
  • Maximum system pressure:15mpa

Shuoli 22KW 380V hydraulic wet concrete spraying machine HSP-900 price

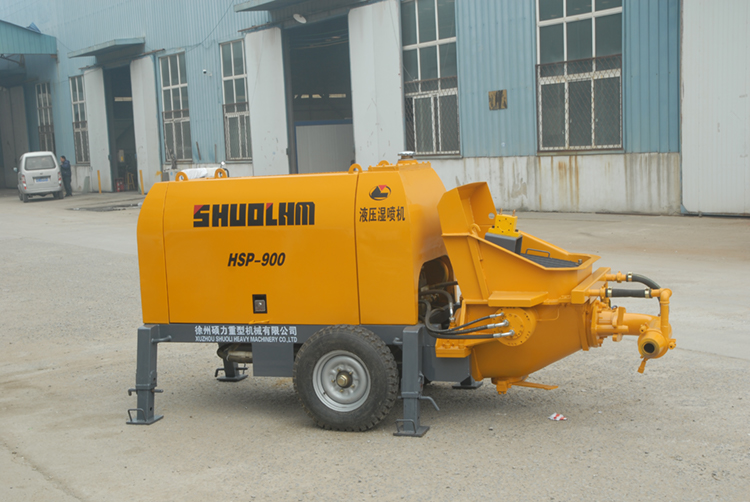

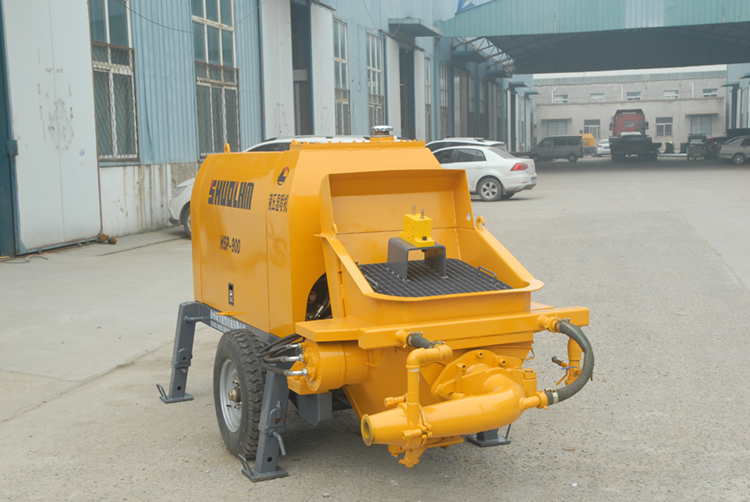

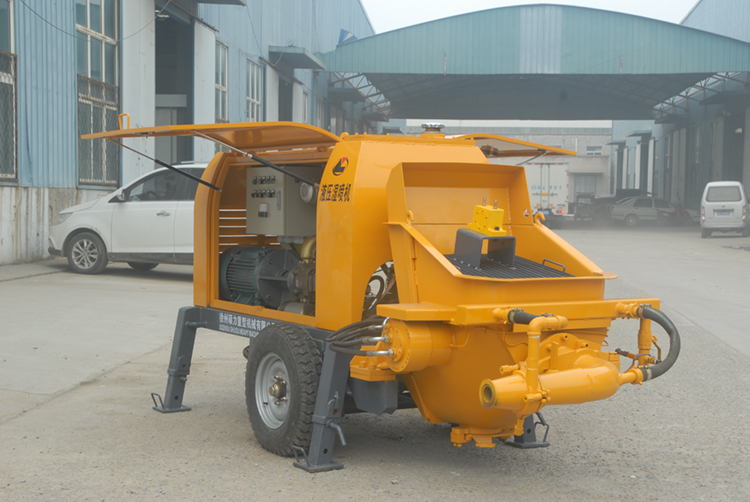

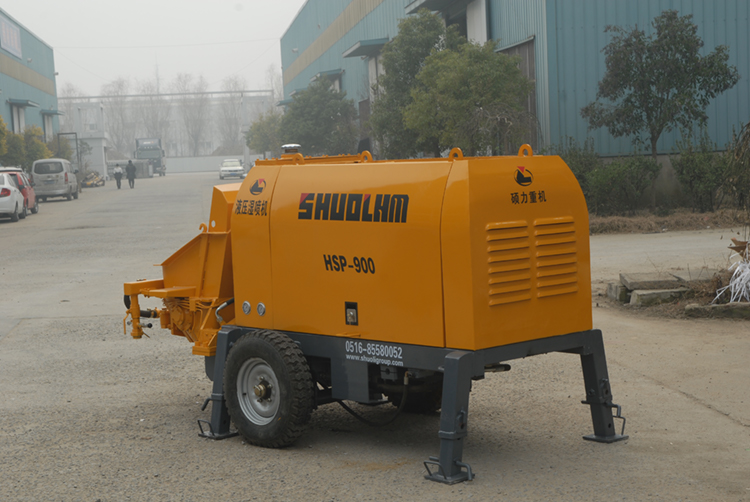

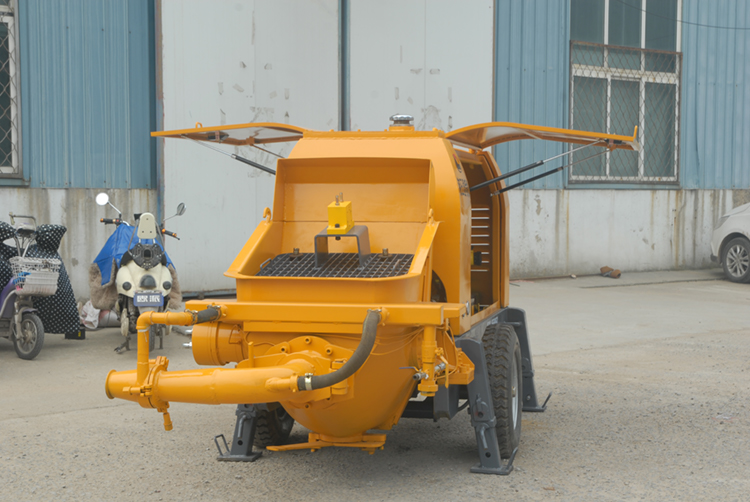

Shuoli 22KW 380V hydraulic wet concrete spraying machine HSP-900.



Shuoli 22KW 380V hydraulic wet concrete spraying machine HSP-900 is widely used in tunnel construction.



Performance characteristics:



1. Equipped wilh automatic utricabng system lle main seam parts adopt automatic lubrication, grease filing voh rne, injoction ,me automatic control, greatly extend the life of the vulnerable pats.



2. High eficiency: Le hydraulie pump type systemn reliability throughput and stability, Can be used to spray. filling, grouting pumping construction, etc.



3. Injection quantty adjustable variable Distor pump isLised in the main oil pump, jet speed can be adu sted freely.



4. Continuous ad ustabie accelerator content: can ba adjusted according to the quartity of shotcrete.



5. Product humanized design: the wire control handle,operation more convenient.

Shuoli 22KW 380V hydraulic wet concrete spraying machine HSP-900 price

Item

HSP900

HSP1000

HSP1200

HSP-1600

Production capacity

3-7m3h

7-10m3h

8-12m3h

12-16m3h

Maximum system pressure

15mpa

20mpa

20mpa

20mpa

Working wind pressure

0.4-0.6Mpa

0.4-0.6Mpa

0.4-0.6Mpa

0.4-0.6Mpa

Maximum aggregate diameter

15mm

15mm

15mm

15mm

Total Weight

2110kg

2200kg

2300kg

2450kg

Dimensions

3110×1610×1710mm

3210×1610×1710mm

3310×1610×1710mm

3410×1610x1710mm

Main motor power

22KW

22KW

22KW/30KW

30KW/37KW

Voltage level

380V

380V

380V

380V

Hopper volume

0.3m3

0.3m3

0.3m3

0.3m3

Concrete slump

12-18cm

12-18cm

12-18cm

12-18cm

Dust near the machine

≤6mg/m3

≤6mg/m3

≤6mg/m3

≤6mg/m3

Loading height

1.1m



1.1m



1.1m



1.1m



Fuel tank capacity

145L



200L



200L



200L



Rebound rate

≤10

≤10

≤10

≤10
