XCMG Official XP263 Road Roller for sale
Summary
- Weight:15000kg
- Dimension(L*W*H):5015x2530x3310mm
- Power(W):118kW
- Model Number:XP263
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:20%
- Type: Tire Roller
- Certification:CE/ISO9001
- Travel speed:0-17.5km/h
Specifications
- Weight:15000.000kg
- Condition:New
- Moving Type:Other
- Minimum working weight:15000kg
- Maximum working weight:26300kg
- Counterweight water:650kg
- Counterweight mass:10550kg
- Ground pressure:200-470kPa
- Minimum turning radius:7620mm
- Minimum ground clearance:300mm
- Compaction width:2360mm
- Tire overlao:65mm
- Tire specifications:13/80-20
- Engine Model:SC7H160.2G3
- Fuel consumption:≤235g/kw.h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

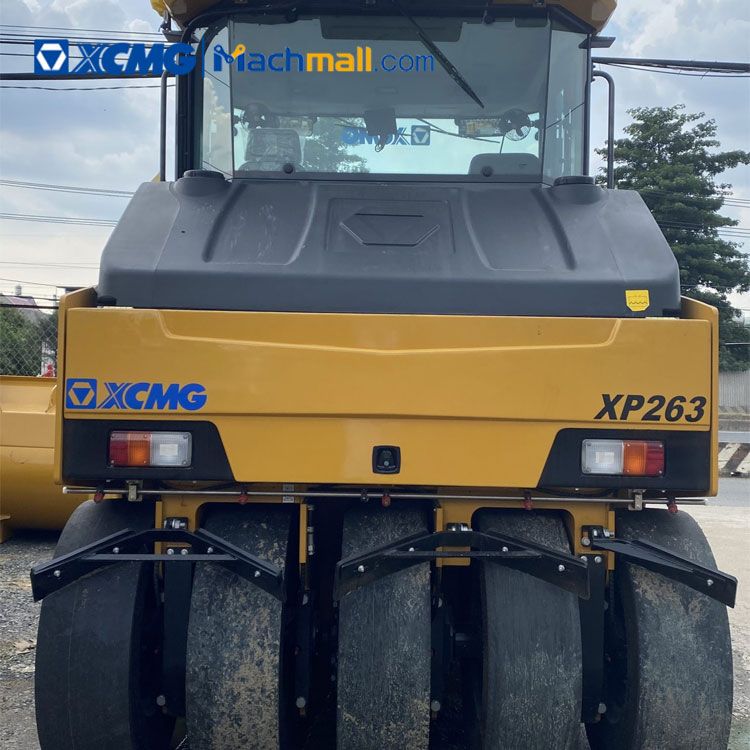

XP263 Tire Roller
XP263 tire roller is a self-propelled static roller, suitable for compacting asphalt pavement, foundation layer, sub-base layer and filling project, etc. It is an indispensable compaction equipment for road construction and water conservancy construction.
|
Description |
Unit |
Parameter value |
||
|
Minimum operating mass |
kg |
15000 |
||
|
Maximum operating mass |
kg |
26300 |
||
|
Mass of added heavy water |
kg |
650 |
||
|
Added mass |
kg |
10550 |
||
|
Compacting width |
mm |
2360 |
||
|
Overlap amount of tires |
mm |
65 |
||
|
Ground pressure |
kPa |
200-470 |
||
|
Minimum turning radius |
mm |
7620 |
||
|
Swing amount of front wheel |
mm |
±50 |
||
|
Minimum ground clearance |
mm |
300 |
||
|
Theoretical gradeability |
% |
20 |
||
|
Wheelbase |
mm |
3840 |
||
|
Driving speed |
I |
km/h |
0-8 |
|
|
II |
0-17 |
|||
|
Model of diesel engine |
|
SC7H160.2G3 |
||
|
Rated power |
kw |
118 |
||
|
Rated speed |
r/min |
1800 |
||
|
Rated fuel oil consumption |
g/kW·h |
≤235 |
||
|
Tire specification |
|
13/80-20 |
||
|
Tread pattern |
|
Smooth tread tire |
||
|
Number of tires |
|
4 front tires and 5 rear tires |
||
|
Length (standard for sprinkling water) |
mm |
4925 |
||
|
Length (optional for spraying oil) |
mm |
5015 |
||
|
Width |
mm |
2530 |
||
|
Height |
mm |
3370 |
||
|
Capacity of fuel tank L |
L |
170 |
||
|
Capacity of water tank L |
L |
650 |
||
