- Summary
- Details
- Weight:12000kg
- Dimension(L*W*H):5940*2300*3150mm
- Power(W):93kW
- Model Number:XS123
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:45%
- Travel Speed:0~10.4km/h
- Static Linear Pressure:308N/CM
- Type:Vibratory Roller
- Certification:CE/ISO9001
- weight:12000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other
- Rated speed:2200r/min
- Vibrational frequency:30/35Hz
- Exciting force:280/190KN
- Power:97/130kw/hp

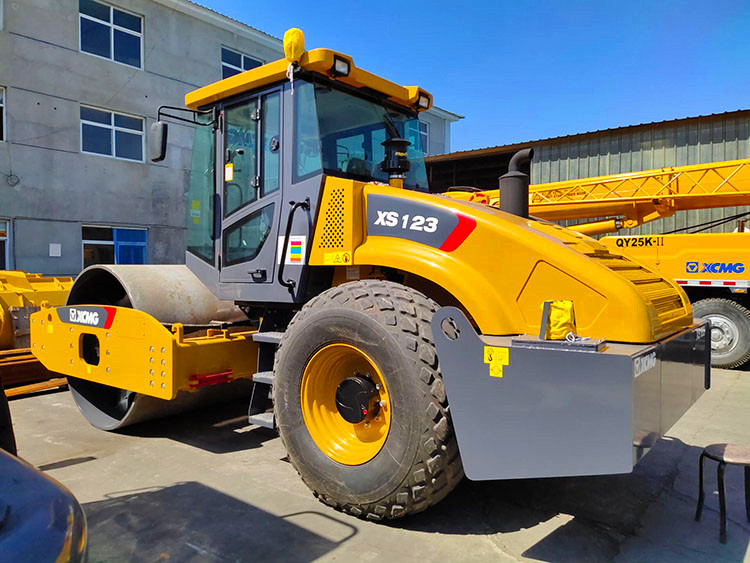

XCMG factory 12 ton vibratory roller compactor XS123.
XCMG roller compactor XS123 is medium, self-propelled, full-hydraulic vibratory roller, has the big exciting force, high compaction efficiency, good compaction quality.
XCMG roller compactor used mainly for compaction operation of base coarse, sub-base coarse, stone filling of high-speed railway, high-grade highway, airport, harbor, dams and industrial construction site.
Performance Characteristics:
1. Hydraulic system
* XCMG roller compactor XS123 adopt imported closed hydraulic drive system com- posed of variable displacement pump and motor to ensure better drive performance and gradeability.
* Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.
2. Cummins engine
XCMG roller compactor XS123 equipped with Cummins electrical control en- gine,water-cooled, turbocharged with big power reservation, low oil consumption, small noises. Europe stage III emission standard.
3. Braking system
Braking system is made up with drive axle, wet type brakes at front drum speed reducer, and brake of closed hydraulic system. It owns travelling,parking, and emergency braking functions to ensure driving safety.
|
Description |
Unit |
Parameter value |
|
|
Work weight |
kg |
12000 |
|
|
Front wheel mass distribution |
kg |
6700 |
|
|
Rear wheel mass distribution |
kg |
5300 |
|
|
Static linear pressure |
N/cm |
308 |
|
|
Vibration frequency |
Hz |
30/35 |
|
|
Nominal amplitude |
mm |
1.8/0.9 |
|
|
Exciting force |
kN |
280/190 |
|
|
Speed range |
km/h |
0-10.4 |
|
|
Wheelbase |
mm |
3010 |
|
|
Compaction width |
mm |
2130 |
|
|
Theoretical gradeability |
% |
45 |
|
|
Minimum turning radius |
mm |
6800 |
|
|
Vibratory drum diameter |
mm |
1523 |
|
|
Minimum ground clearance |
mm |
417 |
|
|
Engine |
Rated speed |
r/min |
2200 |
|
|
Rated power |
kW |
93 |
|
Dimensions |
mm |
5940×2300×3150 |
|
