XCMG factory 47 ton excavators XE470D China heavy crawler excavator machine price

View All >

Model： XE470D

Engine： Cummins

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG factory 47 ton excavators XE470D China heavy crawler excavator machine price

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XE470D

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Rated Speed

Max Digging Radius

Machine Weight

Maximum Digging Depth

Maximum Digging Height

Bucket capacity

Operating Weight

Model Number

Brand Name

Place of Origin

Engineering & Construction Machinery

XE470D

2000rpm

10855mm

46900kg

7000mm

9855mm

2.2~2.5m3

46900kg

XE470D

XCMG

Jiangsu, China

+ Add a Product

Summary

Rated Speed:2000rpm
Max Digging Radius:10855mm
Machine Weight:46900kg
Maximum Digging Depth:7000mm
Maximum Digging Height:9855mm
Bucket capacity:2.2~2.5m3
Operating Weight:46900kg
Model Number:XE470D
Brand Name:XCMG
Place of Origin:Jiangsu, China

Specifications

Weight:46900.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG factory 47 ton excavators XE470D China heavy crawler excavator machine price

XCMG factory 47 ton excavators XE470D China heavy crawler excavator machine.

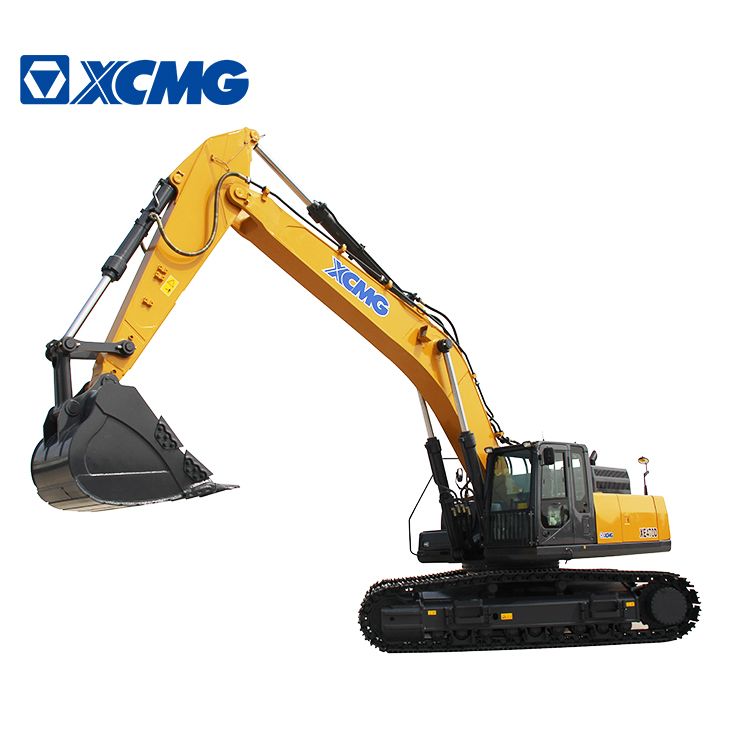

XE470D hydraulic excavator is one of the leading models of large excavators launched by XCMG excavator department. The product integrates the valuable experience gained by XCMG from years of research and development of excavator products, and adopts advanced design and manufacturing methods. Meanwhile, the product adheres to the design concept of "high efficiency, high safety, low carbon and environmental protection", and has perfect mine operation ability.

1. Ecological and economical
* Professional customized engine greatly improves fuel economy.
* Hydraulic oil flow regeneration system ensures optimum machine performance.
* Independent cooling system automatically adjusts fan speed.

2. Multiple applications
* Different boom, arm and bucket combinations can adapt to as many working conditions as possible.
* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismantling.
* Instantaneous pressurization function copes with complex working conditions.

XCMG factory 47 ton excavators XE470D China heavy crawler excavator machine price

Model		Unit	XE470D
Operating weight		Kg	46900
Bucket capacity		m³	2.2-2.5
Engine	Model engine	/	QSM11-335
	Injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	274/1800
	Maximum torque/speed	N.m/rpm	1790/1400
	Displacement	L	11
Main performance	Travel speed	km/h	5.4/3.2
	Swing speed	r/min	9
	Gradeability	°	35
	Ground pressure	kPa	83
	Bucket digging force	kN	287
	Arm digging force	kN	221
	Maximum tractive force	kN	338
Hydraulic system	Rated flow of main pump	L/min	2×360
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	28.4
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	725
	Hydraulic tank capacity	L	430
	Engine oil capacity	L	38
Appearance size	Overall length	mm	11670
	Overall width	mm	3582
	Overall height	mm	3890
	Width of platform	mm	2995
	Total width of chassis	mm	3582
	Track shoe width	mm	600
	Wheel base of crawler	mm	4292
	Track gauge	mm	2750
	Counterweight clearance	mm	1324
	Min. ground clearance	mm	519
Working range	Max. digging height	mm	9855
	Max. dumping height	mm	6890
	Max. digging depth	mm	7000
	Max. vertical wall digging depth	mm	4500
	Max. digging radius	mm	10855
	Min. swing radius	mm	4580
Standard	Length of boom	mm	6670
	Length of arm	mm	2900
	Bucket capacity	m³	2.5
