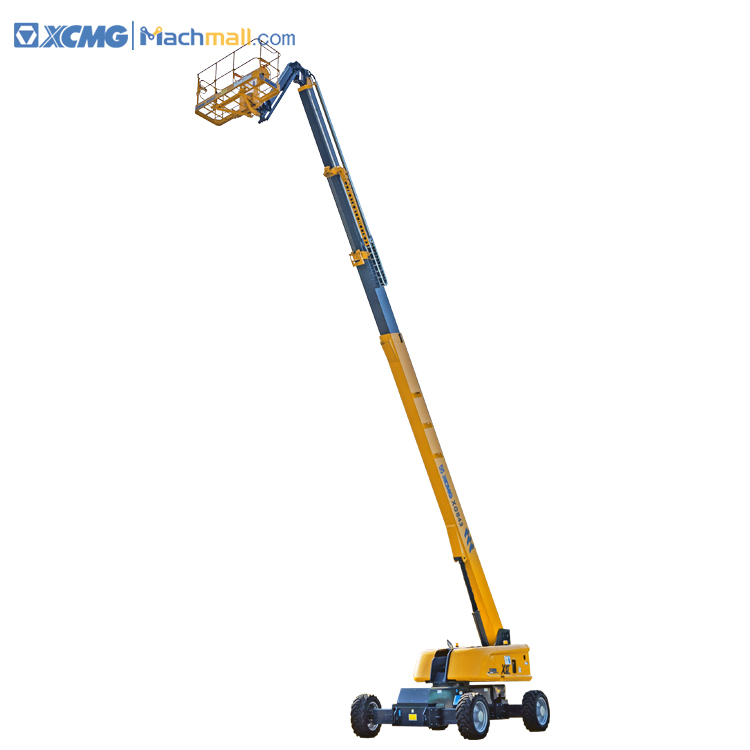

XCMG new self-propelled mobile elevating work platform XGS43 China telescopic boom lifts price
Summary
- Weight:22000kg
- Overall Dimension:14900*2490*3050mm
- Table Size:2400*900mm
- Max Lifting Height:43m
- Rated Loading Capacity:230kg(unrestricted)/450kg (restricted)
- Lift Mechanism:Telescoping boom lift
- Model Number:XGS43
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:ISO
Specifications
- Weight:22000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

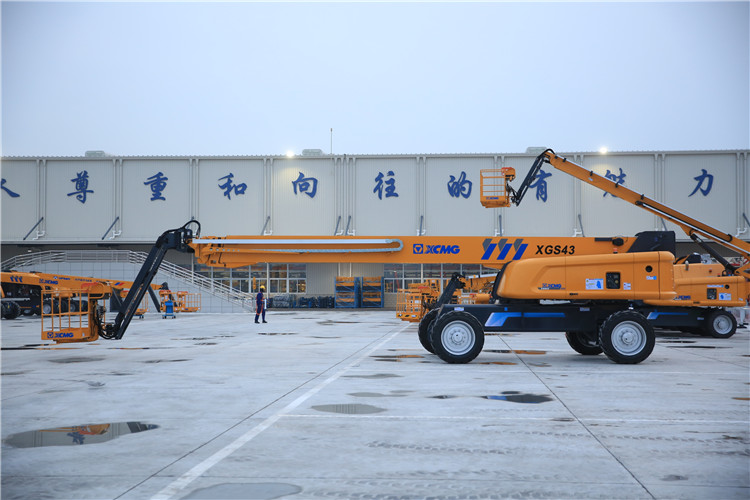

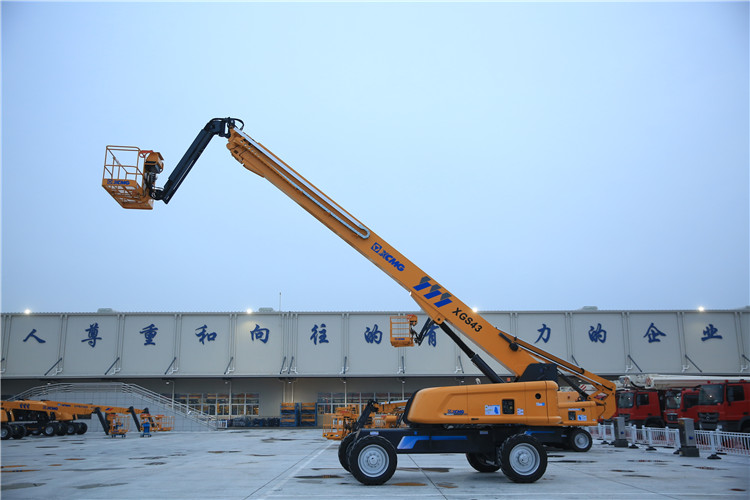

XCMG new self-propelled
mobile elevating work platform XGS43 China telescopic boom lifts.
XGS43 self-propelled Telescopic Mobile Elevating Work Platform, 43.3m
operation height, 450kg carry capacity, maximum 40% climbing capacity, dual
operation amplitude curves; both the operation height and amplitude are
advanced in the industry; additional 2.44m swing crank arm with 130° elevation
angle and 75° swing range, a wider operation area; when the axles are
retracted, the crank arm can swing to 160°, which reduces the machine size for
easy transferring; with outstanding operation performance and high carrying
capacity, the machine can satisfying users' demands from building construction,
bridge and equipment maintenance, shipyard and petrochemical industry and users
from rental service.
|
Item |
Unit |
Parameter |
|
Overall length (Transport status) |
mm |
14.9 (12.0) |
|
Overall width (With shaft retracted/extended) |
mm |
2490/3800 |
|
Overall height |
mm |
3050 |
|
Wheelbase |
mm |
3800 |
|
Max. working height |
m |
43.3 |
|
Max. platform height |
m |
41.3 |
|
Max. working range |
m |
25 |
|
Max. load capacity |
kg |
230
(unrestricted)/450 (restricted) |
|
Luffing range of boom |
° |
-1 ~ +75 |
|
Slewing angle of turntable |
° |
360° |
|
Max tail swing (With axle retracted/extended) |
mm |
2390/1725 |
|
Platform size |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
22000 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius (With axle retracted/extended) |
m |
8.2/10.8(Two-wheel
steering) |
|
Min. ground clearance |
mm |
320 |
|
Max. grade ability |
% |
40 |
|
Tire specification |
- |
445/50D710 |
|
Engine model |
- |
Perkins
1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/(2400) |
