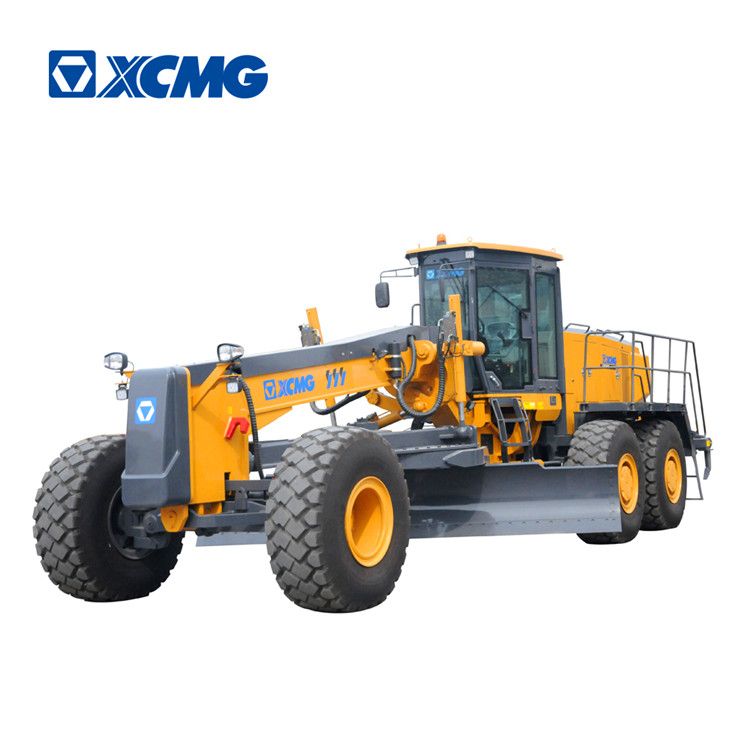

XCMG official Chinese 350HP mining motor graders GR3505

  • XCMG official Chinese 350HP mining motor graders GR3505
  • XCMG official Chinese 350HP mining motor graders GR3505
  • XCMG official Chinese 350HP mining motor graders GR3505
  • XCMG official Chinese 350HP mining motor graders GR3505
  • XCMG official Chinese 350HP mining motor graders GR3505
  • XCMG official Chinese 350HP mining motor graders GR3505

Share:
XCMG official Chinese 350HP mining motor graders GR3505
FOB for Road Mach Reference Price:Get Latest Price
$10000.00-$100000.00 1 / EA (Min. Order)
Model: GR3505
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official Chinese 350HP mining motor graders GR3505
XCMG official Chinese 350HP mining motor graders GR3505
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
Details
  • weight:30000.000kg
  • Rated power/speed:261kW/2100rpm
  • Traction force (f=0.75):165kN
  • Min.turing radius:8.9m
  • Dimension(L*W*H):11250*3180*3820mm
  • Ground clearance (front axle) :500mm
  • Forward Speed:45km/h
  • Reverse Speed:30km/h

XCMG official Chinese 350HP mining motor graders GR3505

XCMG official Chinese 350HP mining motor graders GR3505.

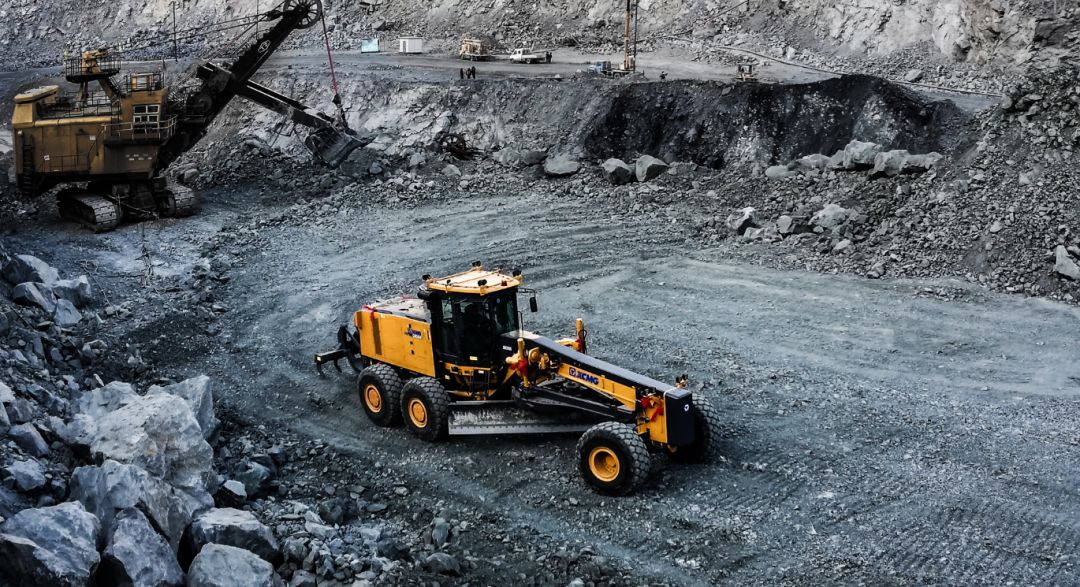

The motor graders GR3505 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Advantages and Highlights:


1. The friction-disc worm gearbox with overload protection is developed for the mining heavy load condition, which can slip automatically and protect the safety of the machine and personal.

2. Load sensing hydraulic system is equipped with variable piston pump and load sensing multi-way valve, in order to improve operation comfort, the pilot independent electrical proportional valve, the main directional valve and relief valve are proportional valves.

3. The service brake is a double-loop hydraulic braking system.


4. For serious environment condition, to analyze the matching analysis of the cooling system, conduct flow field analysis to power compartment machine, reasonable layout of the cooling holes, seal the clearance around the radiator, form the"chimney effect" of air duct design, reduce the hot air vortex. At the same time, the optimized hood design, spray anti-vertigo paint, beautiful shape.

5. The same time using ROPS&FOPS cabin to meet ISO standard. Equipped with air conditioning, adjustable suspension seat, equipped with wipers and defrosting vents to improve the comfort of operation.

6. Spacious cabin design, three-dimensional air duct, good driving experience. Double handle operation can be selected on the handle operation, reducing the labor intensity by about 80%.

XCMG official Chinese 350HP mining motor graders GR3505

Item
GR3505
Basic parameters
Engine model
QSM 11
Rated power/speed
261kW/2100rpm
Overall dimension (standard)
11250X3180X3820
Total weight (standard)
30000kg
Tire specification
23.5R25
Ground clearance (front axle)
500mm
Tread
2580mm
Space of front and rear axles
7200mm
Space of middle and rear wheels
1960mm
Performance parameters
Forward velocity
5、8.5、13、20、30、45km/h
Reverse speed
5、13、30km/h
Tractive effort f=0.75
165kN
Maximum gradeability
25%
Tire inflation pressure
320kPa
Working system pressure
25MPa
Working parameters
Maximum steering angle of front wheel
±45°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
±15°
Maximum steering angle of frame
±22°
Minimum turning radius
8.9m
Scrape knife
Maximum lift height
450mm
Maximum cutting depth
500mm
Maximum tilt angle
65°
Cutting angle
28°—70°
Angle of revolution
360°
Length & chord height
4877x787mm
Oil filling amount
Coolant
50L
Fuel tank
550L
Engine
37L
Transmission
38L
Balancing box
186L
Drive axle
106L
Hydraulic oil
310L

XCMG official Chinese 350HP mining motor graders GR3505XCMG official Chinese 350HP mining motor graders GR3505XCMG official Chinese 350HP mining motor graders GR3505XCMG official Chinese 350HP mining motor graders GR3505XCMG official Chinese 350HP mining motor graders GR3505XCMG official Chinese 350HP mining motor graders GR3505
