XCMG 339KW 550HP motor grader GR5505 mining grader for sale

  • XCMG 339KW 550HP motor grader GR5505 mining grader for sale
  • XCMG 339KW 550HP motor grader GR5505 mining grader for sale
  • XCMG 339KW 550HP motor grader GR5505 mining grader for sale
  • XCMG 339KW 550HP motor grader GR5505 mining grader for sale
  • XCMG 339KW 550HP motor grader GR5505 mining grader for sale
  • XCMG 339KW 550HP motor grader GR5505 mining grader for sale
  • XCMG 339KW 550HP motor grader GR5505 mining grader for sale

Share:
XCMG 339KW 550HP motor grader GR5505 mining grader for sale
FOB for Road Mach Reference Price:Get Latest Price
$900000.00-$1300000.00 1 / EA (Min. Order)
Model: GR5505
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 339KW 550HP motor grader GR5505 mining grader for sale
XCMG 339KW 550HP motor grader GR5505 mining grader for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
Details
  • weight:63000.000kg
  • Rated power/speed:399kw/2100rpm
  • Traction force (f=0.75):380kN
  • Min.turing radius:7.3m
  • Dimension(L*W*H):14300*4200*4600mm
  • Forward Speed:42.7km/h
  • Reverse Speed:30km/h

XCMG 339KW 550HP motor grader GR5505 mining grader for sale

XCMG 240HP GR2403 wheel motor graders equipment.

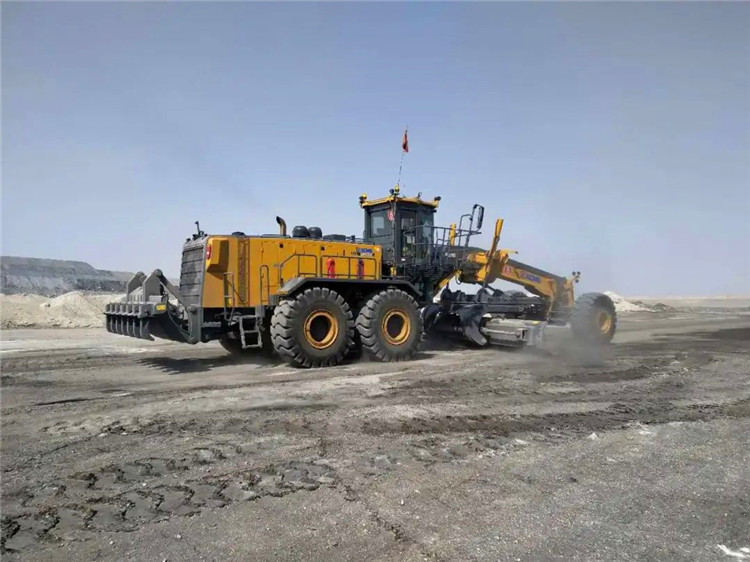

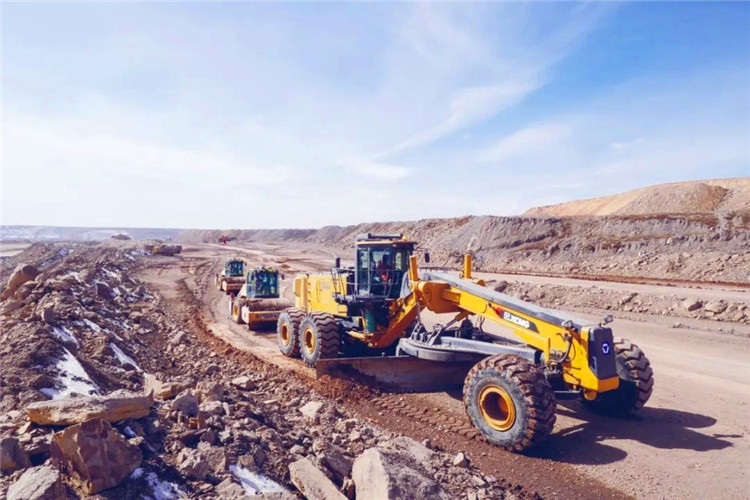

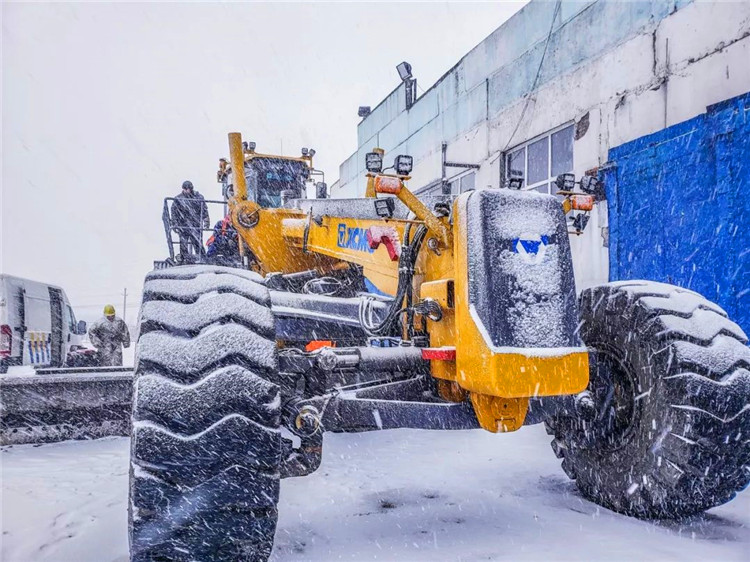

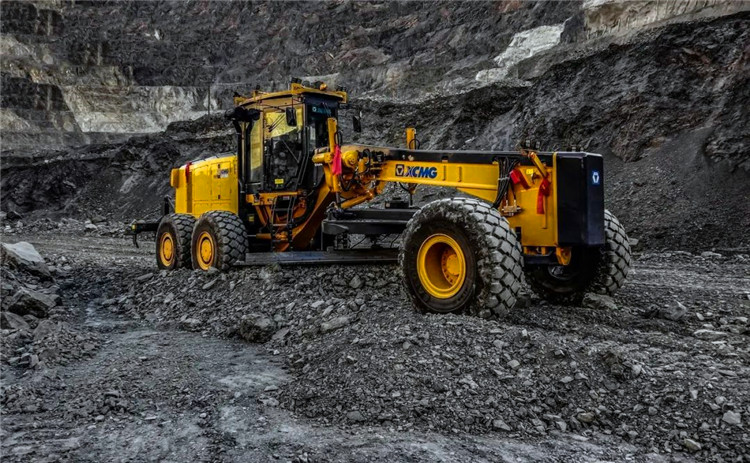

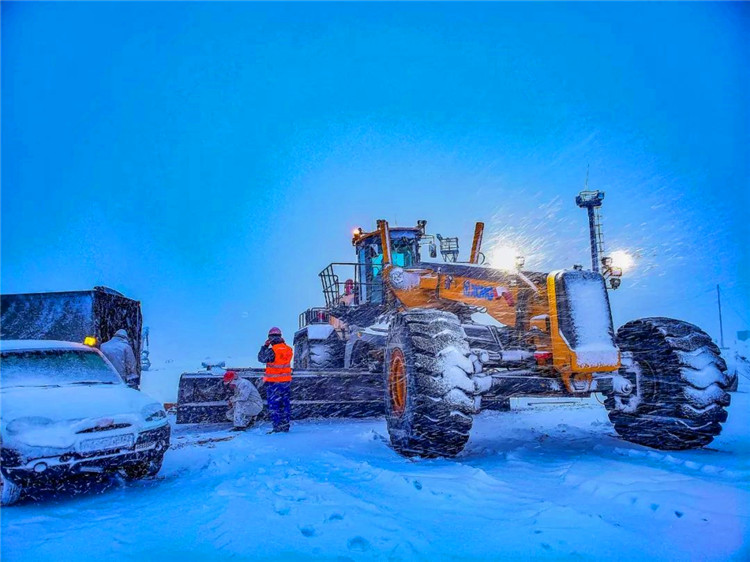

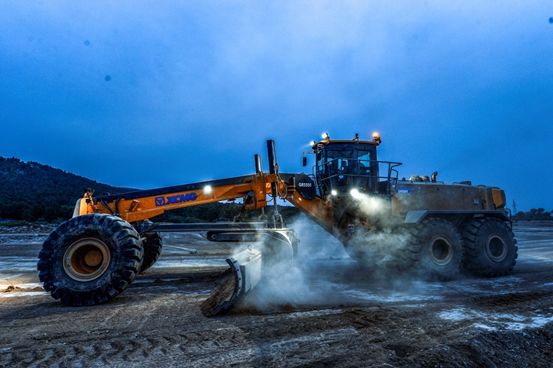

The mining motor grader GR5505 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

1. The friction-disc worm gearbox with overload protection is developed for the mining heavy load condition, which can slip automatically and protect the safety of the machine and personal.

2. Load sensing hydraulic system is equipped with variable piston pump and load sensing multi-way valve, in order to improve operation comfort, the pilot independent electrical proportional valve, the main directional valve and relief valve are proportional valves.

3.
For serious environment condition, to analyze the matching analysis of the cooling system, conduct flow field analysis to power compartment machine, reasonable layout of the cooling holes, seal the clearance around the radiator, form the"chimney effect" of air duct design, reduce the hot air vortex. At the same time, the optimized hood design, spray anti-vertigo paint, beautiful shape.


4. The same time using ROPS&FOPS cabin to meet ISO standard. Equipped with air conditioning, adjustable suspension seat, equipped with wipers and defrosting vents to improve the comfort of operation.

5. Spacious cabin design, three-dimensional air duct, good driving experience. Double handle operation can be selected on the handle operation, reducing the labor intensity by about 80%.

XCMG 339KW 550HP motor grader GR5505 mining grader for sale

Item

GR2403

Basic parameters

Engine model

QSB6.7

Rated power/speed

178kW/2000rpm

Overall dimension (standard)

8970x2625x3420

Total weight (standard)

17000 kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Space of front and rear axles

6219 mm

Space of middle and rear wheels

1538 mm

Performance
parameters

Forward velocity

5,8,11,19,23,38km/h

Reverse speed

5,11,23km/h

Tractive effort f=0.75

87kN

Maximum gradeability

25%

Tire inflation pressure

260kPa

Working system pressure

20MPa

Transmission pressure

1.3-1.8Mpa

Working parameters

Maximum steering angle of front wheel

±48°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

forwards15°, Reverse15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

400mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°-70°

Angle of revolution

360°

Length & chord height

3965x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Equilibrium box

46L

Drive alex

28L

Hydraulic oil

110L

XCMG 339KW 550HP motor grader GR5505 mining grader for saleXCMG 339KW 550HP motor grader GR5505 mining grader for saleXCMG 339KW 550HP motor grader GR5505 mining grader for saleXCMG 339KW 550HP motor grader GR5505 mining grader for saleXCMG 339KW 550HP motor grader GR5505 mining grader for saleXCMG 339KW 550HP motor grader GR5505 mining grader for saleXCMG 339KW 550HP motor grader GR5505 mining grader for sale
