XCMG official 300HP GR3005 mining motor graders machine price

$300000.00-$400000.00 1 / EA (Min. Order)
Model: GR3005
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG official 300HP GR3005 mining motor graders machine price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

Specifications

  • Weight:28000.000kg
  • Dimension(L*W*H):10615*3280*3960mm
  • Ground Clearance:450mm
  • Rated Power/Speed:242kw/2100rpm
  • Maximum Gradeability:30%
  • Tractive effort(f=0.75):140kN

XCMG official 300HP GR3005 mining motor graders machine price

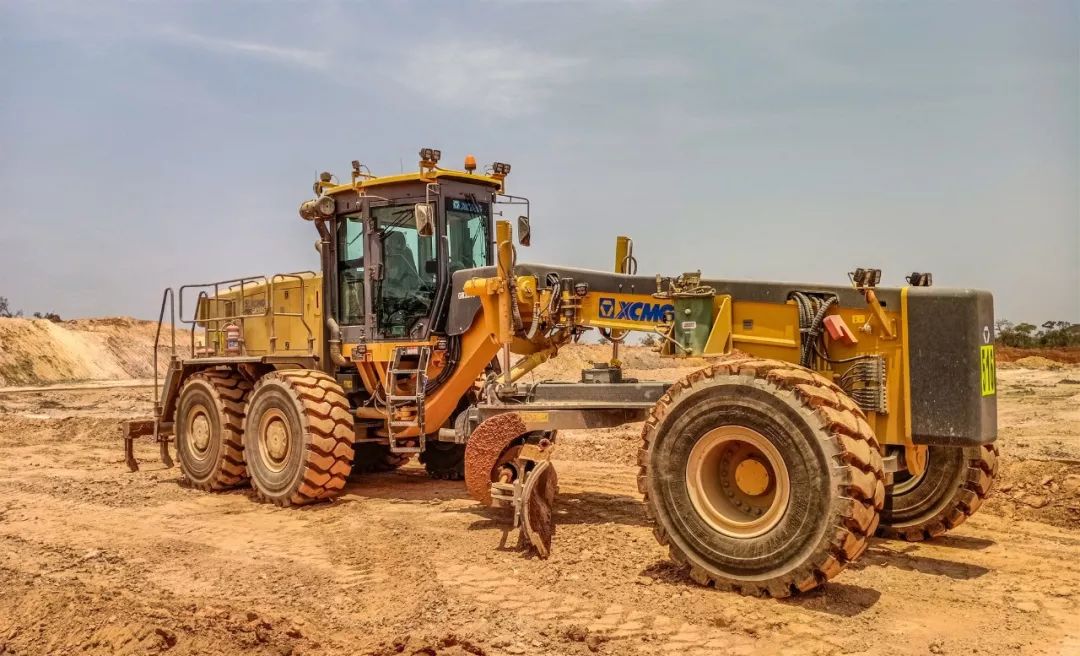

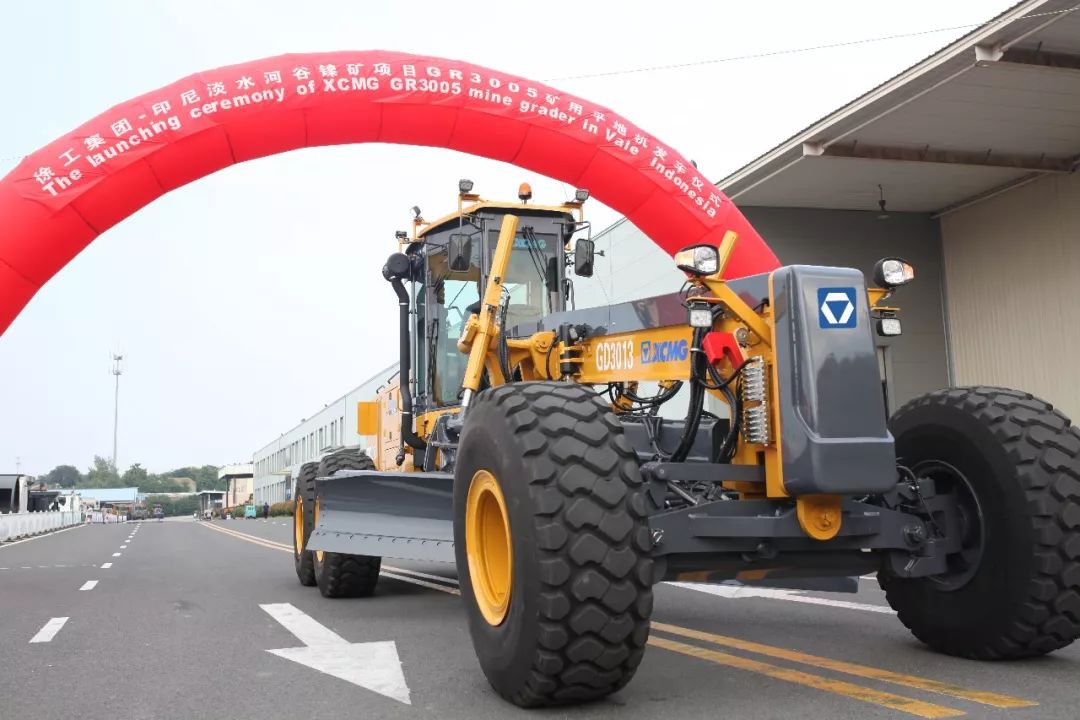

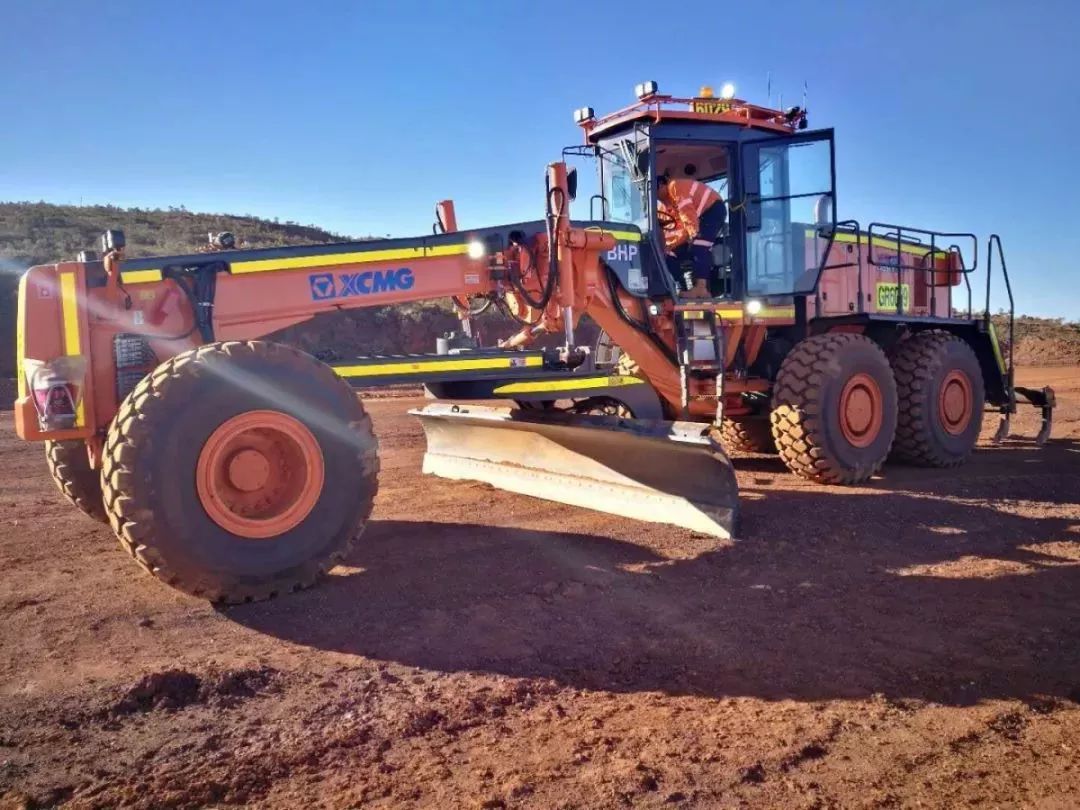

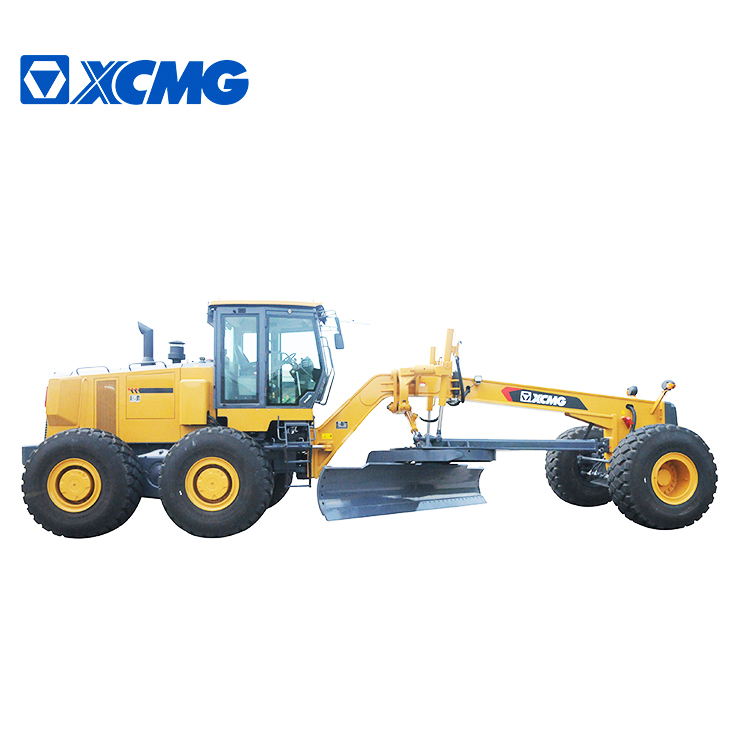

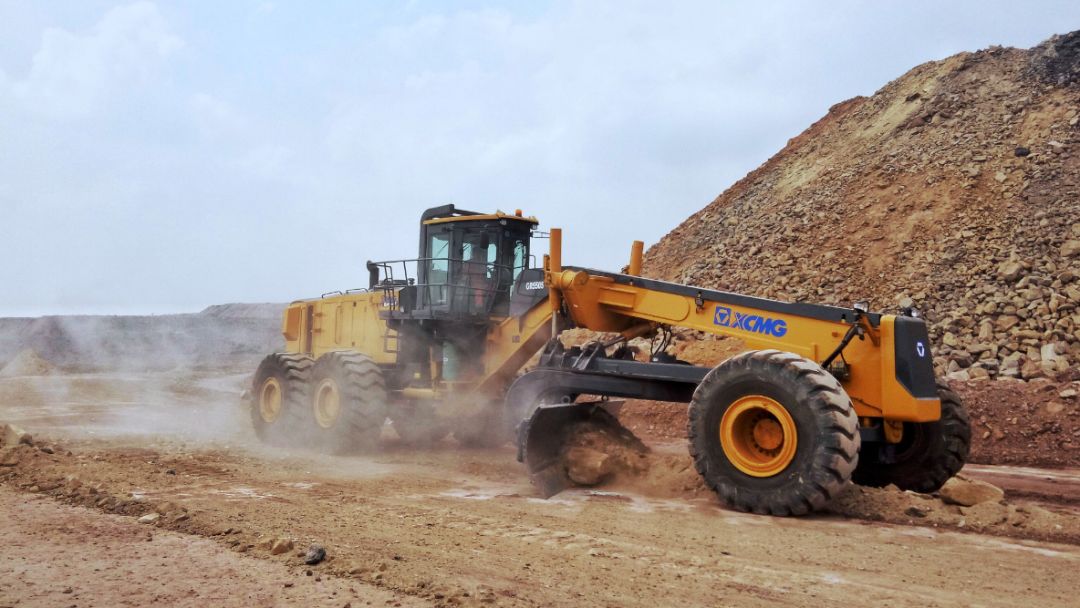

XCMG official 300HP GR3005 mining motor graders machine.



The mining motor graders GR3005 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

1. The friction-disc worm gearbox with overload protection is developed for the mining heavy load condition, which can slip automatically and protect the safety of the machine and personal.

2. Load sensing hydraulic system is equipped with variable piston pump and load sensing multi-way valve, in order to improve operation comfort, the pilot independent electrical proportional valve, the main directional valve and relief valve are proportional valves.

3. The service brake is a double-loop hydraulic braking system.


4. The same time using ROPS&FOPS cabin to meet ISO standard. Equipped with air conditioning, adjustable suspension seat, equipped with wipers and defrosting vents to improve the comfort of operation.

5. Spacious cabin design, three-dimensional air duct, good driving experience. Double handle operation can be selected on the handle operation, reducing the labor intensity by about 80%.

XCMG official 300HP GR3005 mining motor graders machine price

Item
GR3005
Basic parameters
Engine model
QSL8.9-C325-30
Rated power/speed
242kW/2100rpm
Overall dimension (standard)
10615x3280x3960mm
Total weight (standard)
28000kg
Tire specification
20.5-25
Ground clearance (front axle)
450mm
Space of front and rear axles
7617mm
Space of middle and rear wheels
1960mm
Performance
parameters
Forward velocity
5,8,11,19,23,40km/h
Reverse speed
5,11,23km/h
Tractive effort f=0.75
140kN
Maximum gradeability
30%
Tire inflation pressure
330kPa
Working system pressure
22MPa
Transmission pressure
/
Working parameters
Maximum steering angle of front wheel
±45°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
forwards15°, Reverse15°
Maximum steering angle of frame
±23°
Minimum turning radius
9m
Scrape knife
Maximum lift height
419mm
Maximum cutting depth
438mm
Maximum tilt angle
90°
Cutting angle
40°
Angle of revolution
360°
Length & chord height
4572x686mm
Oil filling amount
Coolant
50L
Fuel tank
480L
Engine
24L
Transmission
38L
Equilibrium box
186L
Drive alex
106L
Hydraulic oil
210L
